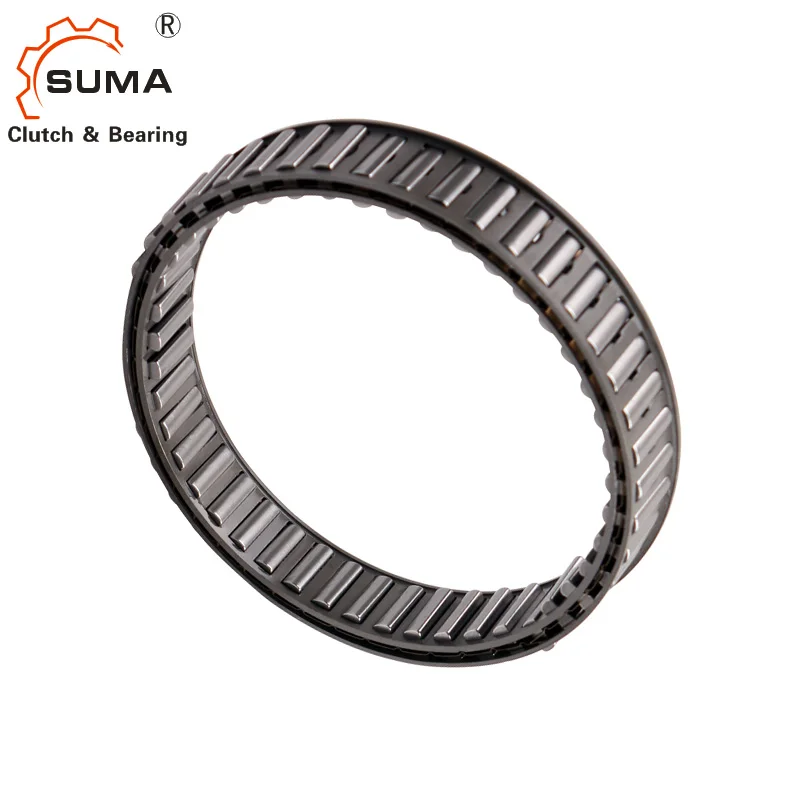

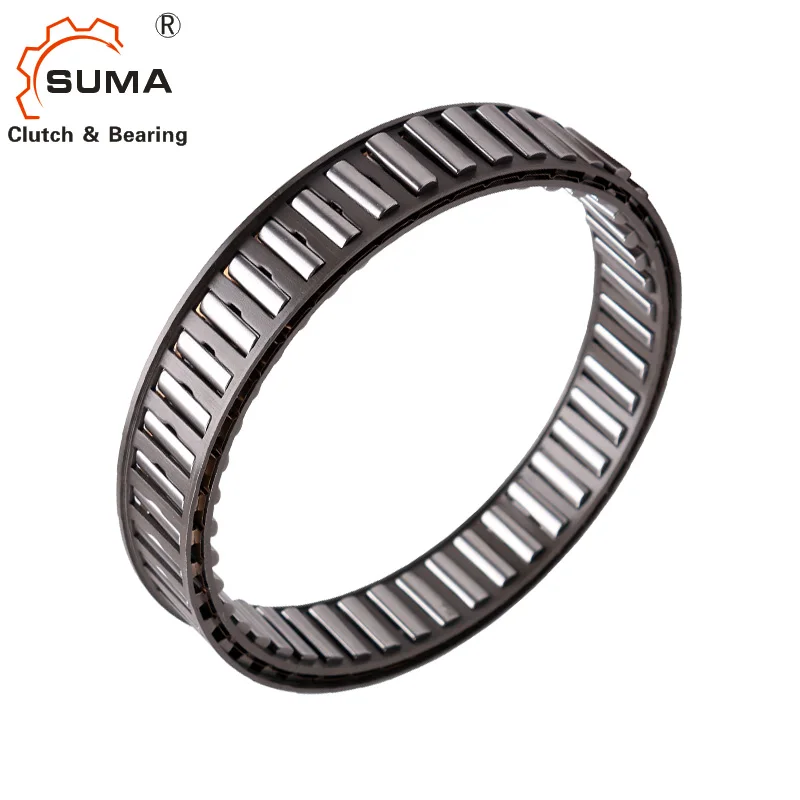

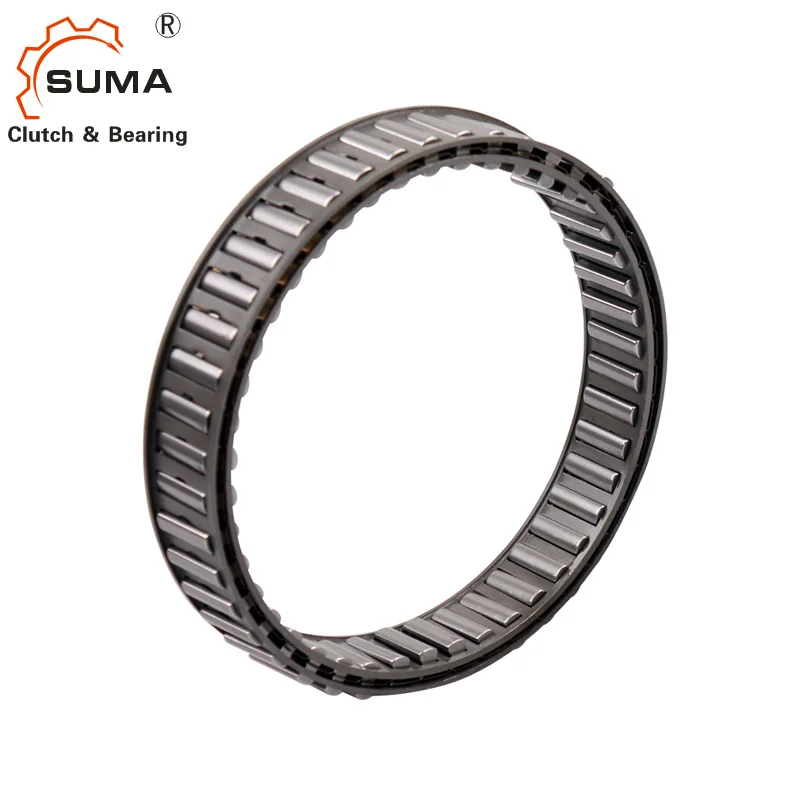

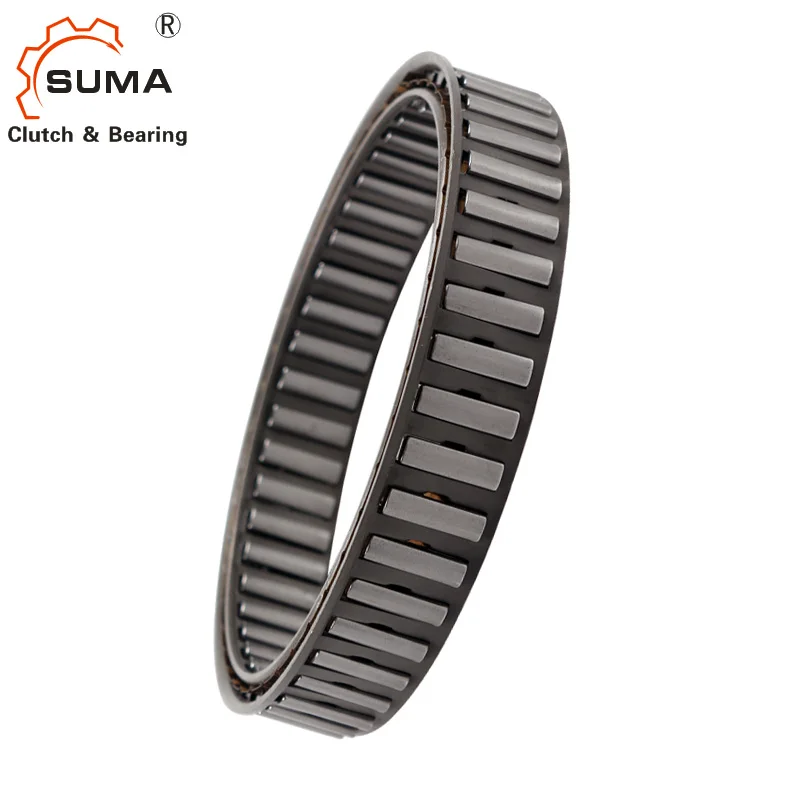

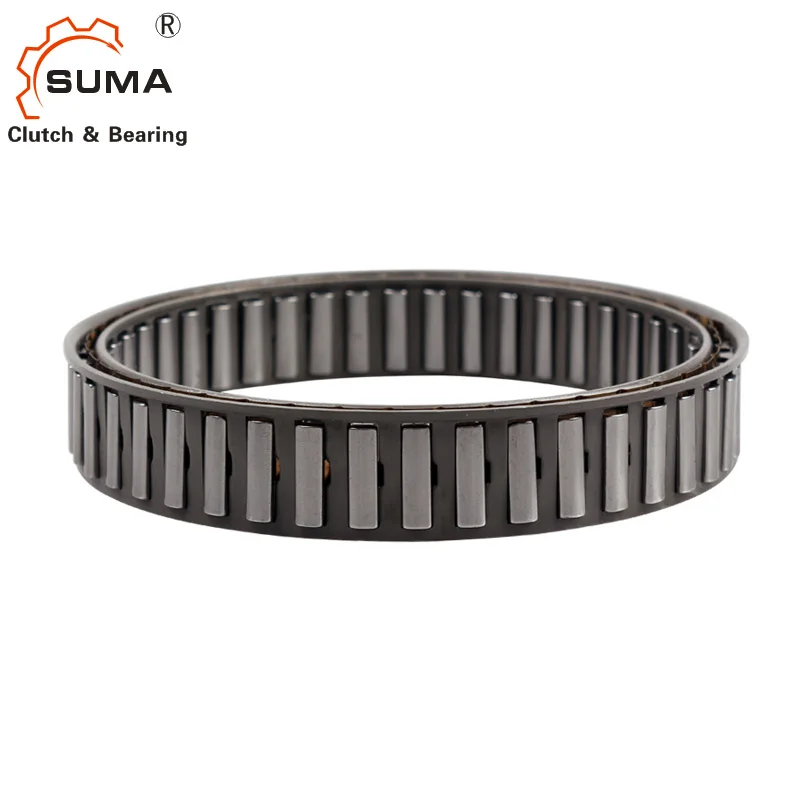

BWX 1310003 Cage Freewheel Sprag Bearing Backstops

Product Description

DC12388C-1



Data Sheet

Item                             BWX 1310003
TypeDisengaging
Outer Diameter66.383 mm
Bore Size49.721 mm
Norminal Torque310 Nm
Weight0.09 kg
Sprags Quantity22
Precision RateP6



Cage Freewheels BWX

for assembly with inner and outer ring

with sprags

Features

Cage Freewheels BWX are sprag freewheels to be installed between customer-supplied inner

and outer rings. The freewheels BWX are used as:

  1. Backstops
  2.  Overrunning Clutches
  3.  Indexing Freewheels

Nominal torques up to 4 900 Nm.


Different Freewheel Sizes You May Choose

Freewheel SizeTypeNominal t orqueJDBKSprags QuantityDrag stripsBrake clipsDesign as ill.Weight
MN+0,008±0,013 mmmmmmQuantityQuantitykg
Nm-0,005 mm
BWX133590ADisengaging6322,22538,88710,044,012  109-20,03
BWX13143AEngaging12027,76744,42513,551,014  109-20,06
BWX133392Disengaging28038,09254,75016,071,018  109-30,09
BWX1310145Disengaging18041,27557,93713,574,214 3109-20,07
BWX132909ADisengaging36044,45061,11216,078,52023109-20,10
BWX133339Disengaging31049,72166,38313,585,02224109-20,09
BWX 1310003Disengaging31049,72166,38313,585,022 4109-20,09
BWX137222Engaging57049,72166,38319,085,022  109-20,12
BWX1310445Disengaging40054,76571,42713,591,724  109-20,09
BWX1310172Engaging54054,76571,42716,091,724  109-20,12
BWX1310226Disengaging52054,76571,42716,091,72424109-20,12
BWX136709Engaging77054,76571,42721,091,724310109-20,16
BWX1310147Disengaging1 00054,76571,42725,491,72438109-20,20
BWX136324Engaging60057,76074,42719,095,026  109-30,14
BWX1310080Disengaging67072,21788,88213,5115,030 4109-20,12
BWX13168Engaging1 30072,21788,88221,0115,030  109-30,20
BWX134012Engaging1 30072,21788,88221,0115,030410109-30,20
BWX137322Disengaging2 000796,98296,36325,4124,034512109-20,28
BWX138316Disengaging2 960835,972102,59625,4131,634512109-20,30
BWX13261A1Disengaging1 6001,032,312119,89316,0154,040610109-30,19
BWX13236Disengaging1 7001,173,912136,39116,0175,33056109-30,25
BWX133403BEngaging4 9001,238,812142,88025,4188,044 11109-20,46



Disengaging

When the outer ring is rotating the centrifugal force causes the sprags to lift off from the inner

race. This reduces wear during freewheeling operation.



Engaging

When the outer ring is rotating the centrifugal force presses the sprags against the inner ring.

This enhances the ability of the sprags to engage immediately when torque is applied.



Drag strips

To reduce wear during freewheeling operation between sprags and the inner race, drag strips

made from wear-resistant beryllium copper alloy are attached to the inner cage. This results in increased friction between inner cage and inner race. This counteracts individual sprag activation during freewheeling operation, thereby greatly reducing sprag pressure on the inner race.



Brake clips

Some freewheel sizes are available with brake clips fitted on the outer cage to prevent further

automatic rotation of the Cage Freewheel during rapid acceleration and deceleration of



Mounting

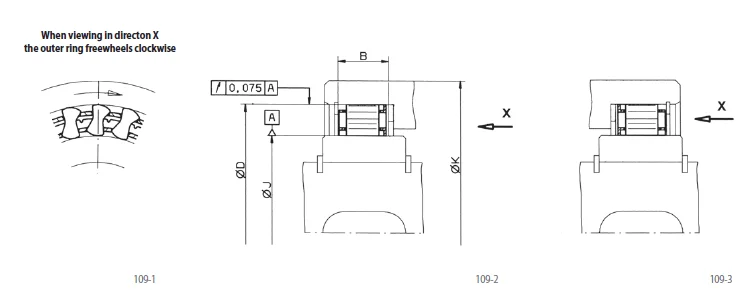

The lateral guidance of the Cage Freewheels can be effected either by a shoulder on the

outer ring or by guard rings or guard discs which are fixed in the outer ring. There must be

no undercuts, recesses, shoulders or chamfers, or any eccentricity whatsoever, over dimension „B“. For ease of assembly we recommend that the inner and outer races be chamfered at an angle of 15 degrees for a leghts of 3 mm.

Detailed Image

DC12388CDC12388C-2DC4972-2DC3175-3_DC3175-2_DC2776 -2
