502035 3.7v 350mah 602035 350mah lithium polymer battery 3.7v 350mah lipo battery

Product Overview

Description

502035 3.7v 350mah 602035 350mah lithium polymer battery 3.7v 350mah lipo battery

Details:

Battery model: 502035 350mAh 3.7V
Nominal Capacity: 350mAh
Nominal Voltage: 3.7V
Max Charge Current: 1.0C=350mA
Max Discharge Current: 1.5 C=570mA
Charge method CC/CV (constant current/constant voltage)
Size: 5.0*20*35mm
Weight: About 8g

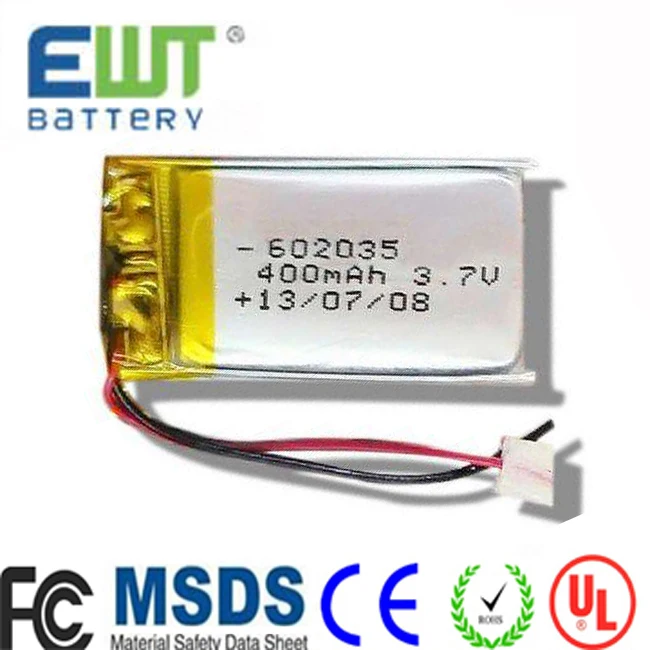

Picture:

Smiliar Model:

No.	Model	Capacity		Nominal Voltage (V)	Dimensions(mm)			Weight Approx.(g)	Internal Impedance(mΩ)
		Typical (mAh)	Nominal (mAh)		Thickness	Width	Height
					(±0.2)	(±0.8)	(±0.8)
1	401129	105	100	3.7V	3.8	11.0	28.7	3.0	250
2	401230	105	100	3.7V	4.0	12.2	30.0	2.7	250
3	401528	105	100	3.7V	4.0	15.0	28.0	2.4	160
4	302025	110	105	3.7V	3.0	20.2	25.0	2.7	250
5	501225	120	110	3.7V	4.8	12.0	24.7	3.0	250
6	361430	120	110	3.7V	3.4	13.8	29.7	3.0	250
7	301445	115	110	3.7V	3.0	14.0	45.0	3.8	180
8	262030	120	110	3.7V	2.4	19.7	29.7	3.0	250
9	451230	130	120	3.7V	4.3	12.0	29.7	3.0	120
10	401427	130	120	3.7V	3.8	13.8	26.7	3.0	200
11	401430	130	120	3.7V	3.8	13.8	29.7	3.0	200
12	551522	130	120	3.7V	5.3	14.8	21.7	3.0	200
13	382023	130	120	3.7V	3.8	20.0	23.0	3.0	180
14	302030	125	120	3.7V	3.0	20.0	30.0	3.1	150
15	401235	140	130	3.7V	3.8	12.0	34.7	3.5	200
16	421432	140	130	3.7V	4.0	13.8	31.7	3.0	200
17	402023	140	130	3.7V	3.8	19.7	22.7	3.0	200
18	362225	140	130	3.7V	3.4	21.7	24.7	3.0	180
19	431235	145	135	3.7V	4.1	12.0	34.7	3.0	200
20	381245	140	135	3.7V	3.8	12.0	45.0	3.4	150

Advantage:

1, Capacity, resistance, Voltage, platform time consistency is good
2, With short-circuit production function, safe and reliable
3, High energy density

4, No memory effect

5, Pollution-free

6, Good consistency, low self discharge
7, Light weight, small and customized size
8, High working voltage for single battery cells
9, Wide application for electronics and industry
10, Long cycle life

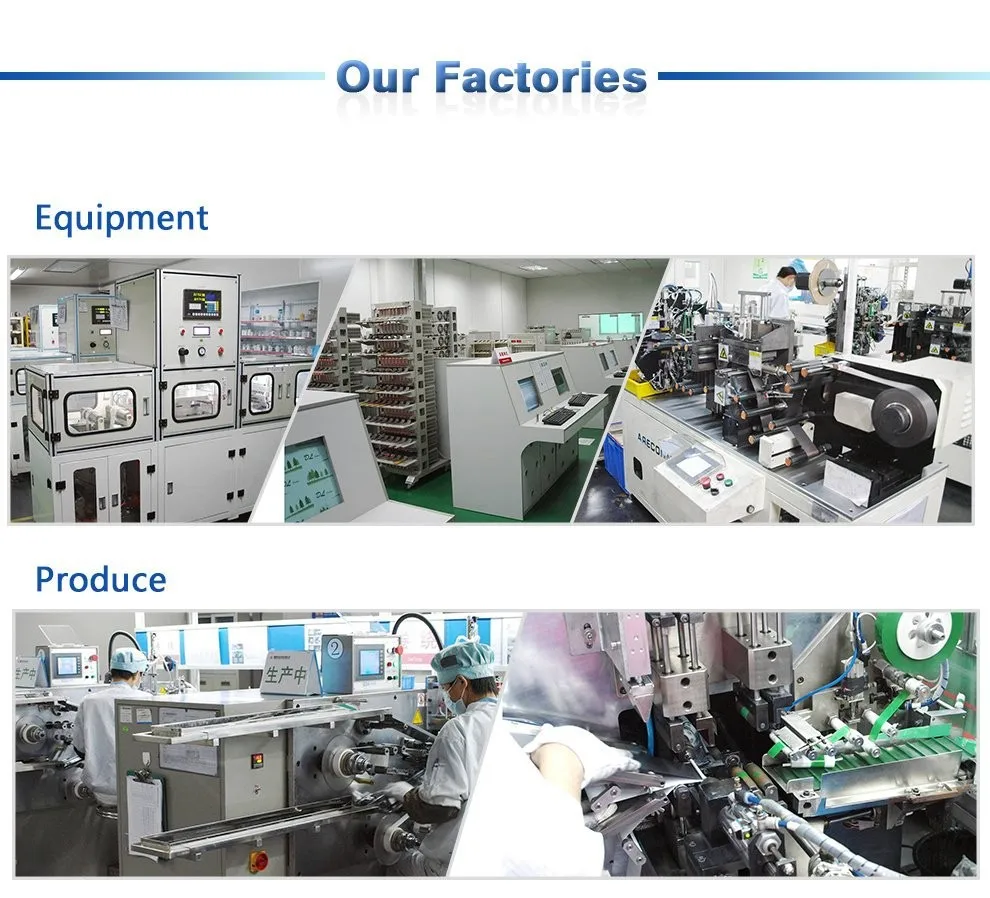

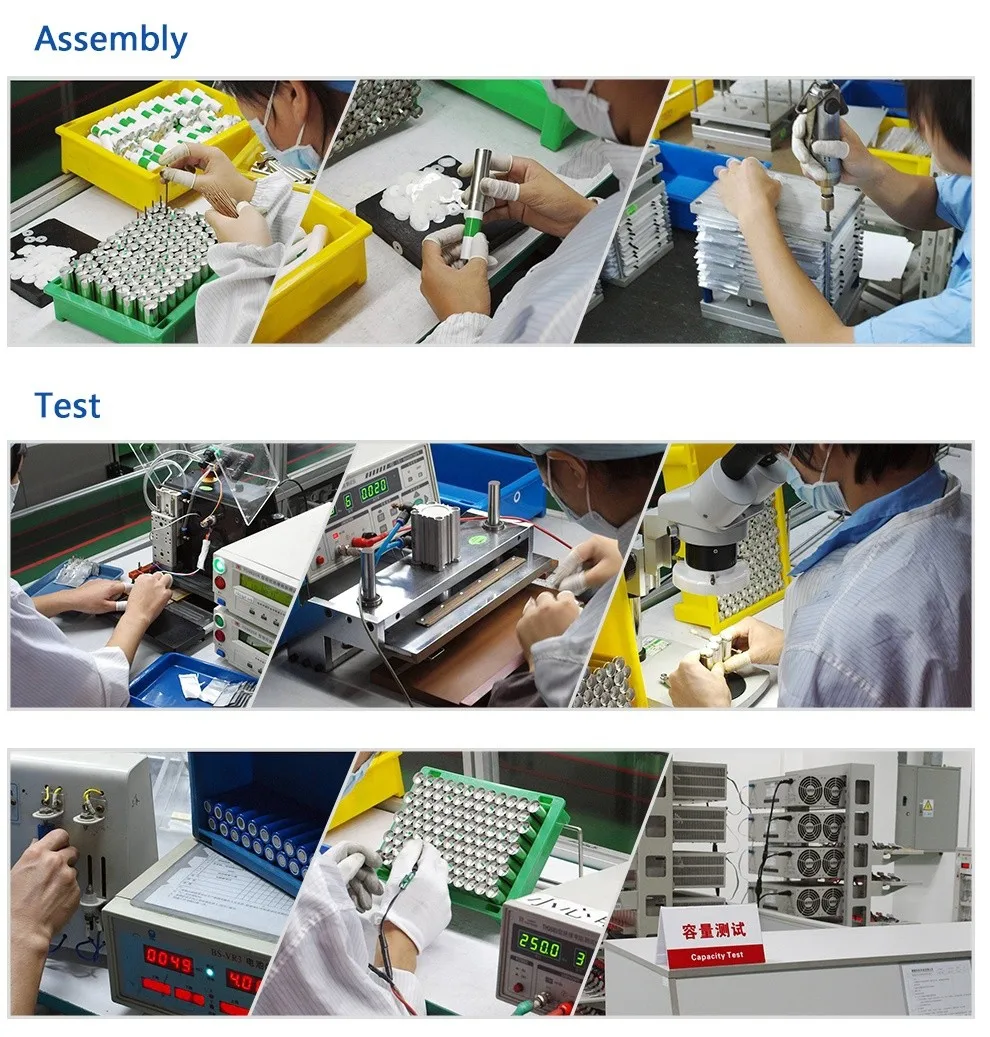

Factory:

You can contact me get samples(5 pcs free samples)
