CYT60 ASK/OOK 433.92mhz Long Range Wireless Module 433mhz rf Transmitter

Product Overview

Description



DESCRIPTION:

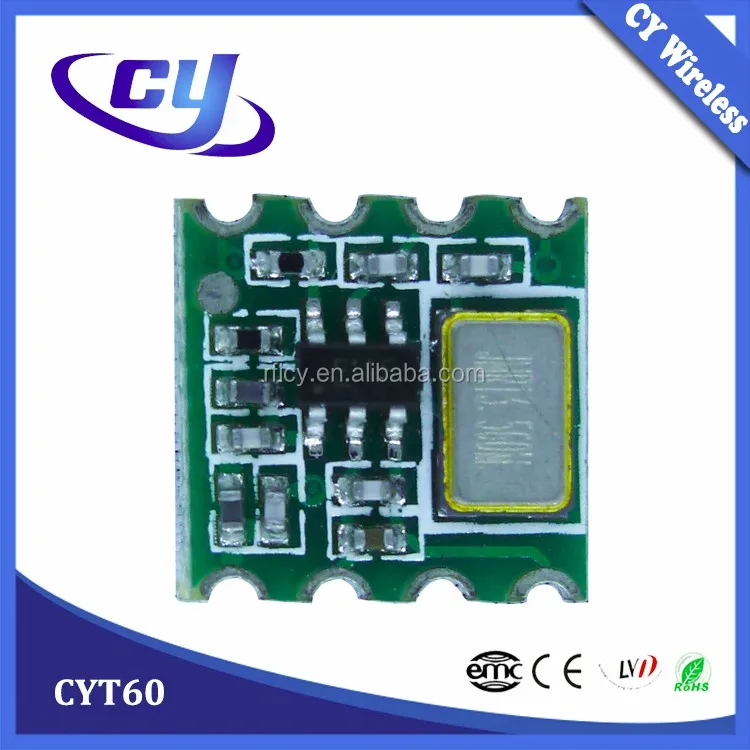

CYT60 is an ASK ISM frequency bank wireless transmitting module with superior performance. This module adapts European brand industrial-grade RF wireless data transmission receiving chip with strong transmitting power and low voltage power supply. CYT60 has all the characteristics for FCC/CE certification. CYT60 can achieve wireless data signal input to wireless signal output. Users can easily achieve the development of wireless products by adding a simple data decoding circuit


FEATURES:
High transmitting power >10mW
Wide working voltage: 1.8 V-3.6V
Working Frequency: 315Mhz/433.92Mhz (custom frequency available)
Using PLL frequency stabilization (+-50 KHZ), to enhance the stability of the working frequency.
When work with receiving module CY11, it can reach 300 meters in open space.
Low power consumption, static emission current consumption: 10mA. Basically, there is no power consumption when there is no data transmission.
Working Temperature:-20℃~+70℃
Dimension:10x10x2.5MM
Frequency stability:±50 KHZ
Modulation Rate: 3kb/s
Input Signal: TTL level


APPLICATION:
Remote Keyless Entry (RKE)
Gate/Access Control
Wireless Security Alarm
Smart home – auto curtain
Wireless Industrial control
Wireless Data Transmission


PIN DEFINITION:

Pin-out as showed in figure1 above.

Pin	Name	Function
1.2.4.6.7	GND	Ground
3	DATA	Data connected to MCU
5	VDD	Positive Supply Power
8	ANT	Antena Out

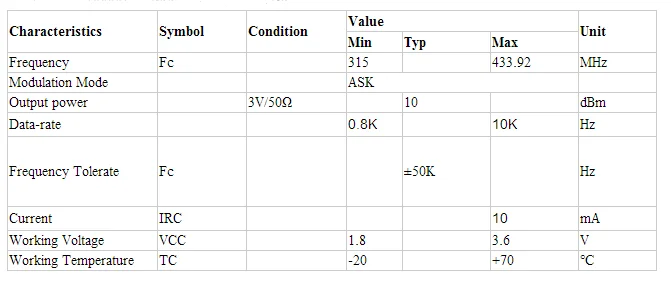

ELECTRICAL CHARACTERISTICS:
Condition: Working Voltage: 3.3 V , temperature at 25°C



MECHANICAL SIZE: (unit: mm)
