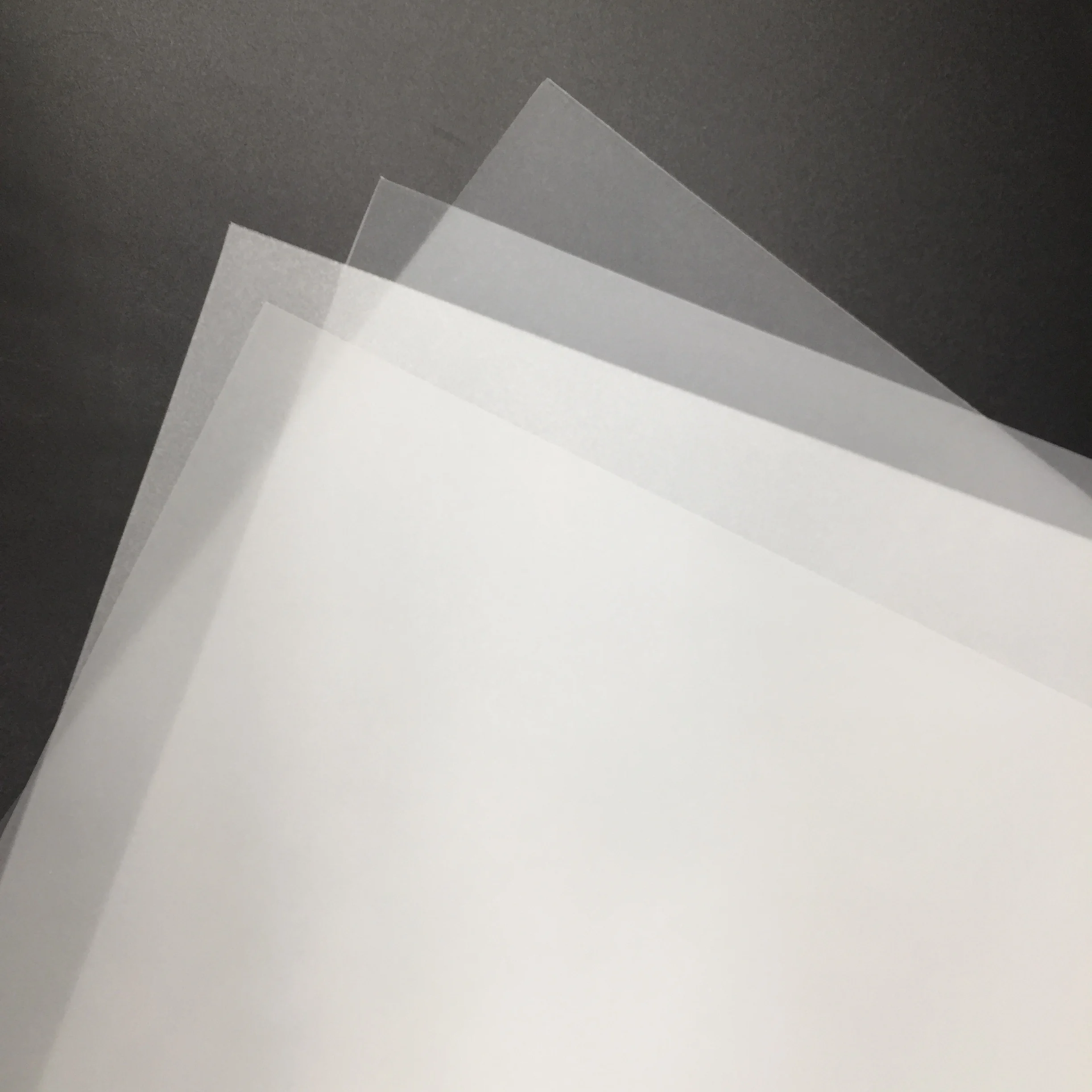

solar eva film for encapsulate solar panel and backsheet
- Category: >>>
- Supplier: Tianjin Caida New Materials Technology Co. Ltd.
Share on (60465067361):
Product Overview
Description
Company profile
Tianjin Caida New Material Technology Co., Ltd is established in 2000, We focus on manufacturing EVA film for Laminated glass and & encapsulate solar PV module. We have Test lab for control the quality of our product and doing research to improve product quality. With 16 years experience in the hot melt adhesive film processing. we successfully developed high quality solar eva film for encapsulate solar cell. With our outstanding product quality, fast delivery, perfect after sale service system, Caida has quality become the world's leading manufacture of EVA film .
Production process
Our factory has 3 production lines of Eva film. Output 500,000 SQ meter per month.

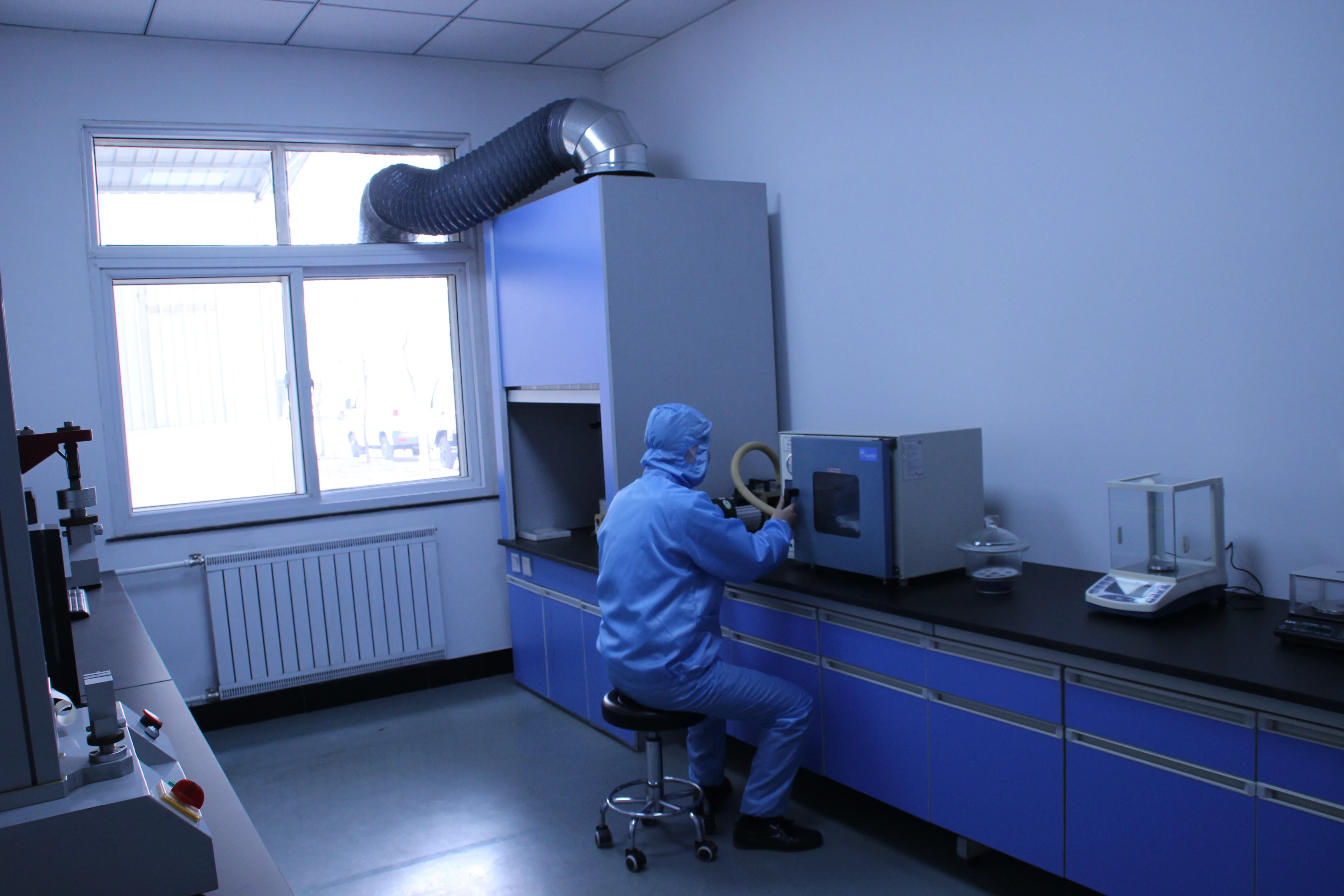

Inspection process
We have different kinds of Test equipment for doing quality control from raw material to the finished product.
Product Detail
Poly/Mono silicon PV module
EVA film for encapsulate Poly & Mono silicon PV module.
Thin Film PV module
EVA film for encapsulate Flexiable solar module.
BIPV module
EVA film for encapsulate double glazed solar module.
Features | Data |
Transparency | >91.23% |
UV Irradiation | y<=1.8 |
Shrinkage Rate | L<=1.0% H<=1.1% |
Peel strength | Glass>74/ Backsheet>62 |
Tensile strength | 18.6 Mpa |
Elongation at Break | 555% |
Water Absorption | <0.1% |
Volume Resistivity | 1.3 x10^15 |
Specific Heat | 2.3 |
Our Advantage
Caida Solar EVA film has Excellent weather resistance, high temperature, humidity and UV resistant.
Caida Solar EVA film was easy to operate & store, laminating with wide temperature range and high efficiency.
Caida solar EVA film has the following advantages: High transmittance type,Anti-UV type,anti-PID type,High refractive index type,anti-snail pattern type and fast solidifying type.
Caida Solar EVA film is committed to producing EVA film with world-Class quality and providing additional solutions for different kinds PV module.
Inventory Size
Thickness (mm) | 0.3mm, 0.35mm ,0.40mm, 0.45mm, 0.50mm |
Width (mm) | 270mm,450mm,550mm,680mm,820mm,1000mm and 1100mm |
Length per Roll(Meter) | 100M or 150M |
The Maximum width we can produce is 2600mm, and we accept customized size.
Certificate
We follow the standard of ISO 9001. Our product passed the test of SGS and RoHS.
