1.Specialized in finish chamfering and trimming surface of the interior/exterior angle of circular tube and round bar end surface once quickly and accurately.
2.The central line of the processing object and the cutter is precise. Specal design and standardization of the blade make adjusting blade easily.
3.Manual nest, automatic feeding, clamping and blade feeding and backing.
4.Only changing the cutter and adjusting the trip holder can make the machie available for different size of the workpiece.
5.Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar.
6.Processing speed: 3-6 second/piece
Product Parameters
Model
KCM-50DE
KCM-80DE
KCM-100DE
KCM-125DE
Type
Hydraulic
Hydraulic
Hydraulic
Hydraulic
Pipe Diameter(mm)
8-50mm
10-80mm
10-100mm
20-125mm
Bar Diameter(mm)
5-30mm
10-45mm
20-50mm
≤50mm
Accuracy
±0.1mm
±0.1mm
±0.1mm
±0.1mm
Work Speed
3-5s/pcs
3-5s/pcs
3-5s/pcs
3-5s/pcs
Length(mm)
100-500mm- customized
100-500mm- customized
100-500mm- customized
100-500mm- customized
Motor(kw)
1.5kw
1.5kw
2.2kw
3kw
Pressure
MPA 6-8KG
MPA 6-8KG
MPA 6-8KG
MPA 6-8KG
Weight(kg)
800kg
1000kg
1100kg
1200kg
Size(mm)
2000*1100*1500
2000*1100*1500
2100*1100*1500
2100*1100*1500
Applicable material
Steel, stainless steel, aluminum, cooper, Nylon, plastic Pipe and Bar
Standard Accessories
One set standard cutter, One set clamp

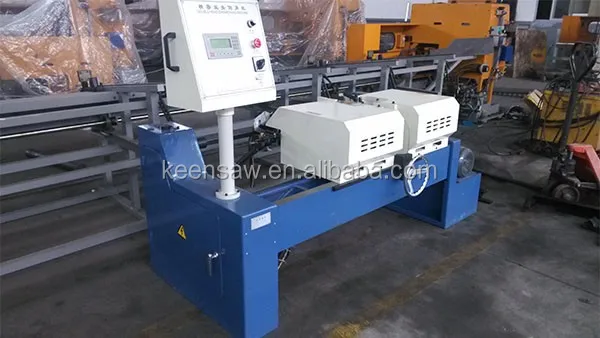

Products Show
Related Products
Workshop
Packing & Delivery
FAQ
1) Q: May i have your quotation?
A:please offer us the information of your material size,without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No, but we normally help our clinets to solve the problems through phone, skype, internet video with high efficiency.
3) Q: Do you have quality guarantee?
A: Quality guarantee period within 1 year, during this year, if component breaks, It will be deliveried to you for free.
4) Q: How about your payment term?
A: T/T 30% deposit, 70% of balance paid before shipment.
