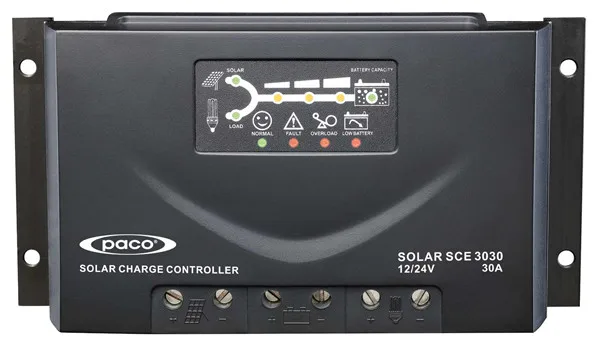

China PACO brand PWM 12V/24V Solar Charge Controller 30A

Product Overview

Description

China PACO brand PWM Solar Charge Controller 30A





Specifications:







1. latest product is attractive and it offers a modern design







2. a convenient LED display

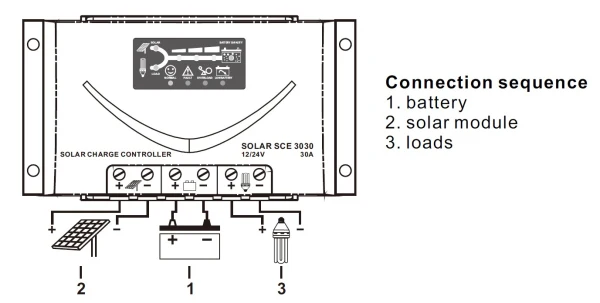

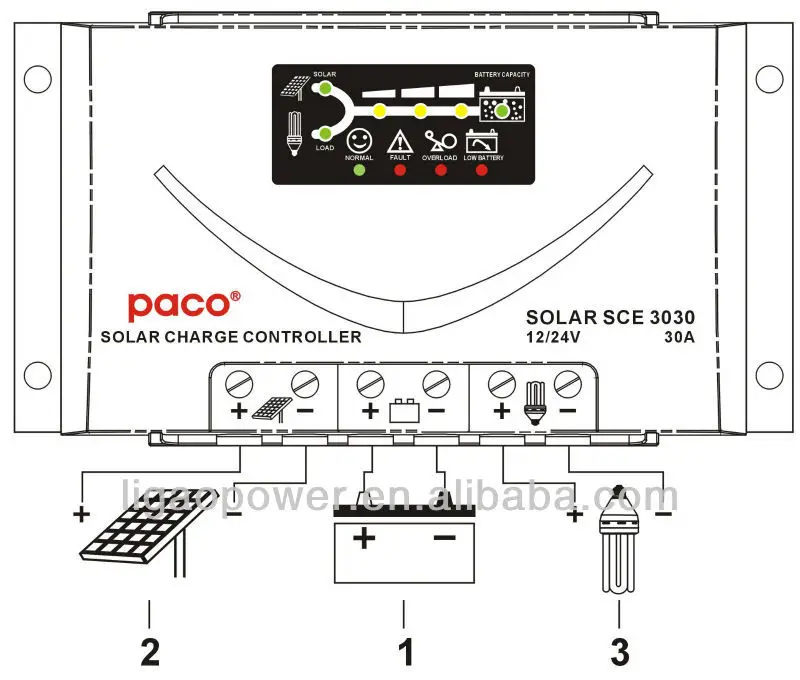

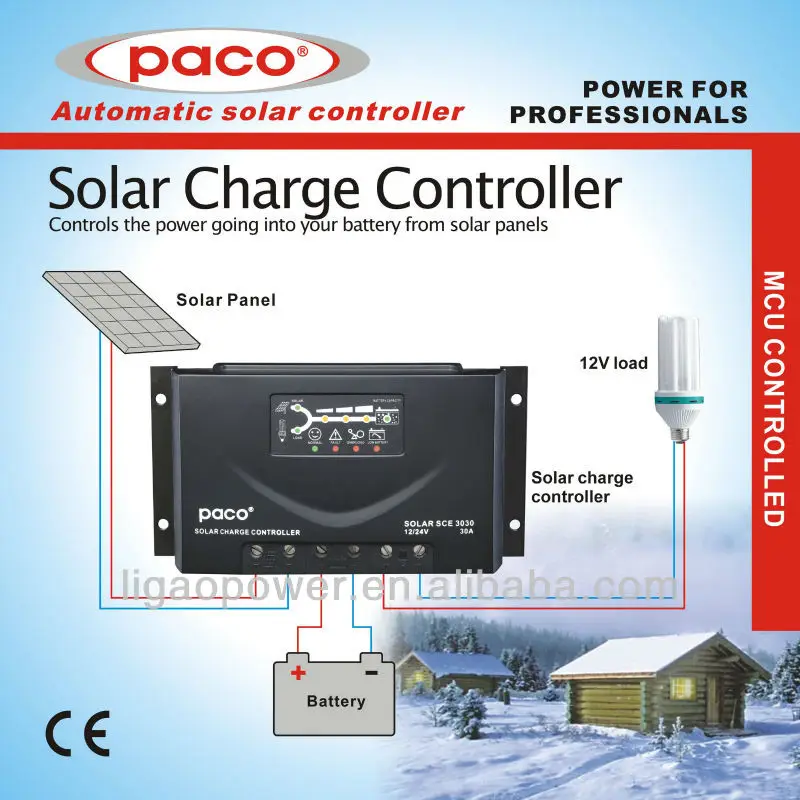

3. controls the power of solar panels into the battery







4.  possesses PWM-controlled constant-voltage charging







5. temperature compensation







6. overload protection, deep-discharge protection, fuse protection, short-circuit protection







7. excellent electromagnetic compatibility







8. Input Voltage: 12V/24V



    Output Voltage: 12V/24V

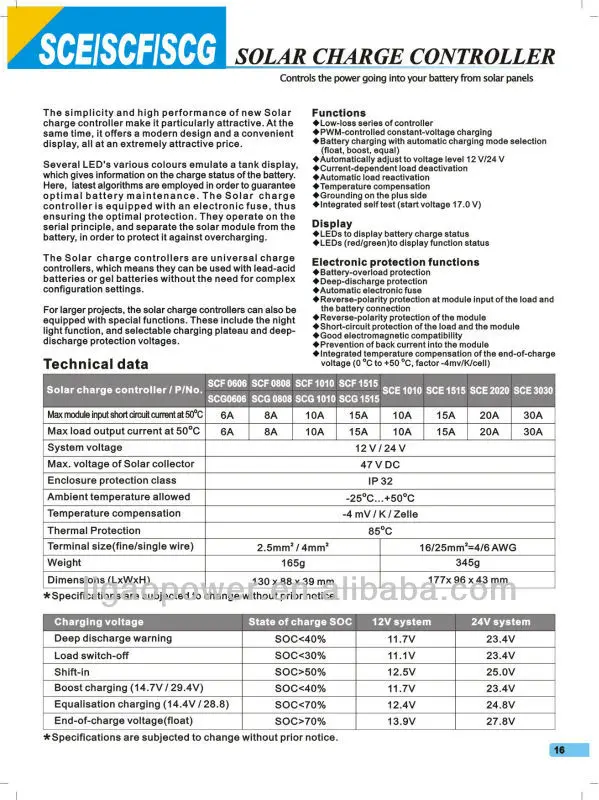

9. Details:





Microprocessor Control (CPU)	Yes
Low-loss serial controller	Yes
PWM-controlled constant-voltage charging	Yes
Automatically adjusts to the voltage level 12 V/24 V	Yes
Current-dependent load deactivation	Yes
Automatic load reactivation	Yes
LED to display the battery charge status	Yes
Grounding	on the plus side
Ambient temperature allowed:	-25°C…+50°C
Enclosure protection class:	IP 32
Temperature compensation:	-4 mV / K / Zelle
Compliant standards:	CE, EN61000
