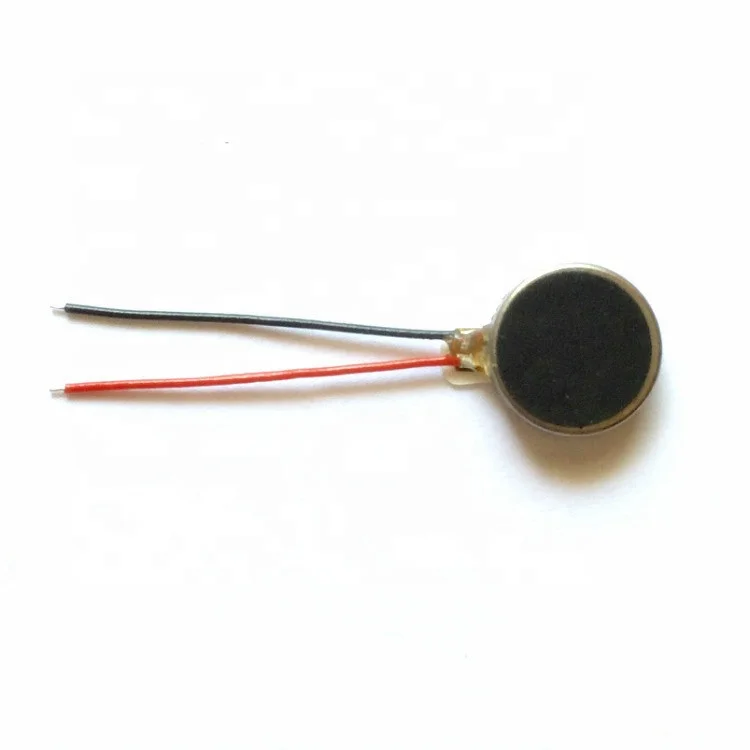

Taidacent Coin Vibration Motor Wearable Device Small DC Vibrating Motor Flat Button Type 1027 Vibrator Motor
- Category: Vibration Motor >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60465280032):
Product Overview
Description
Taidacent Coin Vibration Motor Wearable Device Small DC Vibrating Motor Flat Button Type 1027 Vibrator Motor
Rated voltage 3.0VDC
Operating voltage range 2.5~4.0VDC
Rotation direction any direction
Use environment -20℃~+60℃
Storage environment -30℃~+70℃
Rated speed 12000±2500RPM Min
Rated current 70mA Max
Starting current 90mA Max
Starting voltage 2.3VDC Max
Insulation resistance 10MQ Min
Terminal impedance 30Q±15% (single phase) 60Q±15% (double phase)
Operating voltage range 2.5~4.0VDC
Rotation direction any direction
Use environment -20℃~+60℃
Storage environment -30℃~+70℃
Rated speed 12000±2500RPM Min
Rated current 70mA Max
Starting current 90mA Max
Starting voltage 2.3VDC Max
Insulation resistance 10MQ Min
Terminal impedance 30Q±15% (single phase) 60Q±15% (double phase)
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Model Number | 1027 |
CE, ROHS | |
Micro Motor | |
Torque | other |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Totally Enclosed |
Speed(RPM) | 12000RPM |
Continuous Current(A) | 70mA |
Efficiency | IE 1 |
Size | 10*27mm |
