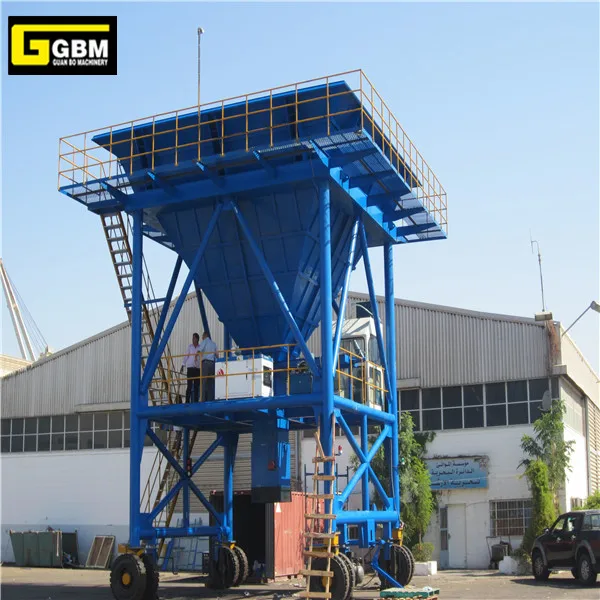

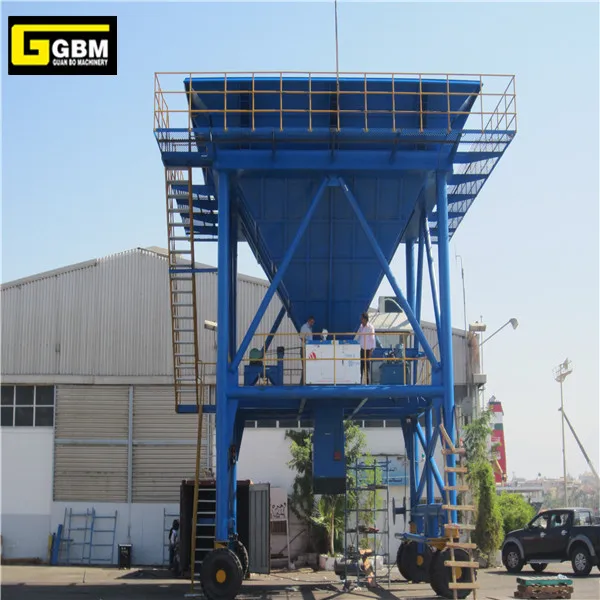

GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper
GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper
GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper
GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper
GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper
GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper
GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper

GBM port cement/chemical fertilizer/sand mobile hopper dock dust collector hopper

Share on (60465387823):


Price:$98,000.00 - $100,000.00

Quantity:


Product Overview

Description







Product Description

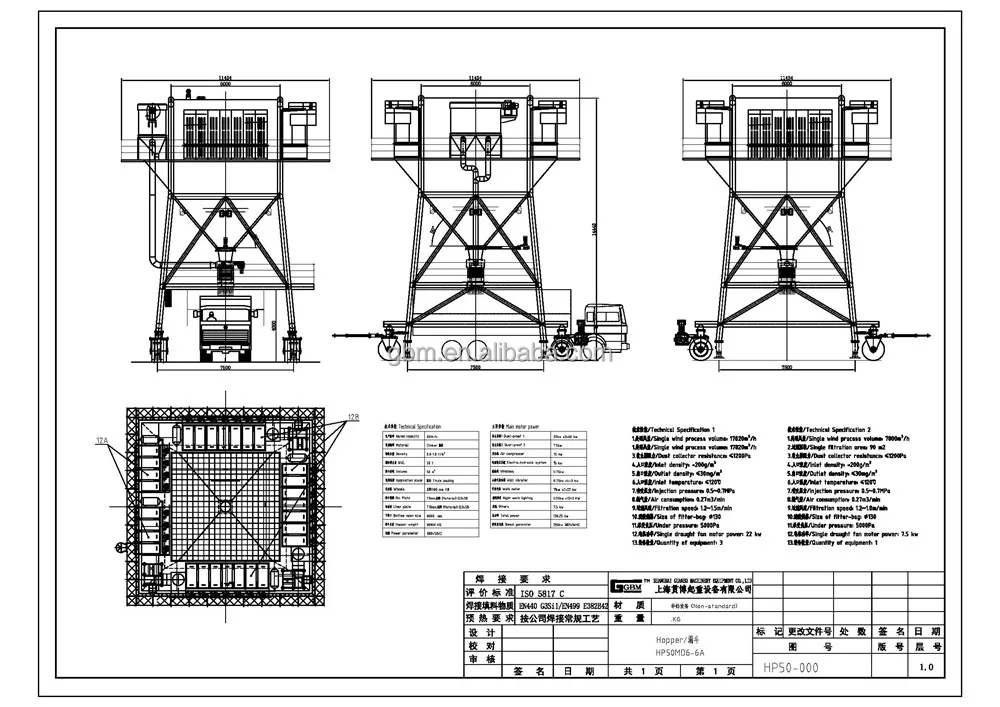

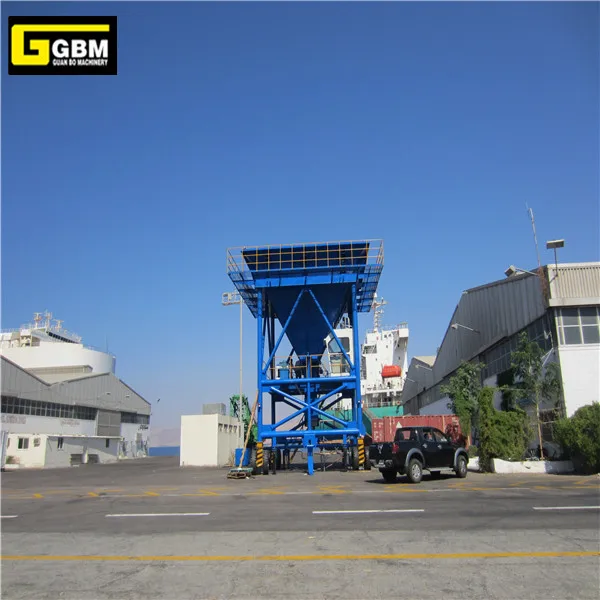

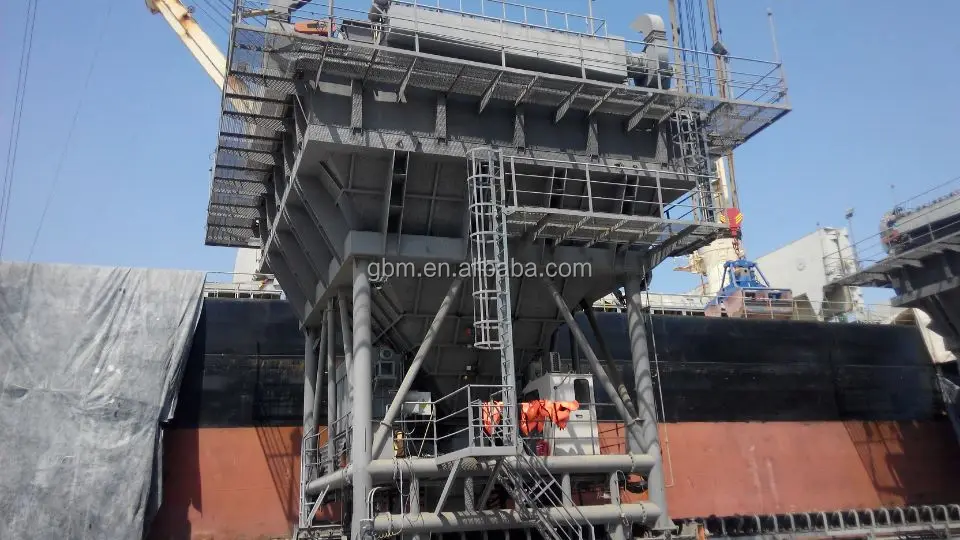

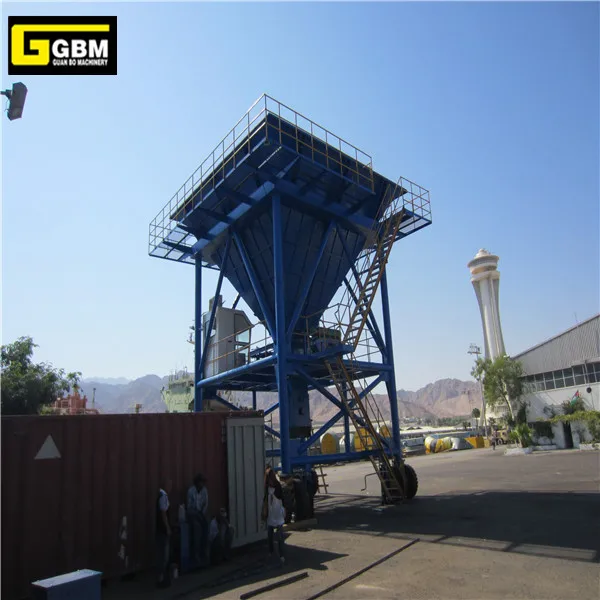

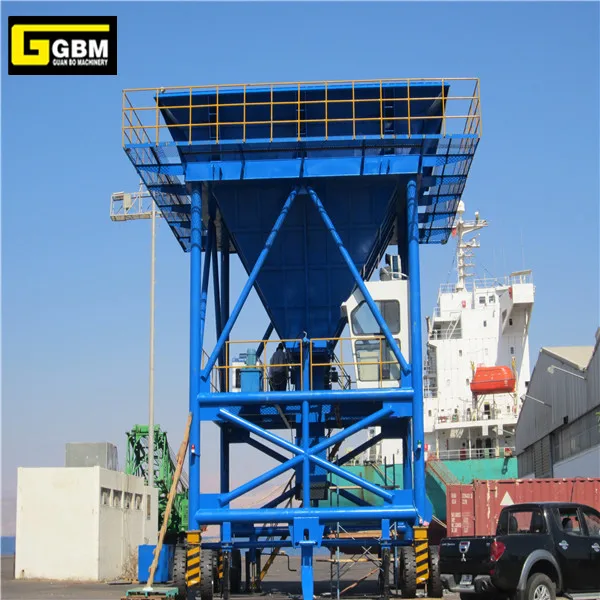

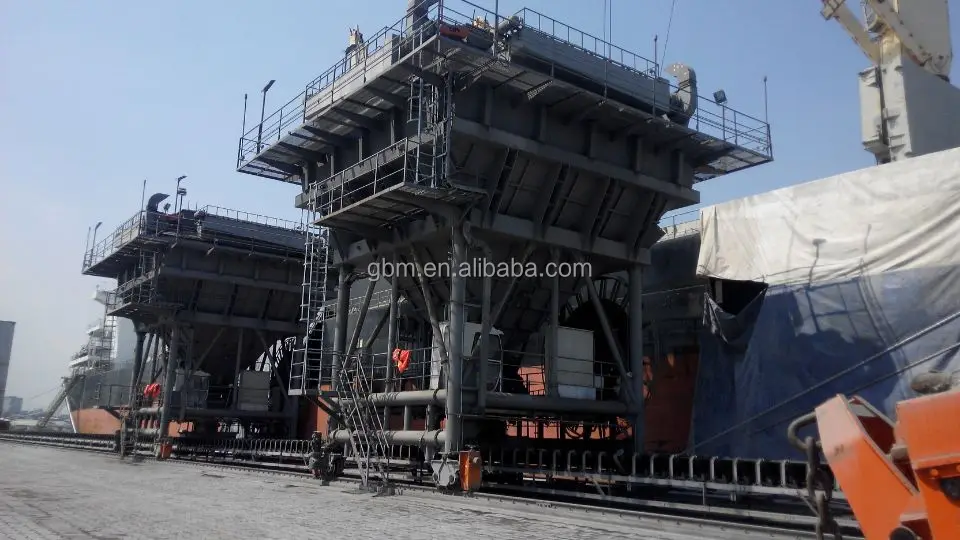

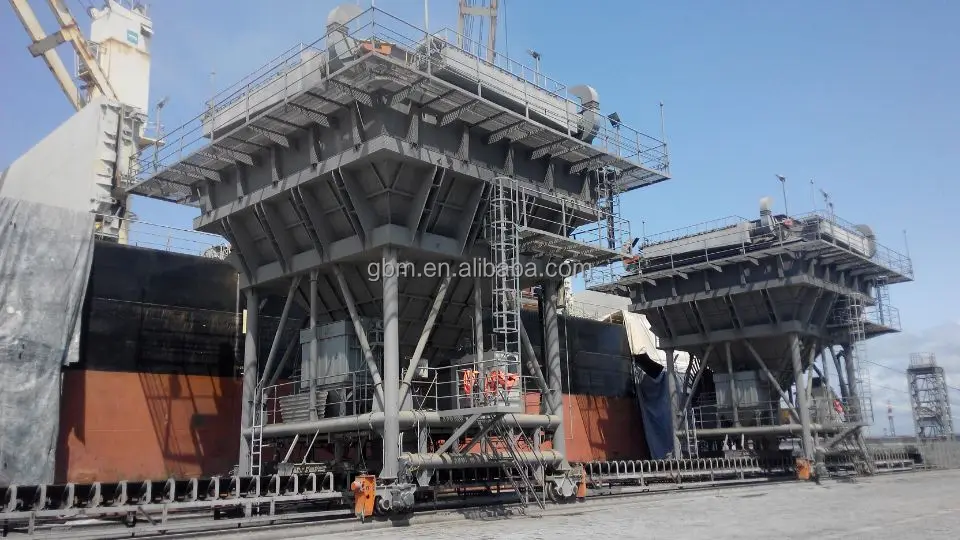

This equipment is mainly used for the unloading and loading of bulk cargoes. The bulk cargo is grabbed by a portal grab crane, and the grabbing materials are run to the loading and unloading by the relevant operation mechanism of the gate grab crane. Above the system, the grab is opened by the PLC control system of the portal crane and the bulk cargo is unloaded into the unloading funnel of the loading and unloading system; an electrohydraulic push rod control device is located on the discharge opening of the unloading funnel. It is used to control the flow of material, so that it is safe and effective when loading the vehicle, which greatly improves work efficiency.




Model
Volume(m³)
Loading Weight (t)
Hopper weight(t)
Max. Total Weight(t)
Unloading Capacity(t/h)
GBMTD40
40
60
16
80
300-600
GBMTD50
50
80
19
100
400-800
GBMTD60
60
100
21
125
500-1000
GBMTD70
70
120
25
145
600-1250
GBMTD80
80
140
27
170
800-1600
GBMTD100
100
160
30
190
1000-2000
GBMTD60-2
60
200
33
235
1250-2500
GBMTD70-2
70
120
27
150
1250-2500
GBMTD80-2
80
140
30
170
1000-2000
GBMTD100-2
100
160
33
195
1600-3200























Packing & Delivery














Related Products




FAQ



Q1. Can the grabs be customized?
Yes, every customer’s working condition is different, all of our products can be customized depend on customers’ requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...


Q3: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Where is the grab installed? Overhead cranes, gantry cranes excavators or other equipment?
2. What is the main lifting material?
3. What is the grab volume required?
