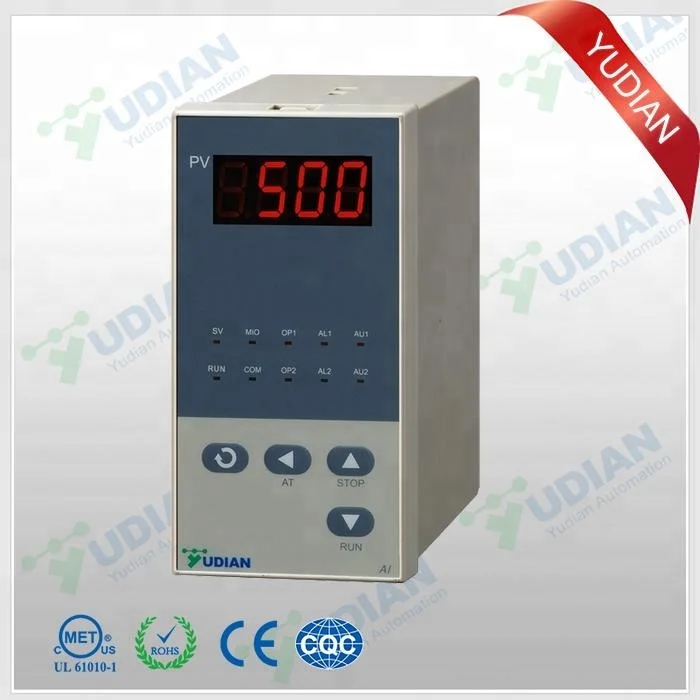

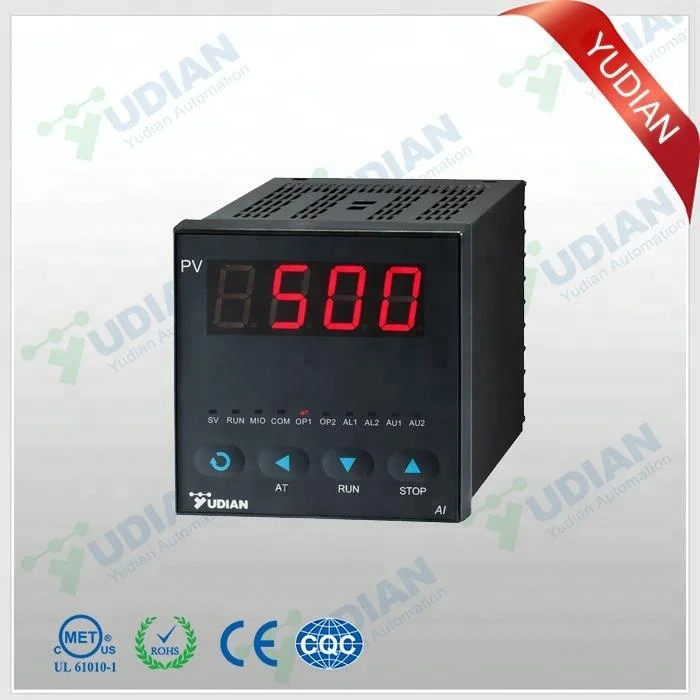

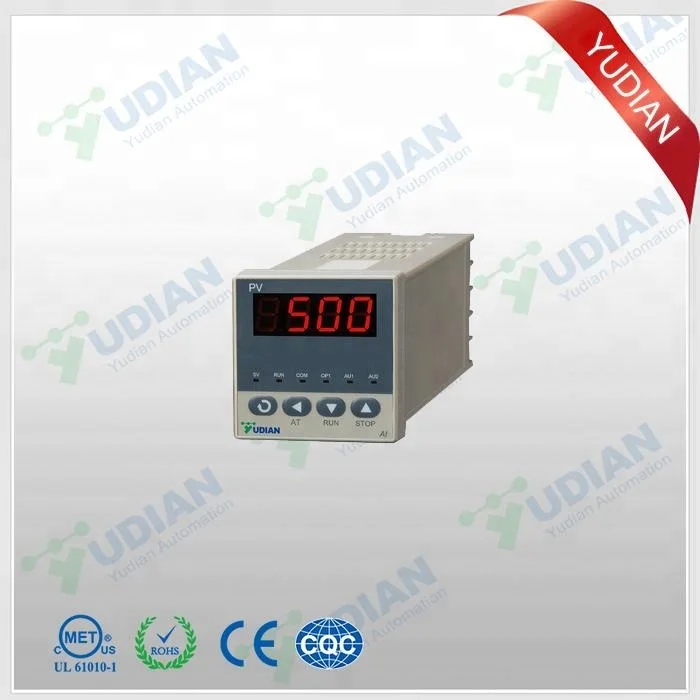

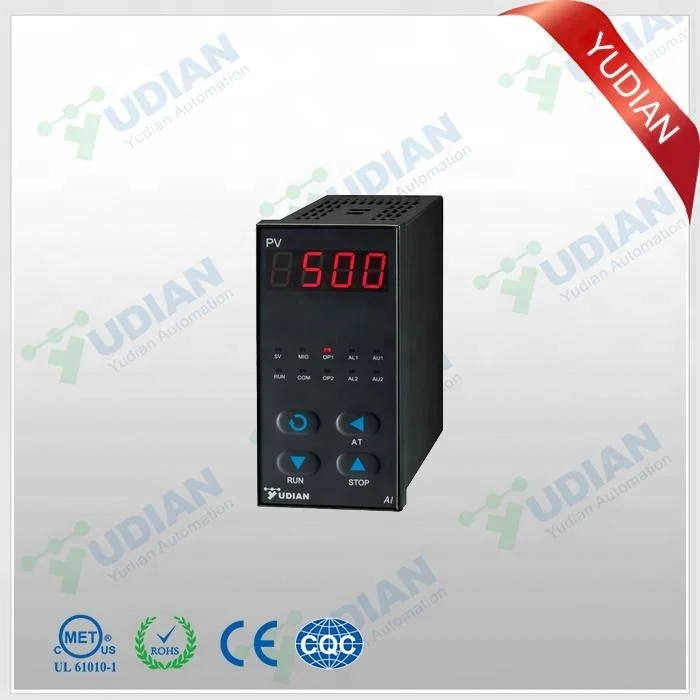

YUDIAN AI 501 single channel digital gas pressure indicator

Control mode

On-off control mode
AI PID Control with Auto Tuning(AT)

Measurement

accuracy

0.3%FS ±1°C

Resolution

0.1°C

Input

Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26

RTD: Pt100, Cu50

Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV

Linear Current: 0~20mA, 4~20mA

Linear resistor: 0~80ohm, 0~400ohm

-9990~3000 defined by user

Input range

K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C)

Output

(modularized)

Relay output (NO+NC): 250VAC/2A or 30VDC/1A

Linear current : can transmitter process value

General specifications

Voltage: support AC85-265V, 50/60Hz or DC24V.

Power consumption: ≤5W

Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;

4KV according to IEC61000-4-5.

Operating Ambient : temperature -10~60°C; humidity ≤90%RH
