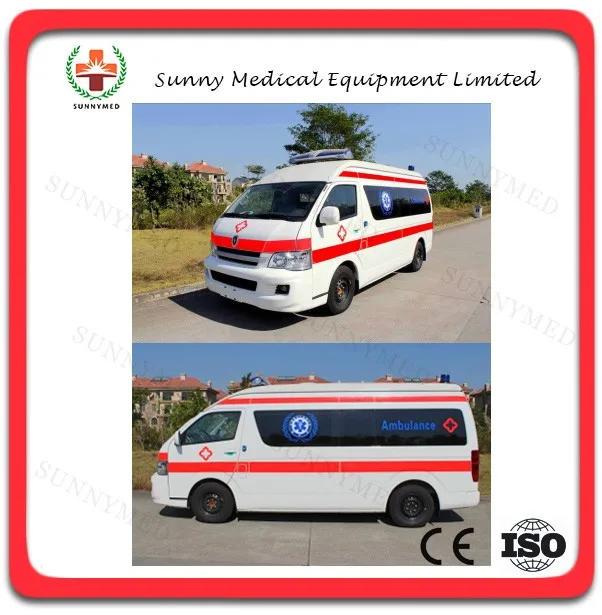

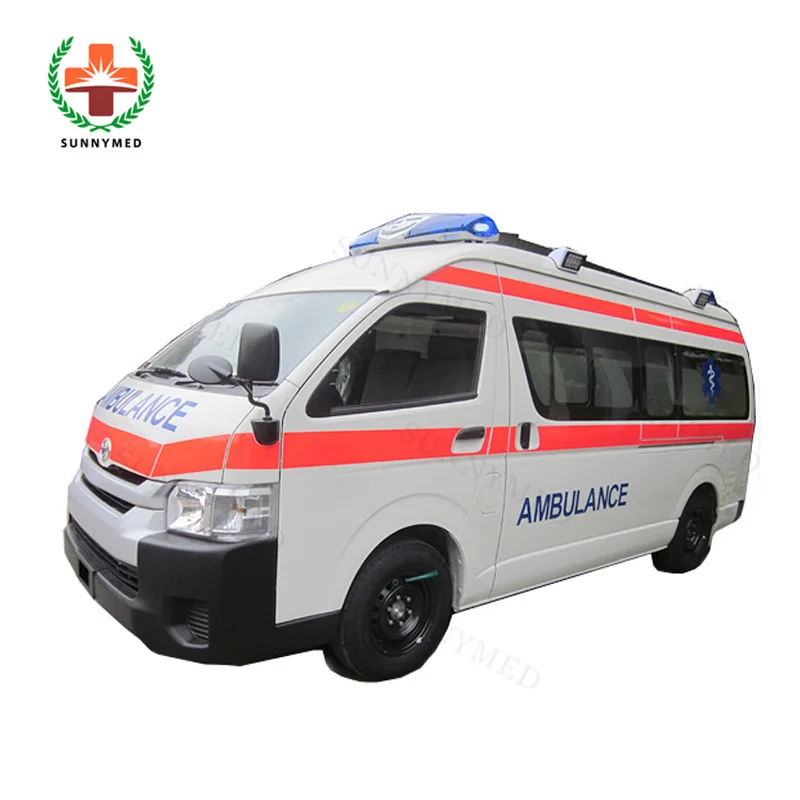

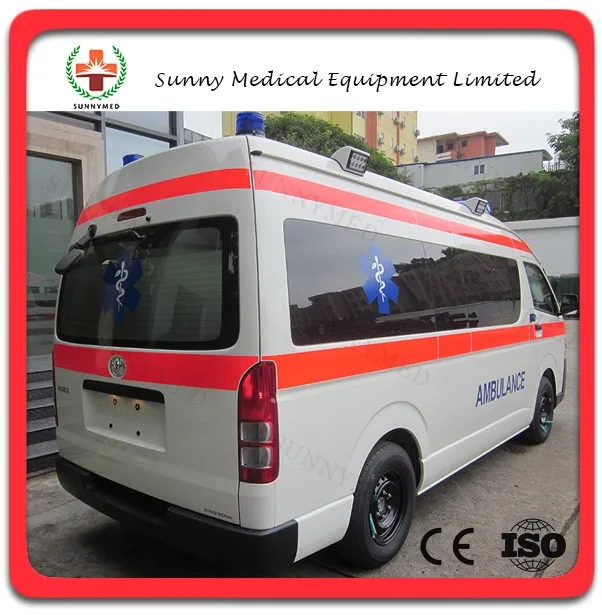

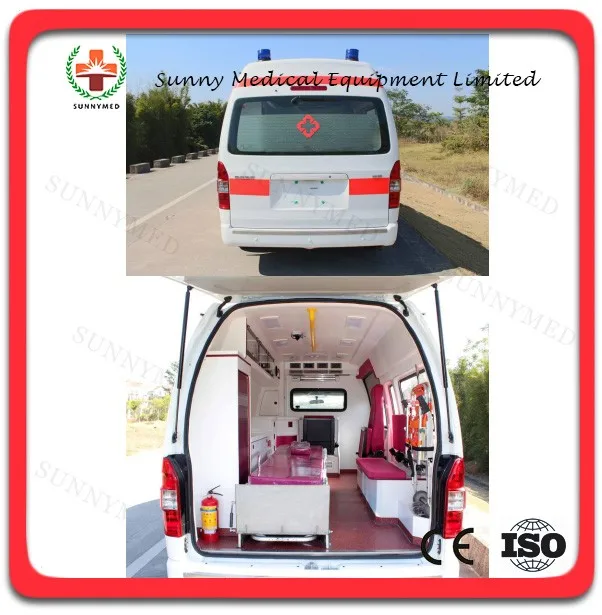

SY-K029-1 Medical Rescue Vehicles First Priority Emergency Vehicles
Vehicle specifications
1.
Wheelbase (mm):
3110
2.
Turning circle (M):
≤13
3.
Overall vehicle dimensions
L×W×H (mm):
5420 x 1880 x 2435
4.
Overall treatment dimensions
L×W×H (mm):
3380 x 1750 x 1625
5.
Overall vehicle weight kg:
2055
6.
Engine type:
4RB2
7.
Fuel type:
Gasoline
8.
Engine displacement cm3:
2.438
9.
Emissions standards:
CHN IV
10.
Cylinder bore x stroke mm:
95.0x 95.0
11.
Rated power kw(hp)/rpm:
102
12.
Max torque Nm/rpm:
217
13.
Gear box:
5 speed MT
14.
(ABS)
15.
Two seats in driver cab.
16.
Full range of airbags
17.
Automatic windows
18.
CD player
19.
Remote central locking system
20.
ultraviolet ray intercepting glass

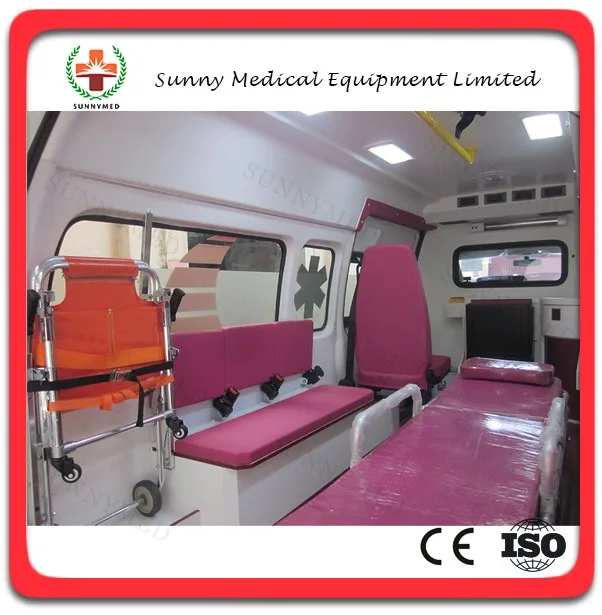

Medical cabin specification:
Electric system
1. Intelligent automatic charging system. The system includes: Main and vice storage batteries, sinusoidal inverter and intelligent regulator.
1)Main storage battery is charging vice storage battery for supporting power use in treatment cabin through intelligent regulator during engine is working.
2)To connect 220V outside outlet charges both of batteries during engine switch off.
AC/DC transition system.
2. Sine wave inverter: Inverter will begin at charging both of Main and vice storage batteries together through outside 220V electronic connecting.
3. Two sets outlets of 220V and 12V
4. Outside 220V outlet and coordinate 15M moveable cable.
5. Two-pass switch and touched panel installation for driver cab and treatment each.
The panel is able to control lighting system, A/C system, AC/DC transition system and ventilation system. Meanwhile, the screen is able to approve important information include: time, temperature and so on.
Warning lights system
6. 100W siren apparatus
7. Warning speaker system
8. Outside siren loudspeaker
9. LED Warning light bar.
10. Rear warning LED Blue spotlights
11. Emergency restart button: To press restart button while active vehicle to consequence driving during main battery expected loss of loading.
28. Able to lash first aid chest near of sliding door
29. Customized 3M body safety label
30. 2KG Fire extinguisher

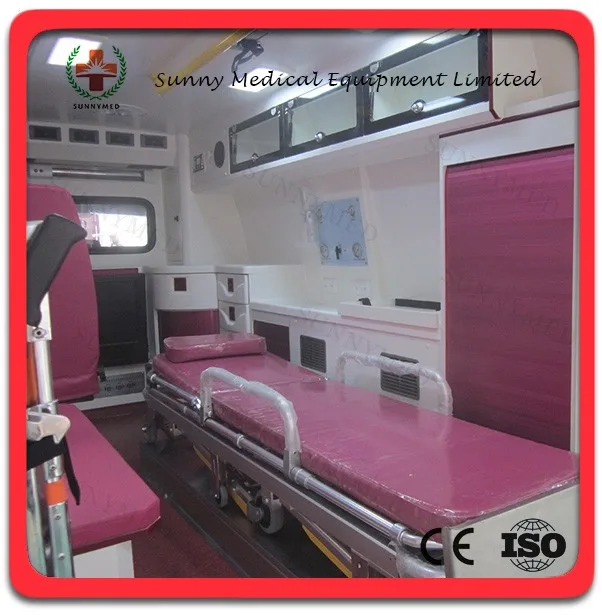

Stretcher system
31. Automatic loading stretcher
32. Stretcher platform
33. Scoop stretcher
34. Stair stretcher
