hydraulic high speed jigsaw puzzle die cutting press machine
Product Description
High speed jigsaw puzzle die cutting machine is special for paper,cardboard,toy puzzle,plywood,eva,leather embossing,polishing,perforating,cutting and so on.
Technical parameters
cutting area
600*500mm or customize
Voltage
220V/380V/415V
Power
4.5KW
Pressure
120tons or customize
Weight
2000kg
Machine size
1550*1150*1520mm
Warranty time
1 year
certification
CE
Parameter
Model
Pressure
Dimension
Area
Motor
Stroke
Net Weight
HG-E40T
40 Tons
1010*900*1200mm
350*300mm
2 KW
2kw
800kg
HG-E120T
120 Tons
1550*1150*1520mm
600*500mm
3.7 KW
4.5kw
1700kg
HG-E180T
180 Tons
1550*1400*1600mm
750*600mm
3.7 KW
6kw
2600kg
HG-E250T
250 tons
1250*1200*2000mm
600*700m
5.5 KW
14kw
4200kg
Feature

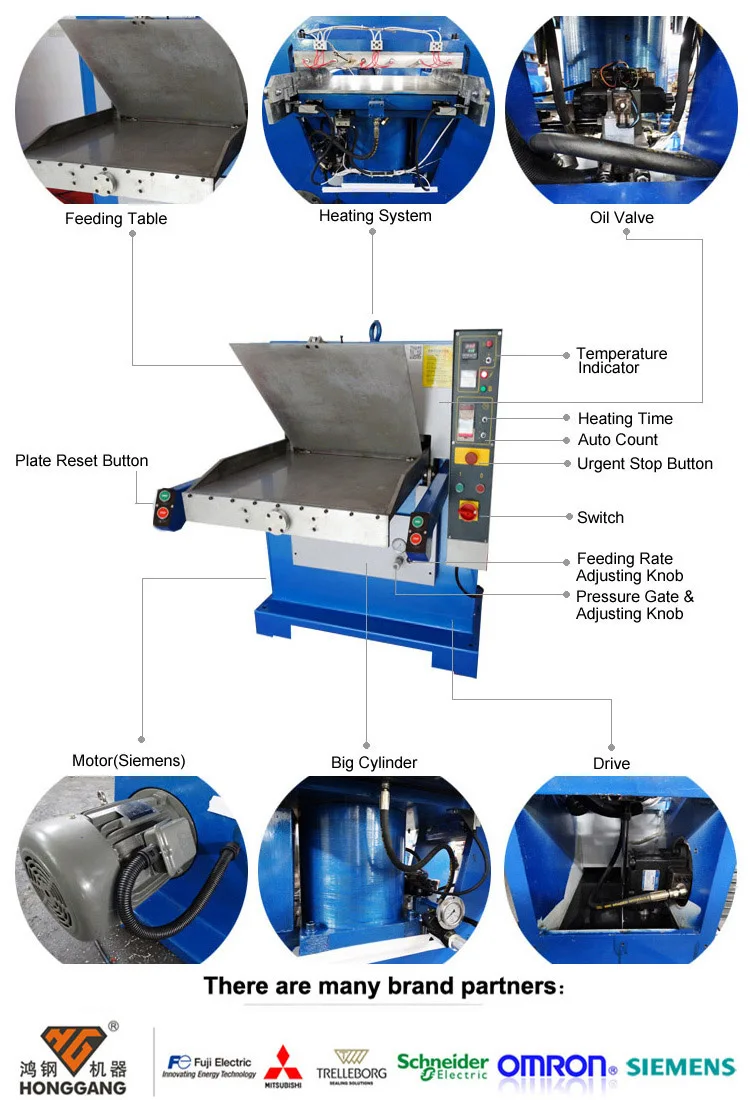

1)Processing the materials surface by heating plates or hydraulic pressure. 2)Both manual and automatic feeding available. 3)Heating time,heating temperature,pressure force,feeding rate can be adjusted. 4)With safety device of urgent buttons and double hands working. 5)Easy to set and unload plates,simple to operate.
Specification
1) Saving time when you designated the mould
2) Wide application:varied of dispensing products are acceptable.
3) High productivity,high practicability, high performance price ration.

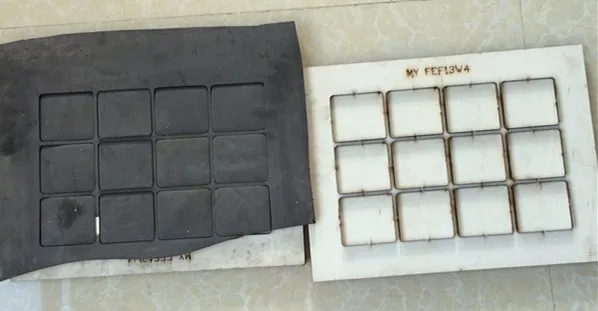

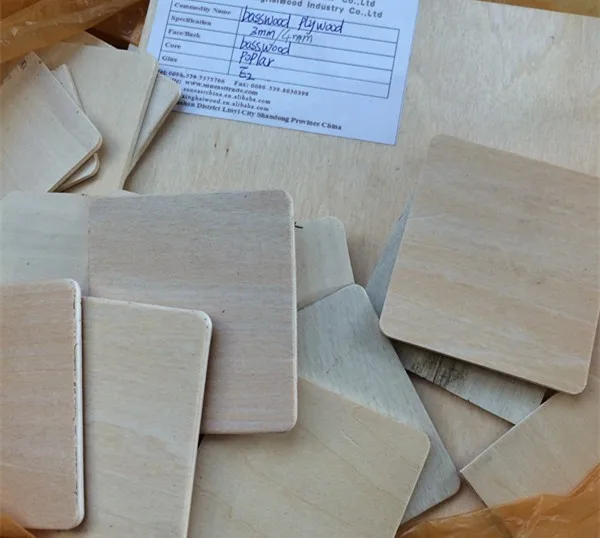

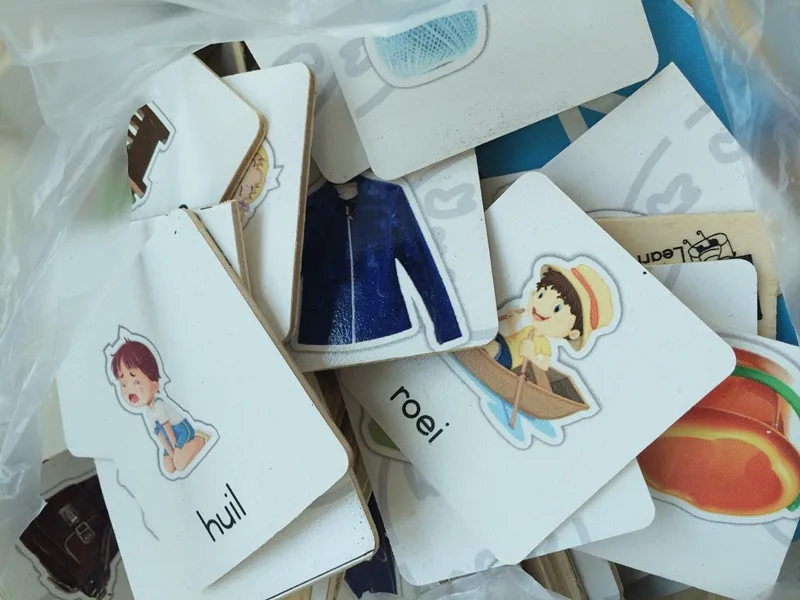

Finished products sample
Products categories
Company Information
Foshan City Nanhai Honggang Cutting Machine Co., Ltd. is a professional manufacturer in hydraulic cutting machines for over 16 years.
In the past 16 years, we keep focusing on a hydraulic cutting machine, from 30 tons to 300 tons with customized service, leather embossing machine, and plastic thermoforming machine, serving for leather goods, automotive industry, fabric, cleaning sponge, puzzles, plastic, blister packaging, EVA, EPE foam packing industries.
In these years, we have developed kinds of new automatic cutting machine with automatic feeding equipment. Such as, the auto-feeding and cutting for foam sheets or kitchen sponge sheets, fully auto feeding and cutting by conveyor beltfor thin materials rolls, automatic robot armworking together with the automatic cutting machine, which is used in blister cutting mostly. Automatic cutting machines help to speed up production, as well saves laborers which required much from customers, and we will go far in the automated field as the best automatic cutting exporter in China.
We will continue to innovate, never satisfied, and insist on consistent quality!
Why choose us ?
The founded of HONGGANGbegan to work in the four-column hydraulic cutting machine industry since 1993 and established the honggang factory in 2004, So far, Honggang has 16 years of experience in R&D and production of automatic hydraulic press cutting machines.
Since its establishment, Honggang has been focusing on technological innovation and has obtained a number of authorized utility model patents, design patents, and computer software copyrights.
If you are not sure if your material can be cut by this machine,we want to know the product information:
Material:
Max. material width:
Max. material thickness:
Max.cut length:
Send your Inquiry Details in the Below, Click "Send" !
