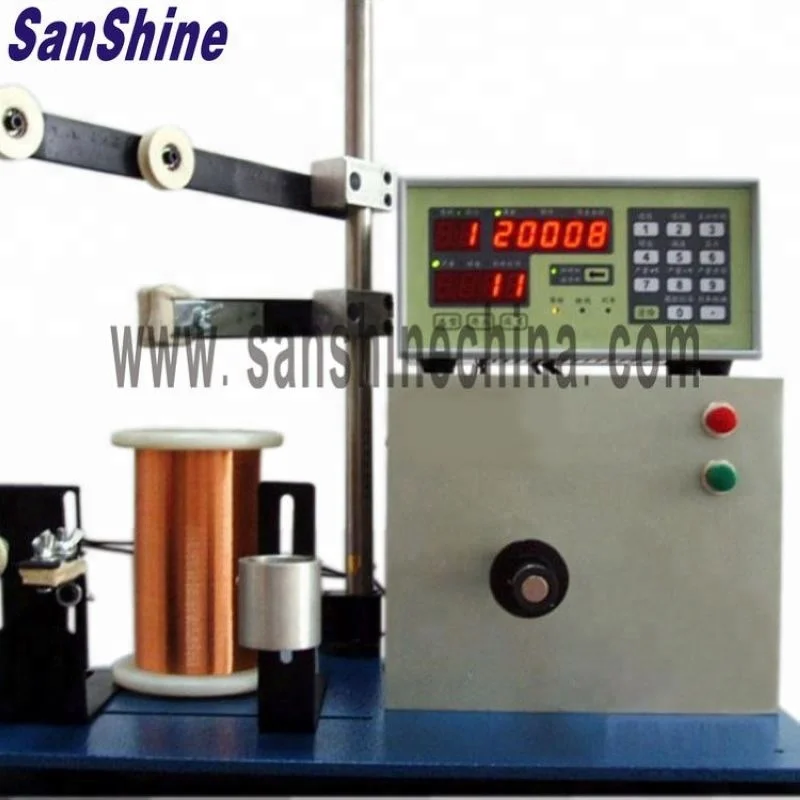

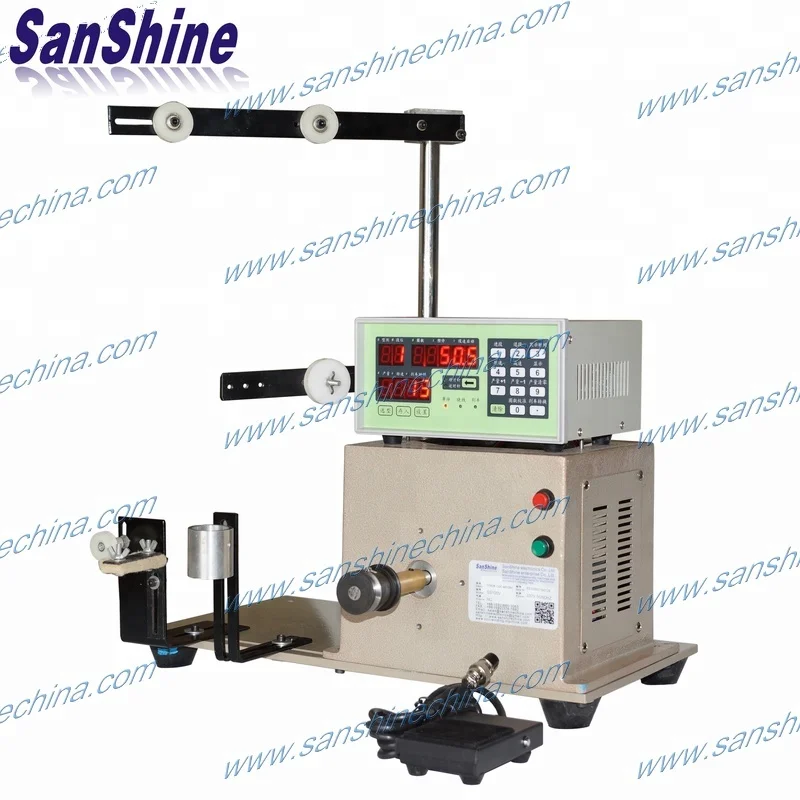

Small voice coil winding machine
- Category: Transformer Making Equipment >>>
- Supplier: Sanshine (Xiamen) Industrial And Trading Co. Ltd.
Share on (60465553785):
Product Overview
Description
Description of SS100V small voice coil winding machine :
The SS100V small voice coil winding machine adopts digital controller, it's an accurately and reliability digital coil winding
machine for winding small voice coil without bobbin,like as: mobile phone speaker voice coil, small speaker voice coil,earphone speaker coil,etc.. It is very economical.
Features of SS100V small voice coil winding machine:
1. Accurately count turns of winding by photo-electricity sensor.
2. Programmable winding direction, winding turns, winding speed, pre-stop& pre-start speed. Programmable many steps for many different windings coil.
3. Scientific winding fixture for winding and finished unload easy.
4. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.
5. More convenience by using foot-switch.
6. Include one alcohol bath cup for winding the alcohol self-bonding wires.
7. Spread wire by automatically.
Specification of SS100V small voice coil winding machine :
WIRE SIZE: φ 0.02~0.5mm
WINDING SPEED: 300 ~8570rpm
WINDING MOTOR: DC Brushless Motor
MEMORY CAPACITY: 999 Steps
POWER SOURCE: AC220V/110V±10%, 50/60 Hz.
BRAKE WAY: Use the reverse electromotive force of motor.
The SS100V small voice coil winding machine adopts digital controller, it's an accurately and reliability digital coil winding
machine for winding small voice coil without bobbin,like as: mobile phone speaker voice coil, small speaker voice coil,earphone speaker coil,etc.. It is very economical.
Features of SS100V small voice coil winding machine:
1. Accurately count turns of winding by photo-electricity sensor.
2. Programmable winding direction, winding turns, winding speed, pre-stop& pre-start speed. Programmable many steps for many different windings coil.
3. Scientific winding fixture for winding and finished unload easy.
4. Memory capacity accommodates 99 sequences of parameters with off-power memory retention.
5. More convenience by using foot-switch.
6. Include one alcohol bath cup for winding the alcohol self-bonding wires.
7. Spread wire by automatically.
Specification of SS100V small voice coil winding machine :
WIRE SIZE: φ 0.02~0.5mm
WINDING SPEED: 300 ~8570rpm
WINDING MOTOR: DC Brushless Motor
MEMORY CAPACITY: 999 Steps
POWER SOURCE: AC220V/110V±10%, 50/60 Hz.
BRAKE WAY: Use the reverse electromotive force of motor.
