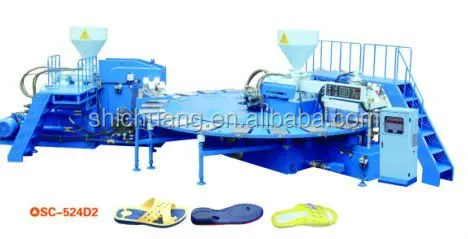

STRONG two color pvc/tpr sole injection moulding machine

Product Overview

Description

  STRONG two color pvc/tpr sole injection moulding machine

1.This machine can produce high-resilience soft foaming pvc slipper and dip casual shoe and dip sport shoes.

2.Unique structure design has more capacity  for much bigger moulds, also equipped mould cooling device for operating simply and making products perfectly.

3.The major mechanical movements, such as injecting, feeding, disc-rotating, mould-clamping etc all controlled by programmable controller to make the movement more precise.

4.Equipped digital-type proportional controller to control mould-clamping,injecting, feeding pressure at the right time and  more accuracy.

5.Selecting servo energy conservation system  to save about 30% energy.



1	Model	Unit	SC524D2
2	Material	PVC	PVC/TPR
3	Work stations	station	24 stations
4	Mould-Close Pressure	Ton	65/75
5	Mould Space	Mm	320
7	Diameter of Screw	Mm	65/70
8	Injection Cap.(Max)	G	600/800
9	Injection Pressure	Kg/cm2	140
10	Injection Speed	cm/sel	10
11	Rotating Speed of Screw	R.P.M	0~165
12	Temperature Control	Station	4
13	Heater of Barrel	Kw	6.9*2
14	Motor	Hp	25H+30H
15	Total Electricity	Kw	56kw
17	Dimension L*W*H	M	8.0*5.0*2.6
18	Machine Weight	Kg	14000
