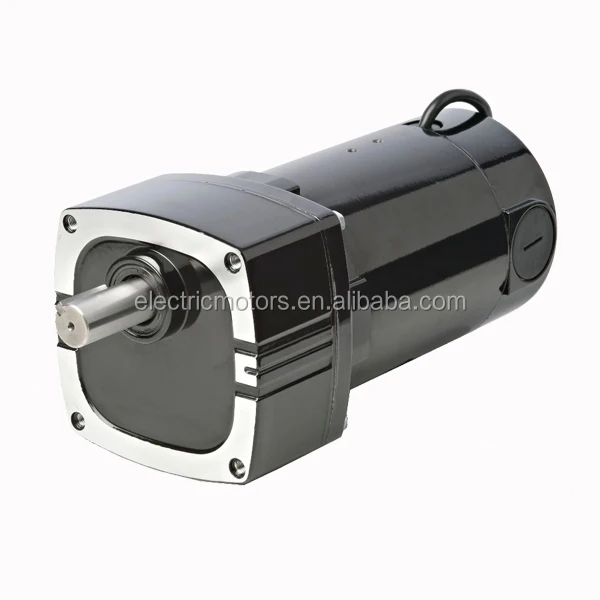

Electric 12v 24v Low Rpm Worm Geared DC Brushless Gear Motor 200w 250w 300w 500w 12 20 50 100 350 Watt 1 hp 0.75kw 1.5 kw 7.5kw
- Category: >>>
- Supplier: Ningbo Jigu Motor Technology Co. Ltd.
Share on (60465657275):
Product Overview
Description
12v 24v Low Rpm Electric DC Brushless Worm Geared Gear Motor 200w 250w 300w 500w 12 20 50 100 350 Watt 1 hp 0.75kw 1.5 kw 7.5kw
Product Overviews
| Diameter | Motor & Gearbox 12/28/36/42/60/90/115 to 160mm (Customized) |
| Voltage | DC Input 3v, 6v, 9v, 12v, 24v, 36v, 48v, 60v (Customized) AC Input 110v, 220v, 230v, 380v (Customized) |
| Power | 12/20/50/75/100/125/200/250/300 to 800w (Customized) |
| Speed | Variable Speed (Customized) |
| Torque | 0.3/3/5/20/25/30 to 50N.m (Customized) |
| Shaft | Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customized) |
| Bearing at output | Ball Bearing |
| IP Class | IP55 / IP65 / IP68 (Customized) |
| Accessories | Gearbox, Encoder, Brake, Cool Fan etc (Optional) |
| Note | Ratios and shaft configuration can be designed |
Product Description
Product Name | Brushless Worm Geared Motor |
| Model No. | GP-59WGM150 |
| Voltage | 24V |
| Size of motor | Dia 59mm; Length 80mm |
| Output Power | 30W |
| No Load -Speed | 150RPM |
| Load Speed | 130RPM |
| Gear Ratio | 1:28 |

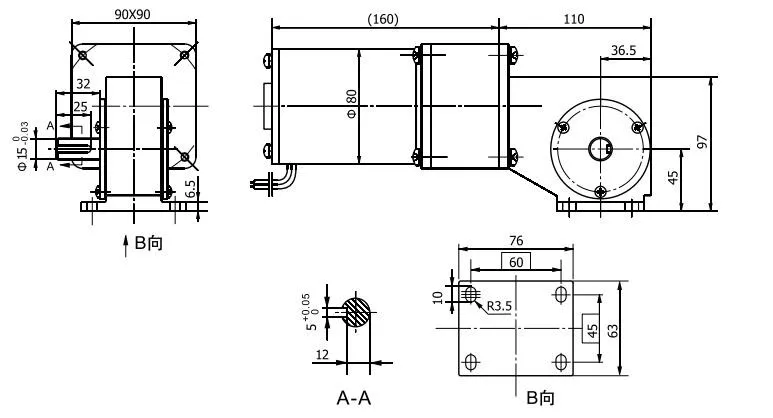

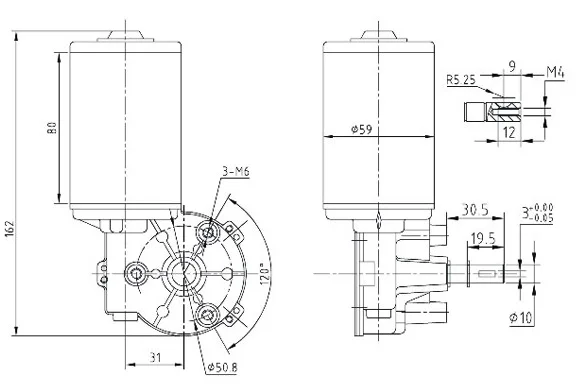

| Outline Drawing |
|
 |

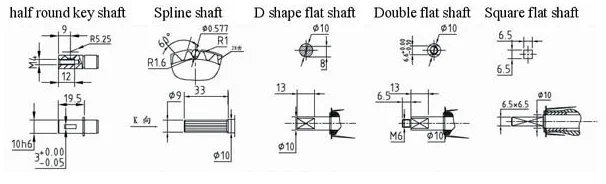

| Shaft |
|
Application
Customized Solutions
Our Services
GP Motor has been a sophisticated designer and manufacturer of topnotch custom EC motors, DC motors, Brushless Motors, Gear Motors, Pump motors, AC motors, electromechanical motor assemblies and components in the industry since 1991.All of our custom electric motors are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
12v 24v Low Rpm Electric DC Brushless Worm Geared Gear Motor 200w 250w 300w 500w 12 20 50 100 350 Watt 1 hp 0.75kw 1.5 kw 7.5kw
