Verified Factory Produced Aluminium Die Cast Product Made Die Casting by 800T Pressure Die Casting Machine
- Category: >>>
- Supplier: Ningbo Beilun Jiawei Machinery Co. Ltd.
Share on (60465712079):
Product Overview
Description

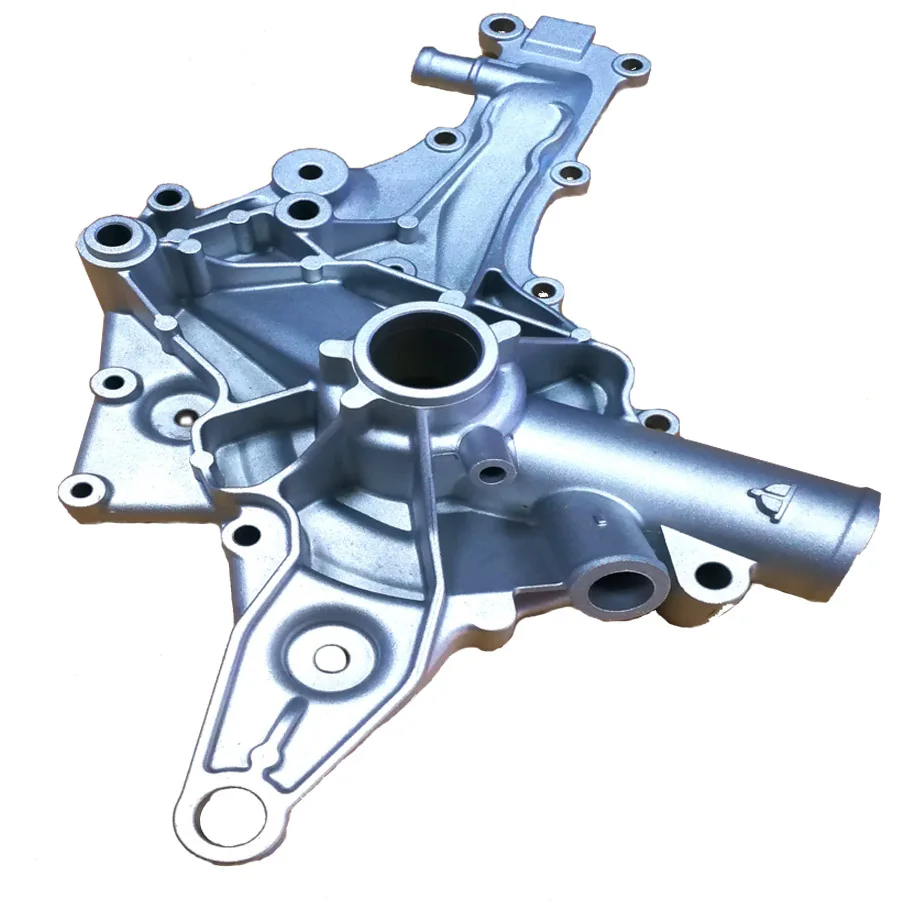

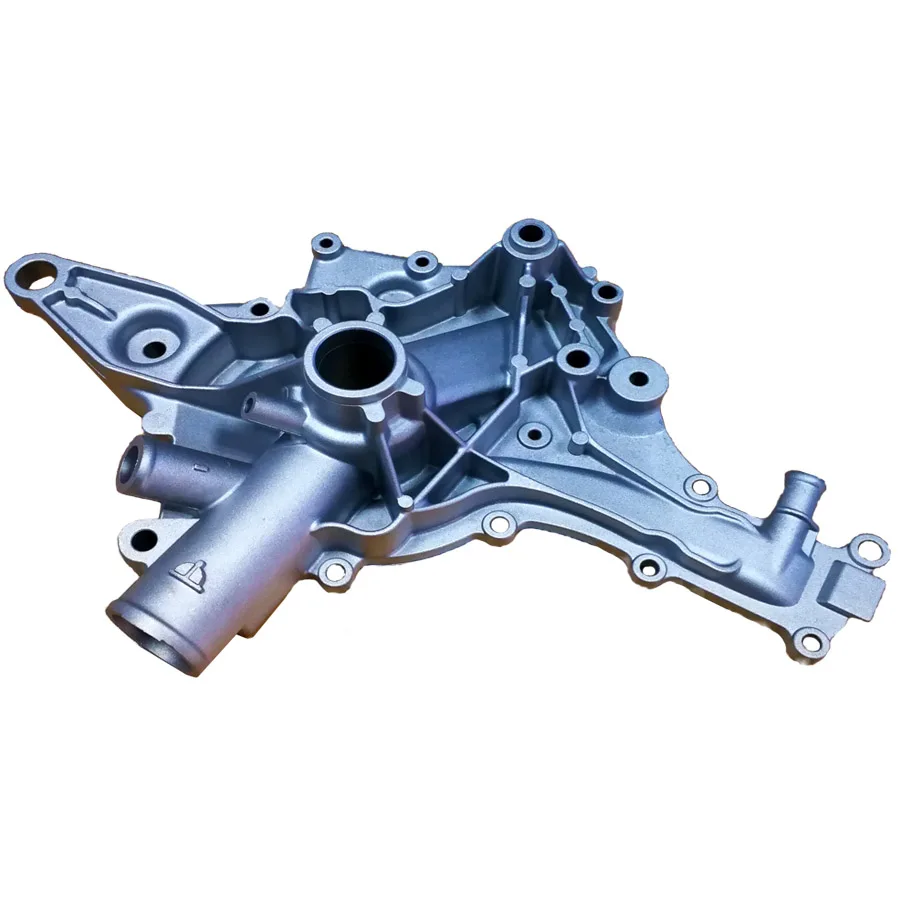

Verified Factory Produced Aluminium Die Cast Product Made Die Casting by 800T Pressure Die Casting Machine
Product Description
- Aluminum Die Casting Products Constructed with High Pressure Aluminum Die Casting;
- Specification Accuracy and Stability for our Aluminum Die Casting Products ;
- Reliable Service Life;
- Competitive Priced Aluminum Die Casting Products ;
- Environment Friendly;
- Completely Recycable;
- Aluminum Die Casting Products EMI/RFI shielding, rigidity, and durability with minimal weight;
- Aluminum Die Casting Products HS Code: 761699;
- Harmonized Tariff Schedule (HTS) on Aluminum Die Casting Products : 7616995160;
- Cast Aluminum Alloys Available: ADC12, A380, AlSi9Cu3;
- Cast Aluminum Material Properties: Lightweight,EMI/RFI shielding and rigidity, high operating temperatures, corrosion resistance outsanding, good tensile strength & Yield Strength & Elongation.
Technical Info
| Siz Range | Not normally over 2.7feet square |
| Parts Weight | 0.01pounds to 14 pounds |
| Setup Cost | New die casting tooling is free |
| Tolerances | 0.02inch,add0.01inch to 0.015inch across parting line up to part size |
| Die Casting Finish | 32~63 RMS |
| Minium Draft | normally 1° |
| Billet | normally 0.04inch |
| Normal Minimum Section Thickness | 0.060inch for small parts; 0.090inch for medium parts |
| Ordering Quantity | For first trial order: not less than 100pcs; Usually 1,000pcs or more. |
| Normal Leadtime | Tooling: 4~12 weeks update part size; Samples: one week if no finish and CNC machining required; Production:2~3weeks |
What we make
| What kind of Parts we can make? | |
| Parts | OEM/ODM Die Casting Parts;Tooling/Mould |
| Casting Material | Diecast Aluminum Alloy:A380,A383,ADC12,AlSi9Cu3,AlSi12Cu,etc |
| Diecast Zinc Alloy:Zamack 3,Zamack 5,etc | |
| Tooling/Mould Material | Die Steel: H13,SKD61,3CR2W8V,8407,etc. |
| Tooling/Mould Standard | DME,HASCO,LKM,CUMSA,MISUMI,DAIDO |
| Casting Product Weight | From 0.03kg to 10kg |
| Machining Tolerance | 0.005mm~0.01mm |
| Use for | • Automobile • Motor • LED Lighting |
| • AV Device • Machinery • Telecommunication Apparatus | |
| • Furniture • Medical Instrument • Custom | |
Why Choose Us?
- OEM Quality
- Competitive Priced Parts
- Flexible Volume
- Delivered On Time
- One-Stop Solution
- Trust Assurance Support
- Manufacture of Aluminum Die Casting and Machining Parts.
Company Information
Verified Factory Produced Aluminium Die Cast Product Made Die Casting by 800T Pressure Die Casting Machine
Company
- Established in March,23th,2004
- Located in Beilun ,Ningbo which is one of the biggest port
- Occupied area of 70,000 square feet
- 105 Employees & 6 Engineers
- Products main export to Europe and America

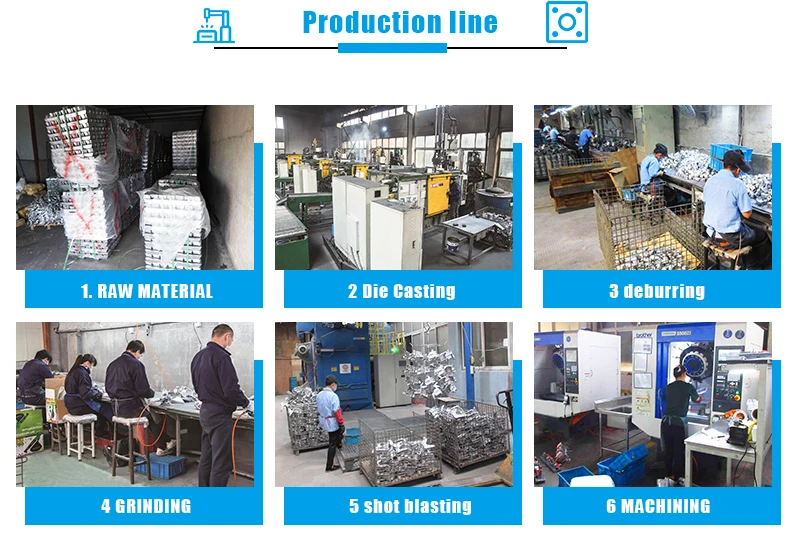

Tooling Workshop
The quality of casting tooling, trimming tooling and machining fixture is the key point to keep the quality finished parts.
We offer design services capable of taking an idea or reviewing the existing part design and creating this design to castability
and machining availability.
Die Casting Workshop
Diecasting Machines: 280T,400T,500T,800T.
Equipped with automatic lading machine,sprayer,oil cooling and water cooling system.
Machining Workshop
The completely machining machines can fully satisfy all machining requirements for castings.
We can offer a complete in-house machining for die casting parts including boring,CNC,drilling,
sanding,tapping,turning,broaching,burnishing,lapping,reaming,etc.
Surface Treatment workshop
Equipped machines for sand blasting, shot blasting,Vibration,Paiting,Powder Coating,etc
Inspection laboratory
Equipped:Coordinate Measuring Machine (CMM),Spectrograph ,Tensile Testing,X-Ray Detecting.etc
Quality Control
As an IATF 16949 certified high pressure die casting manufacturer, we offer quality products and value-added services.
The quality management system encompasses all of our manufacturing and customer service programs.
FAQ
Verified Factory Produced Aluminium Die Cast Product Made Die Casting by 800T Pressure Die Casting Machine
1.What service can you offer?
We can offer one- stop solution for high pressure die castings from mold engineering, designing & developing, casting, machining, finishing, assembling, packing and shipping.
2. What about your prices?
Kinds of die casting machines/equipment and skilled engineers will keep our prices very competitive without compromising the part`s quality.
3. What is your MOQ?
No requirements on the MOQ;
Flexible volume is accepted by us in view of this new project growing.
4. What is your Quality Control?
As an IATF16949 certified high pressure die casting manufacturer, we encompass this quality management system during the manufacturing. Also, some testing equipment help us to find the problems on time.
5. What is your payment term?
For tooling/mold cost, 50% as a deposit and the balance paid after samples approved by customer.
For bulk order, 30% as a deposit and the balance paid after negotiation.
6. What is the delivery date?
For tooling/mold, it will take 35~45days that is up to the design.
For mass production, it will take 10~30days that is up to your quantity.
7. Are you a trade company or factory?
We are a Intertek Verified Factory in Beilun, Ningbo which is near to Shanghai.
