Factory sale High output wood charcoal making machine/chacoal shaping machine

Product Overview

Description

Factory sale High output wood charcoal making machine/charcoal shaping machine

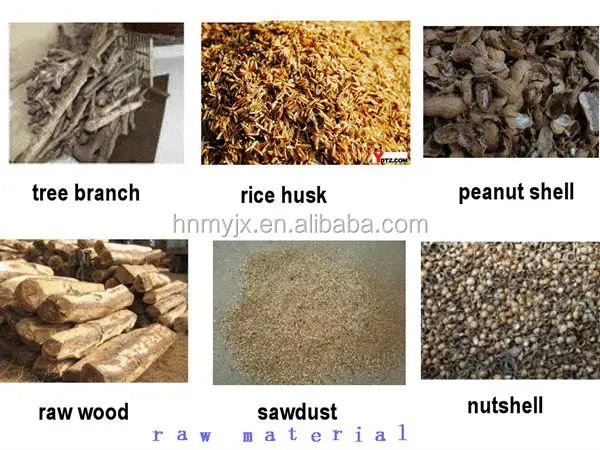

Raw material for   wood charcoal making machine

The raw material can be used wood chips,wood log,wood sawdust,wood wast,grass,straw,corn straw,wheat straw,corn con,rice husk and so on.

Working process for  wood charcoal making machine

1. Crush the raw material into small pieces (diameter is about 3-5mm)

2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%

3. Put the material into briquette press machine without add any chemical goods, it should accord to the high temperatre

4. Produce the briquette stick from biomass material without any additive

5. Carbonized the briquette stick

6,Finished briquette have 50MM,70MM ,80mm diameter can be choice



	wood crusher is suitable for wood branch,different kinds of straw or wood log with size less than 200mm,after milled, the output size can reach diameter 1-5mm, which is suitable for further making wood briquettes. We also can supply other type crusher for different raw materials.

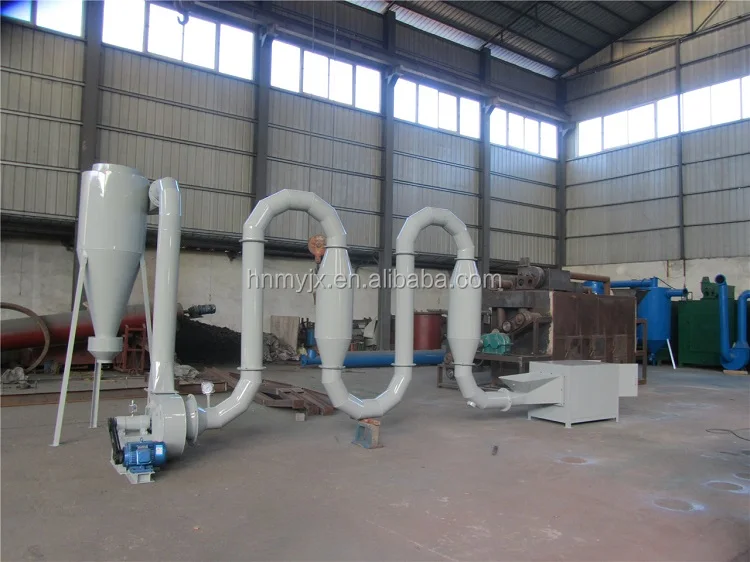

	For raw materials with heavy moisture content that above 12%, installing a ]dryer is better,this dryer reduce moisture contect below 12% before feed sawdust into briquette machine.

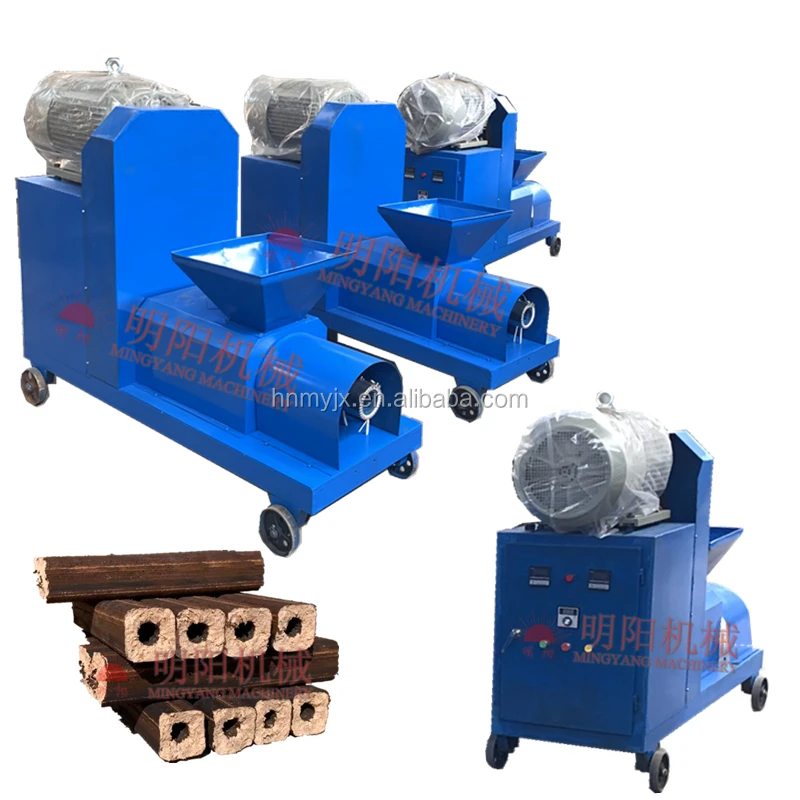

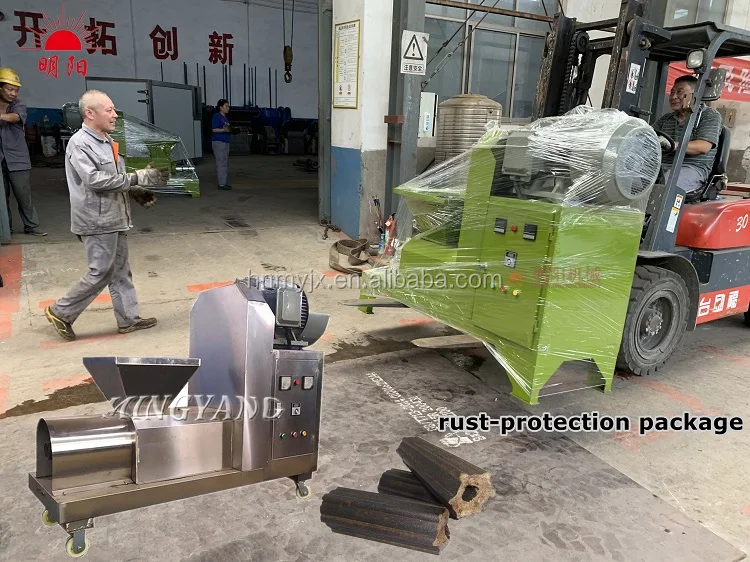

	Briquette machine will compress sawdus,biomass powder etc into briquettes under high temperature and high pressure without no binder. The final briquettes diameter can be 50-90mm, shape can be square, hexogonal, cylinder.
	Carbonization furnace is charcoal making machine, to carbonize the briquettes into barbecue charcoal.

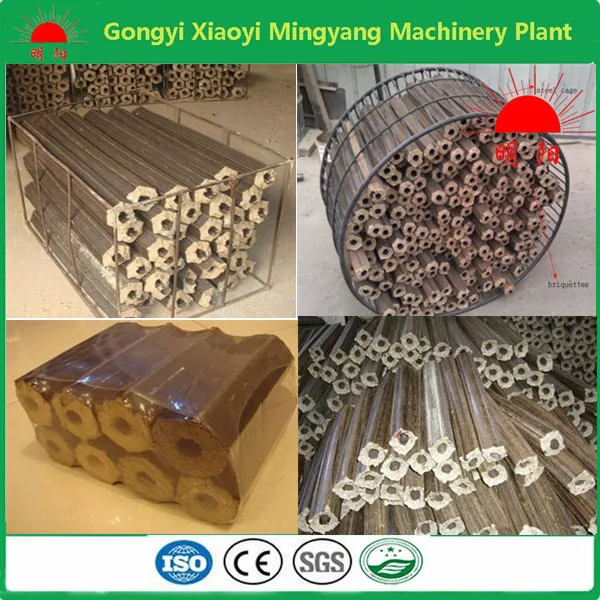

Final briquettes of the   wood charcoal making machine

 The available shape: square, hexagonal, hexagonal with edge

 The available diameter could be: 50mm,60mm,70mm.80mm

 The available length could be :20cm,30cm, 40cm





Parameter datas of   wood charcoal making machine

  There are two types machine

(1)Single machine
If the capacity you need is 120-450kg/h, you can choose one single machine, about the single machine, we have six types.

Model	Capacity  kg/h	Power  kw	Material temperature	Weight  kg	Packing dimension  mm
ZBJ50-9	120-220	11-15	8-12%	550	2200×600×1300
ZBJ50-C	350-420	22	8-12%	750	2700×700×1550
ZBJ60-9	220-250	15-18.5	8-12%	650	2400×700×1350
ZBJ70-9	280-340	18.5-22	8-12%	780	2400×700×1400
ZBJ80-9	320-360	22	8-12%	850	2400×750×1400
ZBJ90-9	380-450	30	8-12%	980	2600×800×1500

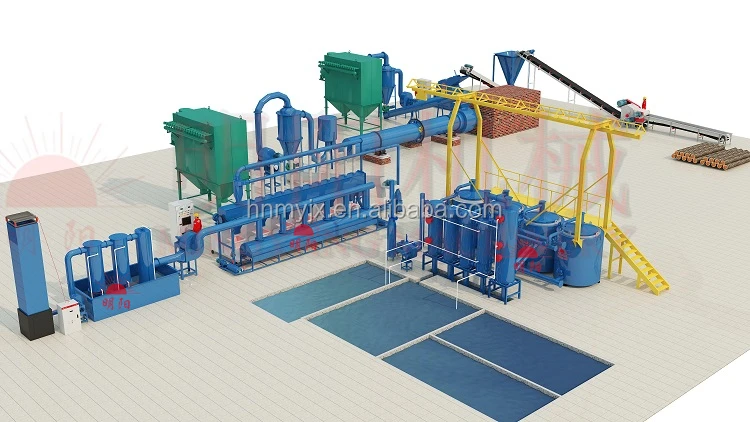

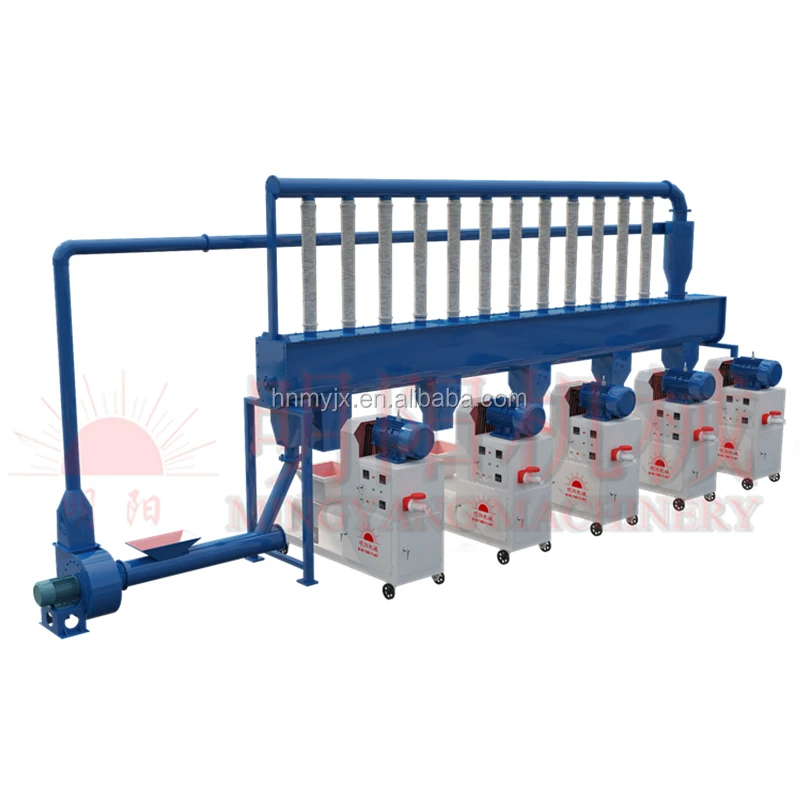

(2)Automatic Production line
If you need large capacity, one single machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h),and it will save many workers and cost.
Our automatic line include the main machines and auxiliary Machinery .the main machine (several sets of single briquette machine) Auxiliary machine (material distributor, screw conveyor, belt conveyor, smoke disposal system, cool conveyor.

Model	Capacity	Power (kw)	Dimensions,  m	Bar Diameter, mm	Weight, MT
ZBJ9-4-1	900-1100kg/h	11*5+3+3+ 0.22	6.5*2.35*3.1	50,60,70	3.2
ZBJ9-4-2	1250-1500kg/h	15*5+3+3+0.22	6.5*2.35*3.1	50,60,70,80	3.8
ZBJ9-5-1	1800-2200kg/h	11*10+3*2+3+0.22*2	6.5*3.35*3.15	50,60,70	6.4
ZBJ9-5-2	2200-2500kg/h	15*10+3	6.5*3.35*3.15	50,60,70,80	7.5

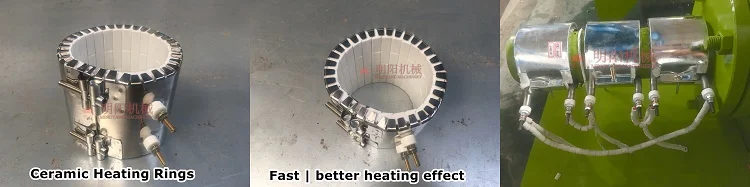

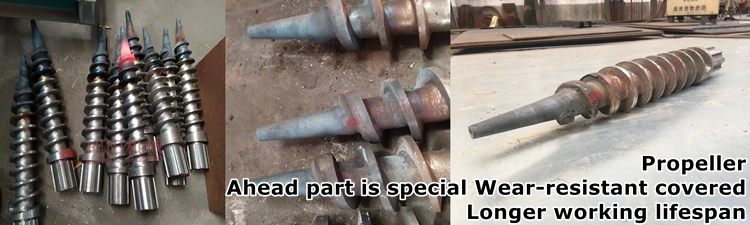

 Spare parts on briquettes machine:

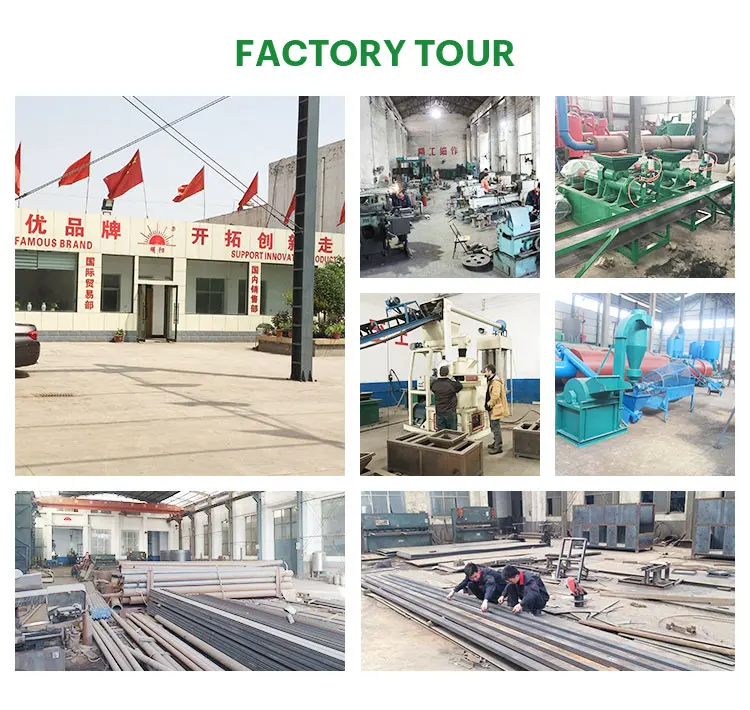

Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.  After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market,









Why the client choose us,because :



• one of the largest manufactures of the briquette machine in China


• the earliest manufacture of the briquette machine in China with 20 years experience,


• get the ISO certificate and SGS certificate


• We have the test center of the machine, and we bulit one realted company ( making the briquette and charcoal )with our machine.


• Every machine will test before delivery and we will send the test video and other realted video to our client


• all the motor of the machine with the CE certificate


• product quality get the local government guarantee


• recommend clients for free, offer the layout drawing and the profit table


• change the electrical power for free during warranty time.


• offer the install video and free stuff training
