Product Overview

Description


Product Description

Exceptional customer service at the most competitive price AND Top quality


1.Japanese Fuji IGBT


2.Full bridge pulse width modulation

3.LED display,digital control

4.CE approve,ISO9001-2008

5.Forced air cooling

6.It protect against under-voltage,over-voltage,phase loss,short circuit,over-current and over-heating.

7.It is used for electroplating,electrolysis,anodizing,electrowinning,electropolishing etc.

8.All specifications can be custom made as your requirement

Tech Specifications
\t
Input voltage
\t
3-phase 380v±15% or single-phase 110v/220v±15% 50Hz
\t
Output rated value
\t
Output current:0-1500A,Output voltage:0-8v,0-10v,0-12v,0-18v,0-24v,0-36v,0-48v
\t
Output waveform
\t
smooth waveform
\t
Adjustable range
\t
Output voltage:0-rated voltage(adjustable stepless)                                                       Output current:0-rated current(adjustable stepless)
\t
Cooling method
\t
Forced air cooling
\t
Control accuracy
\t
Less than ±1% of rated valu
\t
Operation control mode
\t
Stable voltage or current
\t
Communication interface
\t
According to customers' requirement
Function Matching
\t
Matching Items
\t
Basic Function
\t
Additional Function
\t
Output of adjustalbe voltage(from zero)
\t
           YES
\t
\t
Startup/shutdown
\t
           YES
\t
\t
Stable voltage/current conversion
\t
           YES
\t
\t
Voltage/current display(pointer display or LED digital display)
\t
           YES
\t
\t
Remote/Near synchronous control and display function
\t
\t
               YES
\t
Soft starting function
\t
\t
               YES
\t
One-step time control function
\t
\t
               YES
\t
Three-step time control function
\t
\t
               YES
\t
Microcomputer control function(LED display)
\t
\t
               YES
\t
Digital ampere hour function
\t
\t
               YES
\t
Fan temperature sense and control
\t
\t
               YES
\t
Automatic phase-changing output
\t
\t
               YES
\t
Electroplating bath liquid PH value detection&amp warning function
\t
\t
               YES
\t
Electroplating bath liquid heating detection and control
\t
\t
               YES
\t
PLC automatic control
\t
\t
               YES
\t
RS485(232)communication interface
\t
\t
               YES

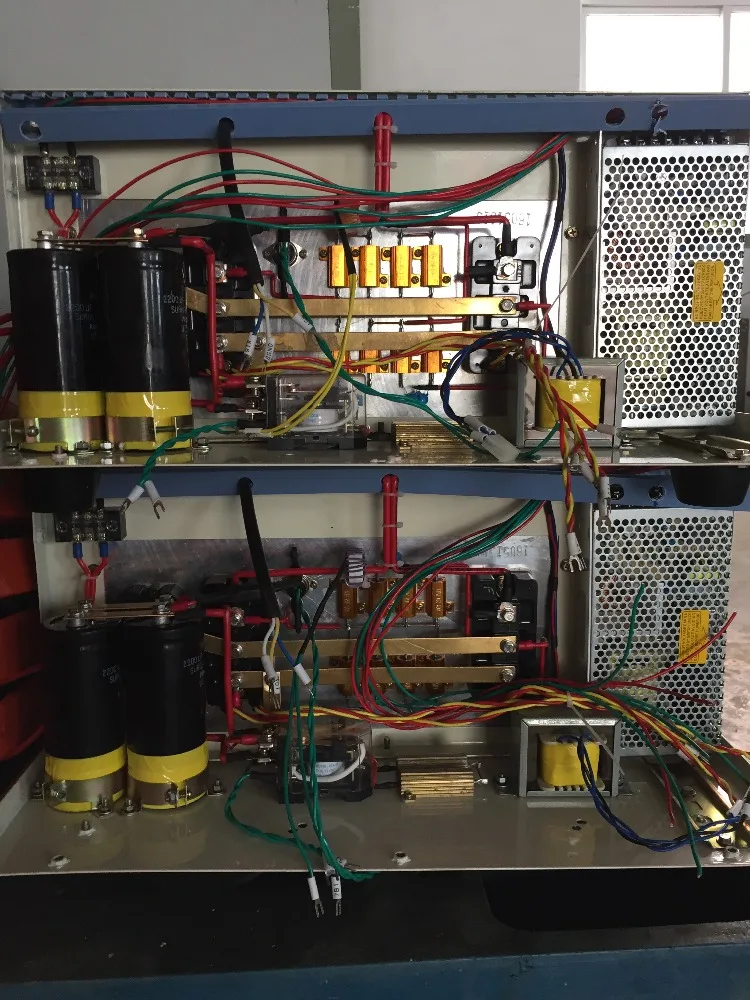

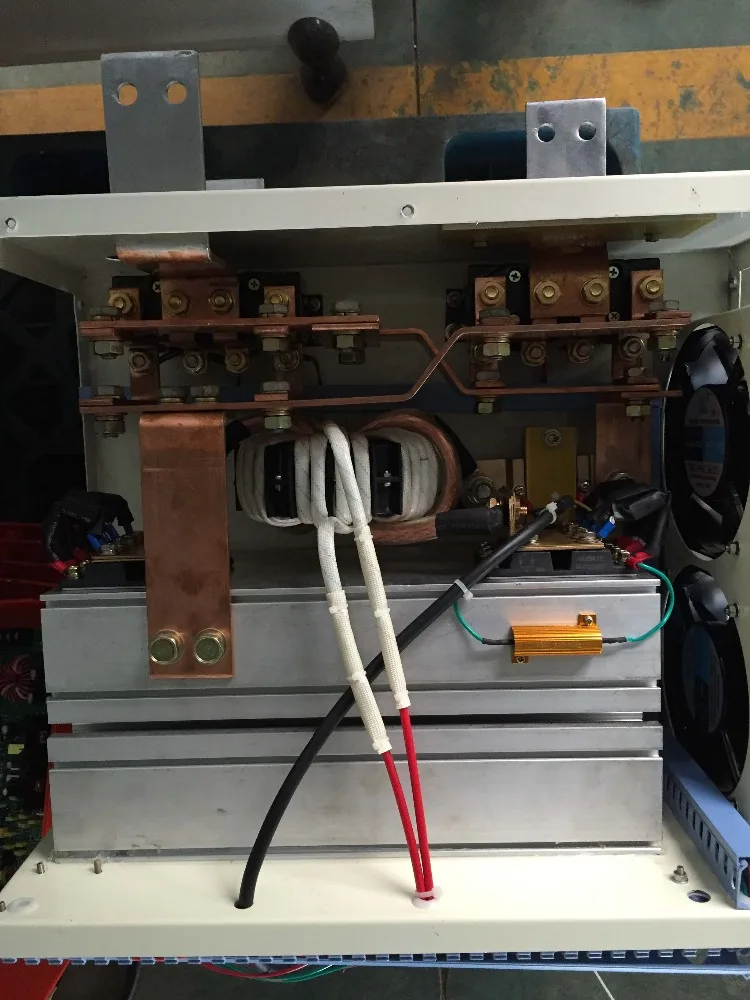

Detailed Images

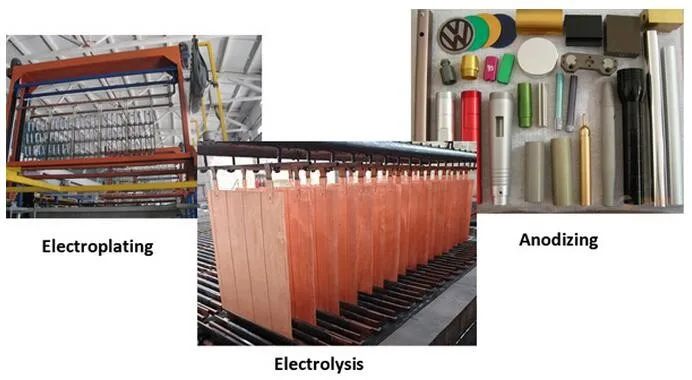

1.Meet all kinds of process requirements
It is suitable for electroplating,deplating,electrochemical degreasing,sewage treatment and other electroplating process.
2.Complete functions
With three working modes of periodical auto-shift,forward direction and reverse direction,the product can automatically switch the polarity of the output current,which helps improve plating coat and density.

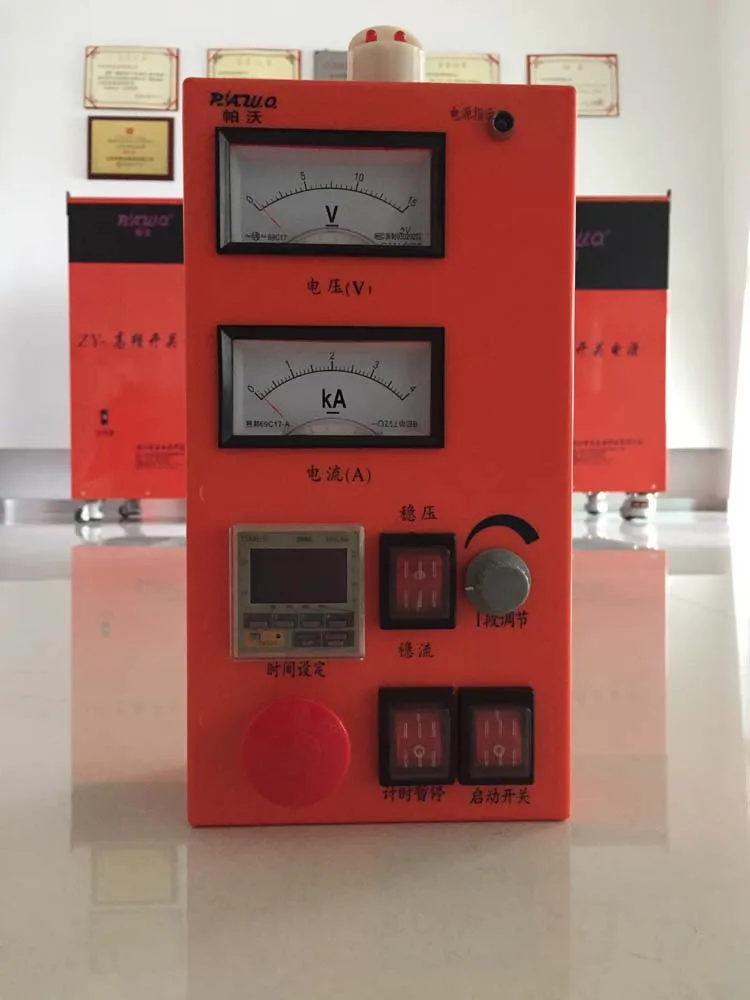

3.PLC controlling,simple operation and convenient application
It can simply and convenient set the time by its timing control,arbitrarily set the operation period of positive and negative current polarity,and effectively control the thickness and hardness of the plating coat.
4.Safe and reliable
The core switchover component is made of special superconducting materials,and the controlling part uses intelligent time control to automatically shut down during switchovers.Also it has function to protect against under-voltage,phase loss,over-current and short-circuits.
5.Expandable communication interface
4-20mA,0-10V,0-5V and other standard control interface can be expanded according to customer's demands.

Packing & Delivery

Deliver withen 15 days from NINGBO or SHANGHAI port
