Fiber Optics GYTC8S Self Figure 8 G655 G657a 24 Core Fiber Optical Cable Factory Price
- Category: >>>
- Supplier: Guangdong Aucas Network Technology Co. Ltd.
Share on (60465924989):
Product Overview
Description
Fiber Optics GYTC8S Self Figure 8 G655 G657a 24 Core Fiber Optical Cable Factory Price
fiber optics
fiber optics cable
fiberoptics

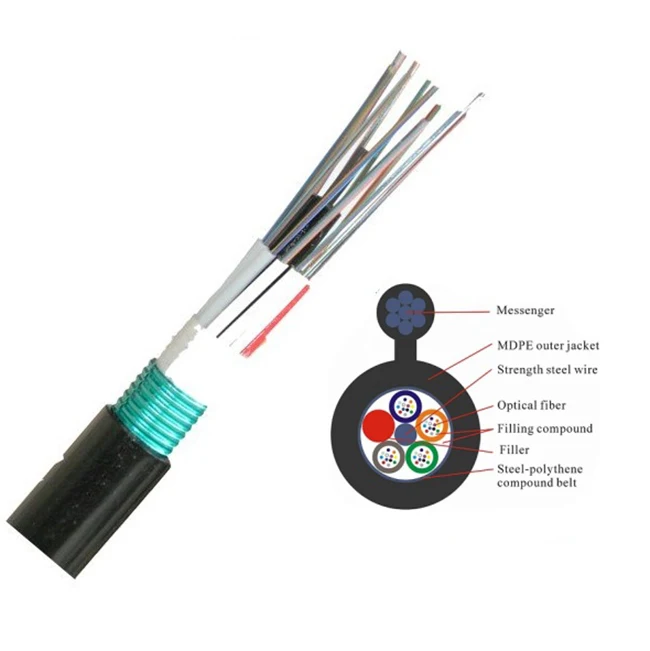

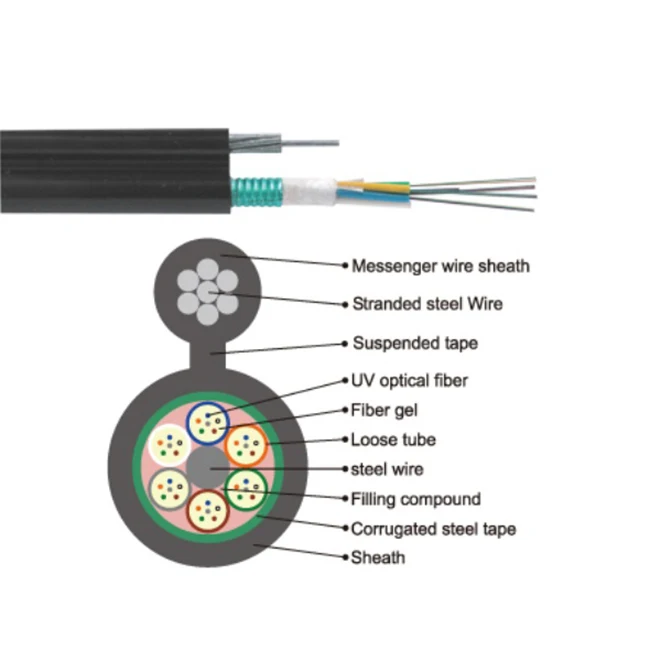

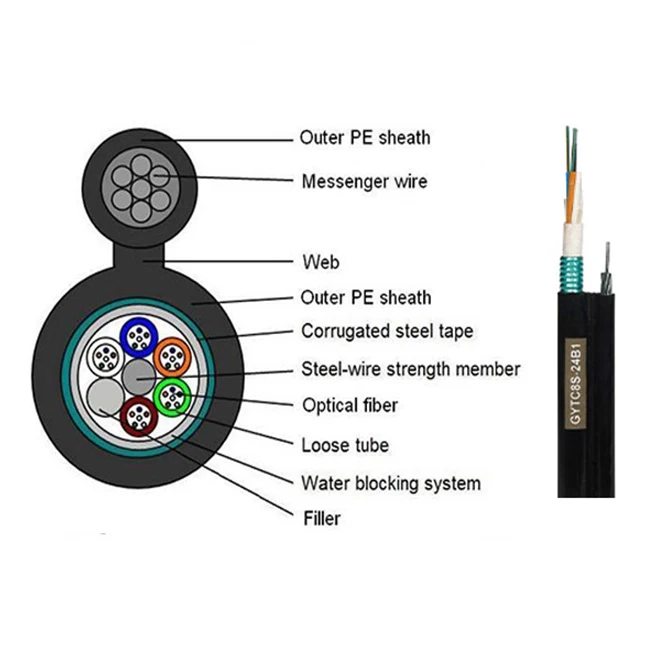

In the structure of standard 8-like self-supporing center tube optical cable ,the single mode or multimode optical fibers are jacketed by loose tube and the tube is made of high modulus plastics. Inside the tube ,it is filled with waterproof filling compound. The loose tube is at the center of the cable core ,With parallel steel twisted wires, 8-like sheath is extruded to form an optical cable.
Featrues
1.The remaining length of optical fiber is controlled precisely to ensure prefect tensile strength and temperature characteristics of optical cable.
2.The loose tube material itself has perfect hydrolysis resistance and high strength. The special filling paste inside the loose tube is used to protect the optical fiber.
3.No additional steel twisted wire is required in erection so that 3-4 times quicker construction speed could be obtained.
4.A number of waterproof measures as follows are applied for oftical cable protection.
Waterproof tape is applied outside the loose tube.
Special fiber paste is filled inside the loose tube.
ITEM | Specification | Material Description |
Number or Optional Cable Core | 2-12 | Single Mode,Multimode |
OD of Optical Cable | 5.5-6.5mm | MDPE Sheath |
Reinforced Steel Wire | 1.6-3.2mm | Phosphatized Steel |
Loose Tube | 2.2-2.8mm | PBT |
Fiber Filler | Waterproof | Fiber Paste |
Tensile Strength | 600-1500N | Long-term:600N €Short-term:1500N |
Laying Method | Self-supporting Overhead |
|
Weight | 75-100Kg |
|
