Mass flow meter for CNG fueling system

Product Overview

Description



Introduction of CNG mass flow meter

Mass flowmeter consist of mass flow sensor and mass flow transmitter. It does not measure the volume per unit time (e.g., cubic meters per second) passing through the device, but measures the mass per unit time (e.g., kilograms per second) flowing through the device. The result of volumetric meter varies with temperature, pressure, composition, etc., but mass flowmeter does not have such problem.



Operating principle of CNG mass flow meter

Mass flowmeter is designed according to Coriolis Effect. The inlet arm and the outlet arm vibrate with the same frequency as the overall vibration, but when there is mass flow the two vibrations are out of sync: the inlet arm is behind, the outlet arm is ahead. The two vibrations are shifted in phase with respect to each other, and the degree of phase-shift is a measure for the amount of mass that is flowing through the tubes.



Sealand CNG-015 mass flow meter

Sealand CNG-015 Compressed Natural Gas meters are specifically designed for the CNG fuel

dispensing industry to meet the challenges of measuring compressed natural gas for custody

transfer. With worldwide installations, the CNG-015 is the preferred meter of the leading CNG

dispensing equipment manufacturers.



Feartures:

*Reduced fill time with higher flow rate capacity

*Compact design with no moving parts, no special mounting and no flow conditioning required

*Fast delivery and global support

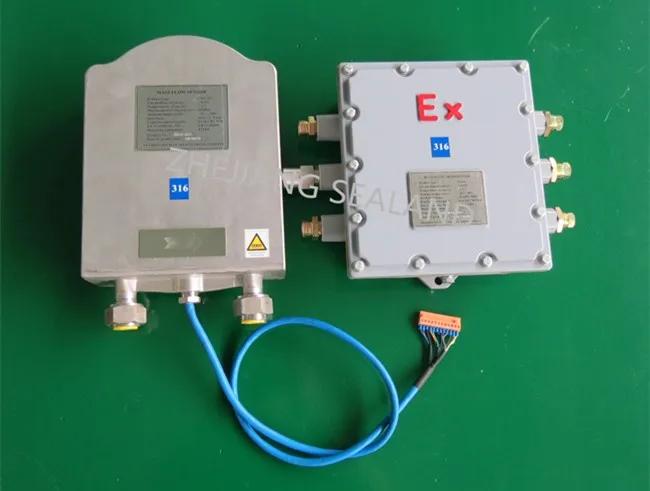

Pictures of CNG mass flow meter



Application of CNG mass flow meter(CNG dispenser)



Specifications of CNG mass flow sensor

Specifications of mass flow sensor
Gas accuracy	±0.5%
Liquid accuracy	±0.2%
Temp. accuracy	±1°C
Loss of pressure	≤0.2MPa
MWP	25MPa
Temp. rating	-50°C~+200°C
Connector	Nut M32 x 1.5
Ex-proof grade	Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb



Specifications of CNG mass flow transmitter

Specifications of mass flow transmitter
Temp. rating	-20°C~+50°C
RH	≤95%, not condensed
Atmospheric Pressure	86~106 kPa
Operating voltage	AC220V/50Hz, DC24/50Hz
Communication port	RS485 Modbus RTU
Ex-proof grade	Exd[ib]IIBT4Gb



Specifications of CNG mass flow meter

Specifications of mass flow meter
Model no.	CNG-15
Mass accuracy grade	0.2
Temperature accuracy	±1°C
Zero stability	0.009kg/min
Repeatability	0.25%
Max. flowrate	70kg/min
Nominal diameter	15mm( 3/5 inch)
Fluid temperature	-200~200°C
Material of tube	Stainless steel 316L
Packing	1set/carton or wooden case
Warranty	2 years
Package dimension	630*630*580mm
G.W.	19.66kgs



Dimension of mass CNG flow meter & transmitter





Advantages of CNG mass flow meter



1. High reliability



2. It requires low maintenance, because of no movable parts.



3. High accuracy: Generally, it is from 0.15%-0.3%.



4. It is not affected by the fluid, saving the design & installation cost.



5. It shows many parameter simultaneously, such as mass flow, temperature, density, etc.



6. Convenient installation: Generally, there is no specific requirement of choosing upstream or downstream pipe.



7. Wide application: Besides the common fluid, the mass flowmeter can measure other industrial media, such

     as non-Newtonian fluid, all kinds of slurry, suspensions, etc.





Installation of CNG mass flow meter

It is highly recommended to install as follows, for different fluid.

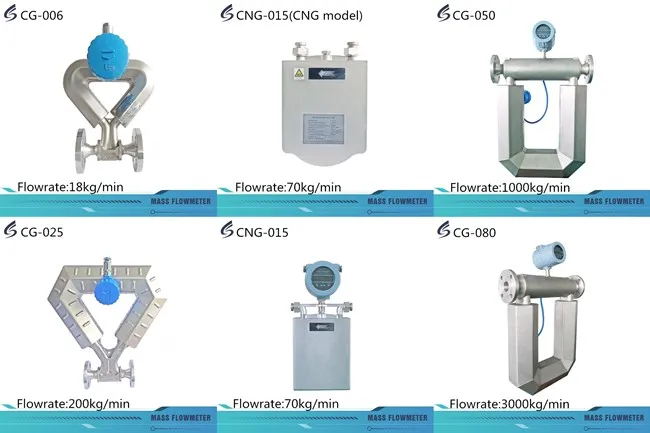

Related products: Mass flow meter CG-006, CG-025, CG-050, CG-080, read more!
