Product Overview

Description

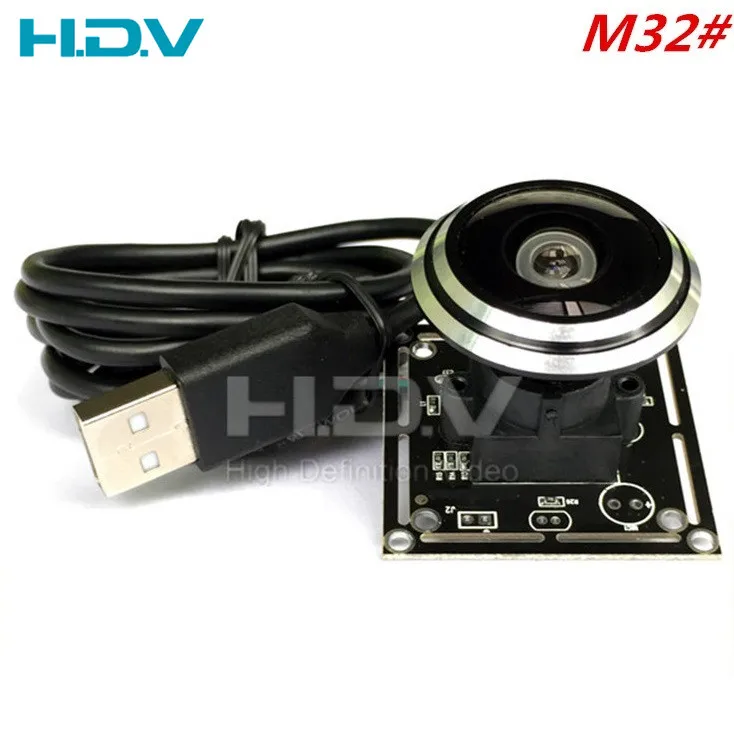

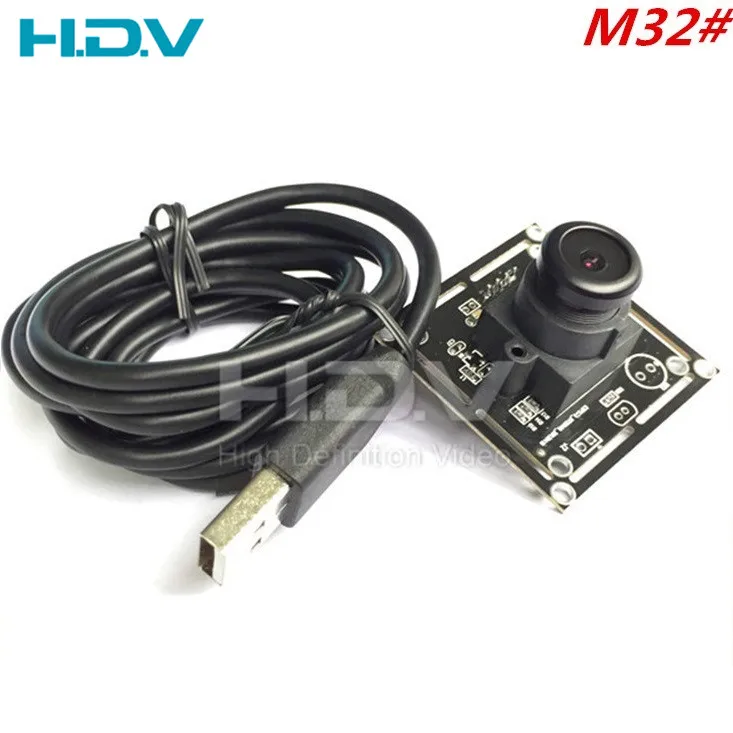

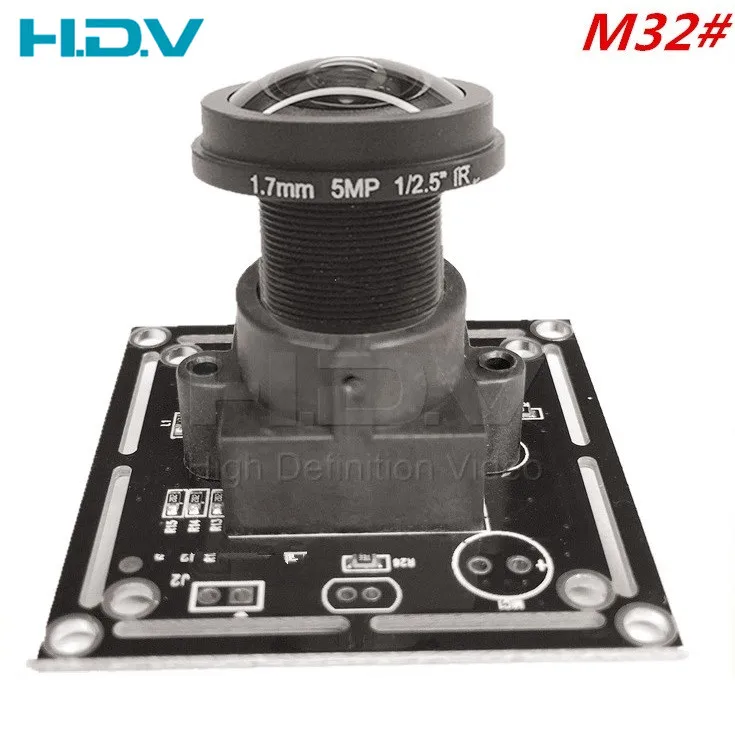

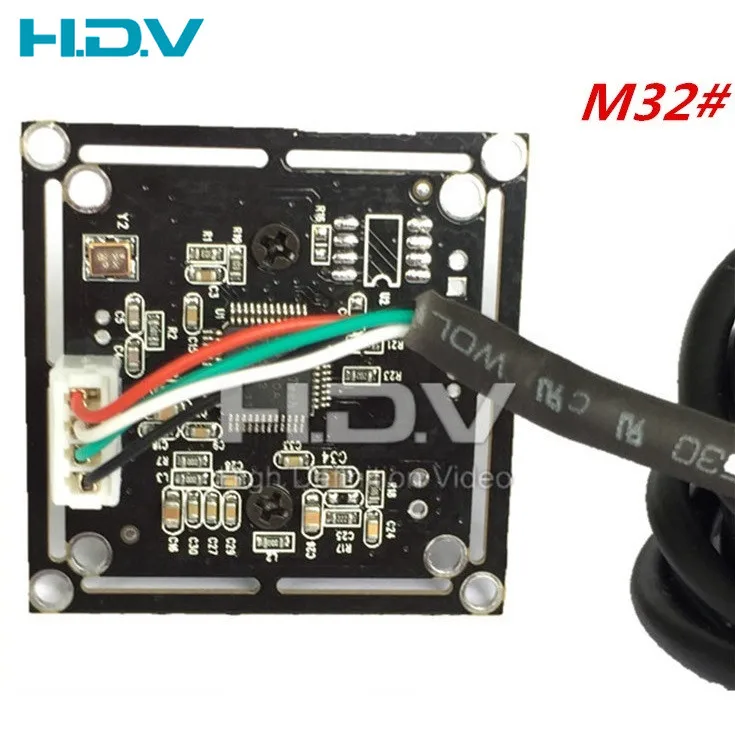

  720P cmos mini usb 2.0 camera module with Wide Angle and Pinhole Lens for ATM and Kiosk 32/38mm



This USB camera design for Intelligent machines,special Koisks, VTM, CRS, ATM or other Intelligent machine, mini shell,  easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens (more than 130 degrees) to get wide angle view.



Order Symbol:

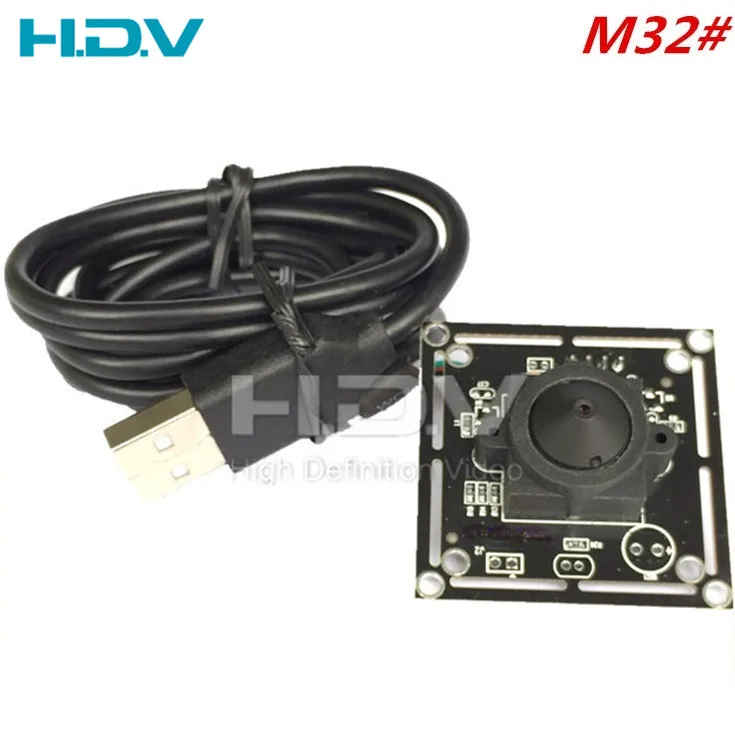

• HDV-USB720M328-P3.7    720P USB Camera with 3.7mm Pinhole Lens .
• HDV-USB720M328-L2.8    720P USB Camera with 2.8mm Wide Angle Lens
• HDV-USB720M328-L3.6    720P USB Camera with 3.6mm Lens
• HDV-USB720M328-L2.1    720P USB Camera with 2.1mm Wide Angle Lens
• HDV-USB720M328-L2.5    720P USB Camera with 2.5mm Wide Angle Lens
• HDV-USB720M328-L4.2    720P USB Camera with 4.2mm Lens
• HDV-USB720M328-L6       720P USB Camera with 6mm Lens
• HDV-USB720M328-L8       720P USB Camera with 8mm Lens

Features:

• Image sensor 1/4" CMOS,  0.1Lux, Full HD720P image
• Video calling with the all versions of Skype

• Audio Optional
• Free Driver USB 2.0 (UVC)
• USB2.0 HIGH SPEED, compression USB1.1
• Default setting (30fps@1280*720) or (30fps@640x480)
• Manual focus
• View angle: 15-170 degree optional
• Compression YUY2 & MJPEG
• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
• Standard 1.5m cable, Can be connected through 10 meters USB cable
• Dimension:32*32mm
• USB Power: 5V±10%DC,50mA
• Used:intelligent machine,especially Banks'ATM
• Can be customized by your requirements

USB Series	Model	HDV-USB720M328-L2.1
	Name	USB Mini Camera
Camera	Image sensor	1/4" Sony Sensor
	Resolution	720P (1280*720 pixels) , 30fps no smear
	Min.Illumination	0.1Lux
	Lens Standard	2.1mm lens F1.2
	Effective Pixels	1280*720  pixels(720P); 1024×768  pixels(XGA); 800×600  pixels(SVGA); 640×480  pixels(VGA); 320×240  pixels(QVGA);
	Syetem	Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3; Android System
	S/N ratio	More then 48 dB (AGC Off)
	Exposure	Auto / Manual(Shutter Speed & AGC Control)
	White Balance	Auto / Fixed / Indoor / Initial / Outdoor
	Gamma Characteristic	Auto r>=0.45
	Manual Function	White Balance, Brightness,Contrast,Hue,Saturation,Gain
	Miscellaneous	Mirror / Flip / Back Light / Flickerless
	Cable Length:	0.8m, 1-10m for optional purchase-USD0.5/m
Industrial Standard	Power source	DC 5V / 80mA (USB Power)
	Operating current	85mA
	Operating Temperature	-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
	Interface Type	USB format(Complies with USB 2.0)
	Measurement (mm)	32*32mm and 38*38mm
	Weight (Approx.g)	110g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1

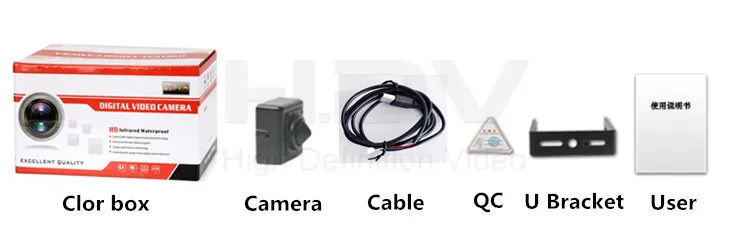

Packing List:

1pc cctv camera

1set screws

1pc manual

1pc color box



Single Size: 95*65*55mm(LXWXH)
