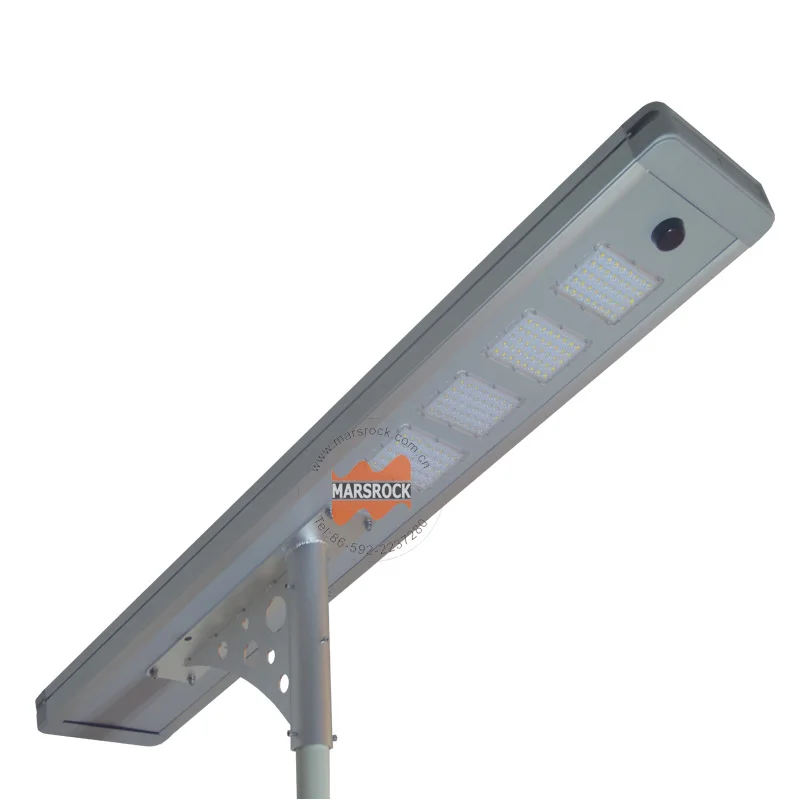

80W LED Solar Power Street Light 100W Solar Panel 64Ah Battery All in one, solar auto sensor light, integrated solar street light
We provide the integrated solar street light with 20W, 30W, 40W, 50W, 60W, 80W. Our integrated solar street light which integrates solar panel, LED lamp and Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low energy consumption, long lighting time, high lumen and free maintenance. And the same time, it is convenient in shipping and installation.
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED light will work at night automatically by light sensor control, and provide light for darkness area, and the human intelligence induction system can save energy when the lighting is too strong.
1. Integrated design without cable, simple and diverse installation, the installation material cost is much lower.
2. Don't need power network to supply electricity, no need to pay electricity bill, save resource.
3. Waterproof, rust proof and corrosion proof.
4. Standard configuration: with infrared sensor, people come closely, light on; no people, light off. Suitable for rural road, community, courtyard.
5. Other configurations: Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.
|Solar Panel||18V 40WP||18V 60WP||18V 70WP||38V 80WP||38V 90WP||38V 100WP|
|Battery||Lithium Iron Phosphate Battery|
|12V 16AH||12V 24AH||12V 33AH||24V 40AH||24V 48AH||24V 64AH|
|LED||SAMSUNG 5630||SAMSUNG 5630||SAMSUNG 5630||SAMSUNG 5630||SAMSUNG 5630||SAMSUNG 5630|
|Material||Aluminium Alloy||Aluminium Alloy||Aluminium Alloy||Aluminium Alloy||Aluminium Alloy||Aluminium Alloy|
The product is made up with integrated parts: solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system.
Standard configuration: with infrared sensor, people come closely, light on; no people, light off. Suitable for rural road, community, courtyard.
Using high capacity and long life of lithium iron phosphate battery, warranty life 3 years, can resist high temperature and low temperature; can ensure the long service life of the whole product.
This product can be installed in the garden, residential area, courtyard, road, mine area, parking area, etc. the batteries provide energy for LED light, and the solar panel charges for batteries.
1. How long does the solar power can be stored?
Solar power of the integrated solar street light can be stored for 6 months after the batteries are full charged. Please examine, and charge periodically after long time transportation to prevent damage.
2. Can it be worked without sunshine charging?
Integrated solar street light cannot work without sunshine charging, please select suitable product model according to local sunshine radiation and annual total radiation.
3. What is the advantage of the battery?
Our integrated solar street light adopts long life lithium battery for storing energy, charging temperature at day time is between: 0℃-60℃,when temperature goes lower than 0℃,the control system will stop automatically to protect the batteries, and it will revive to charge the batteries while temperature goes higher than 0℃.Discharging temperature at night is between:-20℃-60℃, any ambient beyond it will bring damage to the batteries.
4. What should be notice in installation?
Please make sure the surface of the solar panel face to sunshine radiation. At the same time, please keep it away from any shadow of house, trees etc.
5. How to choose solar street light?
We will design solar street light for you according to listed factors:
1. The highest of pole.
2. The proportion of the rainy and cloudy days in installation place of solar street light.
6. How to control the luminance of the solar street light?
Our solar street light adopts Microwave sensor control & brightness sub-regulation. Here we especially introduce the brightness sub-regulation. Use a computer system to set the brightness according to the time change. For example, from 6:00p.m. to 12:00p.m., 100% brightness; from 0:00a.m. to 06:00a.m., 20% or 30% brightness. In that way, this new product can instead common LED street light.
7. What is the mounting height?
We suggest the solar street light of 20W, 30W, 40W for 3-5m, the solar street light of 50W, 60W, 80W for 6-8m.
8. What is the distance?
For the distance, we suggest the solar street light of 20W, 30W, 40W for 10-15m, the solar street light of 50W, 60W, 80W for 20-25m.
