Product Overview
Description
New brand Weichai Deutz XCW8200 Series Marine Diesel Engine with gearbox with 890-1104kw,1210-1500HP
for Sale
Product Description

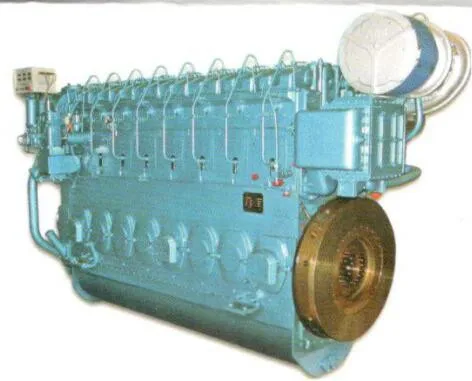

WEICHAI XCW8200 Marine Propulsion Diesel Engine( Power:890-1140KW, 1210-1500HP)
ENGINE SPECIFICATION
Engine Type | Inline-8 Cylinder, 4-Stroke Diesel Engine |
Bore(mm)*Stroke(mm) | 270*200 |
Combustion System | Direction Injection |
Aspiration | Turbocharged & Intercooled |
Starting System | Air Starter |
Cooling System | Heat Exchanger |
Displacement(L) | 67.856 |
Rotation | Clockwise Facing Flywheel |
Size of Flywheel Housing & Flywheel | Maker Standard |
Emission | IMO TIER II |
Dry Weight (kg) | 7800kg |
Dimensions (L*W*H) | 3380*1751*2423mm |
POWER RATINGS
Power Rating | Continuous duty |
Rated RPM | 1000 |
KW | 890 928 960 1030 1104 |
Fuel Oil Consumption in rated power (L/Hr) | 206.4 219.64 227.22 243.79 261.30 |
MARINE GEAR SPECIFICATIONS
Gear Model | GWC42.45 |
Type | Hydraulic multi-disc clutch |
Reduction Ratio | 3.0244,3.5789,4.0,4.4706,5.0 |
Direction of Rotation | Clockwise or anti-clockwise from stern |
Dry Weight (kg) | 3980KG |
Dimensions (L*W*H) | 1486*1460*1650mm |
Mechanical Efficiency | 97% |
STANDARD FITTINGS
Standard engine package(individual fuel pump/one- piece fuel system), belt driven cast iron self-priming sea water pump, local & remote engine monitor, classification product certificate, EIAPP.
OPTIONAL FITTINGS
bronze sea water pump, water separating F.O primary filter, centrifugal L.O filter,electrical motor driven L.O priming pump, MDO or HFO operation fittings,s, L.O & F.W thermostat valves, L.O & F.W pre-heater, plate type cooler, marine gear alarm system, CPP marine gear.
Packaging & Shipping
Packaging Details: Carton or Wooden box (Can be according to customer's requirements)
Delivery Detail: 25-30working days
Our Services
a. Flexible Marine Propulsion Package Design
b. Commissioning & Technical Support
c. Standard Warranty on Equipment & Accessories
d. Spare Parts Availability at Your Door
