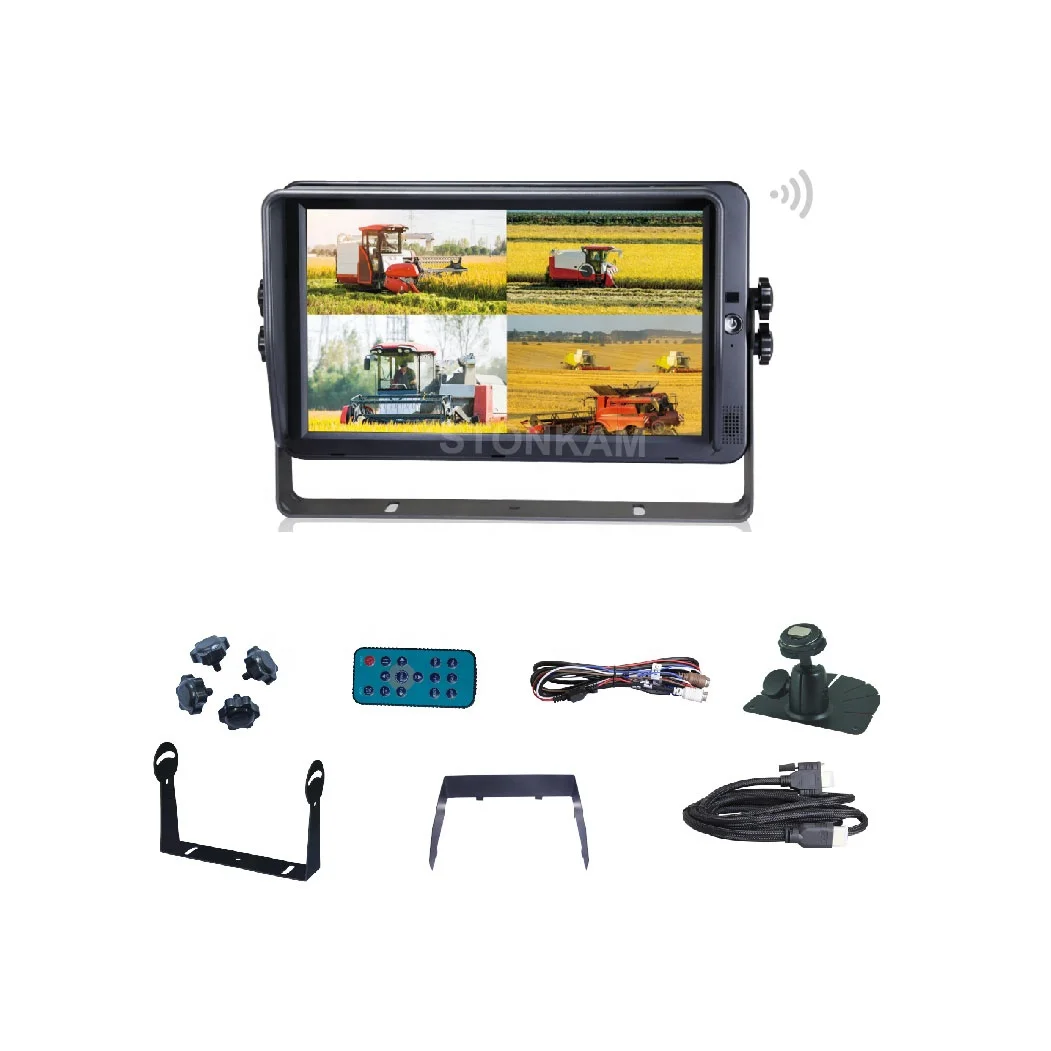

STONKAM 10.1 inch 2.4GHz Digital wireless backup camera system with quad view screen is easy to install. It supports split view and auto pairing; good for truck, trailer, RV, etcIt supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD digital wireless rear view camera to form excellent Wireless Vehicle Monitor System.

* Support 4CH wireless camera and wireless transmitter.
* Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
* With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.
* Supports both manual and automatic pairing.
* Supporting 1080P/720P camera input.
* Touch screen optional.
* Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
* Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
* Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
* Support power fail safeguard by super-capacitor.
* Rear view parking lines can be configured






10.1 inch HD Digital Wireless Quad-view Monitor System tractor split view touch screen (HDW-295Q):
LCD size
10.1"
Resolution
1024x 3 (RGB) x600
Contrast
600:1
Brightness
600cd/m²
Viewing Angle
U:80 / D:85, R/L:85
Aspect Ratio
16:9
Channel
4 channels
Operating Frequency
2400 ~ 2483.5MHz
Receiving Sensitivity
-78dBm
Decompression Form
H.264
Modulation
FHSS
Time Delay
200ms
Transmitting Distance
FCC≤300 M
CE≤200 M
MIC≤60 M
System Format
PAL / NTSC
Power Supply
DC 10-32V
Power Consumption
Max.8W
Loudspeaker
1W/8Ω
Operating temperature
-20~+70ºC,RH90%
Storage temperature
-30~+80ºC,RH90%



When installing vehicle monitoring system …

High installation expenses ?
Complicated wiring?
Inconvenient camera power supply?
……

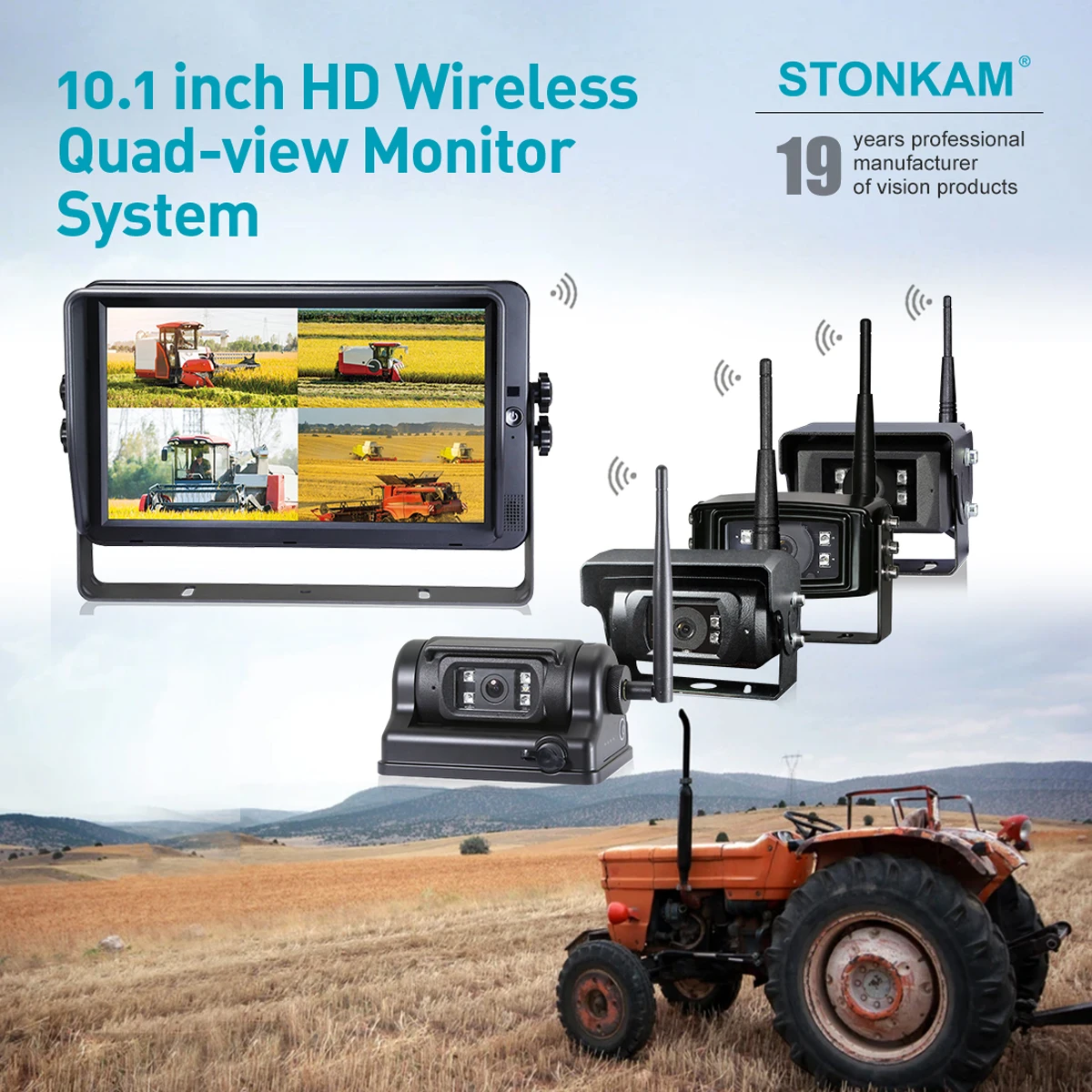

STONKAM STONKAM 10.1 inch 2.4GHz Digital wireless backup camera system with quad view screen helps you solve all the problems



Easy Installation + Instant Pairing = Save more money and efficiency

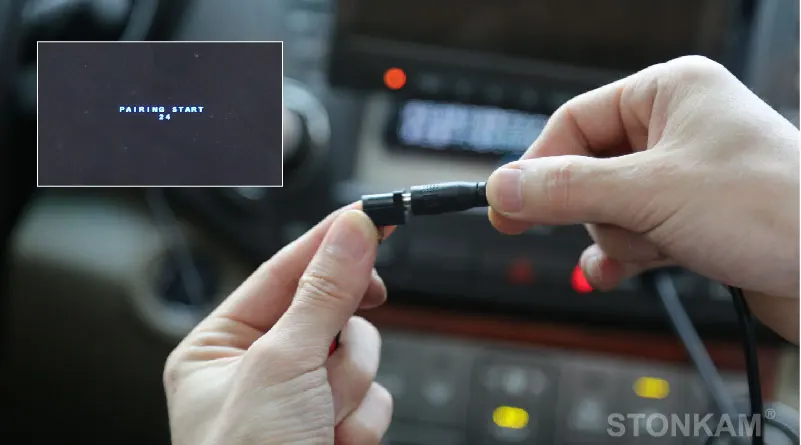

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.




Strong anti-interference, Stable connection
Operating frequency: 2400MHz ~ 2483.5MHz
STONKAM 10.1 inch 2.4GHz Digital wireless backup camera system with quad view screen adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

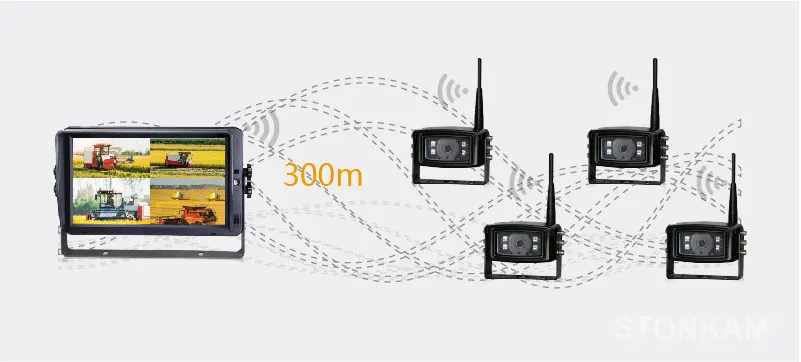

Open transmission distance up to 300m

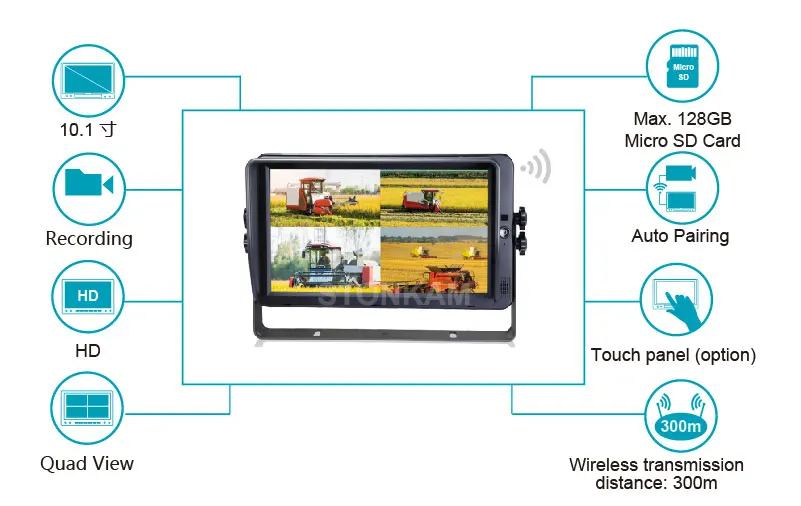

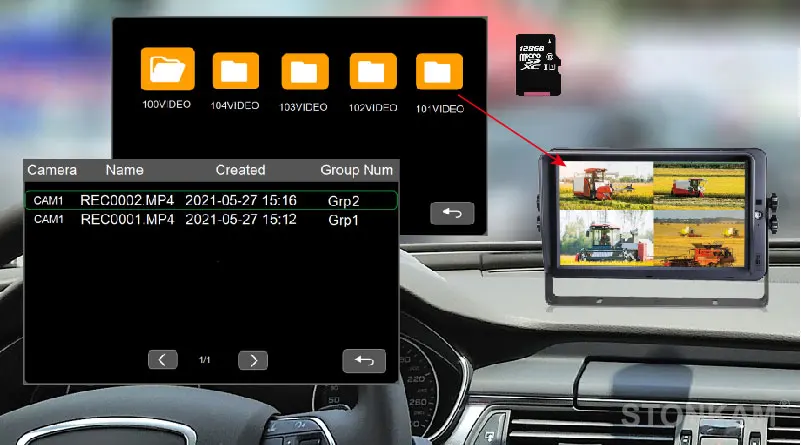

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

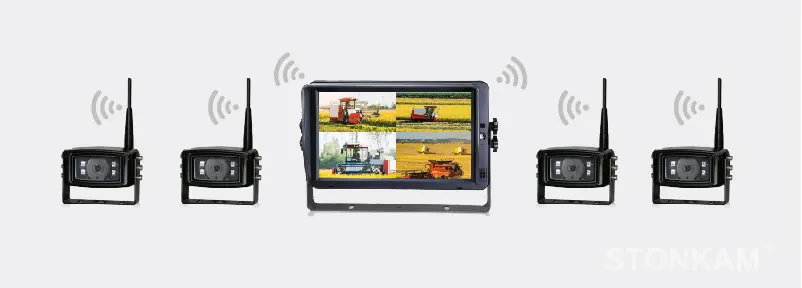

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.
The channels for the quad-view and split-view can be set flexibly.


Touch screen optional

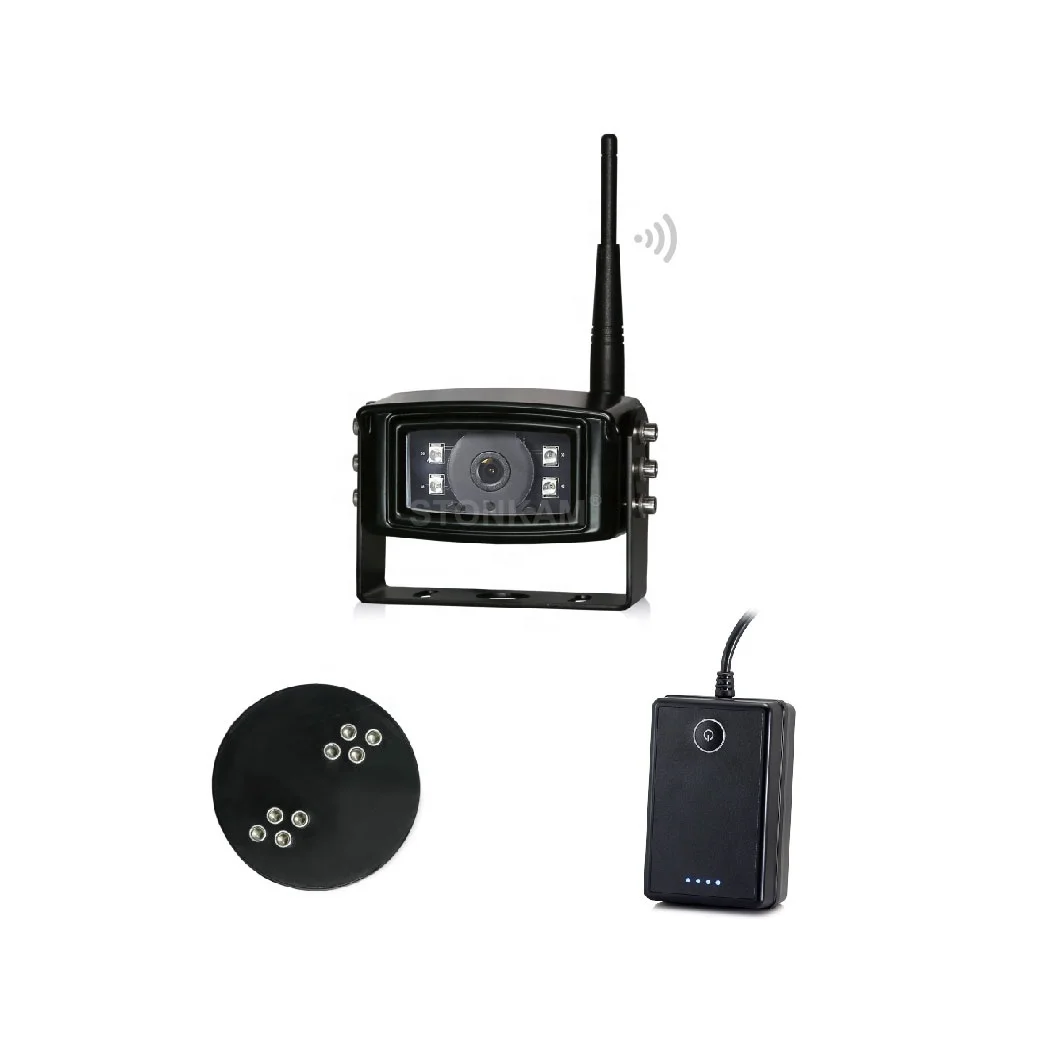

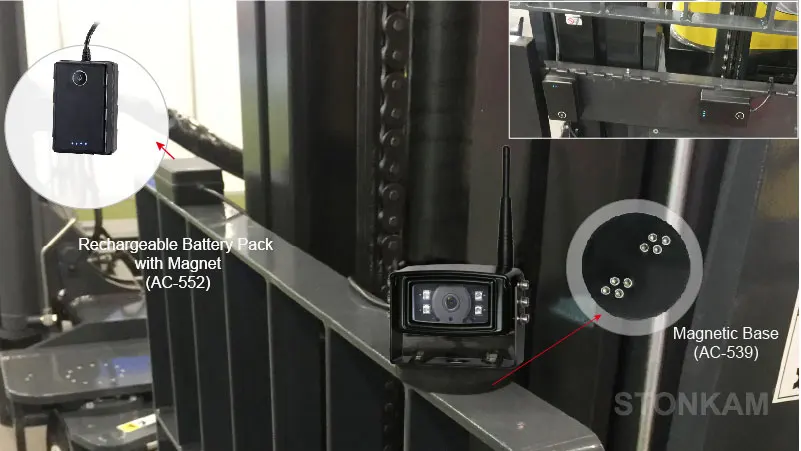

Can work with magnetic base and rechargeable battery
No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.

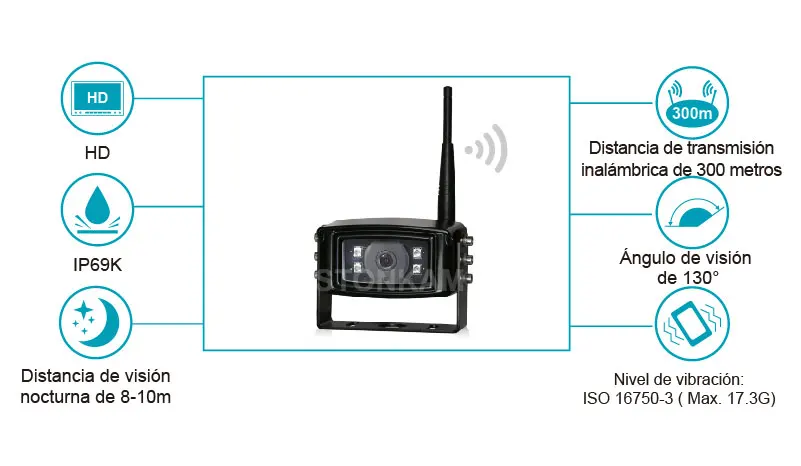

With IR-CUT function, night vision distance up to 10 meters
STONKAM Vehicle Wireless Rechargeable Camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

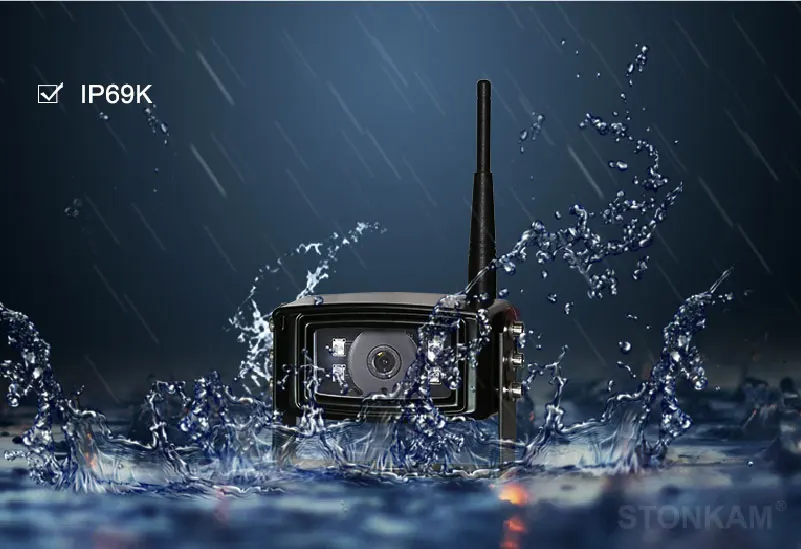

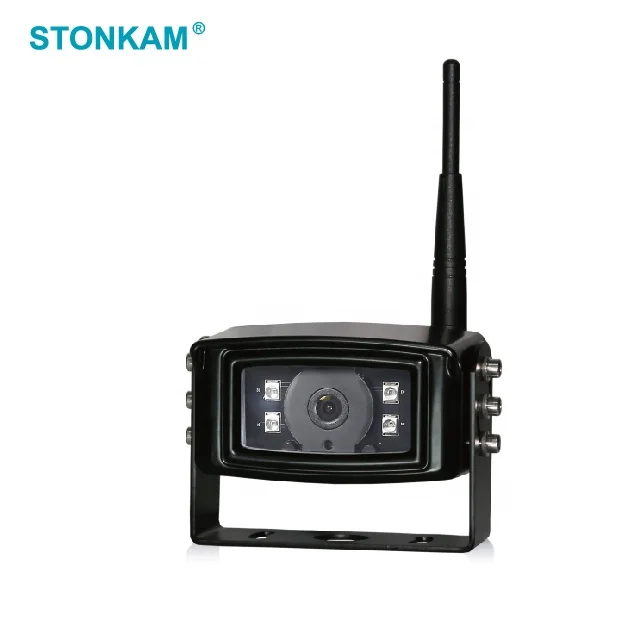

IP69K Waterproof and dustproof+ Metal Body = Heavy Duty Camera
With IP69K rating, our metal constructed cameras are durable and especially suits commercial and industrial vehicles.



With top grade high quality, STONKAM 10.1 inch 2.4GHz Digital wireless backup camera system with quad view screen can be applied to various vehicles, such as forklift, crane, harvester, etc.


                                Harvester                                                                                 Excavator



                                     Farm                                                                                    Forklift



                                     Crane                                                                                   Planter


Applications

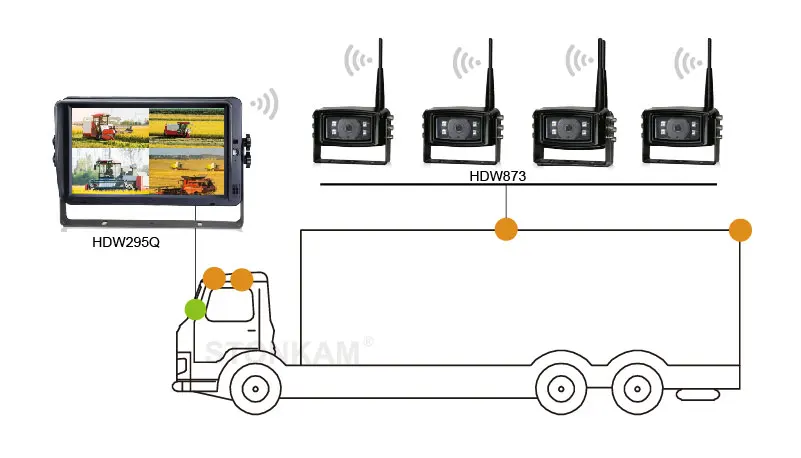

STONKAM 10.1 inch HD Digital Wireless Quad-view Monitor System tractor split view touch screen can be applied to various vehicles by easy installation without running long cables.

For Trucks:

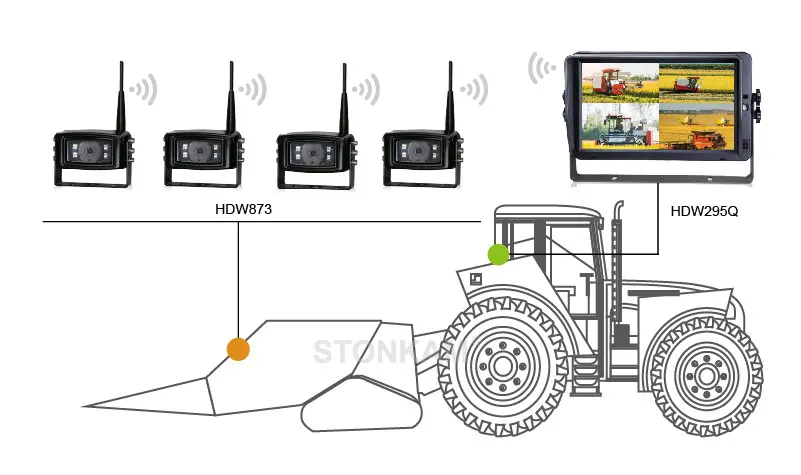

For Harvesters:

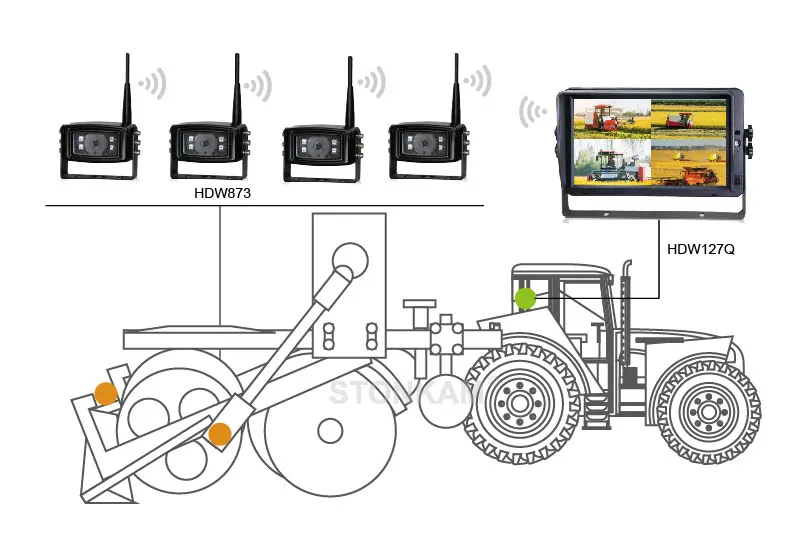

For Planters:
