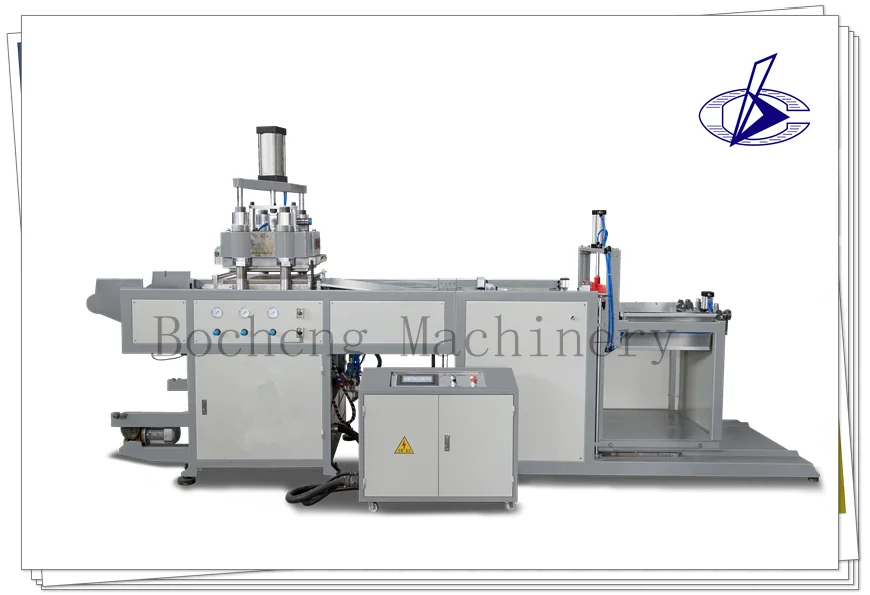

Semi-Automatic BOPS Plastic Thermoforming Machine

Product Application

BC-515/580B Semi-Automatic BOPS Plastic Thermoforming Machine is is a combination of mechanical, electric and pneumatic components, and the whole system was controlled by micro PLC ,which can be operated in man-interface .it combines the material sending ,heating forming ,shaping into one process .it has three operation models :"manual ,semi-automatic ,

Main Features

It is suitable for thermoforming BOPS, HIPS, PP, PET PVC,PS , sheet that can produce varieties of blister package and blister tray. For example: curatorial injection tray, oral liquid tray, mobile telephone tray, cookies tray, one-off tableware etc..




Model
Unit
BC-515*580B
Forming area
mm
515*580
Form depth
mm
100
Max. Sheet Width
mm
610mm
Production efficiency
cycles/min
5-17
Forming pressure
MPa
0.8
Preheated power
kw
4
Heating plate power
kw
12
Sheet thickness
MM
0.1-1
Max. Sheet Roller Diameter
mm
710
Air consumption
L/MIN
1200
Machinery size
m
2.75*1.41*2.15
Total weight
T
2.5
Material Available
BOPS, HIPS, PP, PET PVC,PS

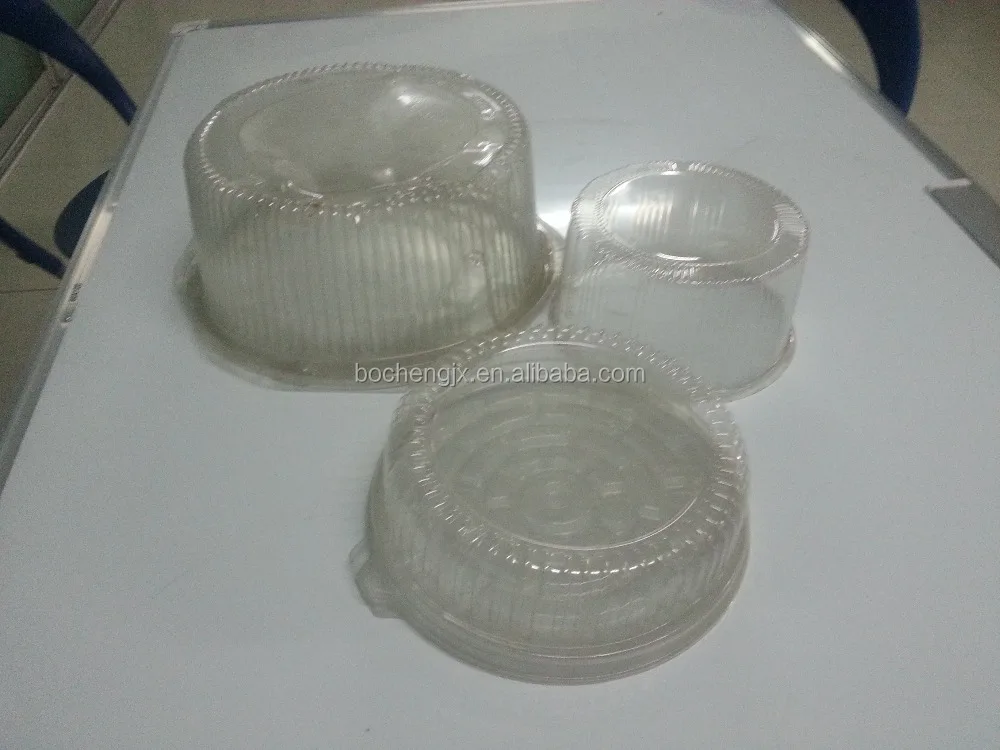

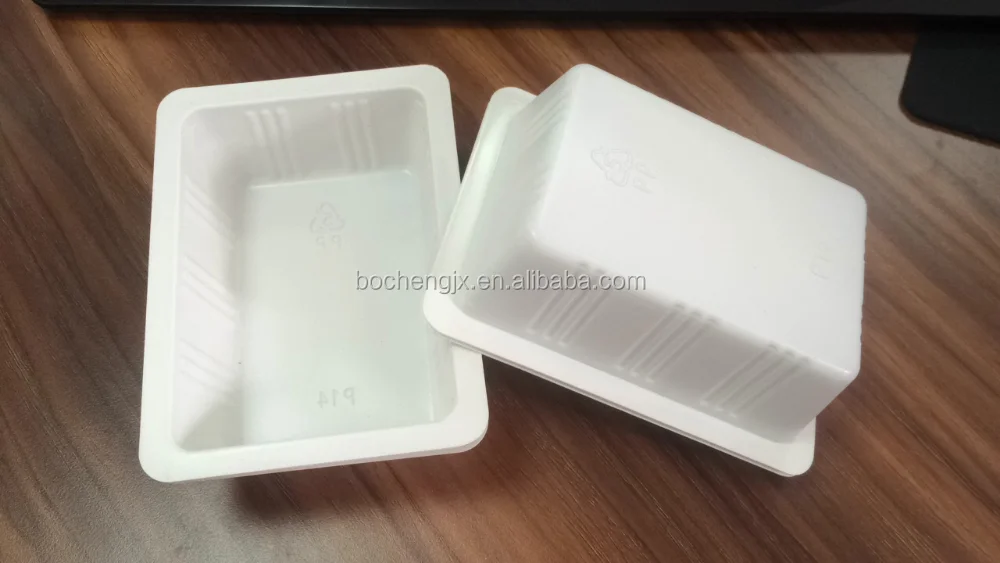

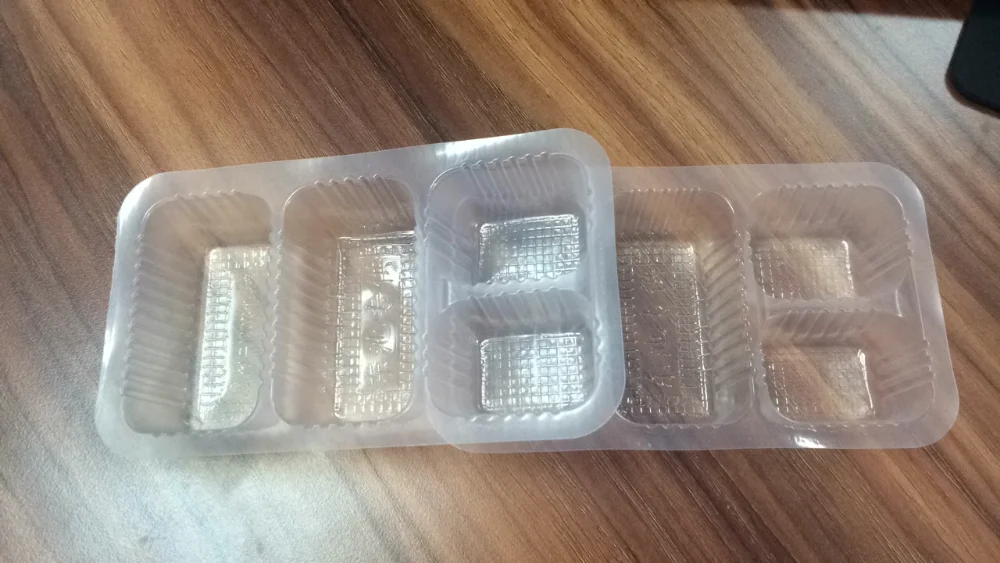

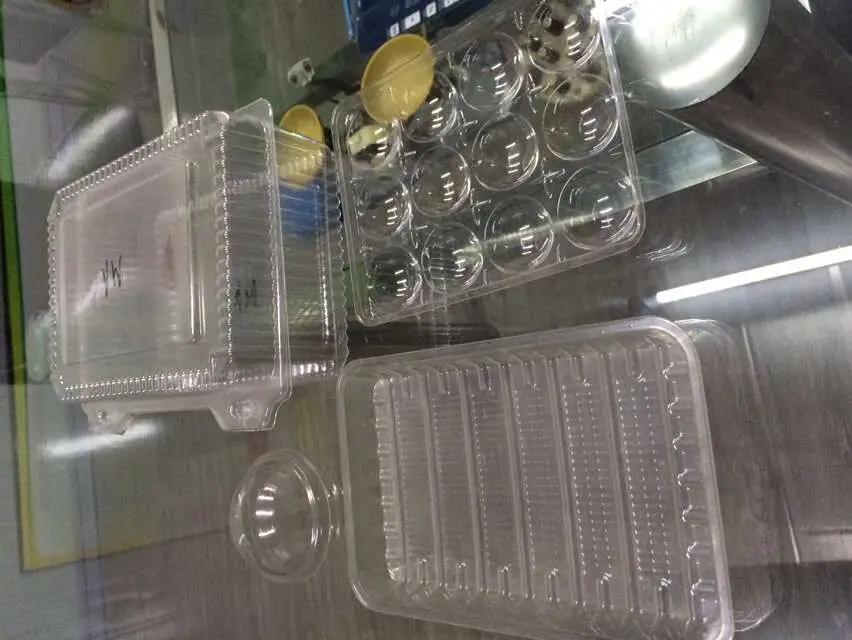

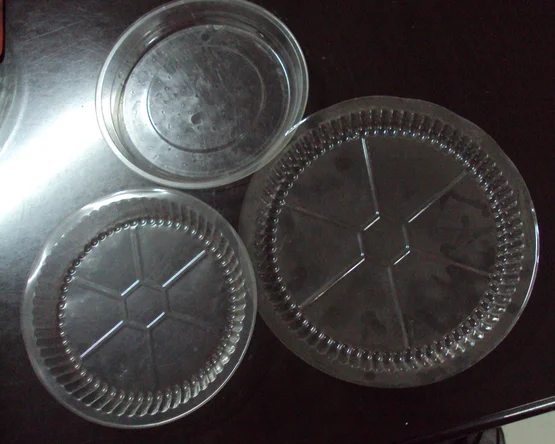

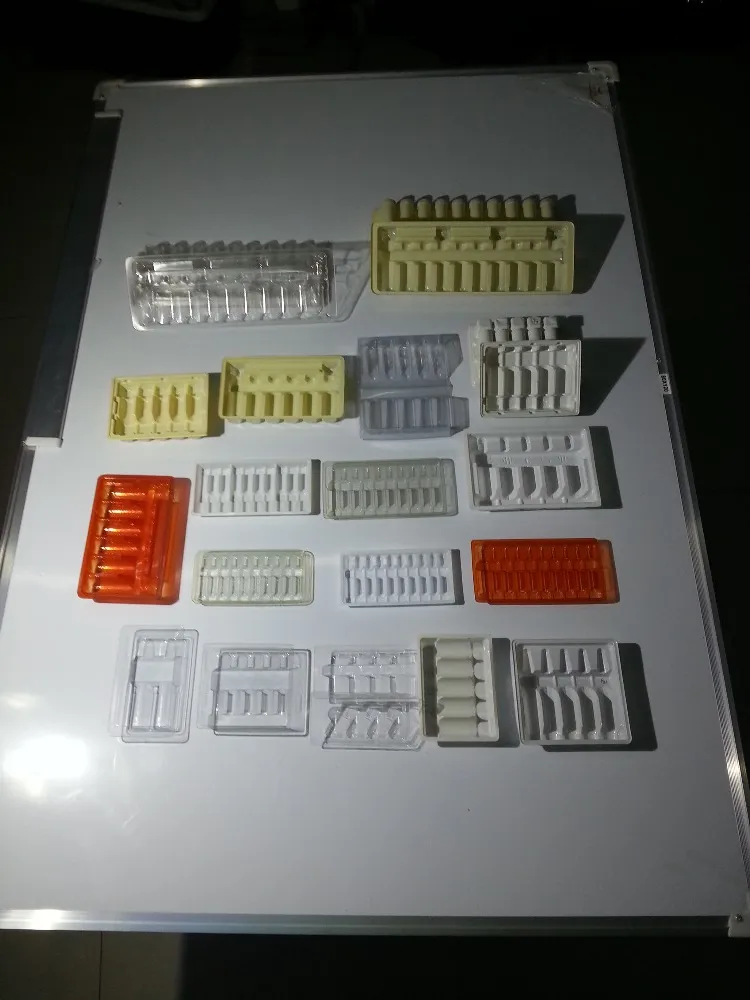

Samples
Product Packing

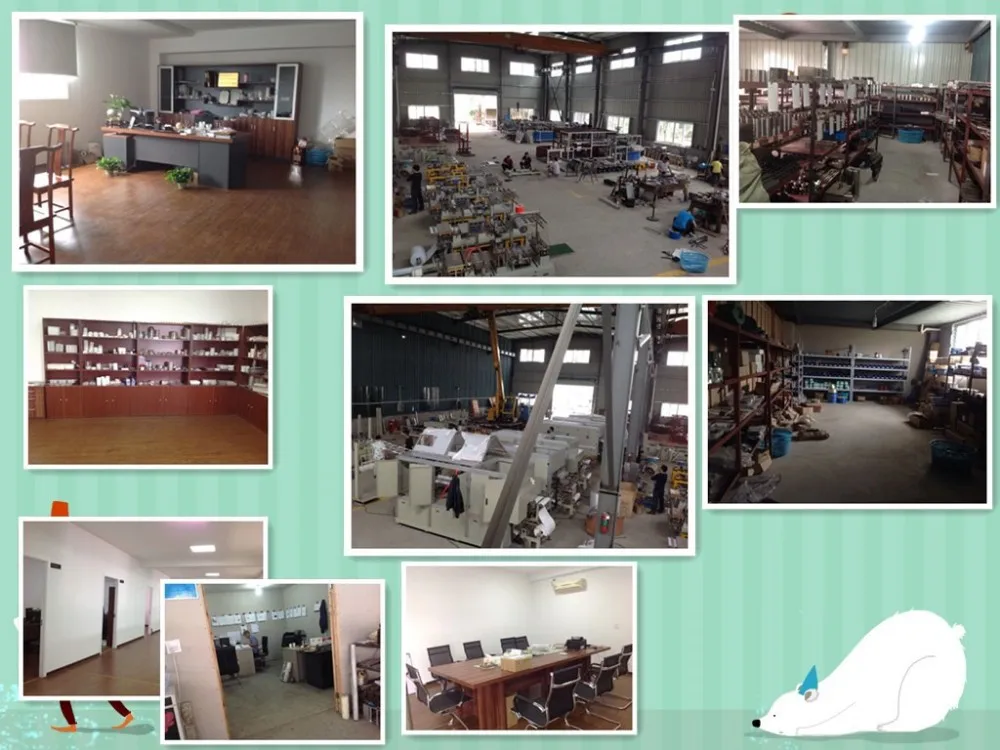

Company Information

Ruian Bocheng Machinery Co., Ltd. is a manufacturer of BOPS Thermoforming Machine,Vacuum Forming Machines, Lid Machine, Cup Counting Machines, Cup Counting and Packaging Machines and so on. This full automatic ABS vacuum forming machine is our new product.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food, medicine, hardware, toy, sanitary fitting manufacturing and other industries.
