Factory production mini best pilot gum arabic spray dryer
- Category: >>>
- Supplier: Shanghai Pilotech Instrument & Equipment Co. Ltd
Share on (60466535345):
Product Overview
Description
Product Detail
PRODUCT DETAIL
Flexible switch between small and high processing capacities
The minimum and maximum capacities of YC-018 mini spray dryer are respectively 50ML and 4L/H. Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.
Easy to use
Color Touch Screen,Fast setup and cleaning times
Scale up to pilot or industrial scale possible.

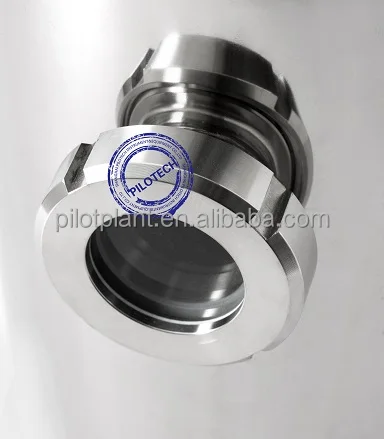

Visible process due to glass assembly
Adjustable particle size (1 – 100 microns)
Controls & Functionality

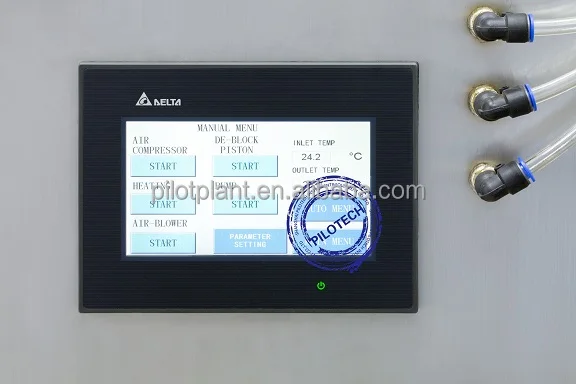

YC-018 mini spray dryer is designed to ensure that all functions are simple to select and adjust, to quickly achieve the optimum conditions for spray drying. Both use a clear touch screen display , the operator can control the following functions:
• Inlet Temperature
• Airflow Volume
• Air compressor flow
• Pump Speed
• De-blocker Frequency
Two Fluid Nozzle with SUS316L stainless steel
The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet. An outer tube directs compressed air to the nozzle. All units are supplied with 0.7mm jets, other sizes are available as accessories.The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor. De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.
Preparation convenience
The minimum of materiel only needs 50ml, which is convenient for dealing with small amount of sample, and it's maximum capacity can up to 4000ml/H as well as the dealing with vast material is also very rapidly.
High recovery rate

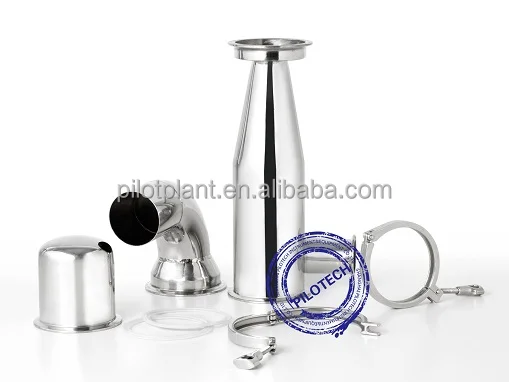

With only one cyclone separator, recovery rate is always a problem with lab spray dryers and it is difficult to improve recovery even with two cyclones. With the structured redesigned, YC-018 can reach a maximum recovery rate of 92%, excellently solving the problem of low recovery.
(Model YC-015A lab spray dryer can be used for organic & water solvents, Model YC-1800 lab low temperature spray dryer can be used for thermo-sensitive materials and high carbohydrate compositions materials. Model YC-2000 lab vacuum spray dryer can be used for probiotics, enzyme and other thermo-sensitive materials. Model YC-3000 Lab spray freeze dryer is a new freeze dryer method which is faster than traditional freeze dryer. Model YC-1000 laboratory spray granulator (fluidized bed granulation) can be used for granulation and coating.)
Product Parameters
PRODUCT PARAMETERS
YC-018 mini spray dryer parameter list
Sr.no | Parameter | Pilotech YC-018 |
1 | Power | 5.5kw |
2 | Voltage | 220V |
3 | Atomizer material | SUS 316 Stainless steel |
4 | dry cycle time | 1.0-1.5S |
5 | temperature control accuracy | ±1℃ |
6 | inlet air temperature control | 105-300℃ |
7 | wind temperature control | 70-145℃ |
8 | Sample throughput | 3500mL/H ~ 4000ml/h |
9 | Nozzle tip diameter | 1.5 mm standard/(0.5/0.75/1.0/1.5/2.0mm available) |
10 | Min. Sample | 50-100 mL |
11 | touch screen | Color LCD touch screen/ One-click boot |
12
|
Color LCD touch screen parameters
| Air inlet/outlet temperature/peristaltic pump speed/air/frequency of needle |
13
| nozzle cleaner
| 1.Jams automatic cleaning 2. nozzle cleaner tunable frequency
|
14 | range of application | Colleges and universities, research institutes and food laboratory medicine chemical industry enterprises..... |
15 | Spray granulation particle size | 10~100μm |
16
| characteristic
| 1.noise is very low 2.small volume 3.Configure oil free air compresso 4.good fluidity 5.Shutdown protection function |
17 | Two kinds of operation mode | Fully automatic and manual monitoring |
18 | peristaltic pump adjusted | 2000ml/h |
19 | machine size | 1340*1000*1800mm |
20 | module | Easy disassembly and easy to clean |
Perfect combination of low temperature and ultra-high temperature
With maximum inlet air temperature reaching 350°C, it can meet ultra-high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content. No material will adhere to the wall during drying and materials are featured with excellent fluidity after drying.
High recovery rate
With only one cyclone separator, recovery rate is always a problem with lab spray dryers and it is difficult to improve recovery even with two cyclones. With the structured redesigned, YC-018 can reach a maximum recovery rate of 92%, excellently solving the problem of low recovery.
Temperature protection
The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-018 spray dryer can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system ;
