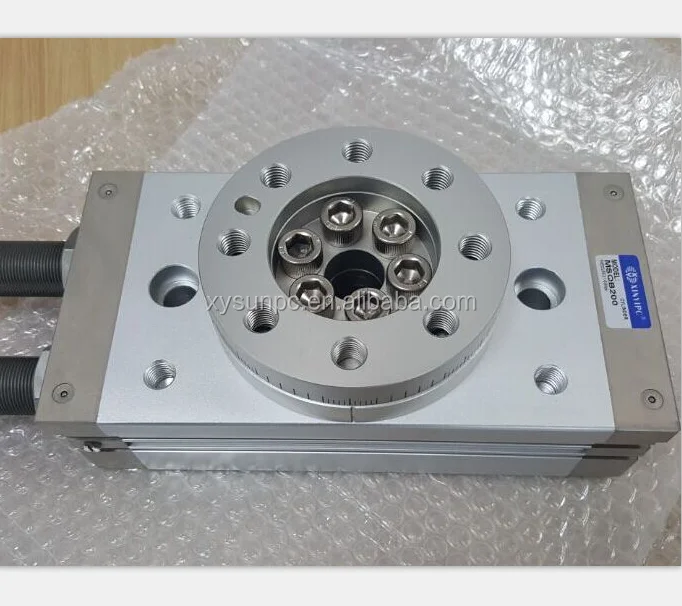

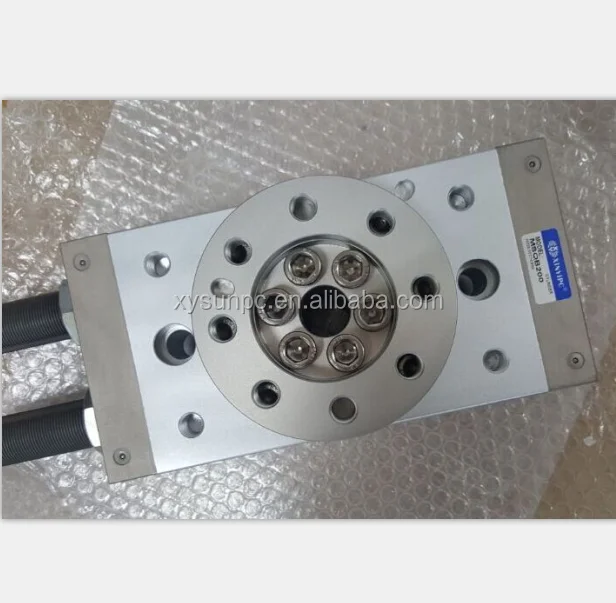

MSQB series SMC Type 90 180 Degree Rack And Pinion Actuator Swing Rotary Table Pneumatic Air Cylinder
MSQB series SMC Type 90 180 Degree Rack And Pinion Actuator Swing Rotary Table Pneumatic Air Cylinder
MSQB series SMC Type 90 180 Degree Rack And Pinion Actuator Swing Rotary Table Pneumatic Air Cylinder
MSQB series SMC Type 90 180 Degree Rack And Pinion Actuator Swing Rotary Table Pneumatic Air Cylinder

MSQB series SMC Type 90 180 Degree Rack And Pinion Actuator Swing Rotary Table Pneumatic Air Cylinder

Share on (60466564219):


Price:$40.00 - $50.00

Quantity:


Product Overview

Description


MSQB pneumatic table rotary cylinder ,swing rotary pneumatic cylinder ,air rotary cylinder





Features:





 Rotary Cylinder


*Easy mounting of workpiece.
*Large rolling element bearing.

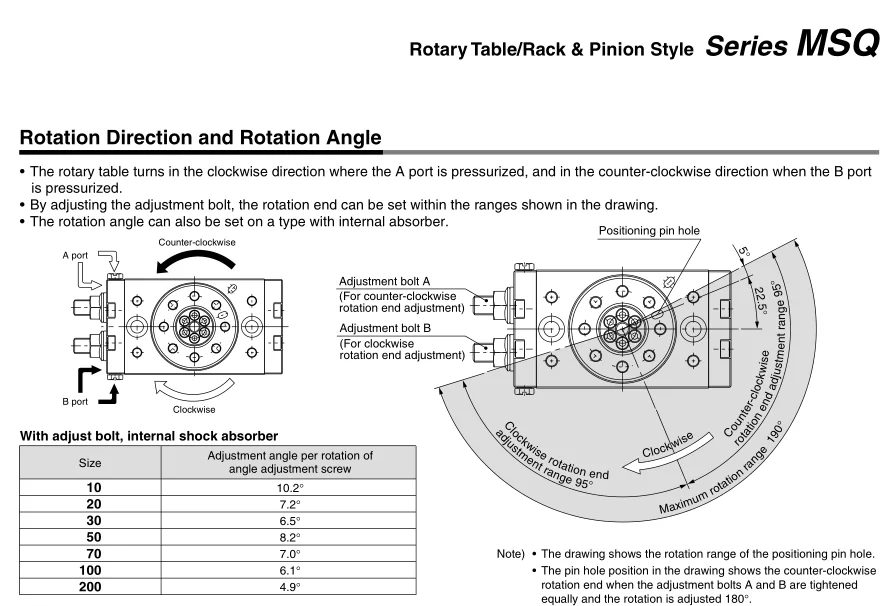

*Pivoting angle adjustment range: 0~190
*With internal shock absorber.
*Movement in direction of  table's radial thrust: 0.01mm or less.
*Small size and light weight.
*Variety of installation options for space-saving.

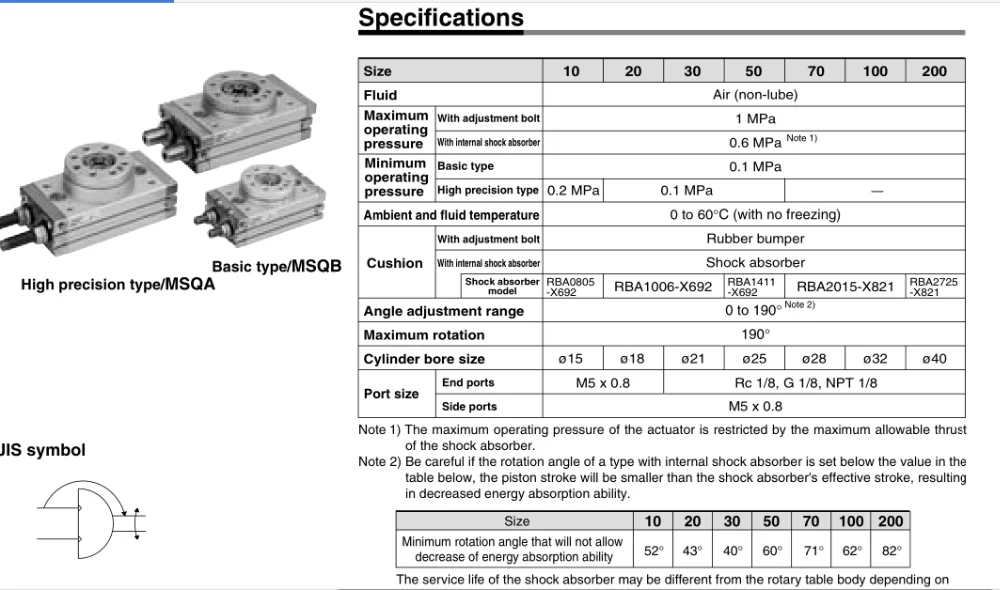

 Specification :

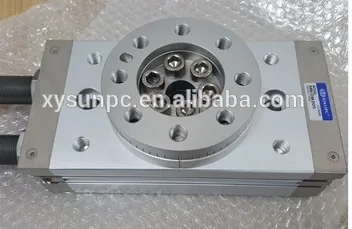

Photoes:                                                                                                                          msqb30a.png
