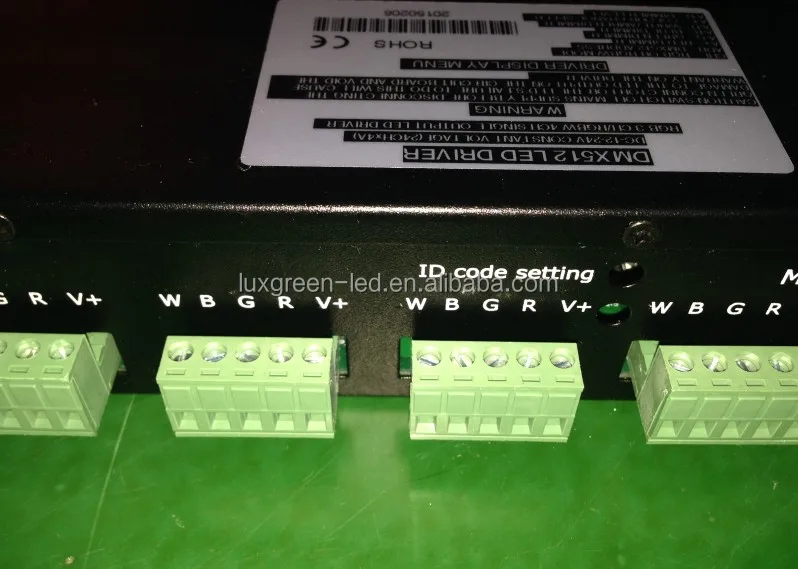

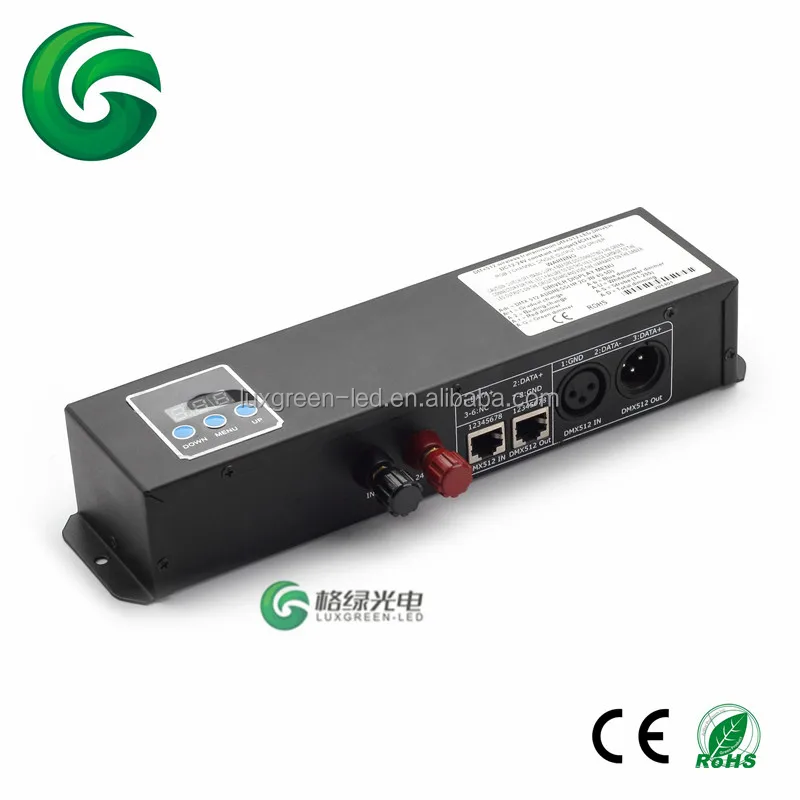

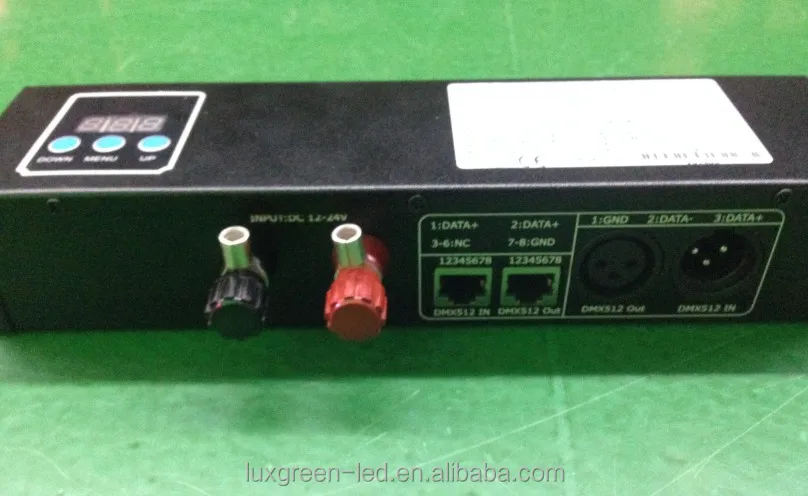

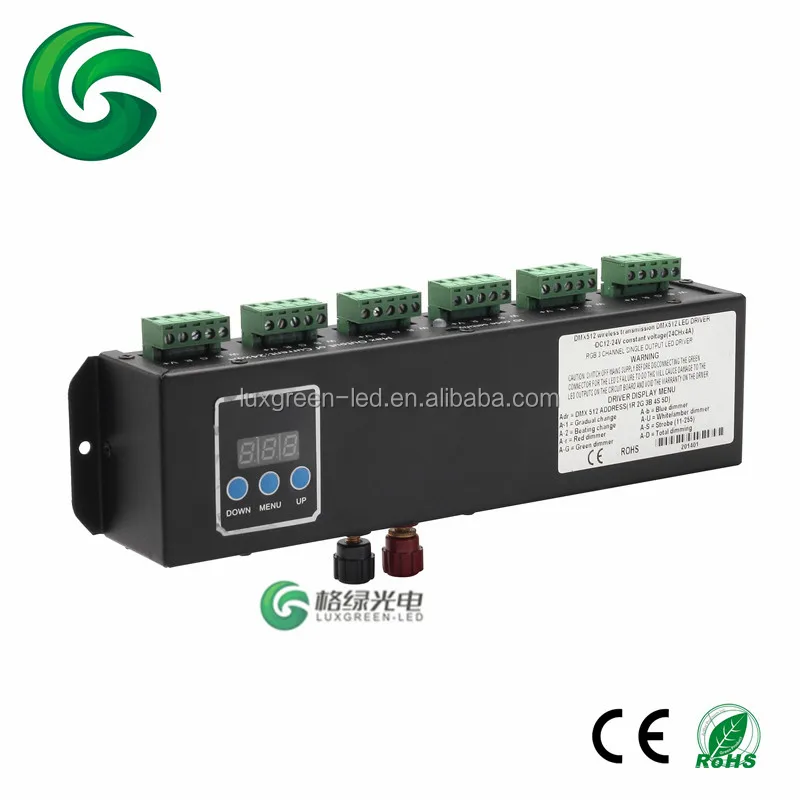

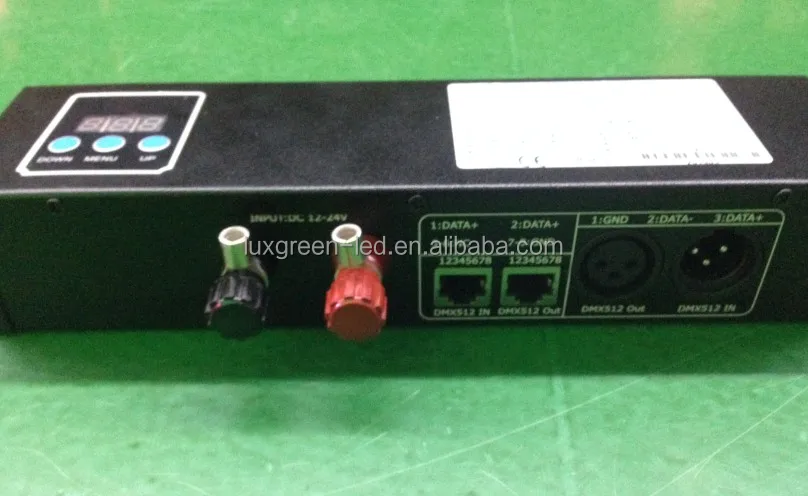

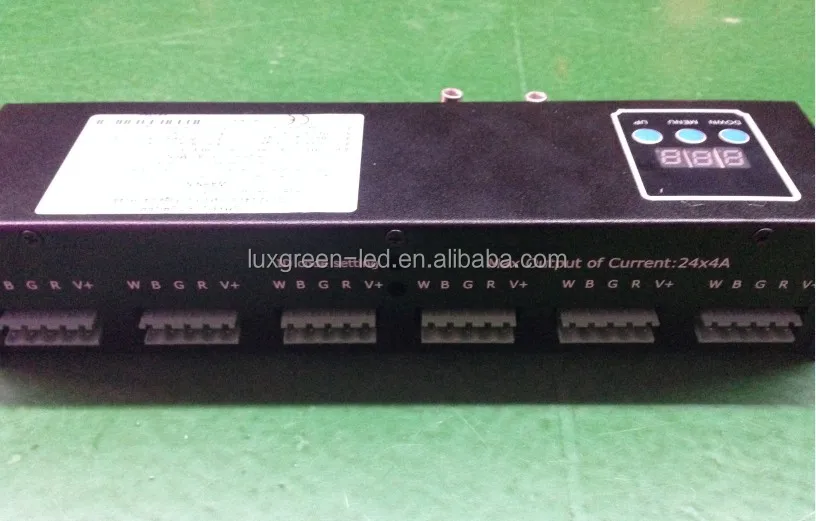

High quality DMX Controller 24V DC 3CH 4CH 24CH

Product Overview

Description

High quality DMX Controller 24V DC 3CH 4CH 6*4CH







Power supply: 12-24V DC
Power consumption: 2w

DMX-control-channels: R,G,B,D 4CH and R,G,B,W,S,D 6CH

DMX-512-connection: 3-pin

DMX-512-connection: 3-pin Size: (LxWxH):   280*90*60 mm
Output: 4-loop(rgbw) and 3-loop(rgbw) (You can manually select 3CH or 4CH)
Connection: Total Positive
Output Voltage:12V DC OR 24V DC(Orders must be marked with the output voltage)
Output Current: Each circuit 4A, the largest 6A
Load output power:  12V:<864W, 24V:<1728W

Power consumption: 1w

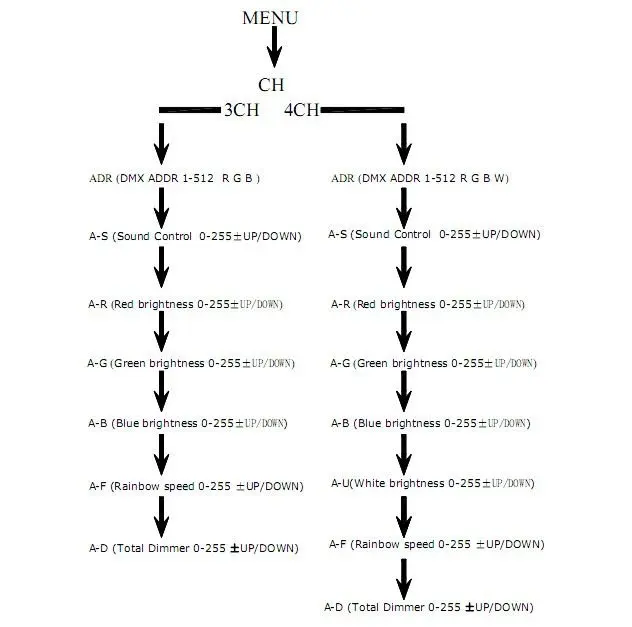

CHL(you can choice 3CH  4CH)A-R,A-G,A-B,A-U,A-F



A-D



4CH RGBW
ADR A-1, A-2,A-R,A-G,A-B,A-U,A-S,A-D
