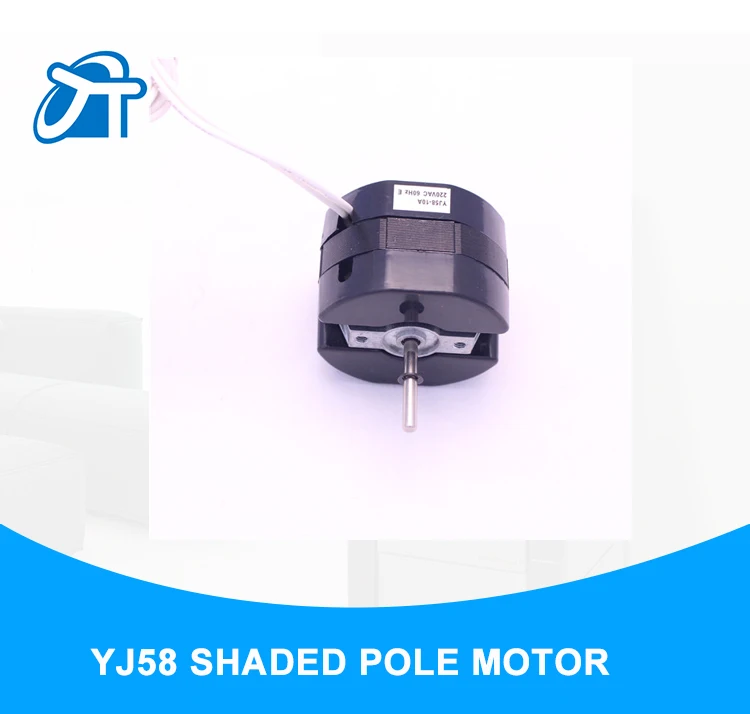

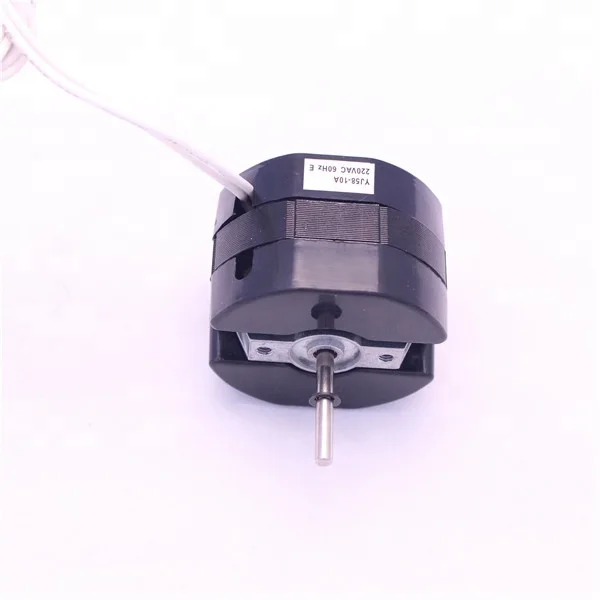

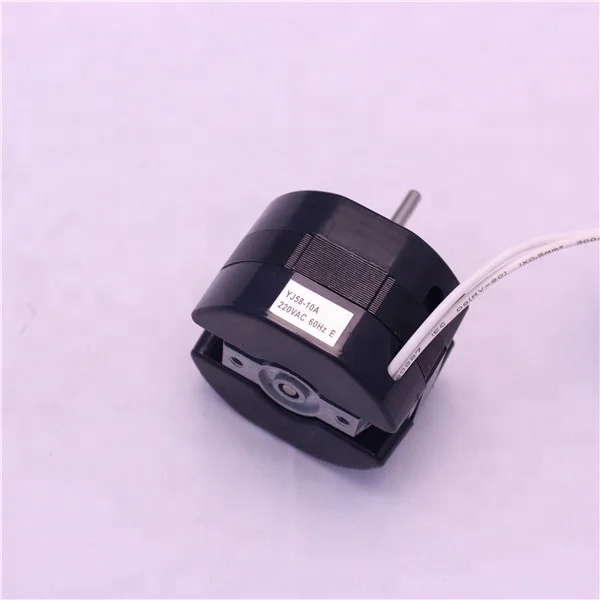

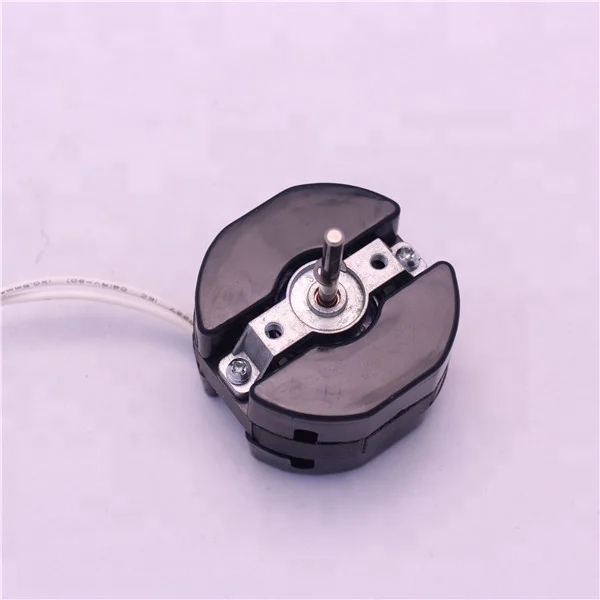

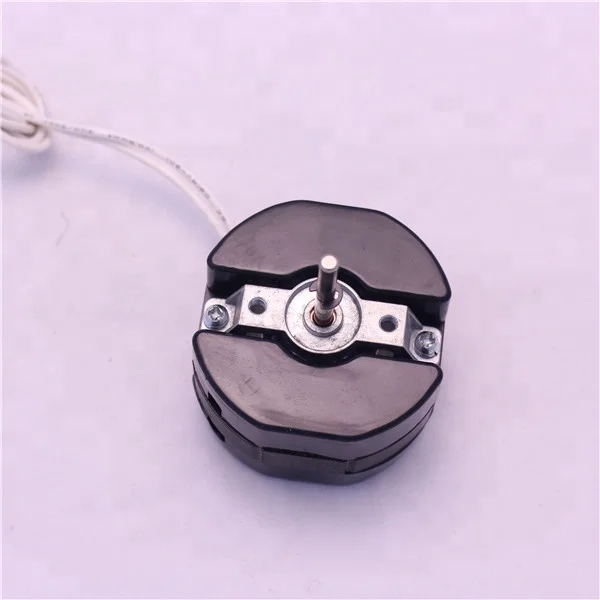

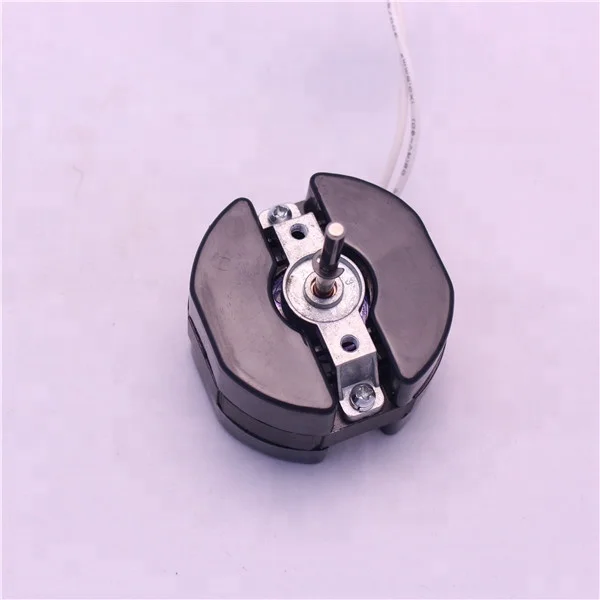

Bathroom single phase shaded pole motor YJ58 with cover
- Category: >>>
- Supplier: Ningbo Jant Electrical Appliance Co. Ltd.
Share on (60467083210):
Product Overview
Description
SCOPE: Fan heater,Ventilation fan,Bathroom fan,Air humidifier,small fan.Halogen heater,Qutza heater,Oil filled radiator Heater,Radiant heaters,Suction fan,oscillating fans,Cross-flow fans,Inline duct fan,Canal fans,Axial fans.Bathroom fan,toilet fan,Exaustores residencials.Wall fan,Domestic fan.Rang hood.

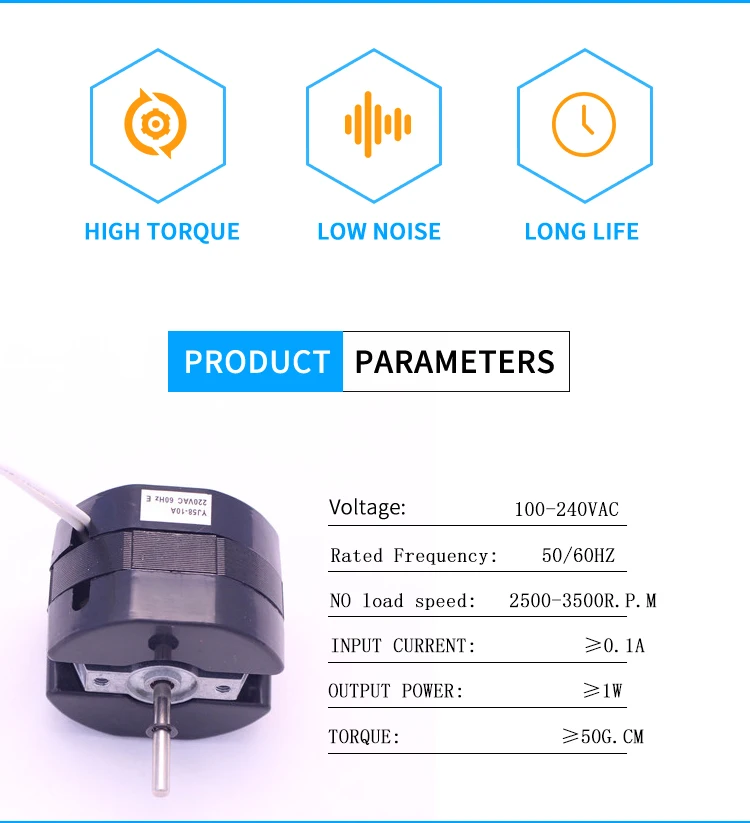

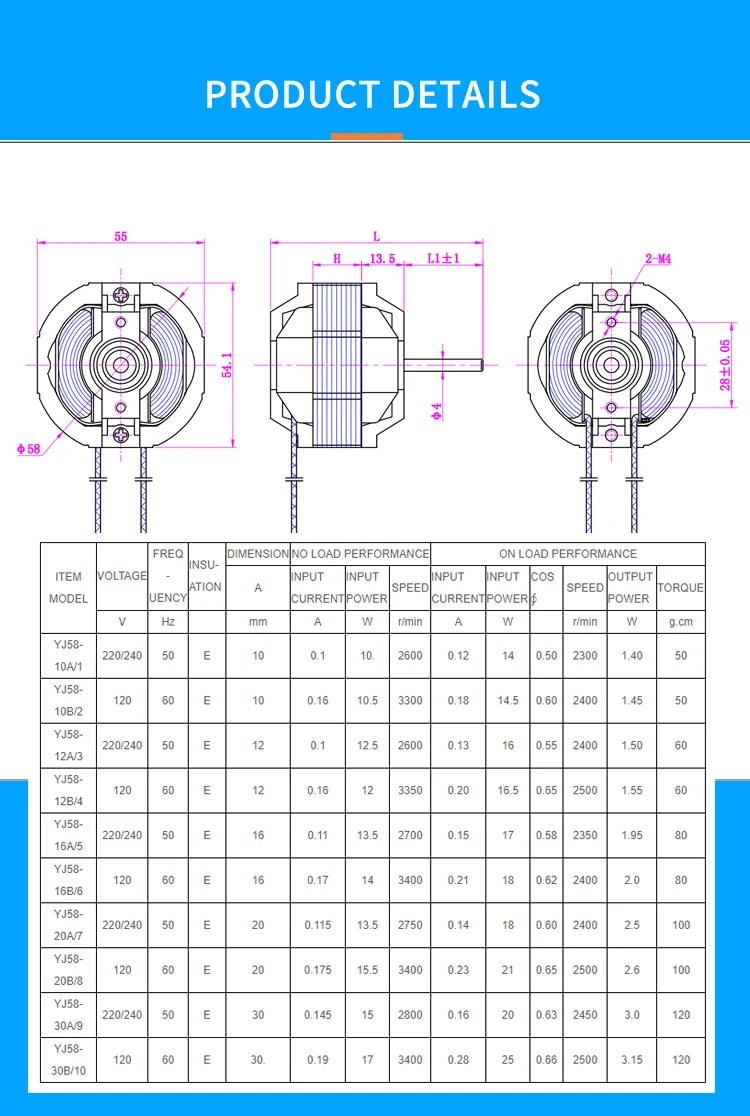

SPECIFICATION:
Item Model | Dimension | No load performance | On load preformance | |||||||
| Lamination(H) | Input currence | Input power | Speed | Input Currence | Input power | Power factor | Speed | Ioutput power | Rated torque | |
| mm | A | W | r/min | A | w | r/min | W | g.cm | ||
| YJ58-10A/1 | 10 | 0.1 | 10. | 2600 | 0.12 | 14 | 0.50 | 2300 | 1.40 | 50 |
| YJ58-10B/2 | 10 | 0.16 | 10.5 | 3300 | 0.18 | 14.5 | 0.60 | 2400 | 1.45 | 50 |
| YJ58-12A/3 | 12 | 0.1 | 12.5 | 2600 | 0.13 | 16 | 0.55 | 2400 | 1.50 | 60 |
| YJ58-12B/4 | 12 | 0.16 | 12 | 3350 | 0.20 | 16.5 | 0.65 | 2500 | 1.55 | 60 |
| YJ58-16A/5 | 16 | 0.11 | 13.5 | 2700 | 0.15 | 17 | 0.58 | 2350 | 1.95 | 80 |
| YJ58-16B/6 | 16 | 0.17 | 14 | 3400 | 0.21 | 18 | 0.62 | 2400 | 2.0 | 80 |
| YJ58-20A/7 | 20 | 0.115 | 13.5 | 2750 | 0.14 | 18 | 0.60 | 2400 | 2.5 | 100 |
| YJ58-20B/8 | 20 | 0.175 | 15.5 | 3400 | 0.23 | 21 | 0.65 | 2500 | 2.6 | 100 |
| YJ58-30A/9 | 30 | 0.145 | 15 | 2800 | 0.16 | 20 | 0.63 | 2450 | 3.0 | 120 |
| YJ58-30B/10 | 30. | 0.19 | 17 | 3400 | 0.28 | 25 | 0.66 | 2500 | 3.15 | 120 |
 |  |  |
 |  |  |
