Product Overview
Description
THK Linear bearing miniatur linear bearing linear motion bearings
Brief introduction

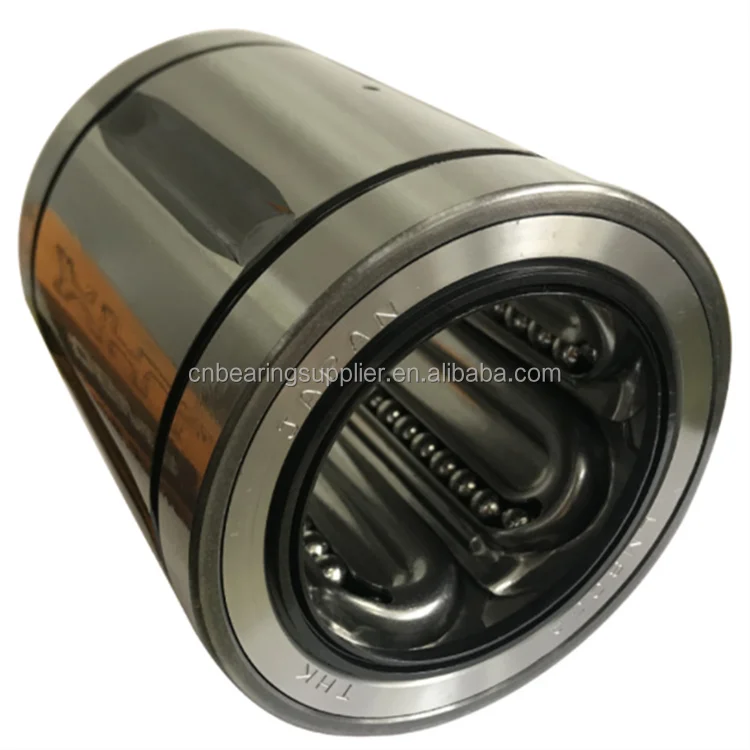

Linear bearing is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.
Features
Linear bearing is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.
Types
1.Standard type, clearance adjustale type, open type, extended type and general type linear bearings.
2.Flanged linear bearings can be divided into: round flange type, square flange type, oval flange type, oriented round flange type, oriented square flange type, oriented oval flange type and extended round flange type.
Models:
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
| MODEL NO. | |
| LM linear bearing | LM 3UU, LM 4UU, LM 5UU, LM 6UU, LM 8UU, LM 10UU, LM 12UU, LM 13UU, LM 16UU, LM 20UU, LM 25UU, LM 30UU, LM 35UU, LM 40UU, LM 50UU, LM 60UU, LM 80UU, LM 100UU, LM 120UU, LM 150UU |
LM Open Series linear bearing | LM 10OPUU, LM 12OPUU, LM 13OPUU, LM 16OPUU, LM 20OPUU, LM 25OPUU, LM 30OPU, LM 35OPUU, LM 40OPUU, LM 50OPUU, LM60OPUU, LM 80OPUU, LM 100OPUU, LM 120OPUU, LM150OPUU |
| LB linear bearing | LB 6UU, LB 8UU, LB 10UU, LB 12UU, LB13 UU, LB16UU, LB 20UU, LB25UU, LB 30UU, LB 35UU, LB 40UU, LB 50UU, LB 60UU, LB 80UU, LB 100UU, LB120UU, LB 150UU |
| LM E Linear bearing | LME 5UU, LME 8UU, LME 12UU, LME 16UU, LME 20UU, LME 25UU, LME 30UU, LME 40UU, LME 50UU, LME 60UU, LME 80UU |

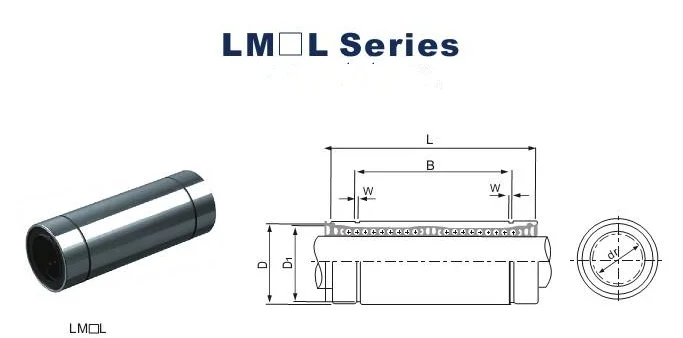

| LM L linear bearing | LM 6LUU, LM 8LUU, LM 10LUU, LM 12LUU, LM 13LUU, LM 16LUU, LM 20LUU, LM 25LUU, LM 30LUU, LM 35LUU, LM 40LUU, LM 50LUU, LM 60LUU |
| KH type linear bearing | KH 0622PP,KH 0824PP, KH 1026PP, KH 1228PP, KH 1630PP, KH 2030PP, KH 2540PP, KH 3050PP, KH 4060PP, KH5070PP |
Steel Cage Linear Bearing | LM 12GA, LM 16GA, LM 20GA, LM 25GA, LM 30GA, LM 12M, LM 16M, LM 20M, LM 25M, LM30M |
| SDM series Stell cage linear bearing(As same as Ease SDM series) | SDM 16, SDM 20, SDM 25, SDM 30, SDM 35, SDM 40, SDM 50, SDM 60, SDM 80, SDM 100, SDM120, SDM150 |
| SK Linear bearing | SK 10, SK 12, SK 13, SK 16, SK 20, SK 25, SK 30, SK 35, SK 40 |
| SHF Linear bearing | SHF 10, SHF 12, SHF 13, SHF 16, SHF 20, SHF 25, SHF 30, SHF 35, SHF 40 |
Flange type linear bearing | LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU, LMF100UU |

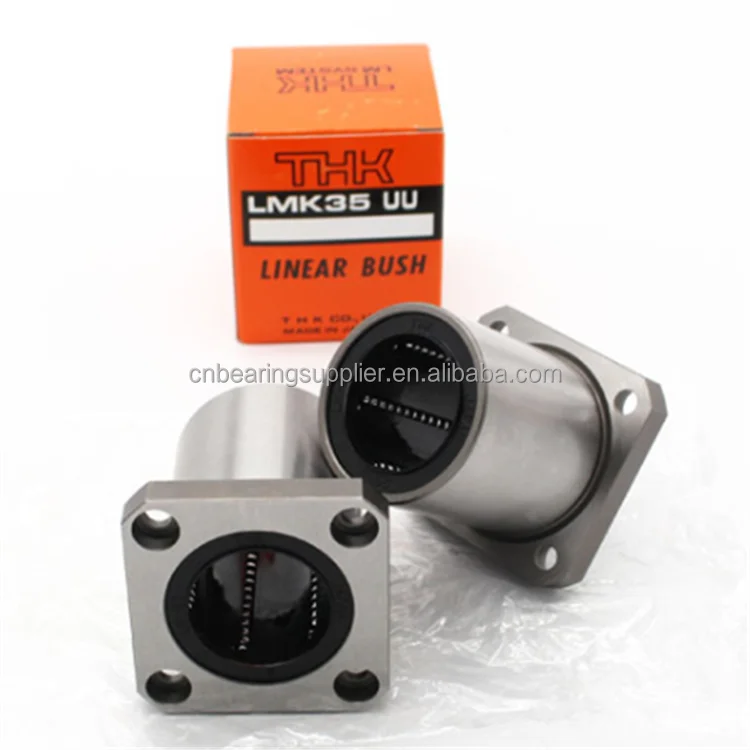

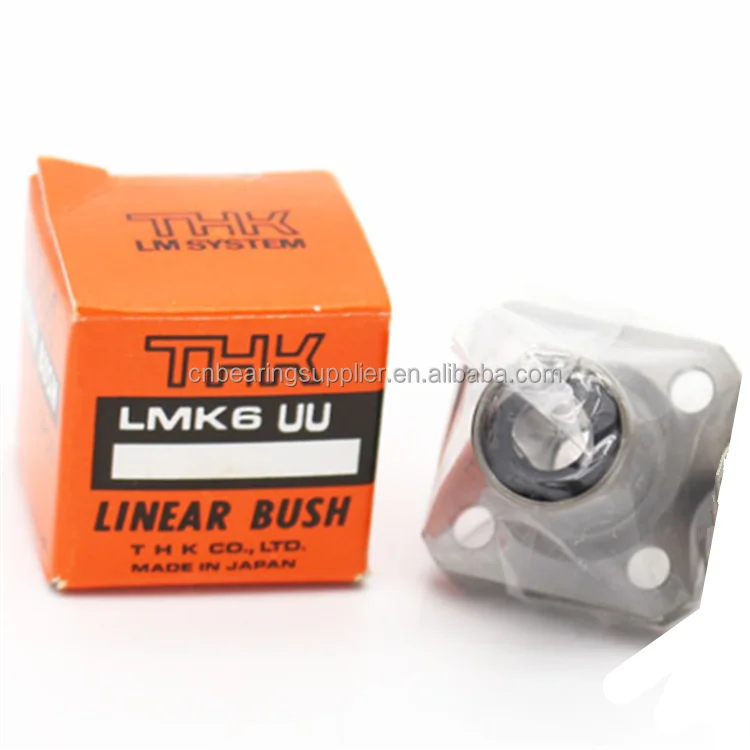

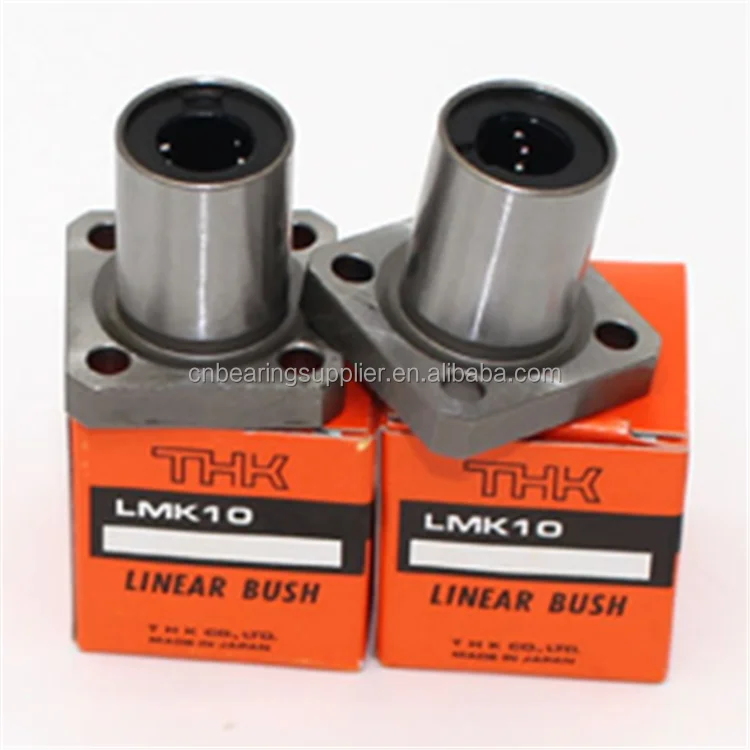

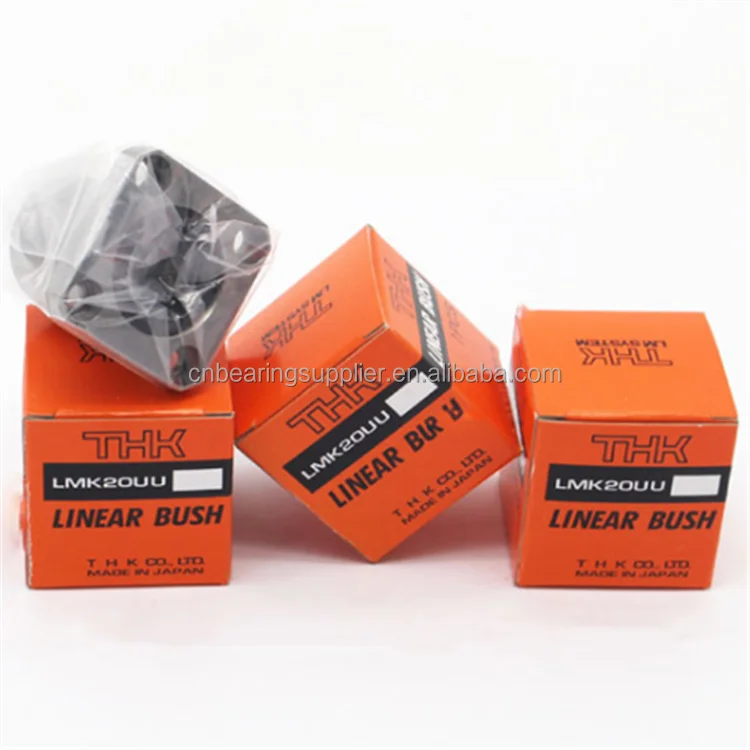

| LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU | |
LMT6UU,LMT8UU,LMT10UU,LMT12UU,LMT13UU,LMT16UU,LMT20UU, LMT25UU,LMT30UU |
THK linear bearings are the most common type of bearings . The prefix "LM" denotes that the bearing is intended for linear motion, distinguishing it from rotation ball bearings. The number refers to the diameter of the shaft that the bearing will fit on. The suffix letter appears to refer to the design of the bearing. L, V and U appear to refer to types of bearing seals (V indicates a non-contact seal, and U indicates a contact seal), whereas Z indicates that the bearing has been shielded instead of sealed. Single letters indicate that the bearing is single sealed/shielded, whereas double letters (for example, "UU") indicate that the bearing has been double sealed/shielded.There are also many other types of bearings such as LMk8UU, LMKL8UU.
Packaging & Shipping
MOQ IS ONE PIECE
TERMS OF PAYMEMT: T/T
SAMPLE AVAILABLE
PACKING: CARTON OR WOODEN BOX OR ACCORING TO CUSTOMER REQUIREMENT
SHIPMENT: Logistics forwarder or Express service, according to quantity
Delivery time: 3-15 days according to quantity required
Quality: Export standard
Price term: FOB
Payment terms
A.100%T/T
B.50% T/T in advance .50% against photo of goods
C.Western union
D.Paypal
E.Offical Bank Account
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Our Services
1.Customers' requirements are fully understood with abundant records made so that and customers' time can be saved.
2.We pay close attention to customers' drawings, submit them to our technicians and make correct replies.
3.We hunt for the most economical delivery service to reduce customers' cost.
4.We report the condition of production at any time to the customers.
5.After-sales service is reliable and customers' feedbacks are considered seriously.
6.The latest market trend is always provided for our customers.
2.We pay close attention to customers' drawings, submit them to our technicians and make correct replies.
3.We hunt for the most economical delivery service to reduce customers' cost.
4.We report the condition of production at any time to the customers.
5.After-sales service is reliable and customers' feedbacks are considered seriously.
6.The latest market trend is always provided for our customers.
Company Information
Jinan Shenglei bearing Co., Ltd. has established a professional sales network to help customers get products information at the first time. we are supplier and manufacturer from jinan shangdong China , We integrate R&D,production and export of bearings. We constantly strive for research and innovation development, adhere to the concept of "survival of high quality", and provide excellent service for customers. Our employees receive professional training. The annual production capability is more than 960 million units. Our company has strong technical strength, excellent processing equipment and complete testing equipment to ensure quality of bearings.
Certification:
FAQ
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
4. Is optional lubrication provided?
We can offer a wide range of oils and greases for a variety of applications. Please contact our engineer for technical assistance with any special requirements.
5. What is the difference between using a shield or a seal as a ball bearing closure?
Shields or seals are often installed to retain lubricant and to prevent contamination from entering the bearing. While a shield contacts the outer ring and does not come in contact with the inner ring, the seal generally comes in contact with both the inner and outer rings. Torque or drag is lower with a shield than with a seal. Alternately, the seal provides a higher degree of protection from contamination. Shields and seals are available in a variety of materials and configurations.
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
