Alibaba China Supplier Steel Circle Cut Off Machine Price, Sheet Shearing Machine Price

Product Overview

Description

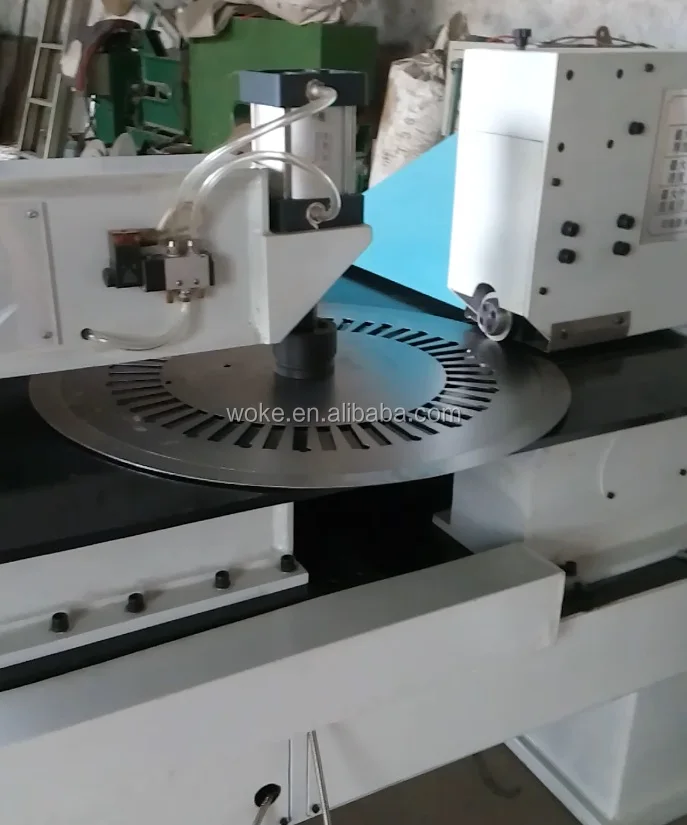

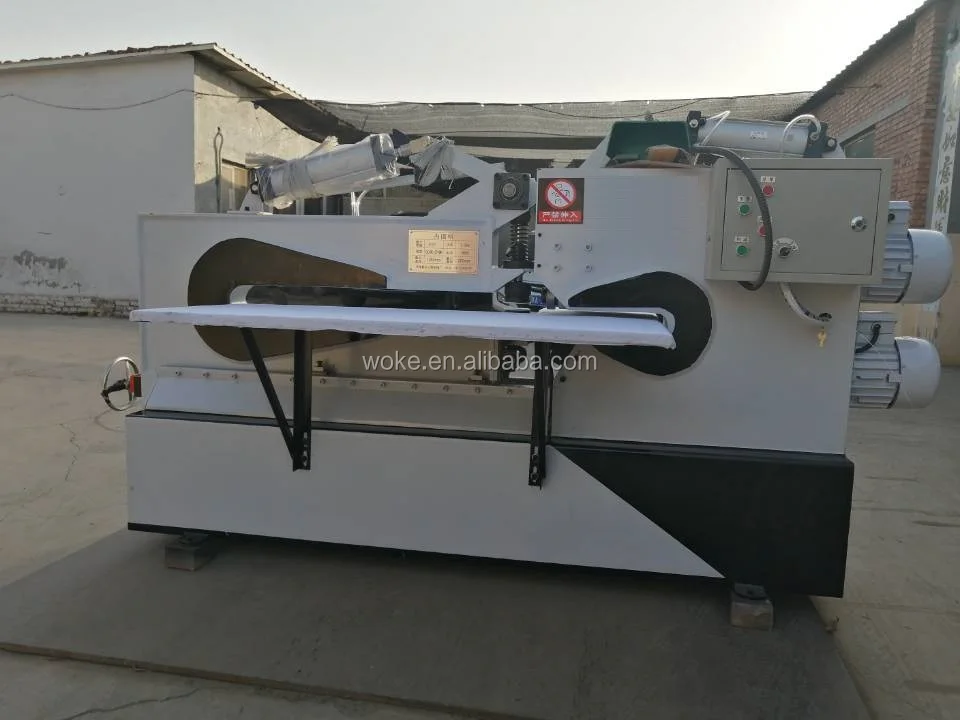

Pneumatic Circle Cutting Machine

(SS, MS, IRON, ALUMINUM, GALVANIZED)







» This machine design for big diameter sheet circle cutting, can adjust diameter according to sheet specification; low consumption, easy to operate.

» High speed with about 30-40meter per minute.

» Extreme solid and welded. Advanced clamp technology, no need to punch center hole before cutting.

» Blade material 6CrW2Si, hardened, adjustable and regrindable. Can get perfect disc sheet with smooth curve, have advantages than traditional machines.

» With advanced press technology, there’s no need to make center hole before cutting the steel sheet. You can get good quality cutting edge surface without straight edge.

» Widely used in filter, end cover, pressure vessel, cooking utensils, drums, tank head, fan, compressor and so on.

 Technical Parameters

Items	800-3	1250-3	1500-3
Cutting diameter	200mm-800mm	200mm-1250mm	200mm-1500mm
Cutting thickness	0.2mm~3mm	0.2mm~3mm	0.2mm~3mm
Cutting speed	30m/min	30m/min	30m/min
Power	1.6kw~1.5kw	1.6kw~1.5Kw	1.6kw~1.5kw
Voltage	380v/220v	380v/220v	380v/220v
Dimension	2300*800*1300mm	2700*800*1300mm	3300*800*1300mm

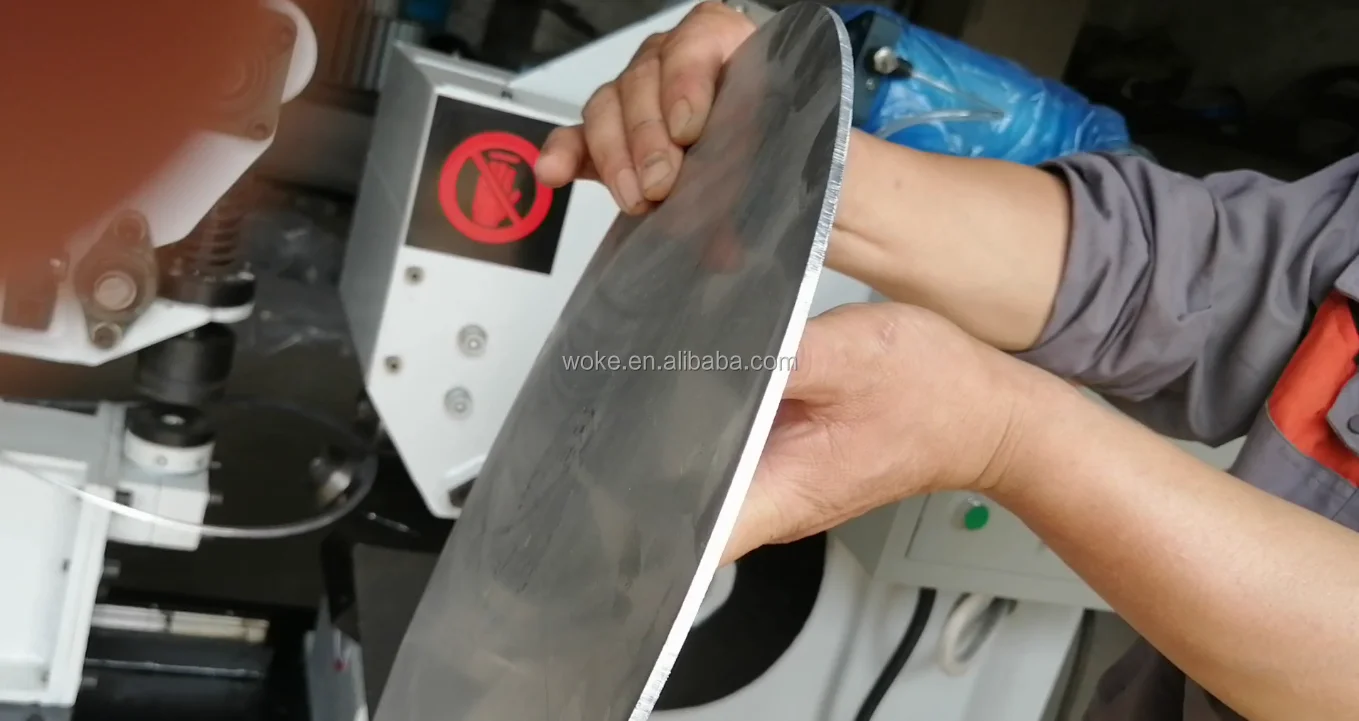

Cutting Samples





Welcome customers in domestic and abroad to negotiate together!
