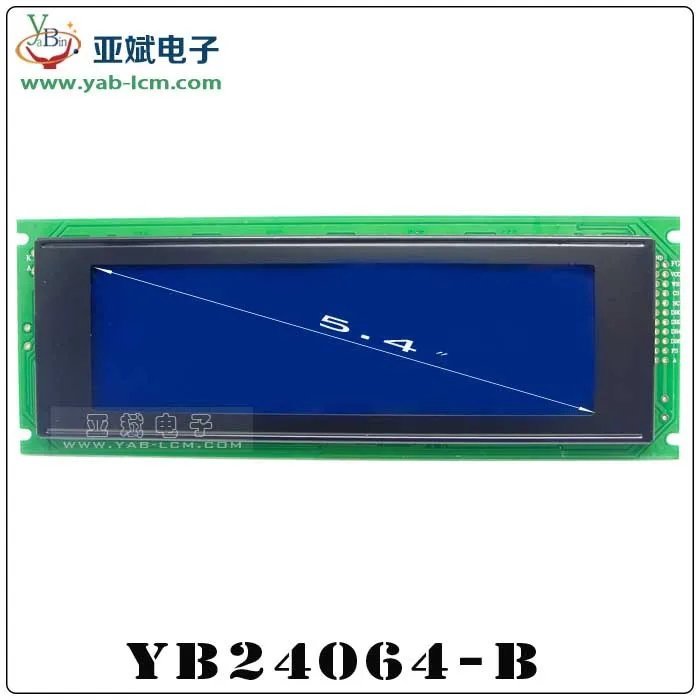

low power transflective sunlight readable 5.5 6 inch 240x64 dot MCU/SPI interface monochrome LCD module

Share on (60467657474):


Price:

Quantity:


Product Overview

Description


750

low power transflective sunlight readable 5.5 inch 6 inch 240x64 dot MCU/SPI interface monochrome LCD module

Product Description



24064B

Gross Weight (kg)
ManufacturerYaBin
Series NumberYB24064B
Display Format240*64Dots
Outline Dimension180.0*65.0*14.5mm
Visual Area132.0*39.0mm
Active Area127.16*33.88mm
Diagonal Size5.42 inch
Dot (Pixel) Size0.49*0.49mm
Dot (Pixel) Pitch0.53*0.53mm
IC PackageSMT
IC or EquivalentRA6963C/T6963/UCi6963 or EQV
Interface8080 8-bit Parallel
Display TypeSTN/FSTN
Sunlight ReadableNo
Touch Panel OptionalNo
Contrast Ratio(Typ)No
Viewing Direction6:00
LED Backlight ColorBlue /Yellow Green /Gray
AppearanceWhite on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)3.3V/5V
Backlight Current (Typ)120mA
Operating Temp -20℃~70℃
Storage Temperature -30℃~80℃
If accept customizedYes
RoHS ComplianceYes

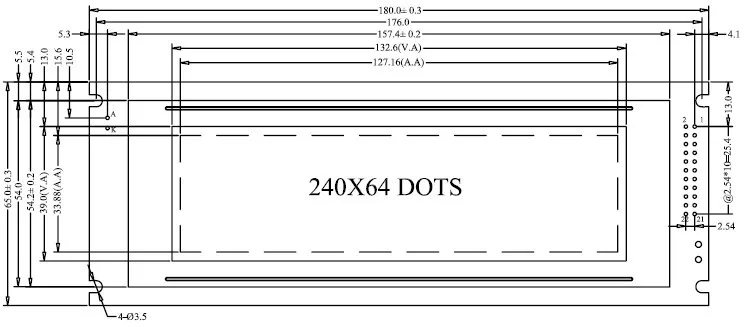

Overall dimensions

 lcd screen

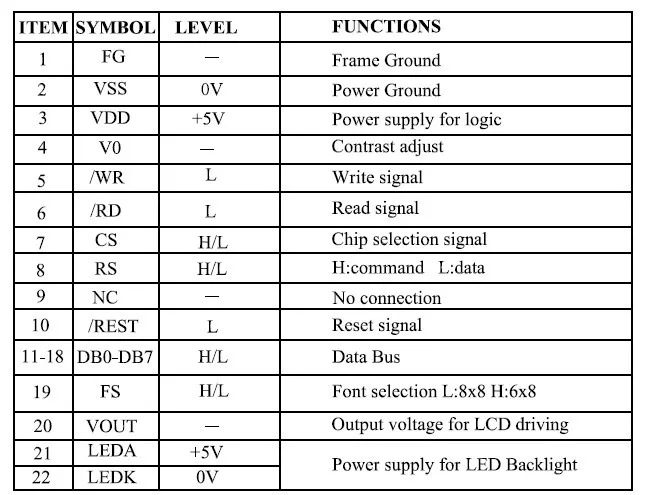

interface definition

 lcd screen

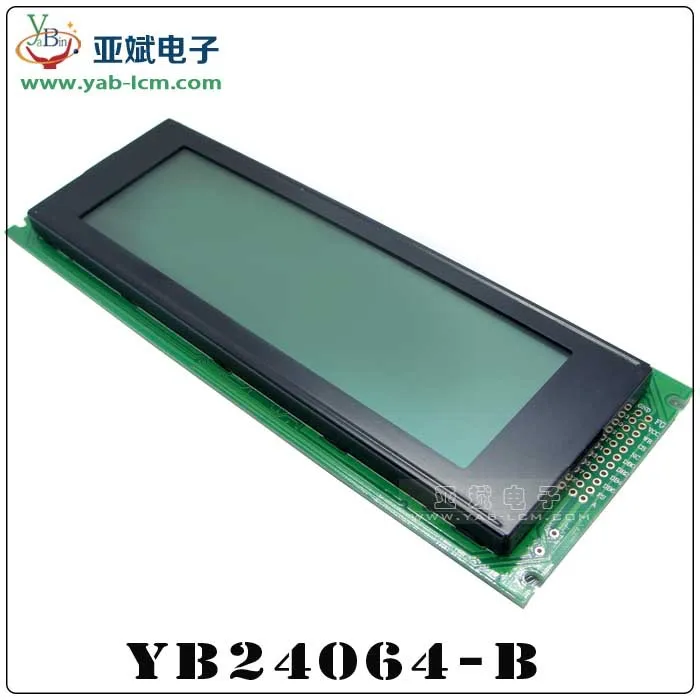

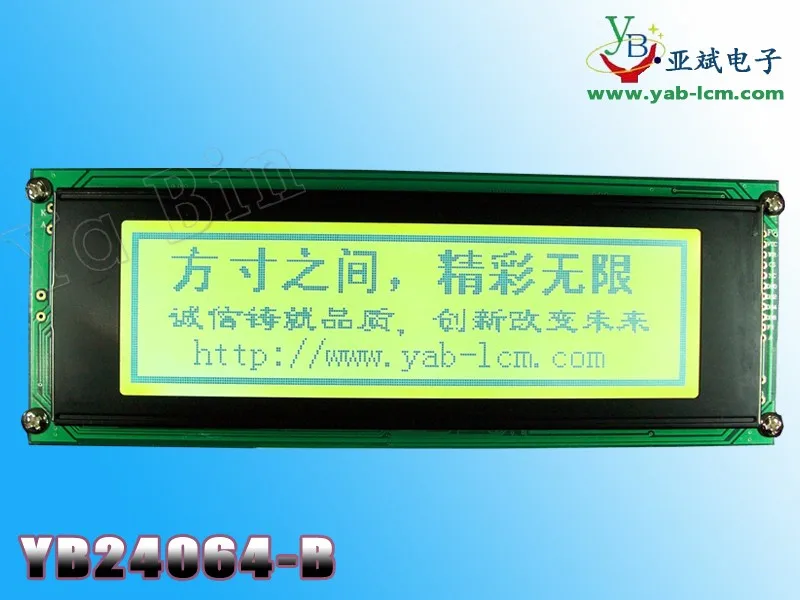

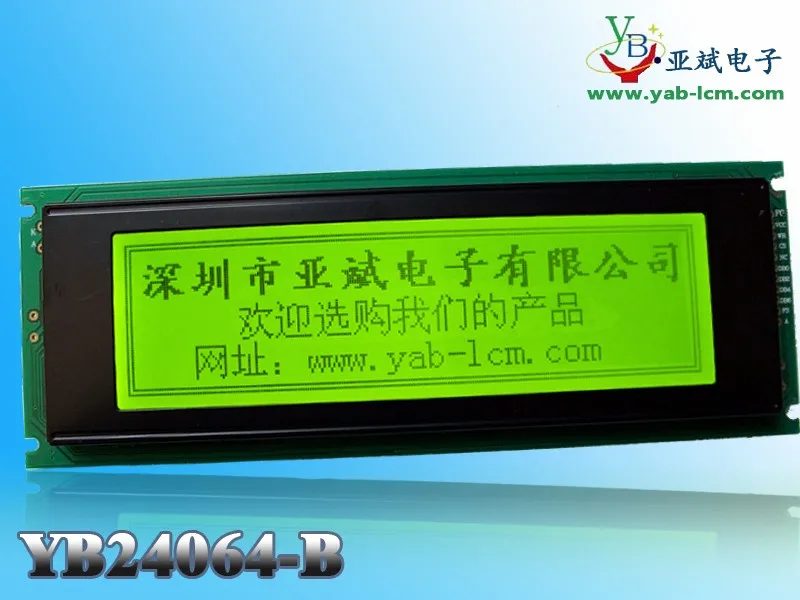

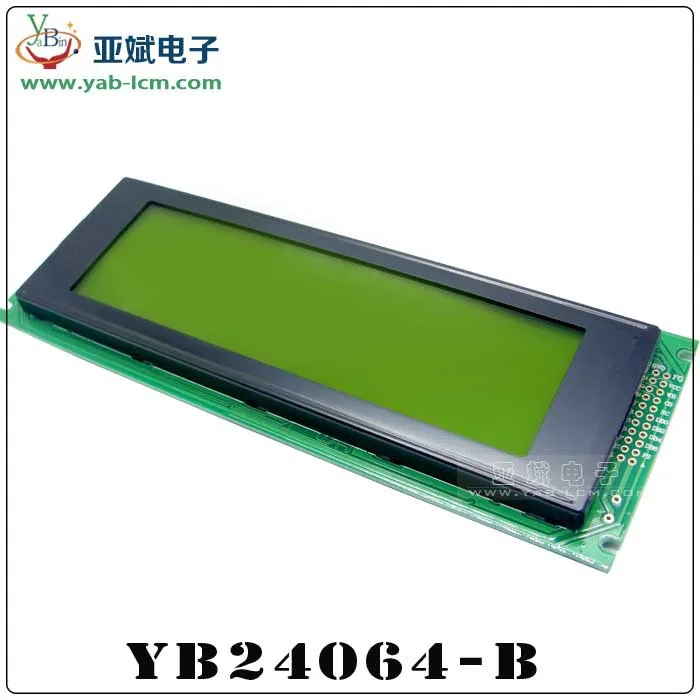

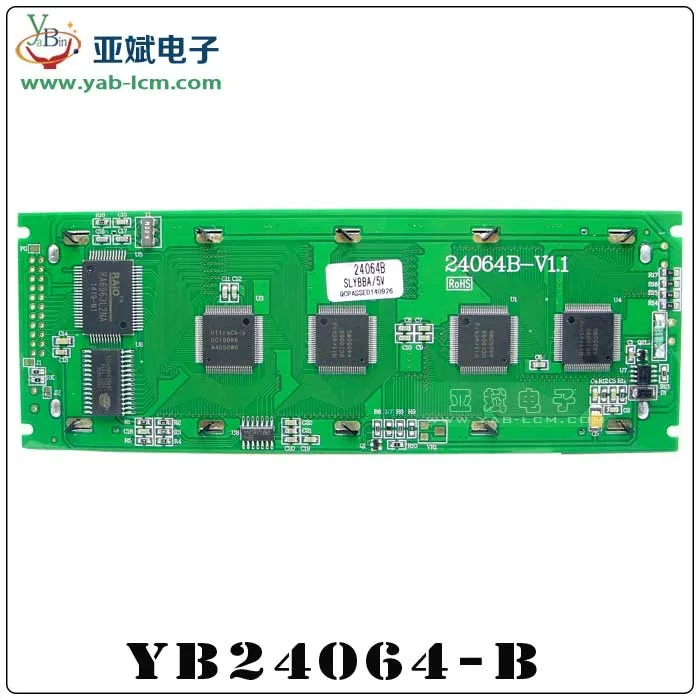

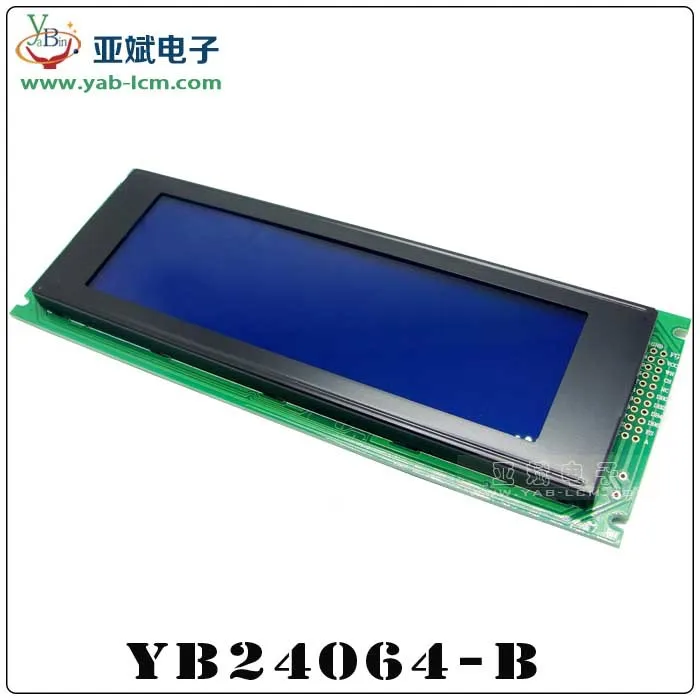

Product pictures

 lcd screenlcd screenlcd screenlcd screen

Packaging & Shipping

1. Professional packge
2. Shipping Carriers
We cooperate with DHL ,UPS,FEDEX, TNT,EMS,HongKong Post and Singapore Post for shipment and choose the most appropriate one for the destination .



lcd screen

Our advantages

Our advantages
1.Skilled technology and strict for quality.
2.Powerful products design and develop.
3.Experienced sales team
4.Prompt delivery and service
5.Low cost solutions and high quality product supply
2 Character lcd screen is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. LED backlight
3. Wide view angle
4. High Quality
5. Produced in our own factory
6. Reasonable Price
