Full automatic Italian Pasta macaroni making machine processing line
- Category: >>>
- Supplier: Jinan Saibainuo Machinery Co. Ltd.
Share on (60467746602):
Product Overview
Description
Product Description

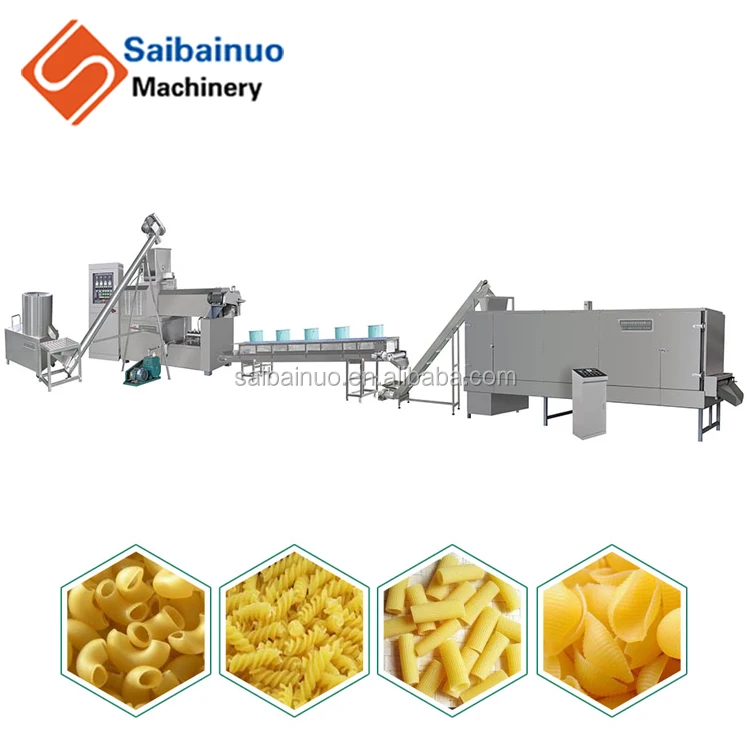

Introduction of Full-automatic Italian Pasta macaroni making machine processing line:
1.Macaroni pasta is produced by single-screw extruder through extruding cooking; the pellet can be different shapes like shell, spiral, square tube, circle tube, and so on. After drying, the pellet needs frying to get expanded.
2.Raw material: adopts potato starch, corn starch, cassava starch, wheat flour, corn flour etc as raw materials This line can be used to produce different shapes of pellets by adjusting the moulds from extruderAll the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
3. Main Flow chart for pasta processing machine,macaroni pasta maker machine: Raw material mixing-----Extrusion-----Cutting-----Drying------Cooling-----Packing.
4.Voltage: In China Three phases : 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
5. Machines Materials: All the machines are made by stainless steel

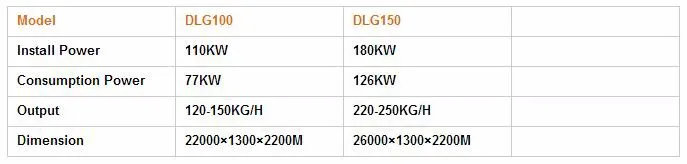

6.Specification of the Full-automatic Italian Pasta macaroni making machine processing line.
We are the biggest and most professional food machine manufacturer, quality is our culture, so with us your money in safe, your business in safe.
The extruder and the cutting machine.
The pasta mould, we can make many shapes.

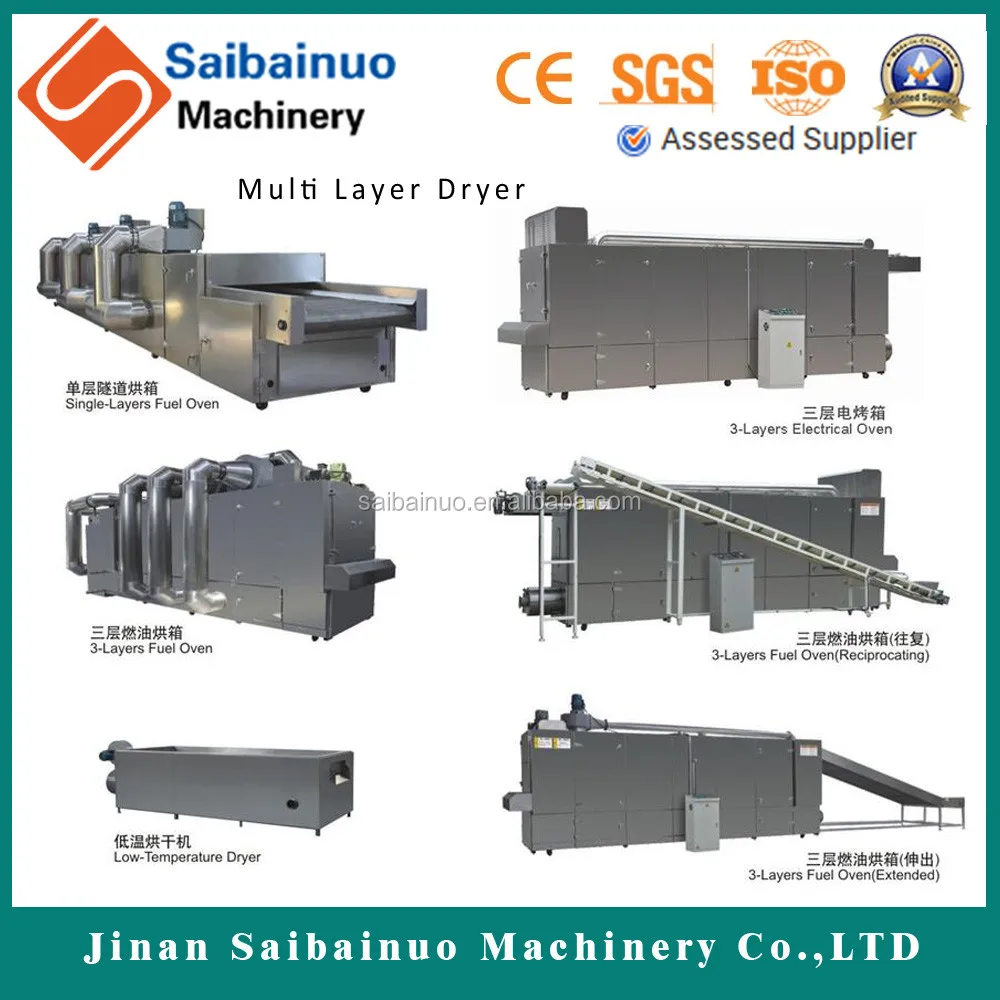

Our gas dryer.
Detailed Images
Name: high speed mxier
Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:
mix raw powder material with water
Features:
1. stainless steel material(1.5mm).
2. no material leak
3.High speed can mix material better than slow speed mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter:\tΦ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution;
Features:
stainless steel material(1.5mm)
Name: single screw extruder
Dimension(m): 2.6×1.0×1.3
Total power : 40kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 0.75kw
Heating power:15kw
Screw diameter:Φ110 mm
Screw Material: 38CrMoAl alloy steel
System:
Feeding system
Extruding system
Heating system
Cutting system
Lubrication system

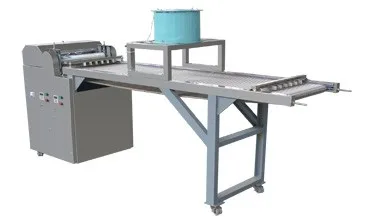

Name: cutting machine
Dimension(m): 2.2×0.6×1.2
total Power: 1.5KW
Function:
To pull the pasta and cut them
Name: multi-layer dryer
Dimension(m): 8.4×1.3×1.8
Heating Power:80kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Seven layer inside,each layer is 8 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heating
It has automatic temperature Control system.
The belt and the cover are all stainless steel.
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1
Motor Power:1 KW
Function:
Cool the food after drying , make the food suitable for packing.
Feature:
Stainless steel material.
Certifications
Our Service
Pre-sale service:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
After sale service:
1.Oversea install and debug the equipment.
2.Train the first-line operator.
3.Provide the basic formula.
Packing & Delivery
Packaging & Shipping:
1).packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
