Good Quality computer from China Barebone PC with VESA MOUNT
- Category: Barebone System >>>
- Supplier: Shenzhen Sharevdi Technology Company Limited
Share on (60467842552):
Product Overview
Description
Our Advantages
Welcome to Shenzhen SHAREVDI Technology We are a professional manufacturer of computer hardware with well-equipped testing equipment and strong technical force.With a wide range,good quality, reasonable prices, stylish designs and huge Tech team support,our products are extensively used in many industries. look forwarder to start cooperation with you ! | ||
OEM & ODM Service >>>Contact us<<< | ||
OEM | 1. logo printing on housing 2. Customize package 3. Software Customization: Booting image, UI, APP, Function… and so on | |
ODM | 1. PCBA desgin 2. Housing desgin 3. Software Customization: Booting image, UI, APP, Function… and so on | |
Product Demo

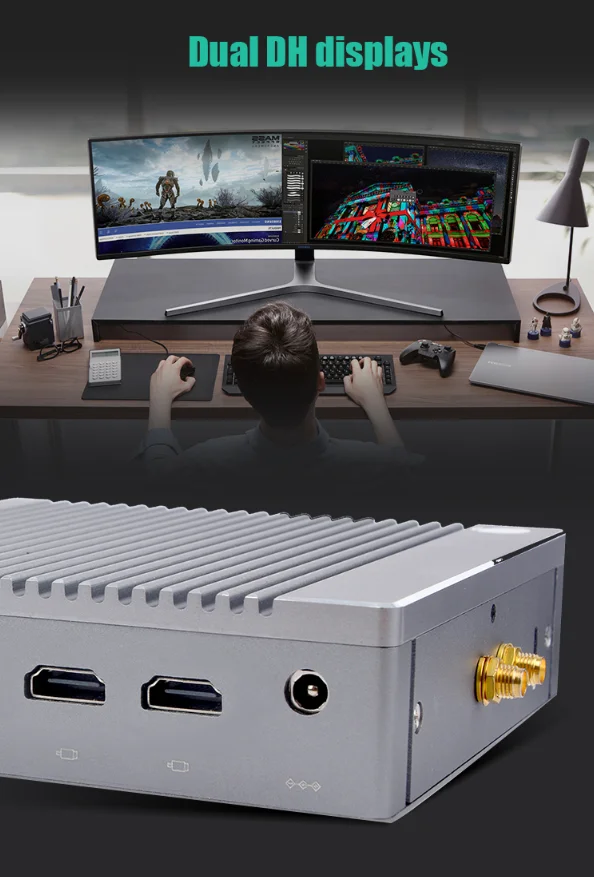

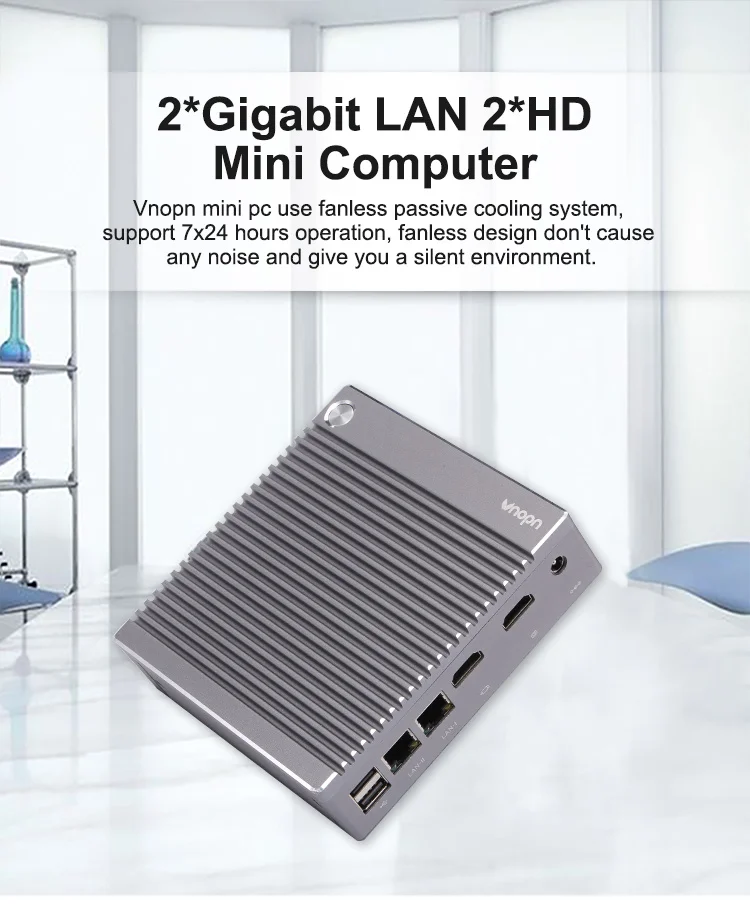

Dual HD/Dual LAN/6 USB/Fanless design
Product Usage
Product Feature:
1) CPU: Intel Celeron Processor N2840/N2940
2) Ram: Support 1*DDR3 1333MHz Ram Slot, max 8G;
3)Storage:supports mSATA SSD ;supports 2.5 HDD
4)I/O Port: 2*LAN+2*USB3.0+4*USB2.0+ 2*HD(HD+VGA optional)
1) CPU: Intel Celeron Processor N2840/N2940
2) Ram: Support 1*DDR3 1333MHz Ram Slot, max 8G;
3)Storage:supports mSATA SSD ;supports 2.5 HDD
4)I/O Port: 2*LAN+2*USB3.0+4*USB2.0+ 2*HD(HD+VGA optional)
5)AMI 64MB Flash ROM .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
6) 1*(PCIE 4X signal), 1*SATA3.0, 1*MINI-PCIE(support wifi)
7) 1*RTL8111E 1000M lan card, support wake on lan;
6) 1*(PCIE 4X signal), 1*SATA3.0, 1*MINI-PCIE(support wifi)
7) 1*RTL8111E 1000M lan card, support wake on lan;
1*Intel 1211AT, 1000M lan card, Intel network chips can handle high frequency data flow, better stability
8)Support Windows 7 /8 / Windows 10 /Linux

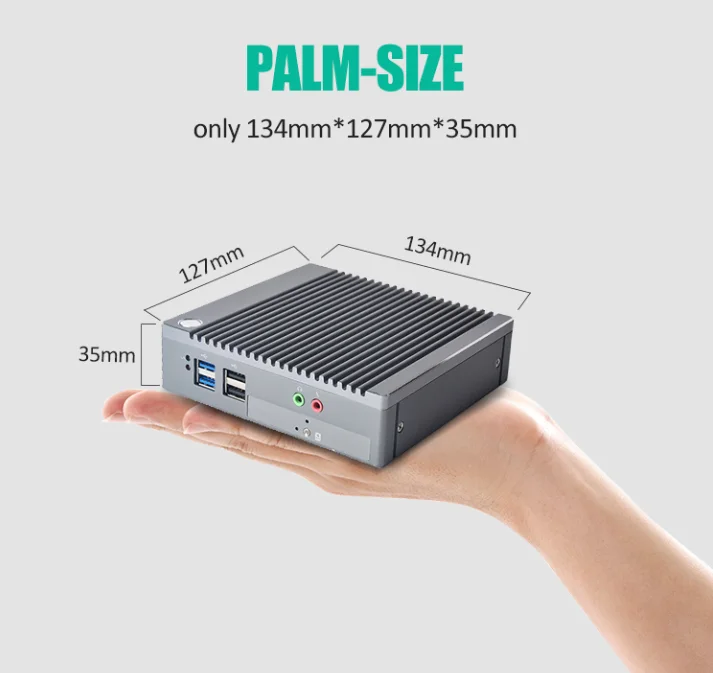

9) Size: 127*134*36.5mm
8)Support Windows 7 /8 / Windows 10 /Linux
9) Size: 127*134*36.5mm
Specification | ||
Model NO. | K6-F13 | |
Onboard CPU | Intel® Celeron® Processor N2840,1M Cache, up to 2.58 GHz, 2 Cores 2 Threads, 2.16 GHz-2.58 GHz Intel® Celeron® Processor N2940 2M Cache, up to 2.25 GHz, 4 Cores 4 Threads, 1.83 GHz-2.25 GHz | |
HD Graphics | Integrated Intel HD graphic card | |
Memory Support | DDR3 1333/1600 MHz 1.35V, 1*RAM slot, max support 8G | |
Hard Disk | supports mSATA SSD supports 2.5 HDD | |
Audio Card | Realtek ALC662 Chipset | |
Network | 1*Realtek RTL8111E 10/100/1000 Controller 1*Intel 1211AT, 1000M lan card, Intel network chips can handle high frequency data flow, better stability | |
WIFI | 150M WIFI or 300M optional,internal WIFI module, external antenna to strengthen signal | |
Port | • 2*RJ45 port • 2*HD(HD+VGA optional) • 2 x USB 3.0 Ports+4 x USB2.0 port | |
Virtualization software or Features | • Citrix • Vmware • RDP • PXE Boot/Wake on lan | |
Weight | 1.5Kg (Reference) | |
Dimension | 127*134*36.5MM(L*H*W) | |
Operating System | Support Windows 7 /8 / Windows 10 /Linux etc. | |
Application | Save Cost, Low cost Mini pc thin client, can be used to Digital signage, media player, music player | |
Related Products
Packing&Shipping
Company Introduction
SHAREVDI is a professional factory in developing and manufacturing industrial PC. We offer customized service for ARM and INTEL framework products of industrial computer. Most of our industrial computers and thin clients have been supplied to Lenovo, Foxconn and Asus etc. for more than 10 years. Products with multiple serial ports, USB ports and GPIO ports can be provided to customers to meet their different applications. Saving cost and be more professional, SHAREVDI is your good option. You as our most important cooperative partner and we surely will give you the best support to win projects.
FAQ
Q: What’s the warranty for these PC
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
