multifunctional G5 gas stove nozzle without air compressor waste oil burner molten aluminum furnace
- Category: >>>
- Supplier: ZHEJIANG EDL BURNER CO. LTD.
Share on (60468082247):
Product Overview
Description
Product Description
40G series are mainly used for the family heating, while RL series are suitable for industrial use, such as low temperature and medium temperature hot boiler, hot wind or steam boiler, oil guiding heating boiler, etc.
G5 TECHNICAL DATA
| TYPE | 445T1 |
| Thermal power-out put | 28-60kW-2.3-5kg/h |
| Fuel | Light oil, viscosity 4-6 mm²/s at 20℃ |
| Electrical supply | Single phase ,230V ±10%~50Hz |
| Motor | Run current 0.75A - 2850rpm-298rad/s |
| Caoacitor | 4uF |
| Ignition trasformer | Secondary 8kV - 16 mA |
| Pump | Pressure 7 -15 bar |
| Absorbed electrical power | 0.130kW |
*Buner with CE marking in conformity with EEC Directicves :EMc 89/336/EEC - 2004/108/EC,Low Voltage 73/23/EEC - 2006/95/EC,Machines 98/37/EEc and Efficience 92/42EEC
*The burner meets protection level of IP 40, EN 60529

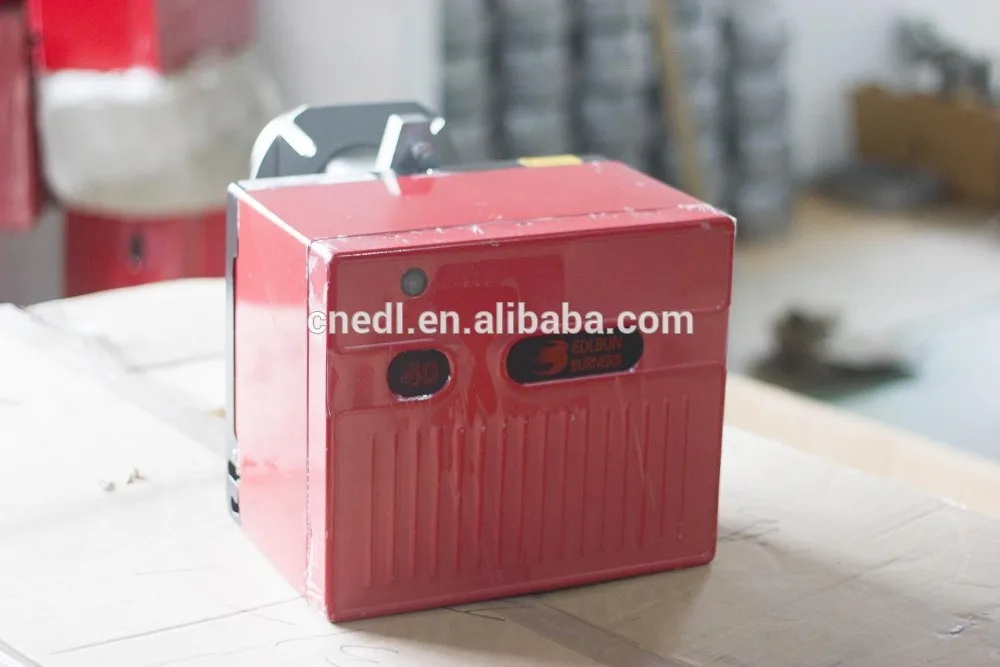

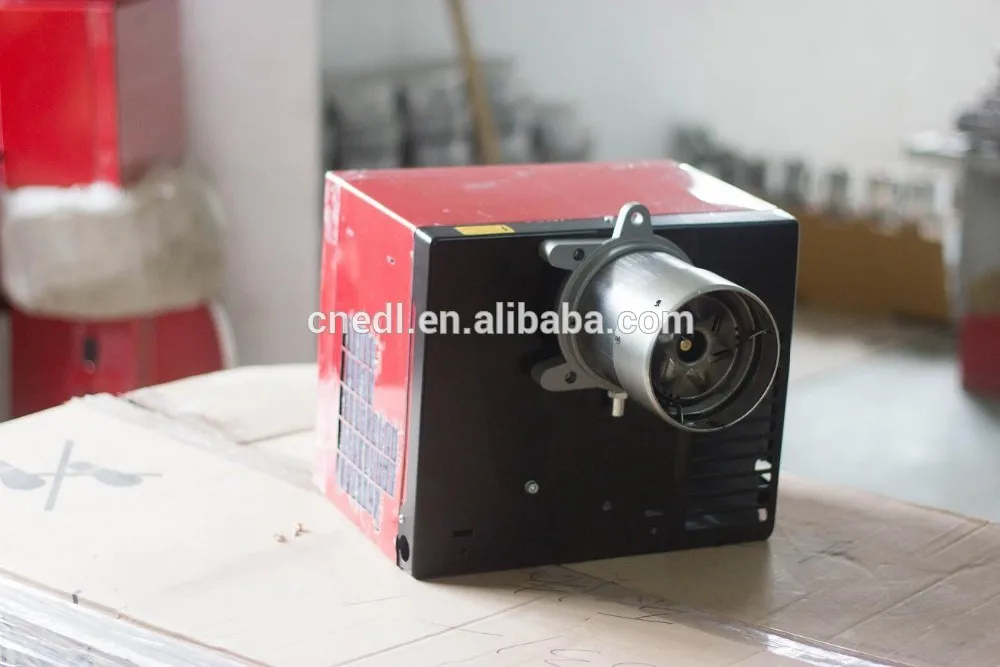

Real product photo
Main Features
1,Easy operation;
2,Convenient assembly for all parts;
3,Efficient maintenance, cleaning and inspection;
4,Critical spare parts adopt renowned brand;
Control process:
Oil burners can be divided two types which are single-stage and dual-stages according to regulating control method.
After single stage oil burner is ignited, there is only one stage heating power which cannot be adjusted. The heating power of our four models ranges 28kw to 395KW.
The dual-stage oil burners have two stages heating power. When ignited, it starts working at the 1st stage power, but as the load keeps increasing, the oil burners can work at the second stage whose heating power range from 155 to 480kw.
Perfomance
1 Unibody design with aluminum shell
2 Sliding flange can locate the nozzle according the status in boiler furnace
3 Superior design of the nozzle make sure the best consumption when the burner working
4 Electrical devices to control the procedure and the safe protection
5 Delivering in assemble, out of the box
Fuel
40G and RL oil burners are driven by light oil and mixed fuel of biology diesel below 5% and light oil
Certification
Packaging & Shipping
Our Services
Why Choose us?
1, We can offer small quantily
2, We can offer fast delivery
3, We can offer you best price
4,We can offer you good quality
5,We are professional manufacture
