Price:$12.00 - $15.00

Quantity:


Product Overview

Description


VAHLE Motorized Cable Reels for power supply to movable equipment for automatic winding of power or control cables


Specifications:

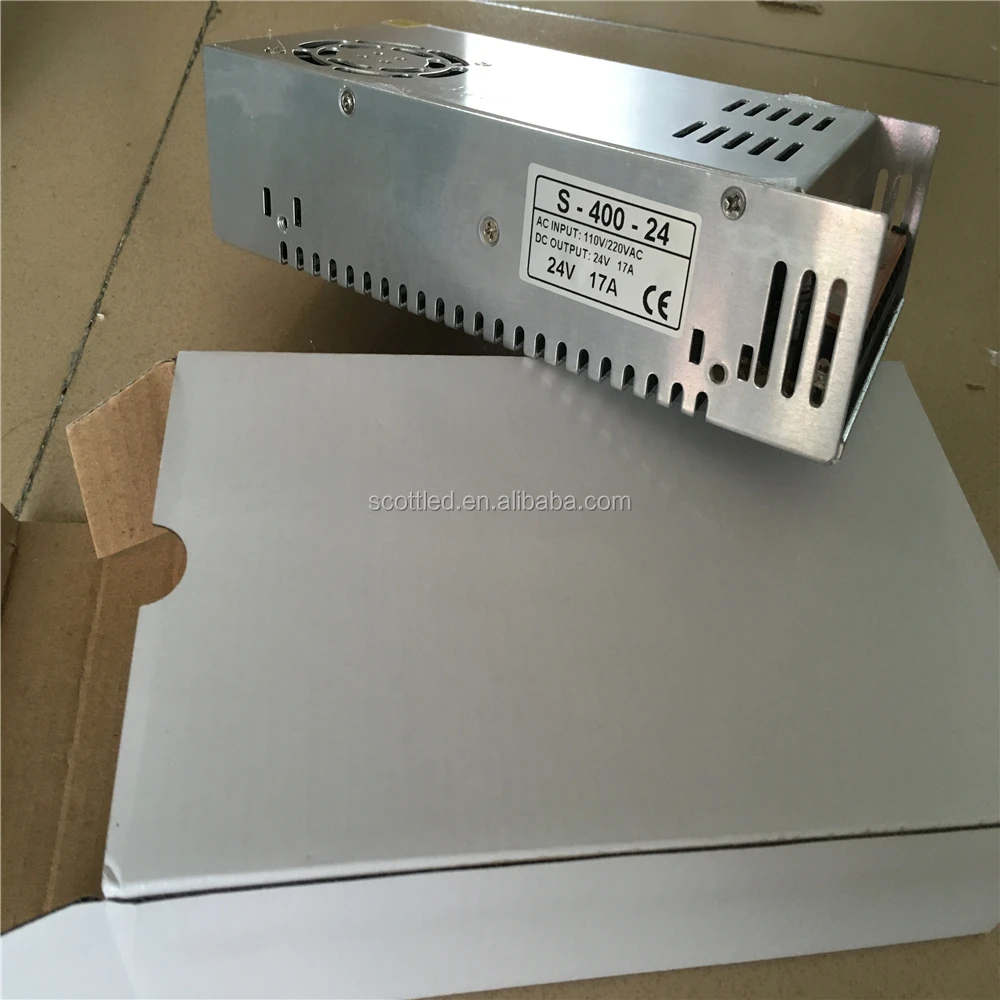

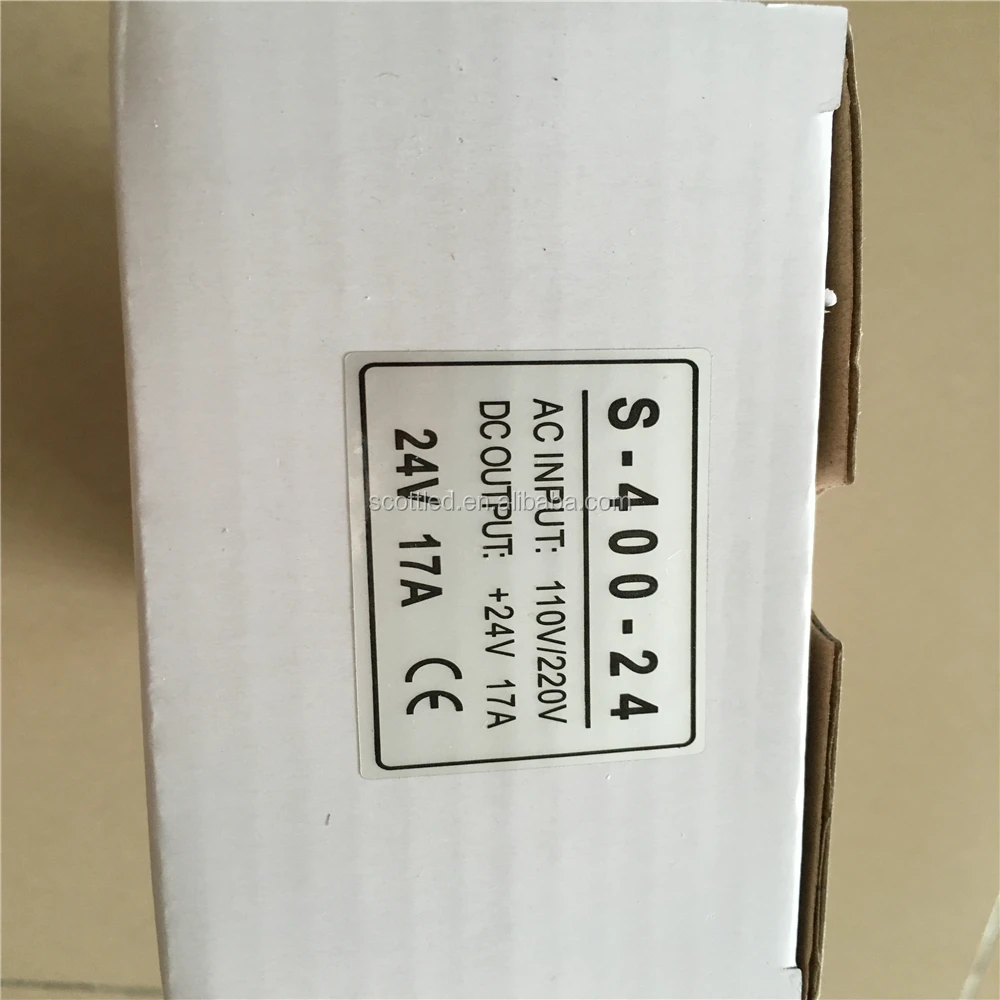

Model  SpecificationSC-400-5SC-400-12SC-400-24S-250-48
DC output voltage5V12V24V48V
Output voltage error ±2%±1%±1%±1%
Rated output current80A33A17A5A
Wave and noise150mVp-p150mVp-p150mVp-p150mVp-p
Inlet stability±0.5%±0.5%±0.5%±0.5%
Load stability±1%±0.5%±0.5%±0.5%
DC output power400W400W400W205W
Efficiency79%83%84%86%
Adjustable range for DC voltage4.5-5.6V10-13.2V20-26.4V41-56V

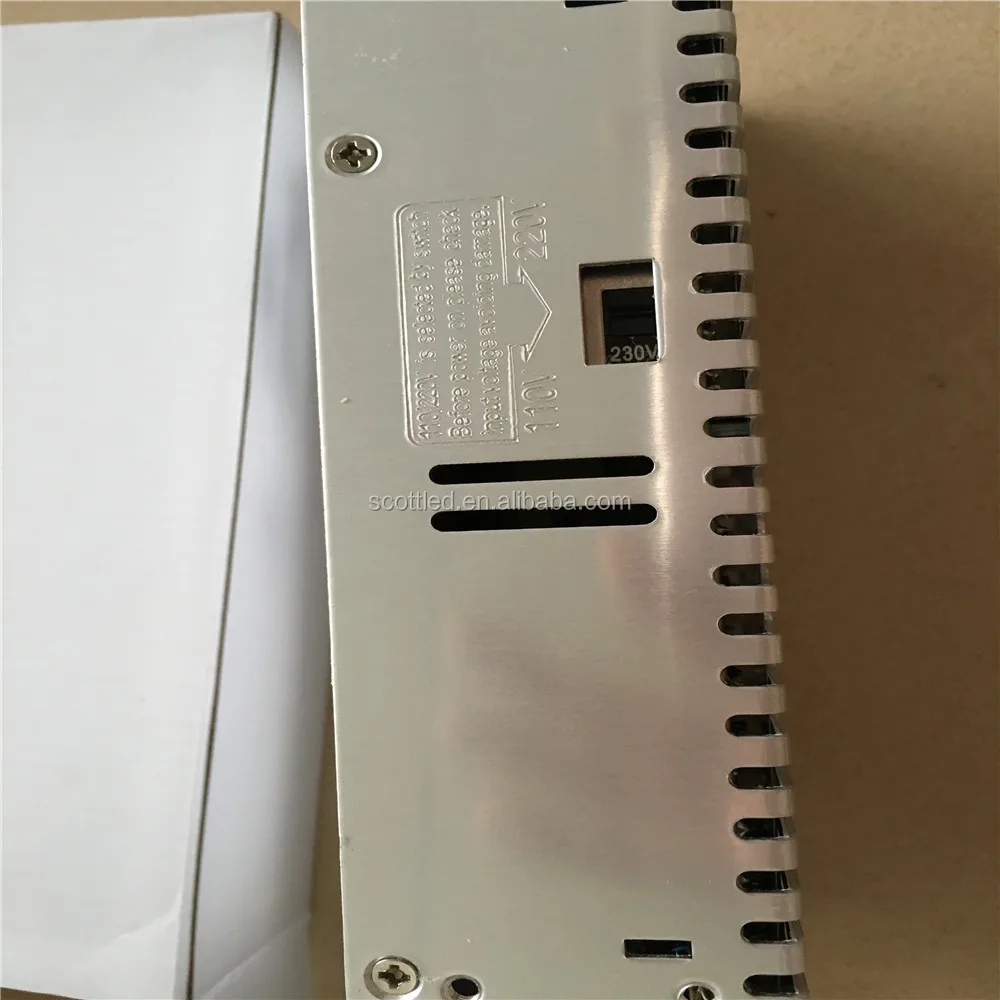

AC input voltage range90~132VAC/180~264VAC BY SWITCH 47~63Hz;248~370VDC
Input current6.5A/115V 4A/230V
AC impulse current25A/115V 50A/230V
Leakage current<3.5mA/240VAC
Overload protection105%~135%. Type,PULSING HICCUP SHUTDOWN; Reset,auto recovery
Over-voltage protection5.75-6.75V13.8-16.2V27.6-32V57.6-67.2V
High-temperature protectionRTH3>=65°C FAN ON<=55°C FAN OFF>=80°CCut off output(5~15V)
RTH3>=70°C FAN ON<=60°C FAN OFF>=85°CCut off output(24~48V)
Temperature coefficient±0.03%°C(0~50°C)
Setup rise hold up time200ms,50ms,20ms
Vibration10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltageInput and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
Isolation resistanceInput and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
Working temperature and humidity-10°C~+50°C,20~90%RH
Store temperature and humidity-20°C~+85°C,10~95%RH
Overall dimension215*115*50mm
Weight0.93Kgs /17pcs per carton
Safety standardsDesign refer to UL1012, EN60950-1,EN61347-1,EN-61347-2 approved
EMC standardsEN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
Note,1.The testing condition for the parameter above is,230VAC input, rated load,25°C 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note,5)
3.Wave test,adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test, when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2,3,11must be knocked down
