STA high temperature SiC refractory slab for kiln furnace

Product Overview

Description

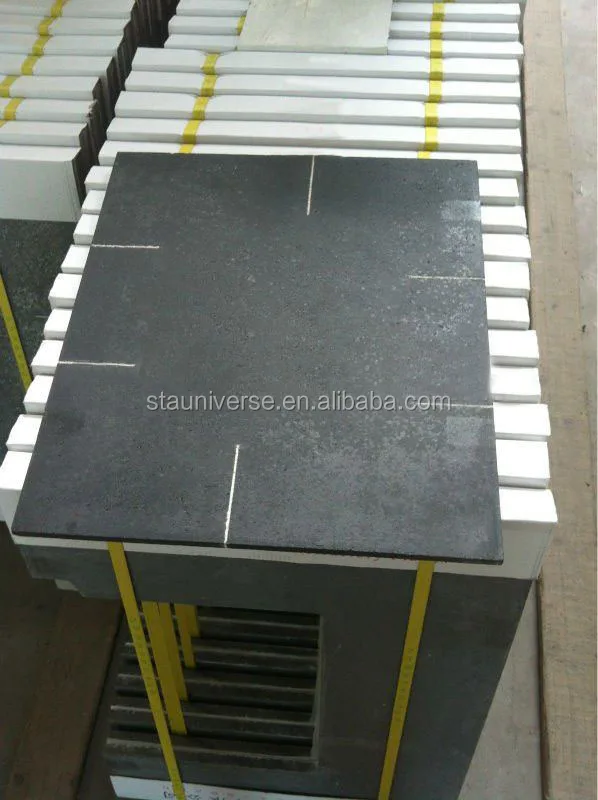

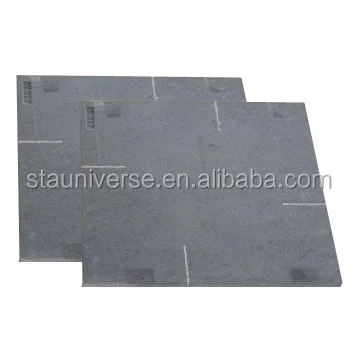

 STA high temperature SiC refractory slab for kiln furnace



Product Description

Refractory SiC Slab, also known as carborundum, is a compound of silicon and carbon with a chemical formula SiC. is made through high temperature sintering, adopting the higher quality raw materials. It has characteristics of stable performance, excellent thermal shock resistance, oxidation resistance, long life, thin volume but high bulk density. Its good thermal conductivity can assure to save energy at maximum level.



Refractory SiC slab is distinguished by high strength that stays nearly constant up to very high temperatures (1500° C), maintaining that strength over long periods.

This material displays an extremely high corrosion resistance in acidic and basic media, and this too is maintained up to very high temperatures. These properties are outstanding among high-temperature ceramics, and are complemented by high thermal shock resistance, high thermal conductivity, high resistance to wear, and hardness close to that of diamond.



Typical Quality Analysis:

Chemical Composition    SIC >=		%	90
Physics property	Max.Service Temp.	ºC	1400
	Refractoriness  >=	SK	39
	2kg/cm2 Refractoriness under load T2 >=	ºC	1790
	Modulus of Rupturt at room temp >=	Kg/cm2	500
	Modulus of Rupture at 1400ºC >=	Kg/cm2	550
	Compressive  strenght  >=	Kg/cm2	1300
	Thermal Expansion at 1000ºC	%	0.42-0.48
	Apparent Porosity	%	≤20
	Bulk Density	g/cm3	2.55-2.7
	Thermal Conductivity at 1000ºC	Kcal/m.hr.ºC	13.5-14.5



Usage:
1.) Side wall Electrolyzer cell chemical-industrial reaction pot.

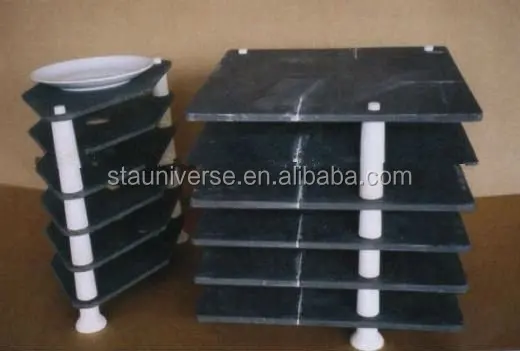

2.) Used as Kiln shed board, slide push board, sagger, Tuyere combined bricks.
3.) Used in blast furnace belly, Bosh and lower stack, cooling wall, rubbish burning furnace and boiler.



Standard Size:

LxW	LxW	LxW	LxW	LxW
765x730mm	600x600mm	550x380mm	480x400mm	400x400mm
740x520mm	600x550mm	550x370mm	480x360mm	400x380mm
732x445mm	600x520mm	550x300mm	480x330mm	400x350mm
730x400mm	600x500mm	530x530mm	460x440mm	400x280mm
730x280mm	600x370mm	530x340mm	460x350mm	400x250mm
720x630mm	560x380mm	520x500mm	460x320mm	380x380mm
700x700mm	560x270mm	520x490mm	450x450mm	365x365mm
700x550mm	550x550mm	500x480mm	450x420mm	350x350mm
700x500mm	550x520mm	500x450mm	450x400mm	340x320mm
700x450mm	550x500mm	500x420mm	450x380mm	340x310mm
640x600mm	550x480mm	500x400mm	450x340mm	320x320mm
640x500mm	550x450mm	500x390mm	430x420mm
625x300mm	550x430mm	500x370mm	420x400mm
610x400mm	550x400mm	480x480mm	420x380mm
Thichness  8-25mm		Other specifications are available
