Yoghurt production processing making line machine German technology complete Turn key project
- Category: >>>
- Supplier: Zhejiang Xuxiang Machinery Technology Co. Ltd.
Share on (60468214999):
Product Overview
Description
Products Description
A complete dairy milk yogurt production plant as below pictures
Complete milk processing equipment, the general process of pure milk processing is to first select the milk source
Raw milk inspection-clean milk-cooling storage-pasteurization-cooling storage-ingredients-homogenization-ultra-high temperature sterilization-aseptic filling-boxing-heat preservation test-delivery .
Complete milk production line, complete milk production line processing equipment including unloading tank, filter, homogenizer, four-stage plate sterilizer, ice water unit, CIP cleaning, bottle filling, cup filling, capping, coding, according to Choose the corresponding equipment for different needs. There are currently two sterilization methods: tank type and plate type.
Raw milk inspection-clean milk-cooling storage-pasteurization-cooling storage-ingredients-homogenization-ultra-high temperature sterilization-aseptic filling-boxing-heat preservation test-delivery .
Complete milk production line, complete milk production line processing equipment including unloading tank, filter, homogenizer, four-stage plate sterilizer, ice water unit, CIP cleaning, bottle filling, cup filling, capping, coding, according to Choose the corresponding equipment for different needs. There are currently two sterilization methods: tank type and plate type.
Welcome to consult and choose the right production line for you.
Description
The Production line produce several types of pasteurized milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents. First the milk is preheated and standardised by in line milk fat standardisation system. The purpose of standardisation is to give the milk a defined, guaranteed fat content. Common values are 1.5% for low fat milk and 3% for regular grade milk, fat contents as low as 0.1 and 0.5 % is skimmilk.
The milk fat content is standardised in a direct standardisation system. Standardised milk used for producing whole milk powder is not normally homogenized.In the production of dried whole milk the heat treatment must be so intense that the lipases will also be inactivated.
Technical parameters | ||||
1 | Raw material | Milk or milk powder | ||
2 | Product | UHT milk,dairy products，yogurt | ||
3 | Terminal package | Carton brick, plastic bag, tin,can,plastic bottle depends on your choice | ||
4 | We can design it according to your special requirements. | |||
The Whole Producion Line Including Below Items:
1.Milk collection system
2.Ingredients sterilization system
3.Filling &Packing system
4.CIP cleaning system
5.Water treatment system
6.Water Supply system
7.Steam System
8.Air Compressed System
9.Refrigeration Systems
2.Ingredients sterilization system
3.Filling &Packing system
4.CIP cleaning system
5.Water treatment system
6.Water Supply system
7.Steam System
8.Air Compressed System
9.Refrigeration Systems
Commercial milk and yogurt production line making processing machine plant
The pretreatment of the milk is the same, regardless of whether set or stirred yoghurt is to be produced. It includes standardization of the fat and dry matter contents, heat treatment and homogenization. It is assumed that the milk has been standardized to the required fat content before entering the line and standardization of the dry matter content takes place in an evaporator in the process line. If the dry matter content is adjusted by addition of milk powder, the equipment used is similar to that described under "Recombined milk". Any additives, such as stabilizers, vitamins, etc., can be metered into the milk before the heat treatment. When the yoghurt milk has been pretreated and cooled to inoculation temperature, the procedure for further treatment depends on whether set, stirred, drink, frozen or concentrated yoghurt is to be produced.
SPECIFICATIONS FOR Yogurt Production Line | ||||||
Raw material | Fresh cow milk , powder milk | |||||
production | Stirred yoghurt, Set yoghurt, Drinking yoghurt,etc | |||||
Capacity | 2T/D–500T/D | |||||
Endproduct package | Gabletop carton,plastic bottle,plastic cup,glass bottle,etc | |||||
The whole line including:
1.Ingredients sterilization system
101.High shear emulsification tank
102.Water-Powder Mixer
103.Mixing tank
104.Double filter
105.Plate sterilizer
106. Homogenizer
107.Fermentation tank
108.Plate heat exchanger
109.Rotor pump
110.High storage tank
110.Centrifugal pump
111.CIP Return pump
2. Filling and Packing system
201.3 in 1 filling machine
202. Automatic sleeve labeling machine
203. inkjet printer
206.Cup filling machine
3. CIP cleaning system

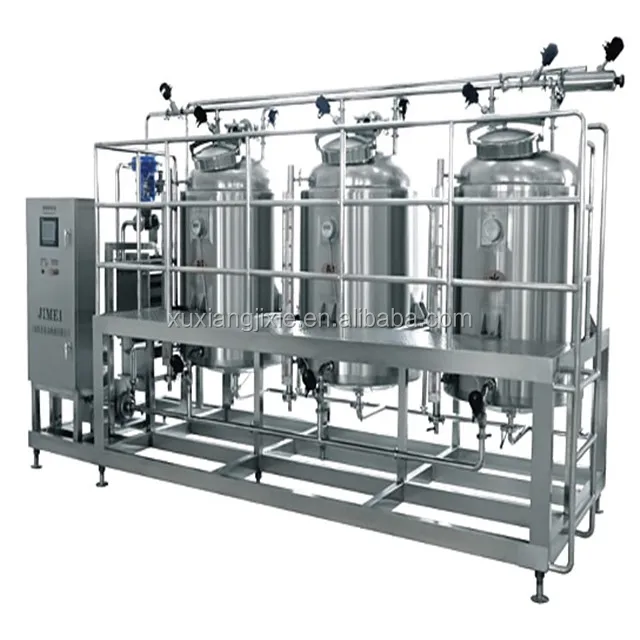

301. Integrated CIP washing machine
4. Water treatment system
401.RO water treatment water unit
402.Water tank 2000L\t31
5.Steam System
501.Industrial fuel vertical boiler
6.Air Compressed System
601.Air compressor
602.Air filter
603.Air dryer
604.Air storage tank
7.Refrigeration Systems
701.Air-cooled chiller
702.Ice water tank
703. water pump
704.Fermentation room
705.Low temperature cold storage
Milk Processing Plant
We are looking for the sole agent in each country ,please contact me if you're interested.
Company Profile
China Jimei Holdings Group
Shanghai Jimei Food Machinery Co., Ltd. is a collection of scientific research, production and service as one of professional manufacturer of liquid beverage food machinery, high-tech enterprises;the company was founded in
1989 and currently has become a leader in the domestic food machinery industry.
1989 and currently has become a leader in the domestic food machinery industry.
The company's main products include: automatic roof-type carton packaging machine, automatic paper brick packaging machine,automatic paper pillow type packing machine, automatic spray sterilizing unit, PET triple filling unit, UHT tubular , plate sterilization machine, aseptic liquid flexible packaging machines, etc., and the formation of fruit and vegetable drinks production line, liquid dairy production line containing carbonated beverage production line, pure water production line, milk powder production line, cold production lines, concentrated fruit juice and jam production line, canned fruit production line eight series as the main supporting parts of the production line equipment Vice scale Group production mode.
Why Choose Us
High Quality
Our machines are using world famous brand component.MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.SCHNEIDER electrical appliance components from France and Germany.LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
Long history of the Company
JIMEI is famous for its finest quality and enjoys a long-standing reputation at home and abroad. Having a long history of more
than two decades,great experience accumulated in such a long time making us on the top list of Chinese manufacturer professionals
in food machine industry.
than two decades,great experience accumulated in such a long time making us on the top list of Chinese manufacturer professionals
in food machine industry.
