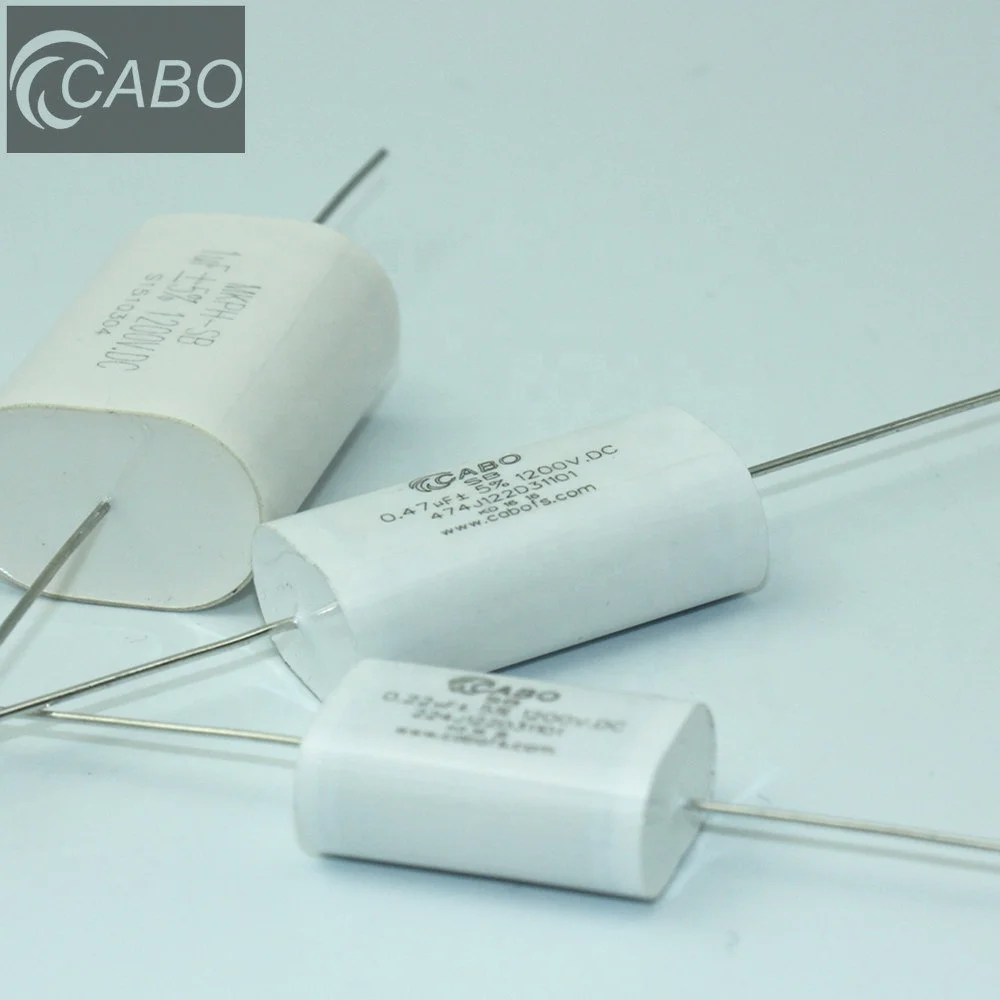

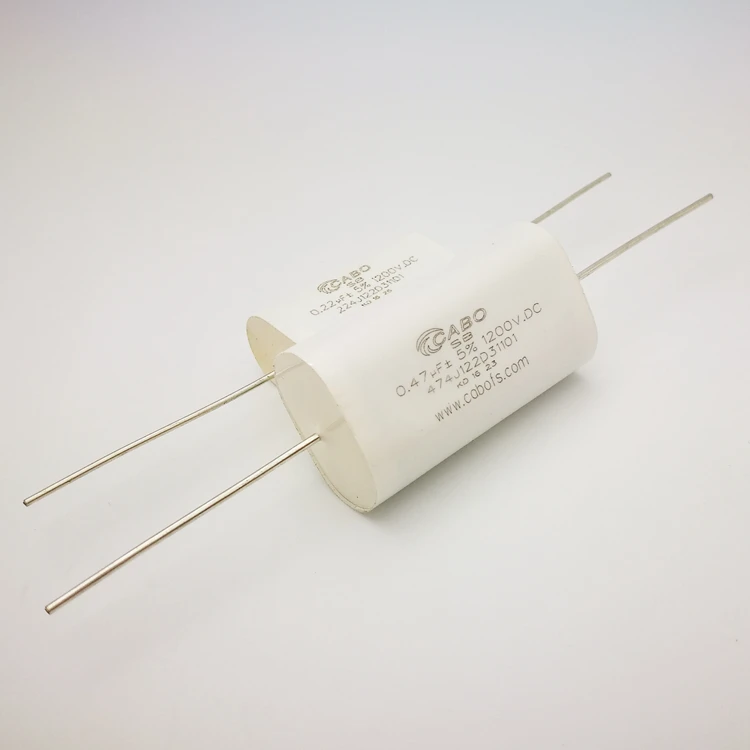

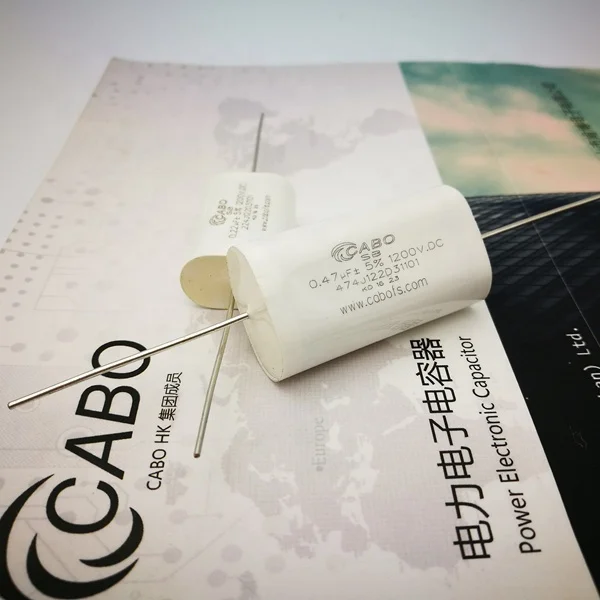

  • SB series //IGBT snubber capacitors MKPH SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V
SB series //IGBT snubber capacitors MKPH SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V
SB series //IGBT snubber capacitors MKPH-SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V
SB series //IGBT snubber capacitors MKPH-SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V
SB series //IGBT snubber capacitors MKPH-SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V
SB series //IGBT snubber capacitors MKPH-SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V

SB series //IGBT snubber capacitors MKPH SB 0.1uF 0.22uF 0.47uF 1.0uF 1200V 1600V 1700V 2000V

Share on (60468293618):


Price:

Quantity:


Product Overview

Description





Product Description

Product Description












>IEC 61071
>Dry type structure
>High over-voltage and over-current
>Low ESL
>Low ESR
>Self-healing
>Transition metal layer





 THB test approved: RH85%, 85℃ for 168Hrs


Electrical Parameter

Electrical Parameter















































Capacitance 0.047~10μF


0.001~10μF


Temperature


-40℃~+85℃


Capacitance Tolerance


±5%(J);±10% (K)


Rated Voltage


630~3000V.DC


Test Voltage between Tgσ≤0.0008(10KHz,20℃)


1.5-1.75Un/60s


Dissipation factor


Tgσ≤0.0008(10KHz,20℃)


Insulation Resistance


≥3000s but need not exceed 30GΩ


Dv/Dt


>200V/μs


Leads


Pins,tinned copper lugs,wire


Lifetime Expectancy


≥100,000Hours (Un,≤70℃)







Typical Circuit

Typical Circuit















In inverter system for

switch module(IGBT)protection,Peak voltage clamp occasion.



For welding machine / frequency inverter / solar,wind inverter / power supply / induction heater machine....

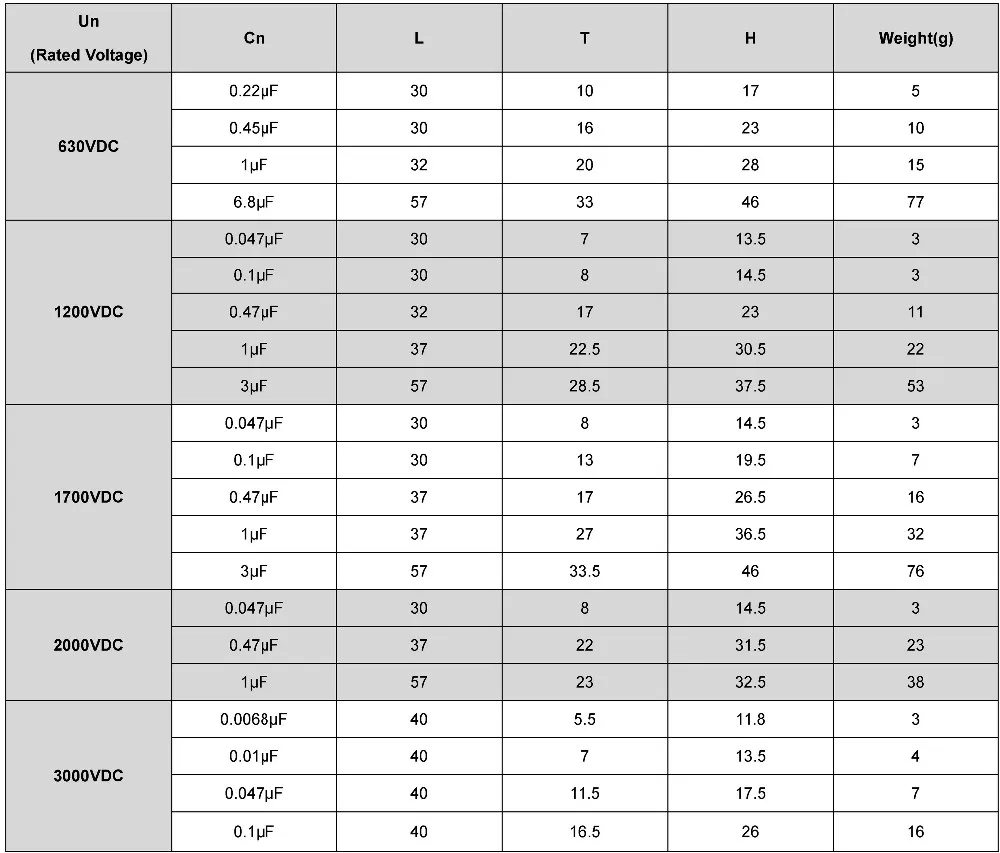

Outline Drawings

Outline Drawings























Variable A




Variable B




Variable C




0.8/1.0/1.2mm




Any length




Oval/round







More installation leads please contact your customer manager







Common Design

Common Design








Note:The above parameters are just for your reference,the details please check your specification.






You may interest:

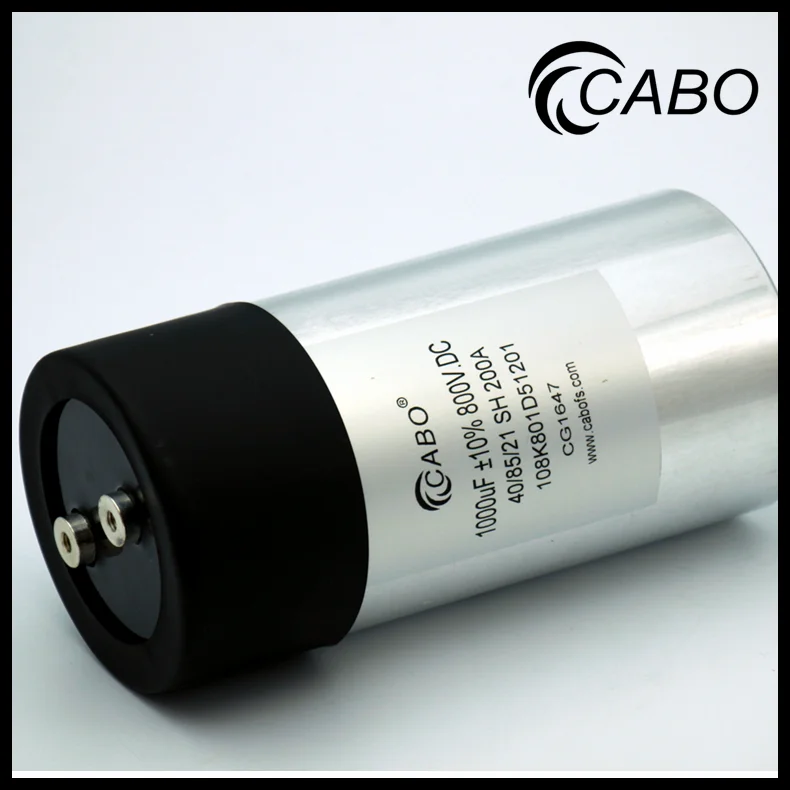

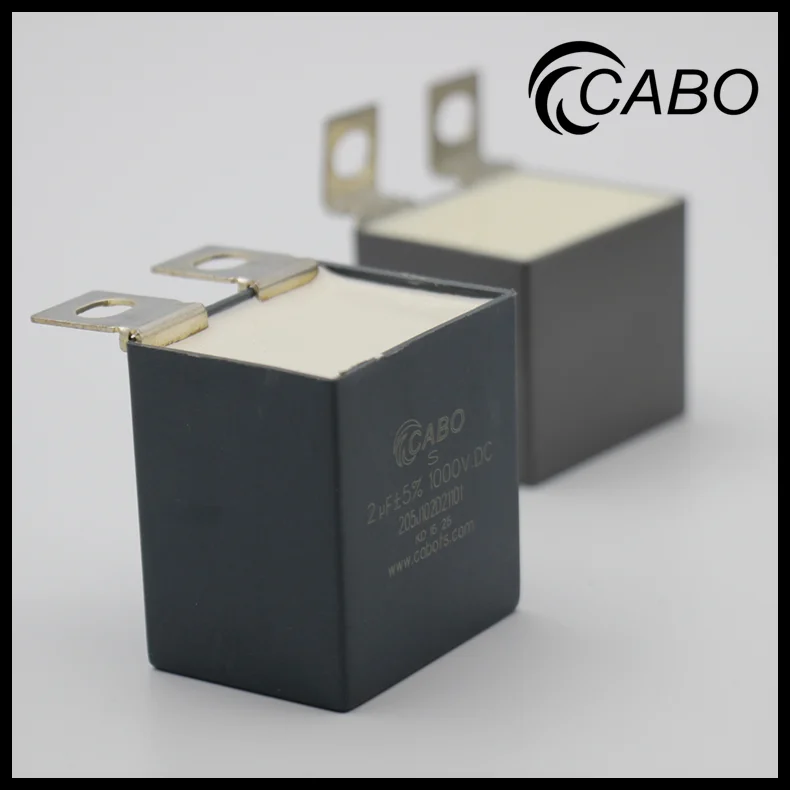

dc link capacitor 1_11111.png
