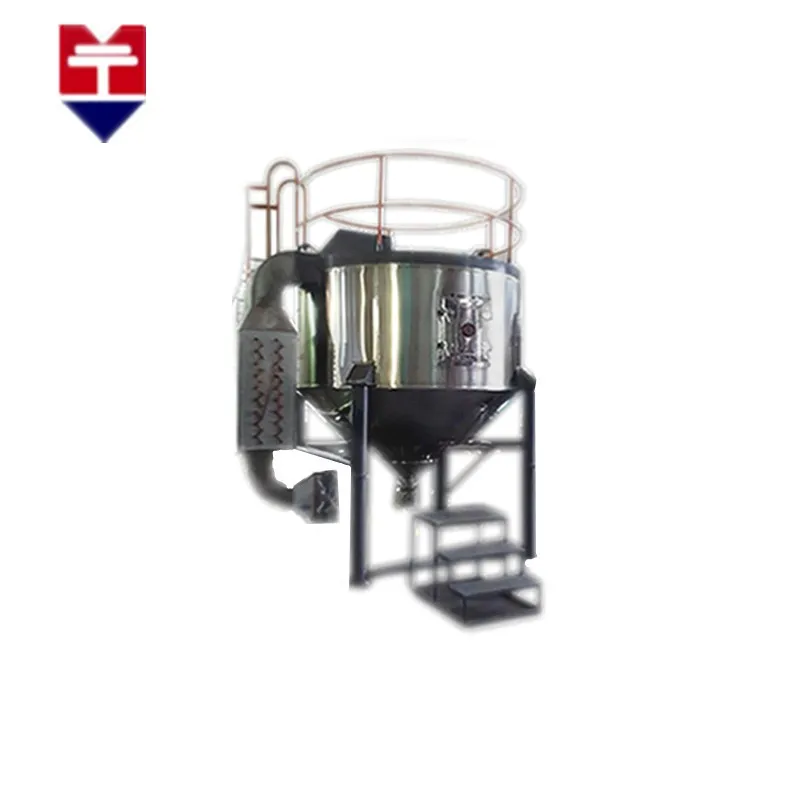

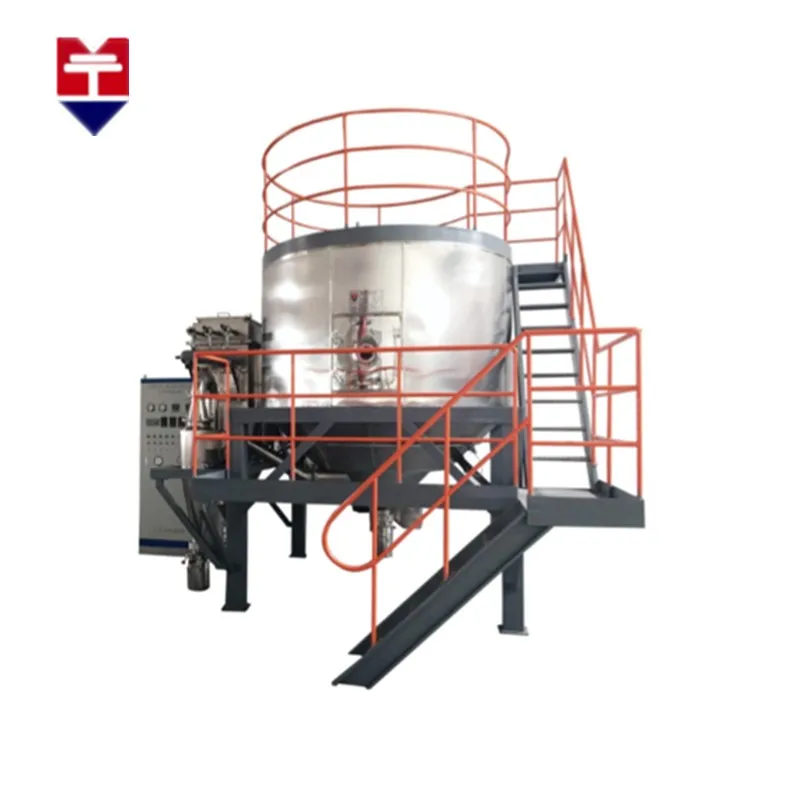

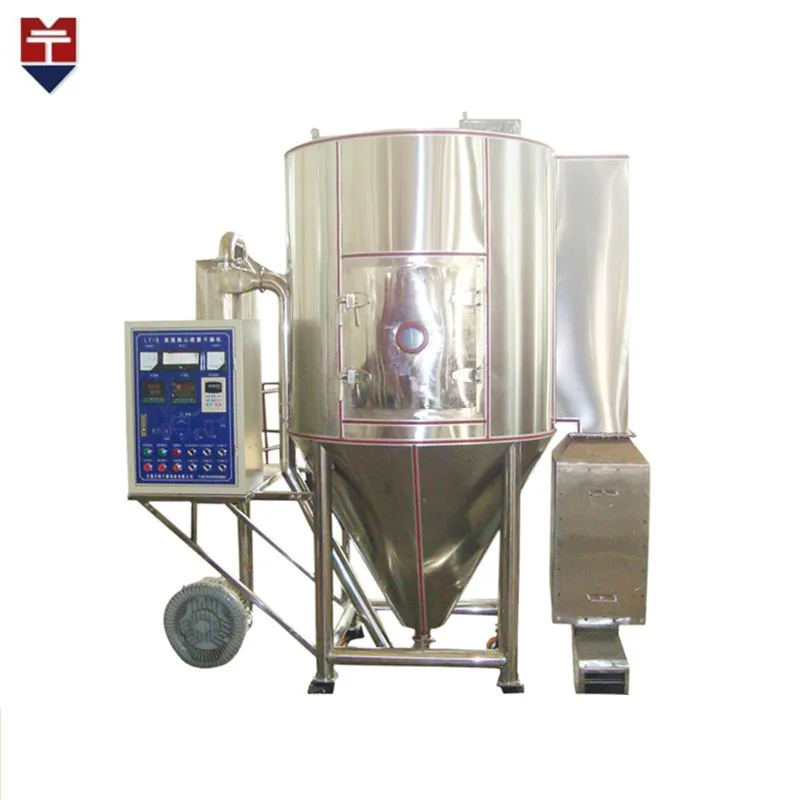

Superplasticizer Centrifugal Spray Dryer

Product Overview

Description

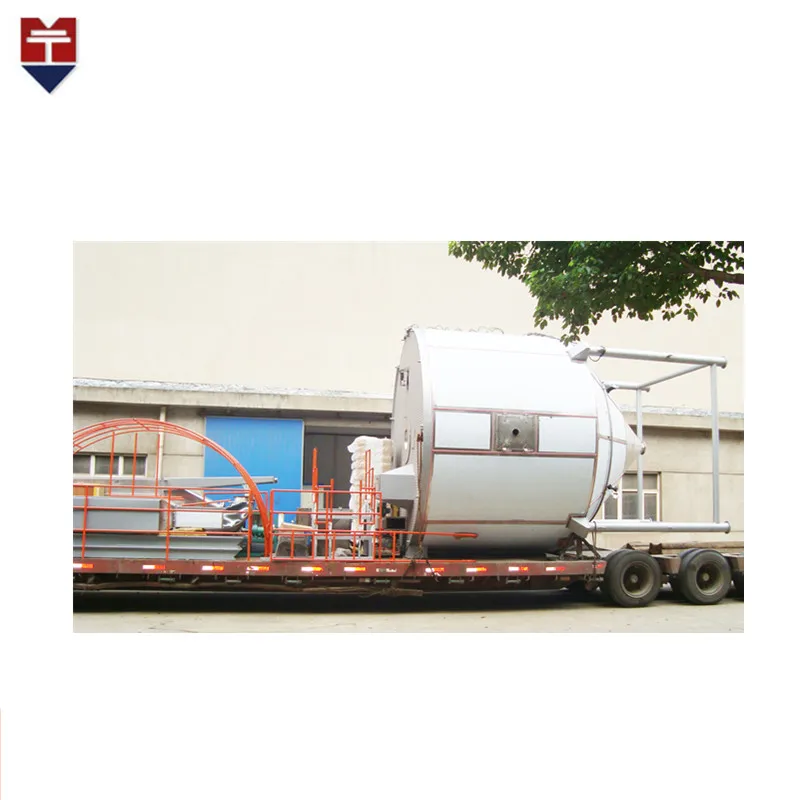

Superplasticizer Centrifugal Spray Dryer

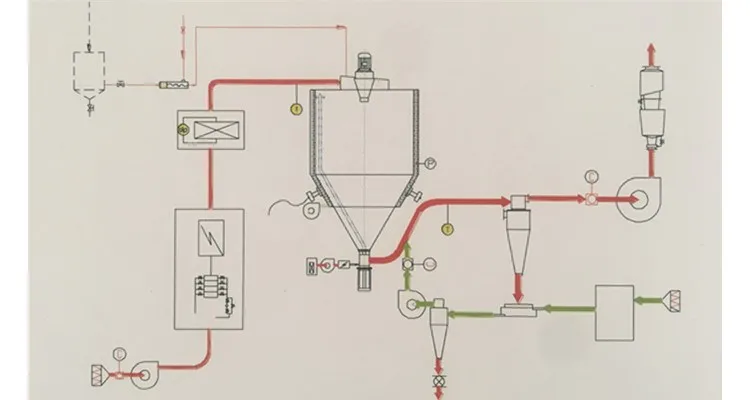

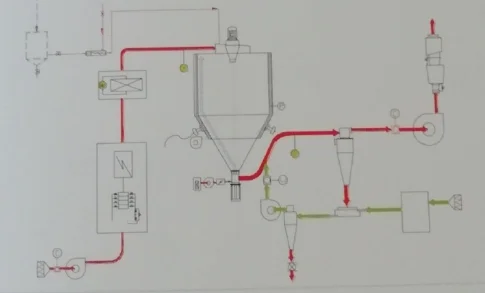

1, The working principle:
Passing through the high-speed centrifugal atomizer placed on top of the tower, atomized into extremely fine mist liquid beads, the air is filtered and heated air into the dryer at the top of the dispenser, the hot air was uniformly into the drying room in the spiral . Liquid beads with distributor distribution after the mixing of hot air in the drying tower, quickly heat and mass transfer in a very short time dried into powdery products. Finished continuously from the bottom of the drying tower and cyclone exhaust gas by the induced draft fan vented.

 2, The advantages:
Different types of solutions, suspensions, emulsions and paste materials can achieve a one-time continuous drying production.
1. The droplet diameter of the particles can be slightly adjusted.
2. The hot air distribution reasonable, eliminating the ceiling and sticky wall phenomenon.
3. easy to operate, product flow, instant good.
4. At the same time suitable for heat-sensitive and non-heat-sensitive materials dry product smaller particles.
Production process easy to control, and reliable

 3, The application materials:
1. Chemical Industry: silica, concrete admixtures, barium sulfate, basic chromium sulfate, alumina, titania, kaolin, ferrites, steatite, carbides, fertilizers, acid value rot, dyes, detergents, ACR additives, latex, water purification agent, resin, plastic, cryolite and so on.
2. Food industry: dextrin, maltose, protein powder, egg yolk powder, oligosaccharides, grease particles, instant coffee, starch, spices, fruit and vegetable particles.
3. Dairy Industry: skimmed milk powder, whole milk powder, soybean milk powder, ice cream powder, milk powder, sodium alginate and so cool.
4. Pharmaceutical industry: Chinese and Western medicine powder, antibiotics, biochemical products, vitamins, pesticide powder, single-cell protein.
5. Building Materials Industry: ceramic body, glazes, ultra-fine powder and the like.
6. Environmental protection: flue gas desulfurization, with black liquor and pharmaceutical waste treatment and power plant waste zero emissions.
7. Animal handling: animal blood processing scale protein, animal health products and other coatings.



NOTE: We are currently developed for the solvent is an organic solvent from the high-speed spray dryer - closed cycle spray dryer
  After the material through the atomizer atomized by the action of hot air under the rule of the formation of spherical droplets to generate spherical particles of the powder, the particle size can be set according to customer requirements.

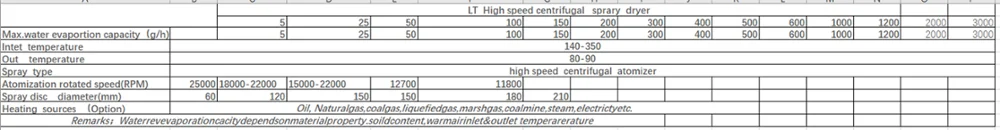

Information:



Custom processing: Yes	Atomizing type: high-speed centrifugal atomization
Applicable materials: there is a liquid flow	Applications: Water Reducer
The evaporation capacity: 500 (/ h)	Drying tower diameter: 4.8 (m)
Inlet air temperature: 300 (℃)
