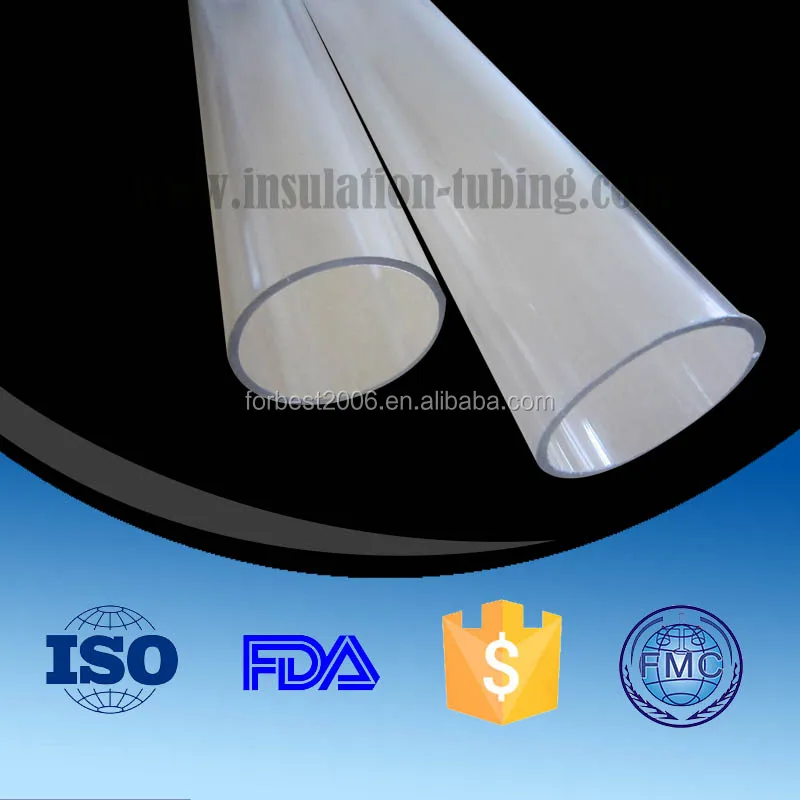

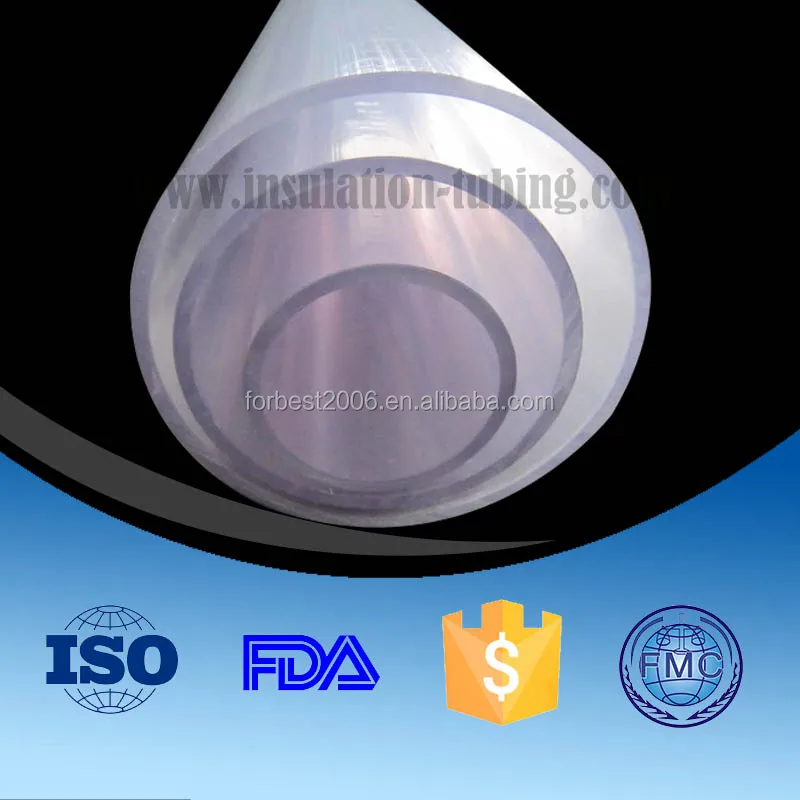

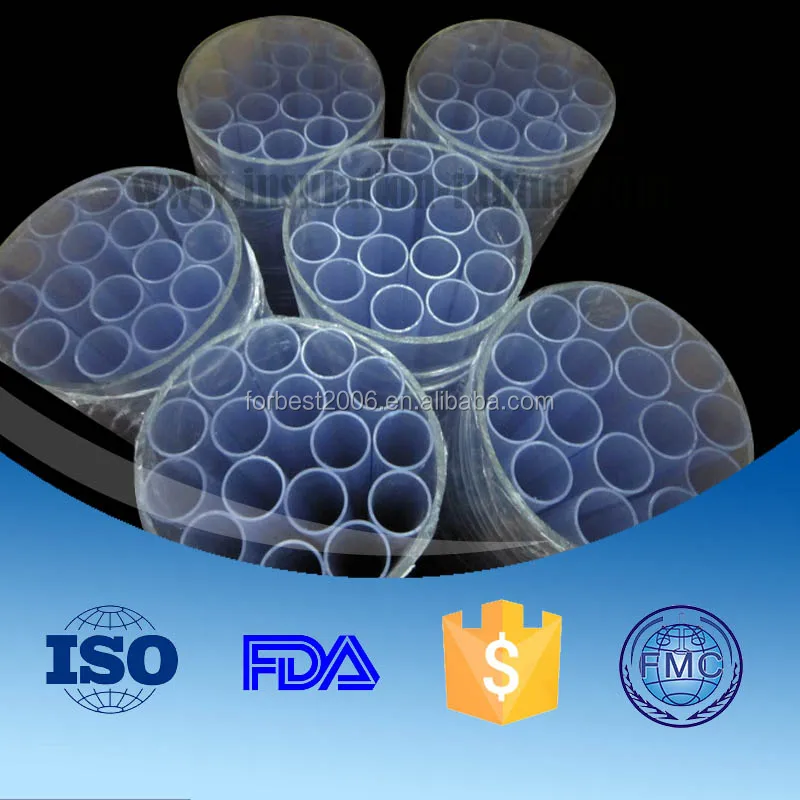

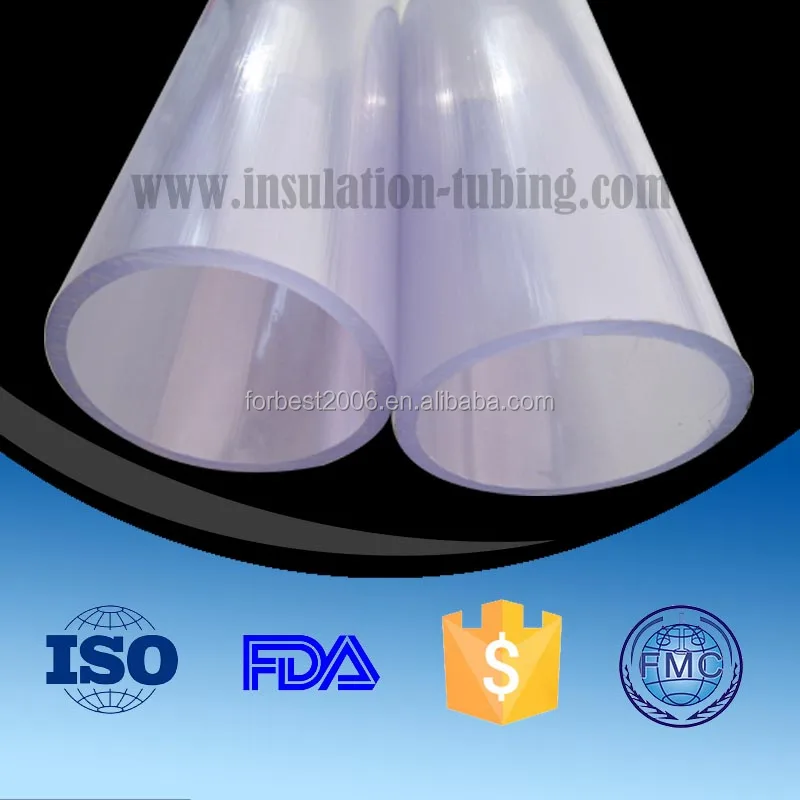

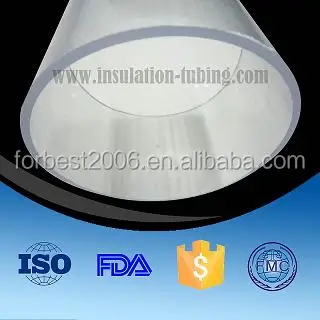

Acrylic Transparent Hard PVC Tube Large Diameter Rigid PVC Pipe

Product Overview

Description

Flexible PVC tubing offers a wide range of chemical and corrosion resistance, excellent

abrasion and wear resistance, rubber-like flexibility, visual contact with the flow (clear pvc

tubing and hose styles), and outstanding flow characteristics.



These include general industrial, food, pharmaceutical and medical, chemicals, fuels, oils, and

mechanical applications including protective coverings and insulation sleeving.

Most of forbest manufacturing Co.ltd’s PVC tubing can be produced in custom sizes, colors,

and shapes, and can be cut, printed, or thermally bonded.

PVC hard tube

SPECIFICATION (ID *OD ) In mm	SPECIFICATION (ID *OD ) in mm
1*2	16*20
2*4	17*21
3*6	18*22
4*8	19*23
5*8	20*24
6*10	30*34
7*11	40*44
8*12	50*54
9*13	60*64
10*14	70*74
11*15	100*104
12*16	110*114
13*17	150*154
14*18	200*204
15*20	300*304



Property of pvc pipe

	Item	Test Standard	Test Method	Test Result
1	Appearance	Clean, Smooth, Transparent, No Bubble	Visual Inspection	Pass
2	Aging Test	168Hrs@136℃ without aging	Aging Box	Pass
3	Insulation Resistance	DC 500V, Insulation Resistance R≥200MΩ	Insulation Tesistance Tester	Pass
4	Dielectric Withstand Voltage Test	AC 2500V/Min (5mA)  No Breakdown	Dielectric Withstand Voltage Tester	Pass
5	Corrosion Resistance	Company standard: Q/HT-2004	Corrosion Device	Pass
6	Flammability Standard	UL 94V-0	Flame Burning	Pass
