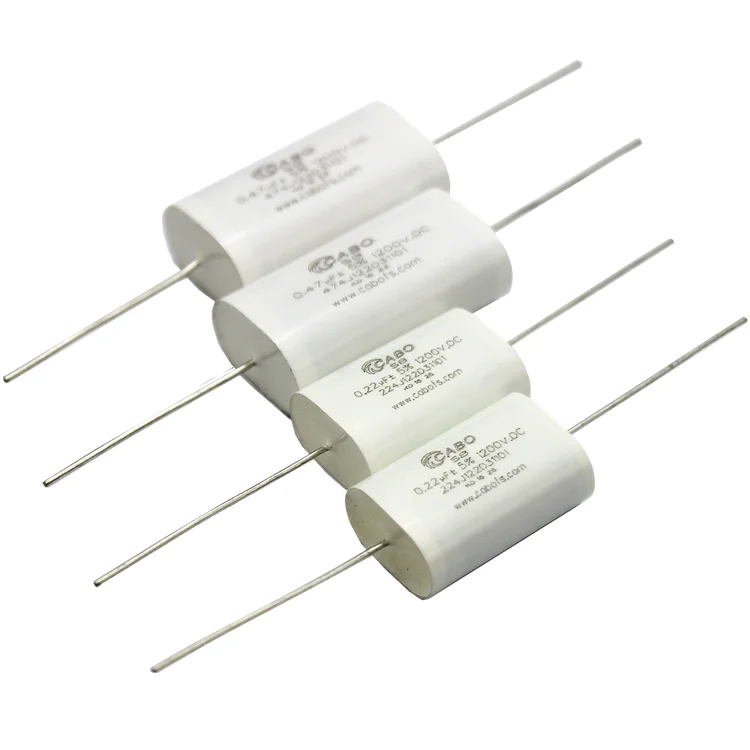

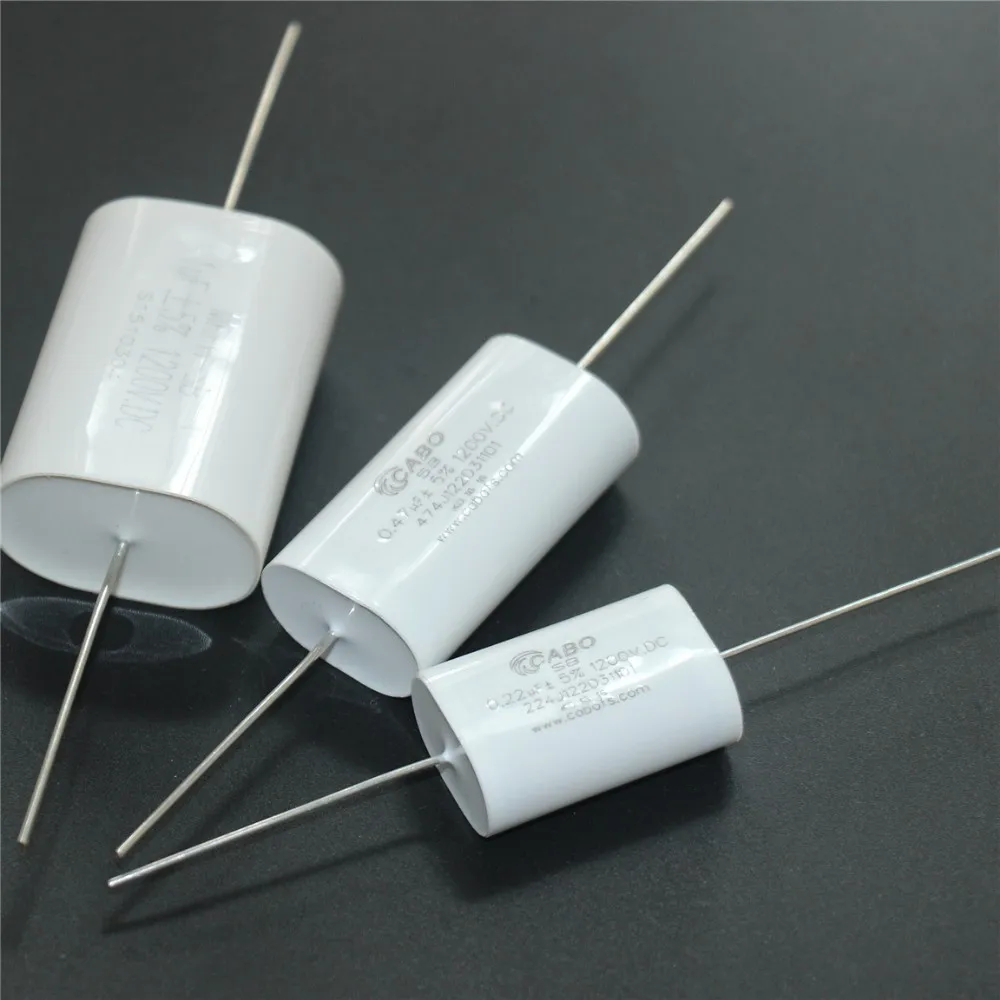

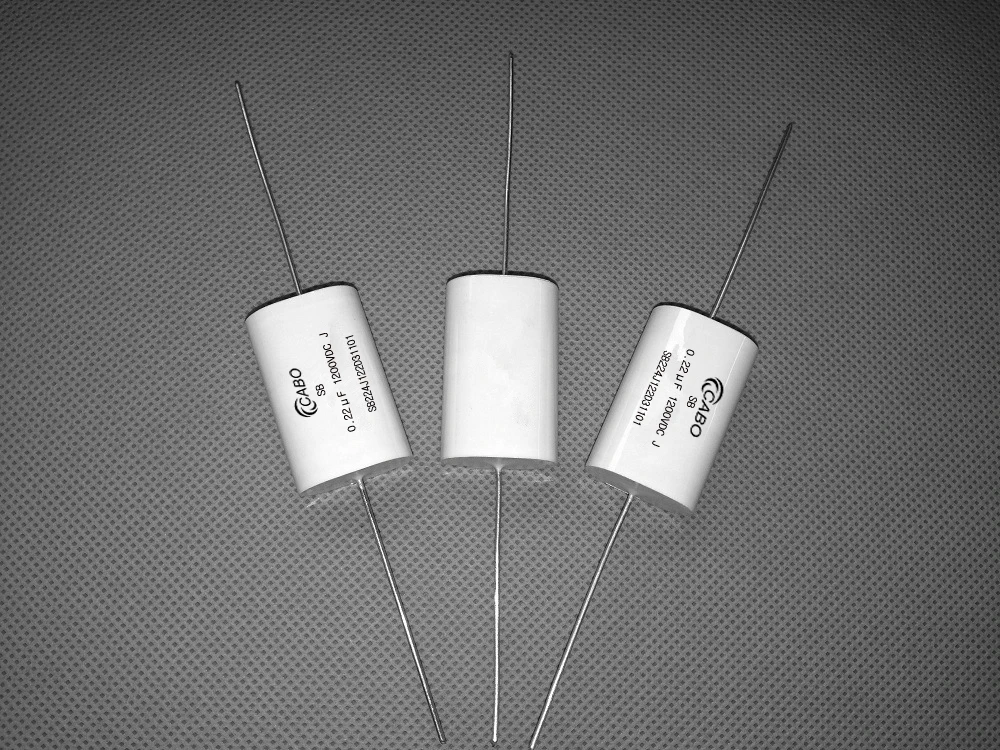

SB series axial snubber metallized polypropylene film capacitor
- Category: >>>
- Supplier: CABO Electronics(Foshan) Ltd.
Share on (60468449760):
Product Overview
Description
Electrical Parameter
Capacitance 0.047～10μF | 0.001～10μF |
Temperature | -40℃～+85℃ |
Capacitance Tolerance | ±5%(J); ±10% (K) |
Rated Voltage | 630～3000V.DC |
Test Voltage between Tgσ≤0.0008(10KHz,20℃) | 1.5-1.75Un/60s |
Dissipation factor | Tgσ≤0.0008(10KHz,20℃) |
Insulation Resistance | ≥3000s but need not exceed 30GΩ |
Dv/Dt | ＞200V/μs |
Leads | Pins,tinned copper lugs,wire |
Lifetime Expectancy | ≥100,000Hours (Un,≤70℃) |
Product Description
>IEC 61071
>Dry type structure
>High over-voltage and over-current
>Low ESL
>Low ESR
>Self-healing
>Transition metal layer

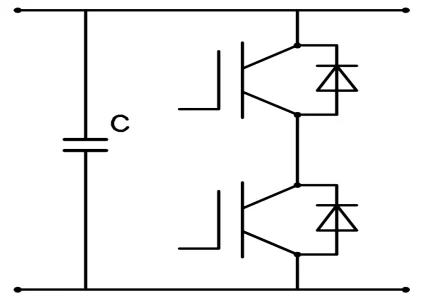

Typical Circuit
In inverter system for
switch module(IGBT)protection,Peak voltage clamp occasion.
For welding machine / frequency inverter / solar,wind inverter / power supply / induction heater machine....

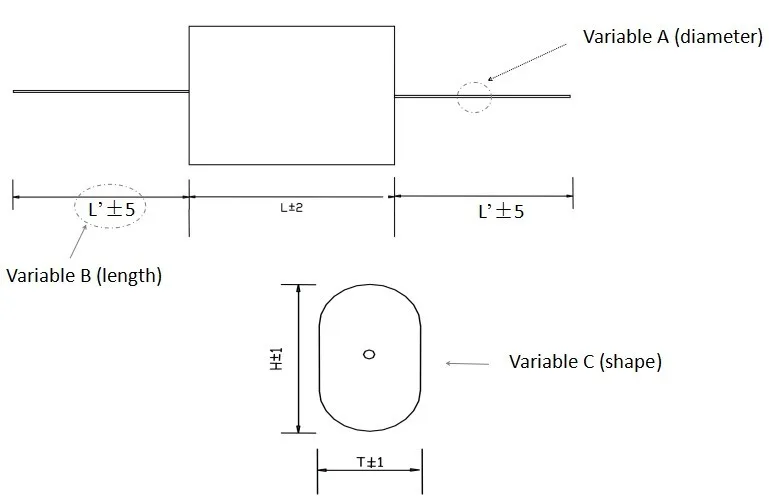

Outline Drawings
Variable A | Variable B | Variable C |
0.8/1.0/1.2mm | Any length | Oval/round |
For your best browsing experience, no more data will be displayed here.
Please contact our staff for more detailed specifications.
Customized specifications are acceptable.
Please contact our staff for more detailed specifications.
Customized specifications are acceptable.
