Product Overview
Description

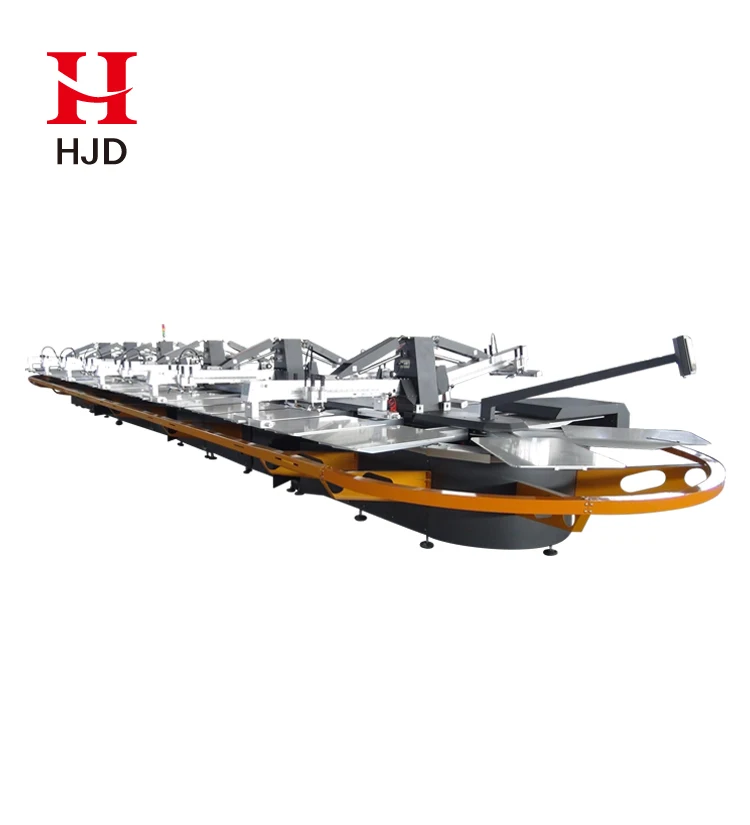

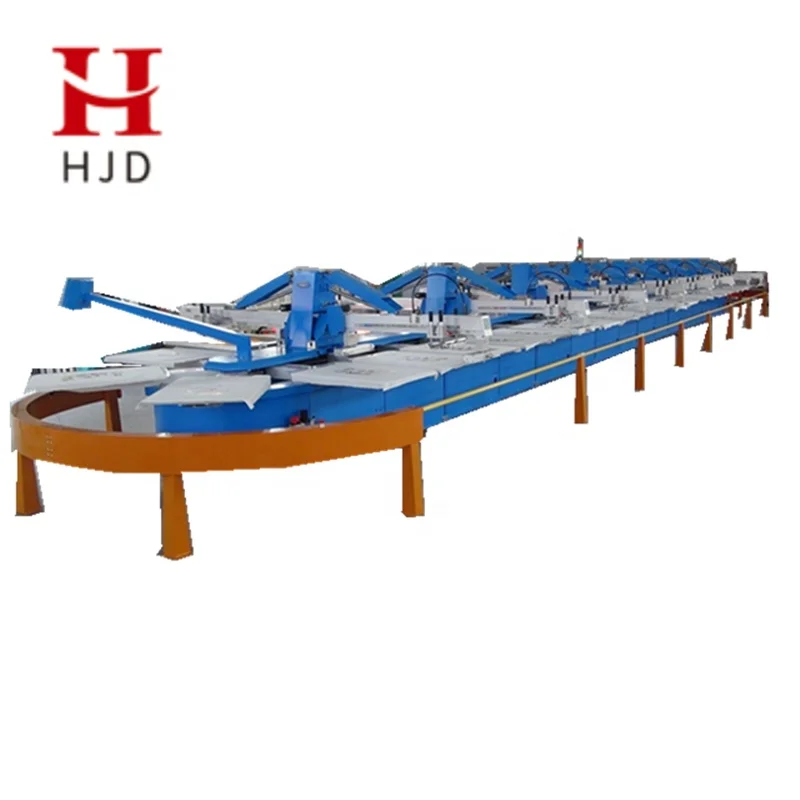

HJD-A1 Oval Full Automatic Screen Printing Machine from China Manufacturer
Product Title
HJD-A1 Oval full auto matic screen printer machine from china manufacturer
Product Description
Work and Function Parameters
Oval printing machine parameter | ||||||
Printer number | 6 colors | 8 colors | 10 colors | 12 colors | 14 colors | 16 colors |
Plate number | 28 | 30 | 36 | 42 | 48 | 54 |
Table size(mm) | 700x900 | 700x900 | 700x900 | 700x900 | 700x900 | 700x900 |
Plate material | AL alloy | AL alloy | AL alloy | AL alloy | AL alloy | AL alloy |
Max printing area(mm) | 600x700 | 600x700 | 600x700 | 600x700 | 600x700 | 600x700 |
| ||||||
Max frame size | 780x1020 | 780x1020 | 780x1020 | 780x1020 | 780x1020 | 780x1020 |
| ||||||
Printing speed | 400-650pieces | 400-650 pieces | 400-650 pieces | 400-650 pieces | 400-650 pieces | 400-650 pieces |
Pieces/hour | ||||||
Machine length(m) | 11.45 | 13.7 | 15.95 | 18.2 | 20.45 | 22.7 |
Machine width(m) | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 |
Voltage | Three phase 380V | Three phase 380V | Three phase 380V | Three phase 380V | Three phase 380V | Three phase 380V |
50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | |
Printer power | 370W | 370W | 370W | 370W | 370W | 370W |
| ||||||
Driving power | 3KW | 3KW | 3KW | 3KW | 3KW | 3KW |
Machine power | 5.5KW | 6.0KW | 7.0KW | 7.5KW | 8.2KW | 9.0KW |
Flash dryer | 58KW | 77KW | 96KW | 115.5KW | 134.5KW | 154KW |
Gas | 6bar-8bar(Must be through dry and filtering processing) | |||||
Gas consumption | 650L/min | 710L/min | 780L/min | 850L/min | 920L/min | 990L/min |
Weight | 3500KG | 4000KG | 4500KG | 5000KG | 5500KG | 6000KG |
Printing color accuracy | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
Products instructions :
1.Oval structure, modular combination, save a space, convenient layout. Can increase or decrease in the print head.
2. Digital control combined with mechanical precision positioning technology makes printing precision error in + / - 0.02 mm, and fully meet the requirements of printing products.
3. Advanced PLC control system combined with powerful automated process, which can realize the order jump printing function to make the whole machine durable smooth operation.
4. Color touch screen man-machine interface, provide intuitive, convenient operation, support production statistics and fault self-diagnosis function.
5. A print head corresponding to three bedplate, maximize use efficiency, the less tinted can realize multi-usage.

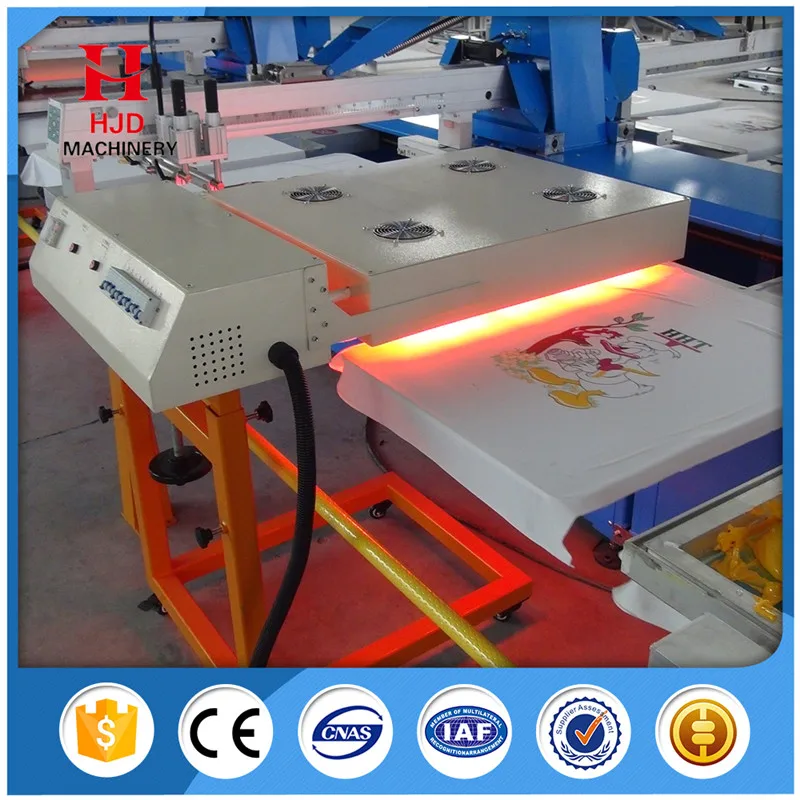

6. Cooperate with ultrasonic humidifying device and efficient infrared dryers, for all kinds of printed materials has a strong suitability Regardless of the thermosetting ink, glue slurry, water slurry, discharge, hot stamping, flocking.
7. A flexible and convenient network frame clamping positioning device, to the fastest speed precision of version.
8. The precise and reliable host servo drive, coupled with sophisticated independent positioning system, to ensure the long-term stable High precision operation. The perfect combination of Spain and Taiwan machine, reduce the cost of the machine structure, make the biggest with the customer.
9. Each printing arm can separate operation, blade Angle and pressure can be adjusted independently.
10. Net frame variability, unique portable box fixed system, allowing different length and width of net frame used on the same machine, so can save a lot of investment.
Features
1. Precision position
The inaccuracy of the machine is 0.03 due by advanced technology, improve the quality of products effectively.
2. Multiple work process
Using the process of print head, oven and cooling, can produce various sizing agent, especially suitable for mucilage, ink, thick edtion, printing, foaming, water etc.
3. High Produce efficiency
One set could print more than 10 colors of sizing agents, and also use to mulitple produce line. lt need only 3 worker to process to reduce the number of processer. Improve the efficiency and management.
4. Advantages of mucilage printing
Cooling process could effectively reduce plug of net by water-based adhesive, it has a special from of frame. Take down the frame to wash, and then install them back to position where were from, and don't need readjust.
5. Human-machine interaction, easy operation.
Configuration of oval screen printing machine
| No. | Name | Brand | Remark |
| 1 | PLC controller | Taiwan Yonghong | well-known brand in Taiwan,the use of the main station, sub-station control,low failure rate, scalable large space,etc. |
| 2 | Drives and motors | Taiwan Yonghong | Printing scraping part of servo drive, improve the accuracy and speed of printing scraping position,increase production efficiency |
| 3 | Touch screen | Taiwan Yonghong
| Reaction speed, the picture is simple, practical |
| 4 | Electric Device | Germany Schneider | International brands |
| 5 | Cylinder | Taiwan AirTAC | International brands |
| 6 | Peripheral control circuitry | Integrated control panel | Integrated control and reduce the failure rate and easy for customers to check and repair themselves |
| 7 | Switching Power | Japan's Omron | International brands |
| 8 | Small integrated valve | Adopt SMC brand | |
| 9 | Pneumatic logic valves | STNC Sono Heavenly brand | |
| 10 | Chain | KANA Japan imported double roller chain 12A | |
| 11 | Timing belt | Japan UNIENTI Timing belt | |
| 12 | Bearing | Adopt NSK, AirTAC famous brand bearings | |
| 13 | Slider/Line rail | Taiwan Shangyin brand |

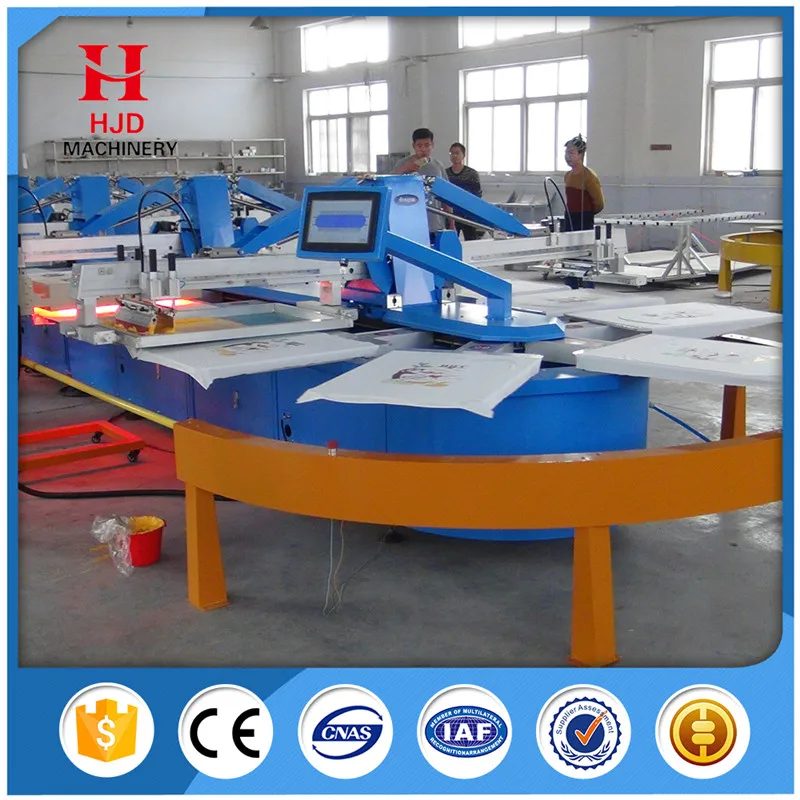

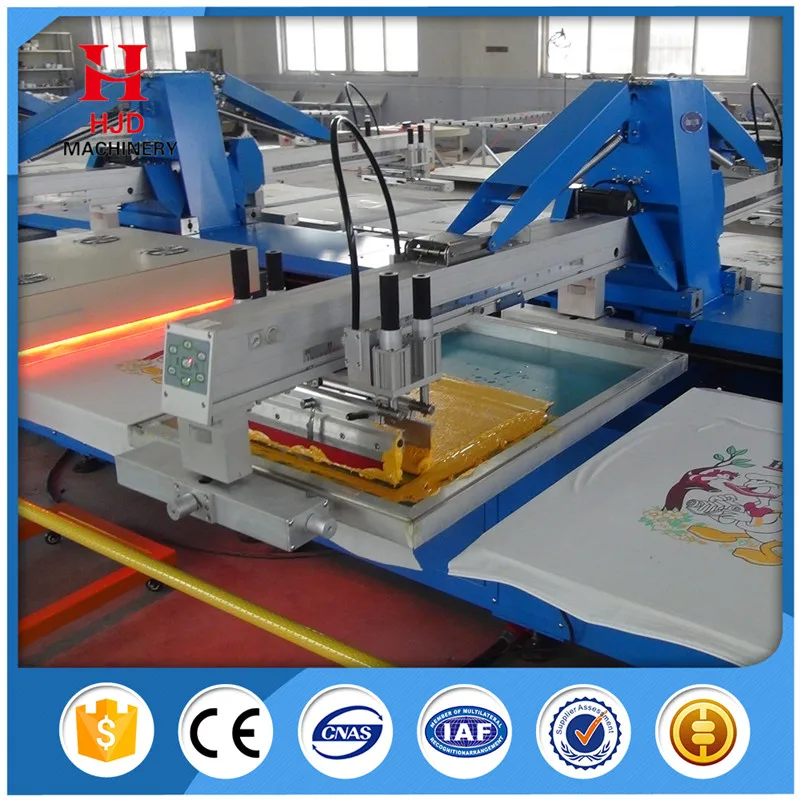

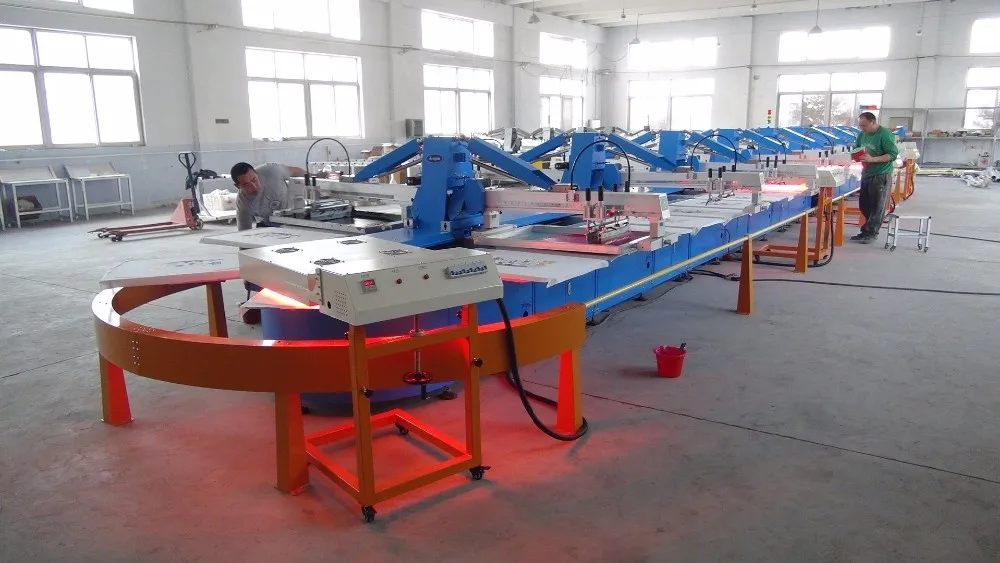

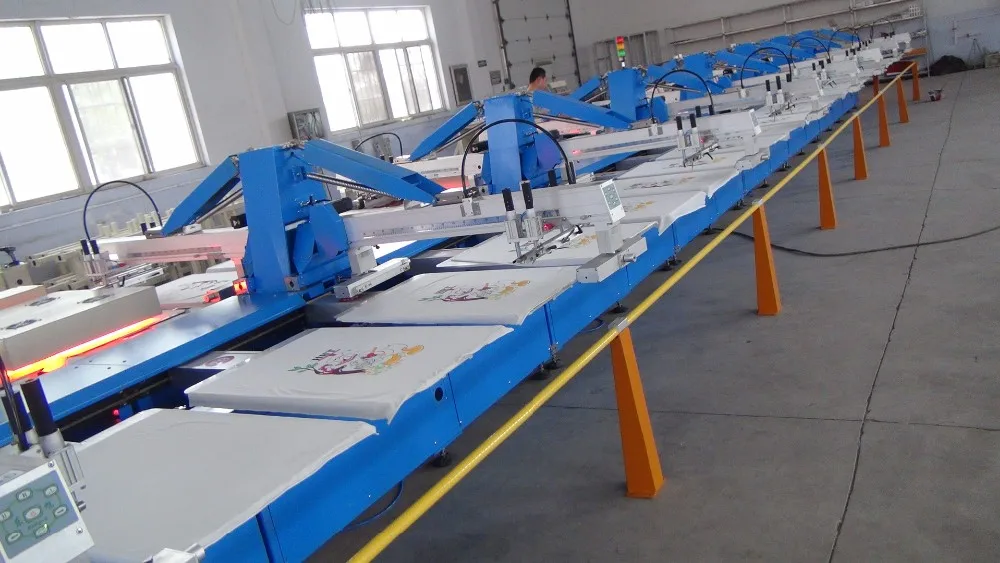

Machine Detail
Other Products

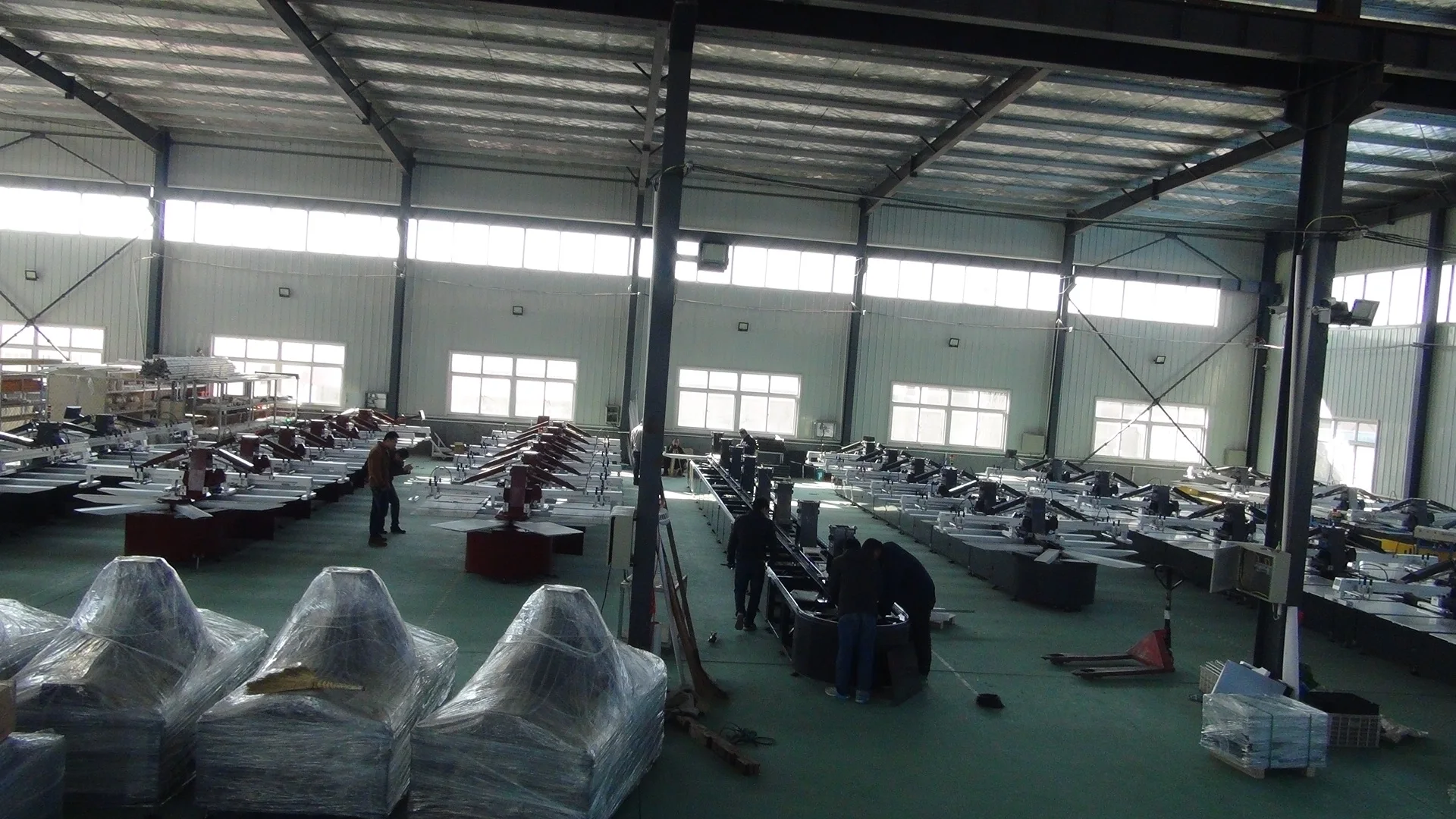

Company Information
About HJD
Qingdao Hengjinding Precision Machinery Co., Ltd. is a diversified enterprise integrating R&D,production,agency and sales.since its establishment,the company has established good partnerships with many enterprises at home and abroad. the products are well sold in china,exported to Europe,America,Southeast Asia,The Middle East,Africa,etc.,and win the trust and high appraisal of domestic and foreign manufacturers.the company has advanced production equipment and professional technology and R&D team,so that our products are favored by customers.
After years of development, our company mainly produce automatic screen printing machine,screen printing table,automatic moving dryer,energy-efficient tunnel dryer,exposure machine,screen stretching machine,screen frame oven,heat press machine,large pneumatic heat transfer machine,screen frame and accessories etc. We will give customers the technical support.
Qingdao Hengjinding Precision Machinery Co., Ltd. always upholds the highest product quality and superior service of "customer first",insists on the operation principle of "professional,dedicated,efficient,credible",provides high value-added products at competitive price and complete after-sales service and technical support and strives to create infinite value for customers.
PRODUCT VIDEO DISPLAY:
www.hengweitai.cn/phone/demoX2.html?from=timeline
Packaging & Shipping
FAQ
Q: How to contact you?
A: My contact Information is in front of this page, If you want more information or product ,please contact me and feel free.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, and welcome to visit our work shop anytime.
Q: How about proofing?
A: Making a proofing is availably and it's free or reasonable charge.
Q: If I want to be your agency in my country, is it possible?
A: We are looking for global partner now, if you have interest , please contact me.
More information and series, please contact us!
