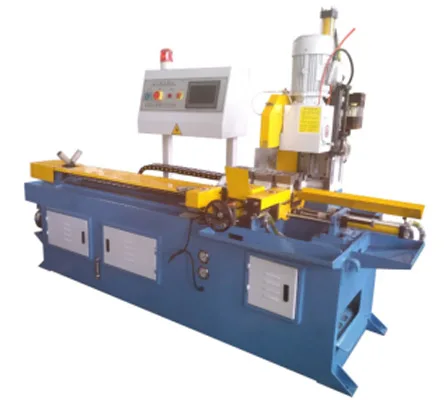

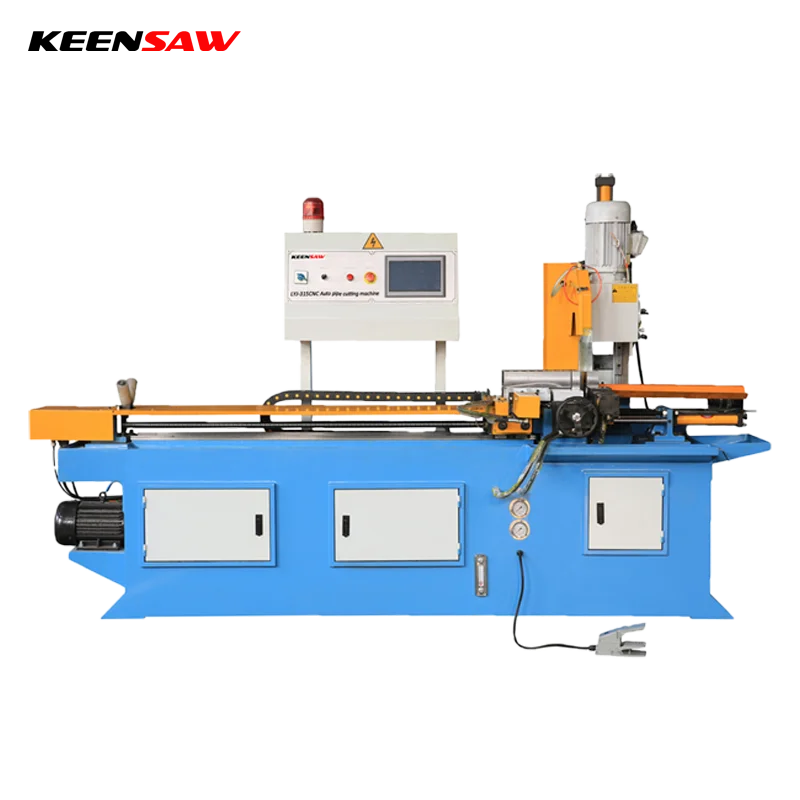

KTC 350NC A Automatic Pipe Cold Cutting machine, Pipe Cutting Saw Machine
- Category: >>>
- Supplier: Lishui Keensaw Machine Co. Ltd.
Share on (60468733719):
Product Overview
Description
Machine Overview
METAL TUBE CUTTING CIRCULAR COLD SAW
Automatic Feeding + Cutting / Servo Feeding (NC Type)
Machine Features
- NC controlled automatic tube cutting machine (Circular Cold Saw Type)
- Automatic feeding, automatic clamping, automatic cutting
- The Shortest Tail Length 20 mm + a (a = Cutting Length), brings maximum material savings and more production.
- Servo feeding, feeding precision +/- 0.05mm
- Digital counter for automatic operation (Cutting length, Quantity setup, Counter)
- Display of Movements on Control Panel for Easy troubleshooting.
- Vertical sliding saw head ensures stable and precise cutting
- Display of Movements on Control Panel for Easy troubleshooting.
- Vertical sliding saw head ensures stable and precise cutting
Model | KTC-350NC | KTC-425NC | KTC-450NC | ||
Clamp Type | Front & Rear Clamp | Front & Rear Clamp | Front & Rear Clamp | ||
Cutting Capacity | Round Tube | 110 mm | 130 mm | 150 mm | |
Square Tube | 90 x 90 mm | 100 x 100 mm | 130 x 130 mm | ||
Max Thickness | 2.5mm | 6mm | 8mm | ||
Main Drive Motor | 3.3/4.0kw | 3.3/4.0kw | 4.5/5.5kw | ||
Saw Blade Size | 275~350mm | 275~425mm | 300~450mm | ||
For model KTC-350NC, pipe diameters under 38mm can be cut off with 4pcs clamped, which makes more production and front&rear clamp is flexible for different pipe dimensions and shapes.

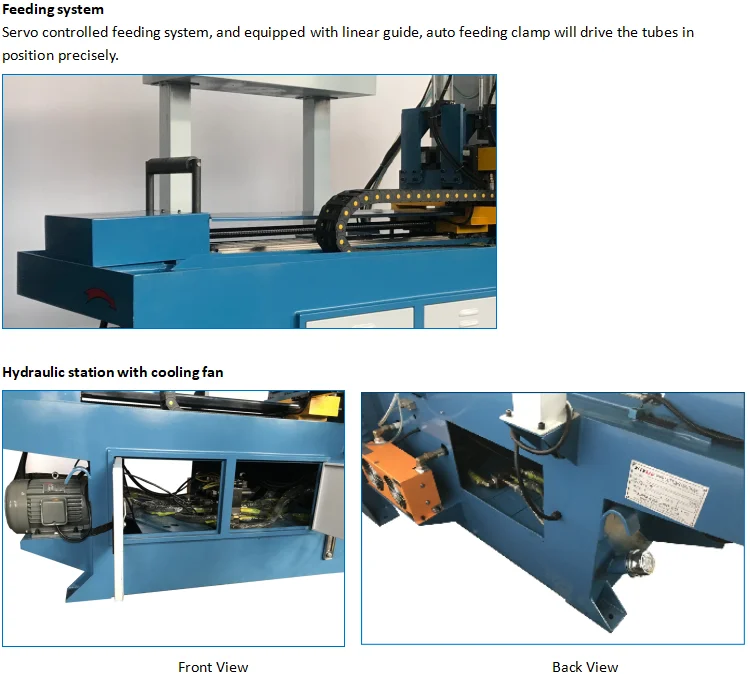

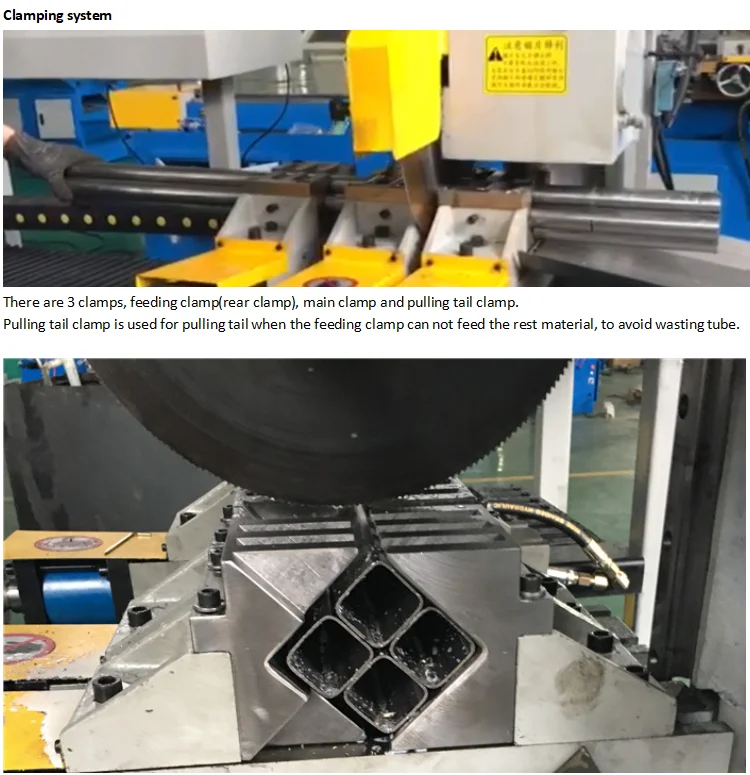

Machine Details
Related Products
Packing & Delivery
Our Service
FAQ
1. Q: Can i have your quotation?
A: First, please offer us the information of your pipe/tube material, diameter and wall thickness, without these parameter, we are not able to recommend you the suitable machine.
2. Q: Do you have overseas service?
A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guarantee, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paid by client
3. Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirement.
4). Q: How about the payment term?
A: T/T 30% deposit, 70% of balance paid before shipment.
