Welcome To TONVA

TONVA Plastics Machine Co.,ltd:
- Since 1993
- Manily focus on Extrusion blow molding machine,PET Stretch blow molding machine
- Has own molds department
- Approx 200 employees
- After-service: Will first sent spare parts to keep the machine running first
- Engineer for overseas installation is availiable
- Most of the parts,we all make by ourself

Product Description

FA-2000-2 Basic Specification:

PET preform loading automatic;
Auto-fault detection;
Slider type: 33pcs of slider in total;
Container volume: up to 2000ml;
Bottle neck range: 15mm – 45mm;
Output (Bottle per hour): 2-cavity:around 1,800-2,000;

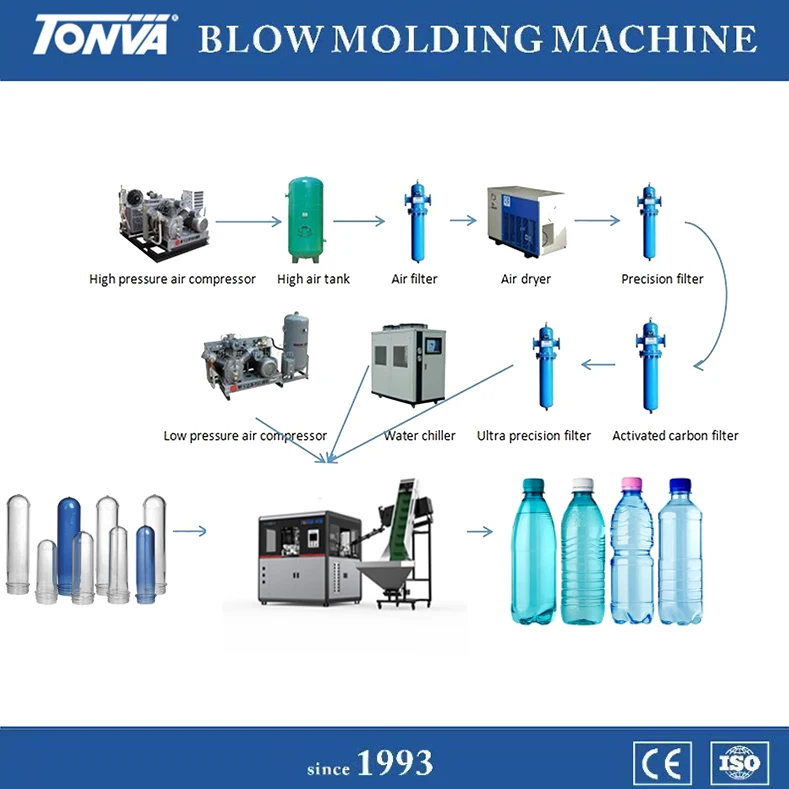

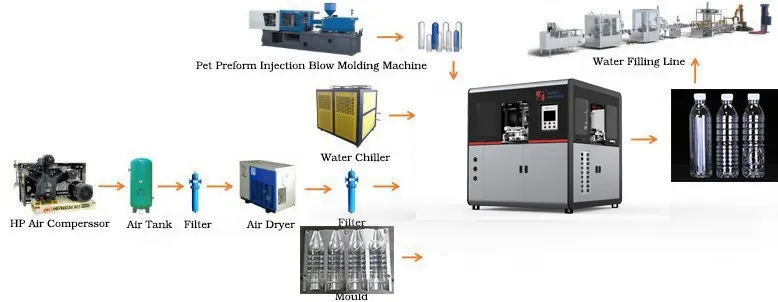

FA-2000-2 Working Condition:
Power supply: 380VAC/50Hz(depending on client's country);
High pressure: 1.6m3/min, 3.0Mpa;
Low pressure: 1.6m3/min, 1.0Mpa;

Air dryer:2.0m3/min,3.0Mpa;

Air tank:0.6m3/min,3.0Mpa.

1)   Sim card easy to replace;
2)   Easier connector to feeding machine;
3)   Auto-fault detection , easy for maintenance;
4)   Mold easy to replace ( mold thickness is fixed );
5)   Neck diameter can changed between 12mm-38mm;
6)   Heating center distance : 60mm , slider center distance : 120mm;
7)   Can add high pressure gas recovery device as low pressure use;
8)   Down blowing and slider design---works for more different type of bottles;
9)   Power consumption is around 10kw/h with the volume less than 500ml;

10)30-50% less energy used per a blown bottle;

Packing & Shipping
Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f.  Auxiliary machines for complete line.
g. Customized design as requirements.
