Anodized and Aluminum Colour Rectifiers ZY 1000A 40V

Product Overview

Description

Anodized and Aluminum Colour Rectifiers ZY-1000A-40V

Product features:



1.According to aluminum chemical industry skill specialized design .



It is a special power produced on the basis of a common high-frequency electroplating power supply . Its  input voltage ranges from 36v-120v.With all the functions of a common high-frequency electroplating power supplu .It is an ideal product for hard anodizing of aluminum.



2.Complete functions



It  has multiple functions, such as timing control, multi-step power supply ,pause , and automatic reset, which can meet different technological requirements.



3.Complete protection functions



It has many functions which protect against input under-voltage,loss,output over-current and overheating,respectively.The duct treated internal structure enalbes reliable performance of the whole product.All of the electronic elements are sealed conpletely to reduce harm the exterior environment and ensure stable and long-term operation.



4.Expandable communication interfaces



4-20MA ,0-5v/10v standdard control interfaces can be expanded on demand.



Optional LCD display digital control and human-machine interface control.







Applications:



It can be used in the hard  anodizing of    aluminum,magnesium,titanium and alloy, as well as polishing and other surface treatment of stainless steel.







The power supply specification and the outward appearance size can be made according to customer’s requirement

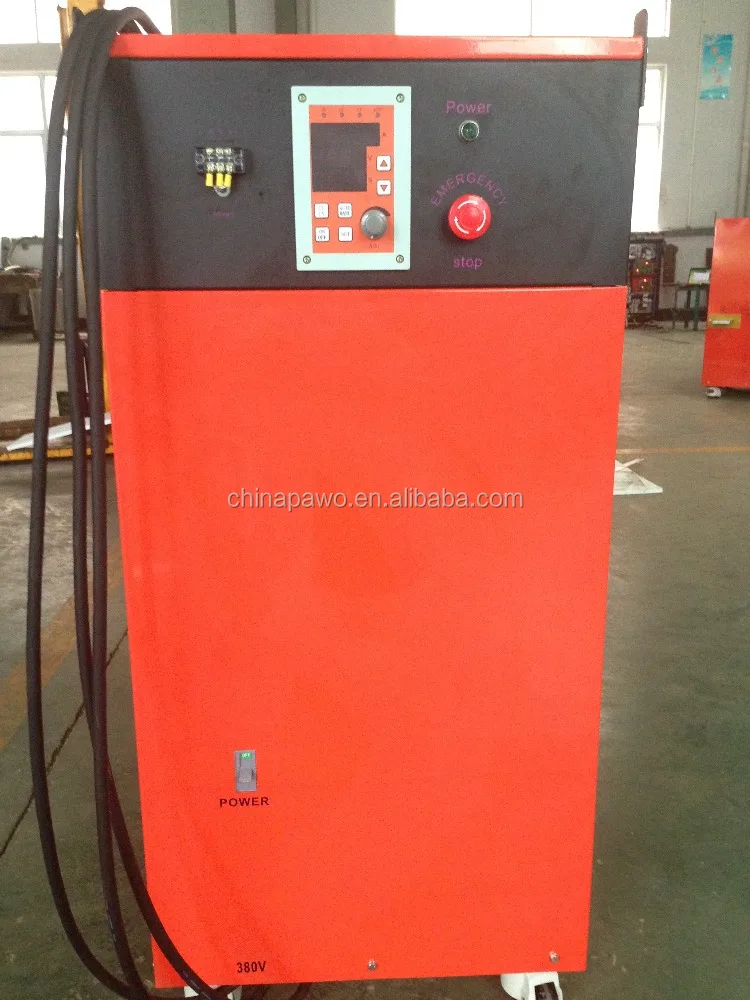

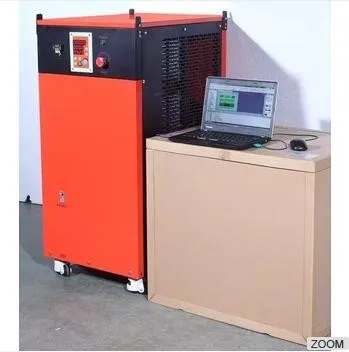

Photo of unit



Specification



ZY-1000A-40V
Input Voltage	AC 3-phase 380V±15% 50HZ
Output voltage	DC 0~40V adjustable
Output Current	DC 0~1000A adjustable
Modulation	PWM control
Cooling method	Forced air cooling
Opeartion control mode	Stable voltage or current
Control accuracy	Less than 1% rated value
Communication	According customer’s requirements
Protections	Over-current ,overheating,over-voltage, under-voltage,etc .





Deatails



• Wheel

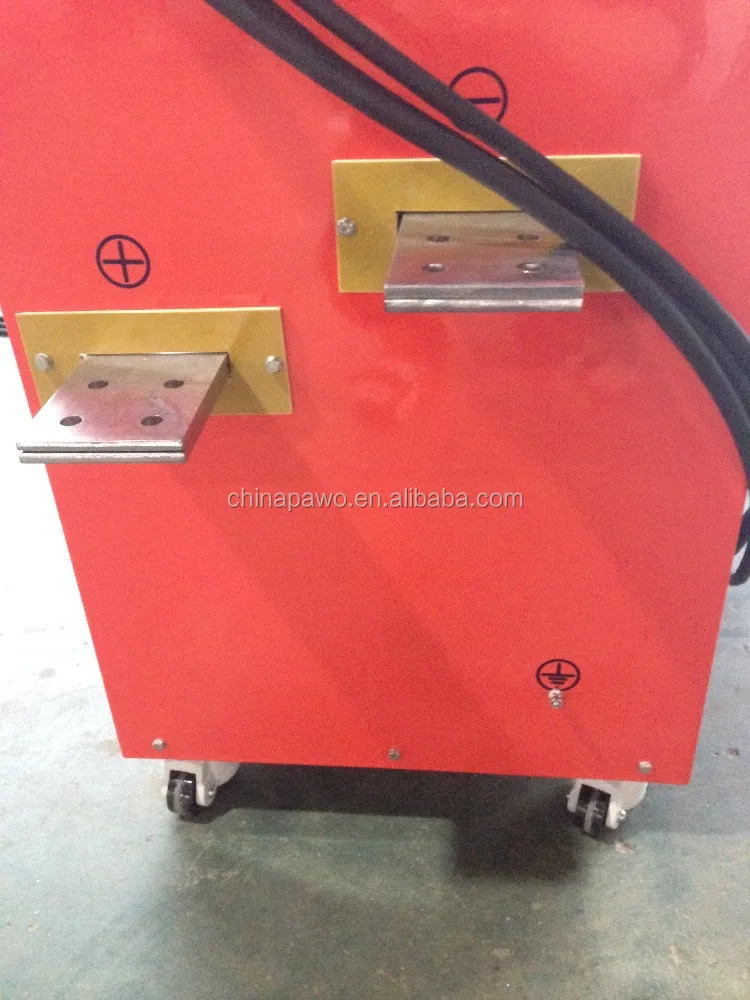

• Input & Output

• Fuji IGBT , Mitsubishi Switch , Circuit Board

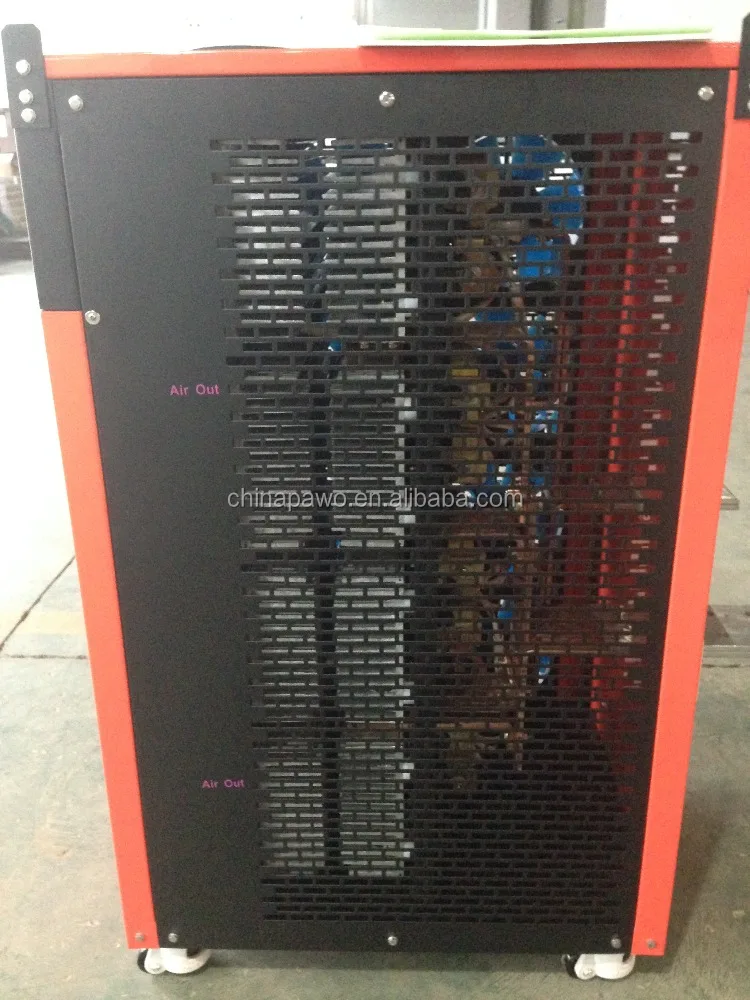

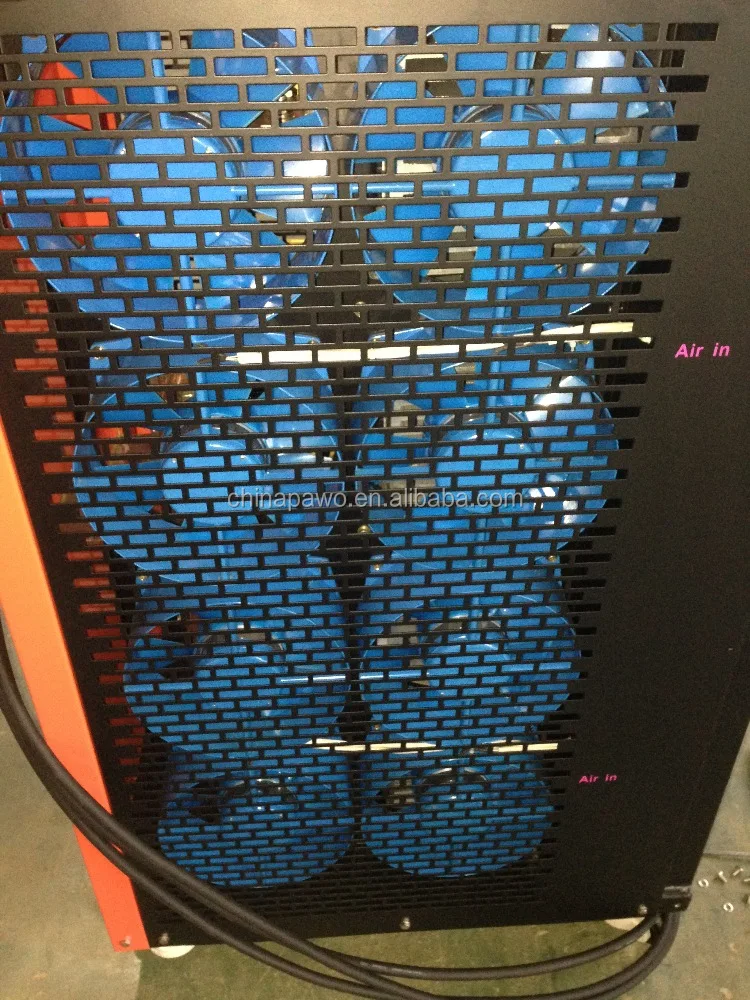

• Air Cooling

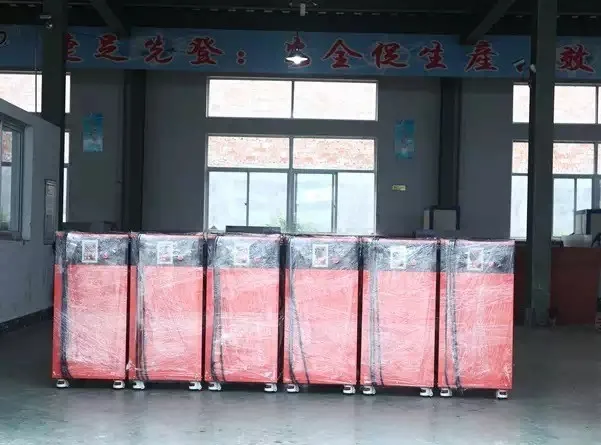

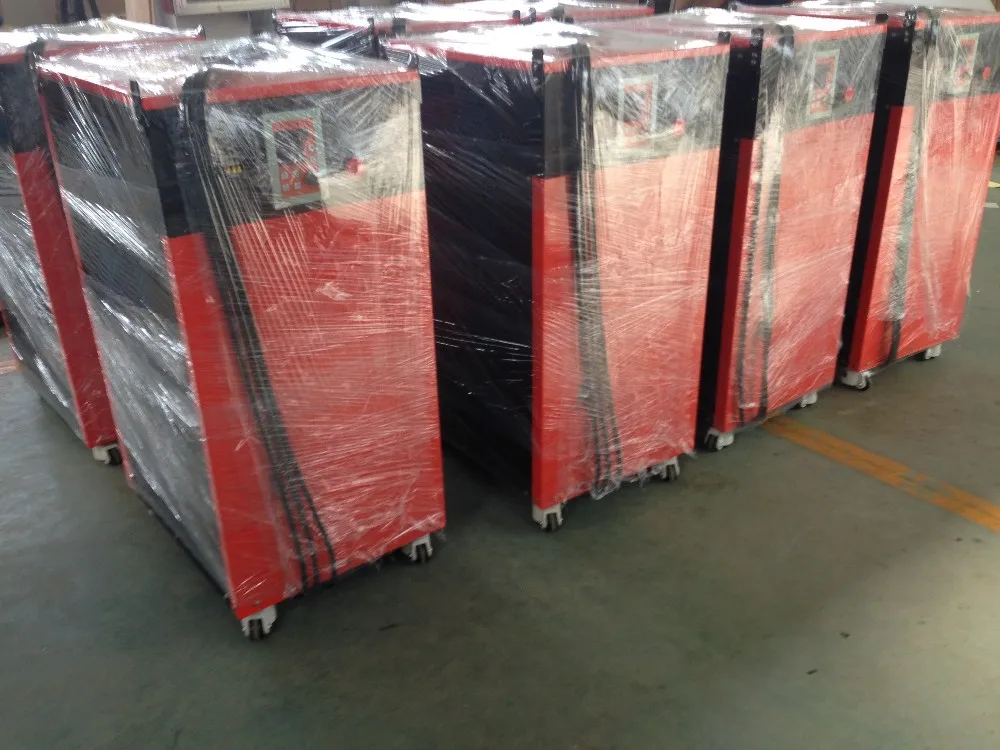

• Packing

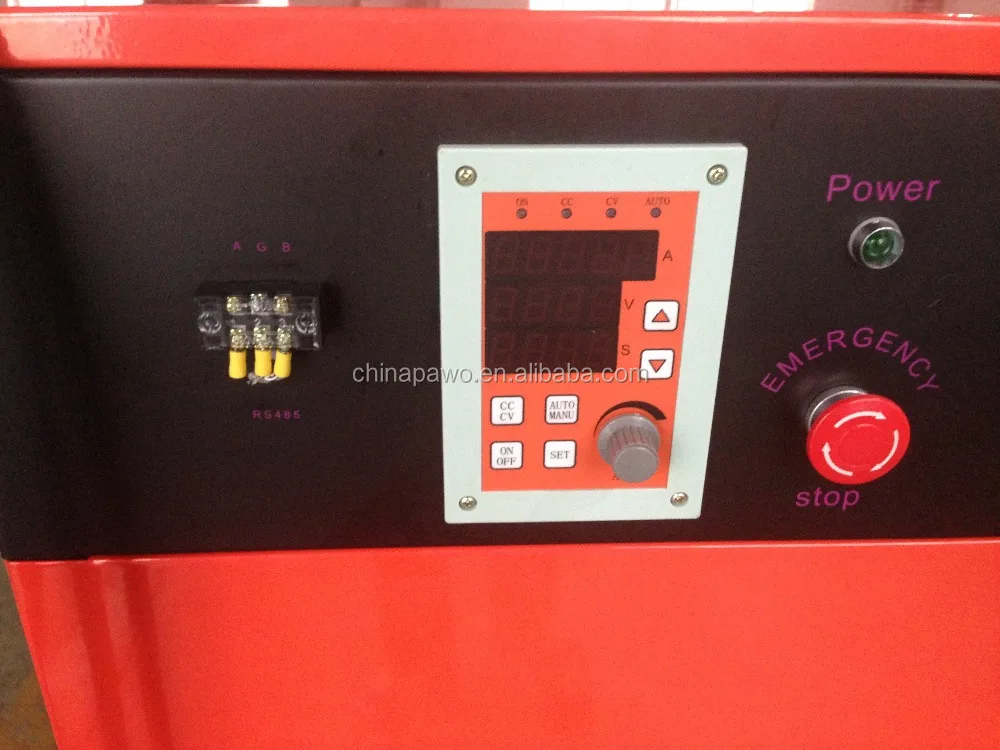

• Remote control box



The power supply specification and the outward appearance size can be made according to customer’s requirement
