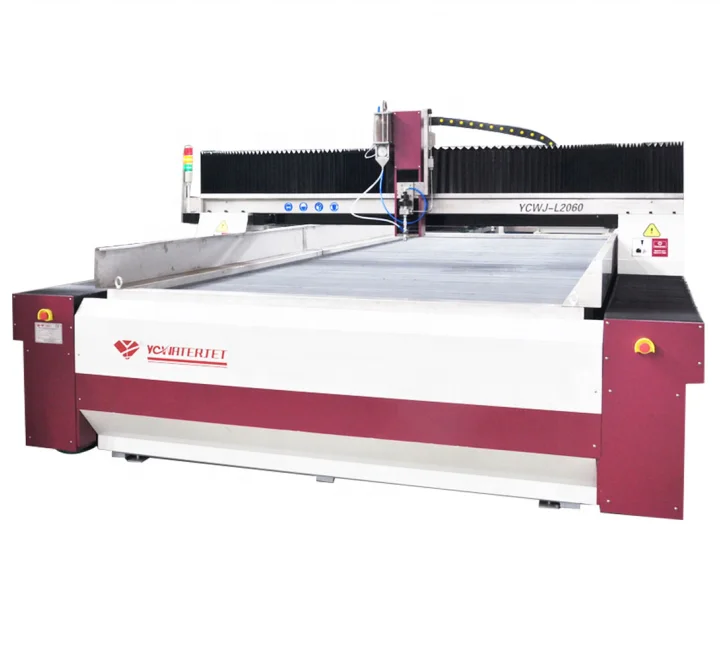

YCWJ waterjet cutting machine with KMT Pump
- Category: >>>
- Supplier: YC Industry Co. Ltd.
Share on (60468970292):
Product Overview
Description
Product Description
One full set of machine consists of cnc controller,worktable ,pump ,abrasive delivery system and water cooling tower.
WATERJET HIGH PRESSURE PUMP
You can click the picture for more information about hp pump.
| Main feature: Control:PLC Shifting:electro-hydraulic control Cooling:cooler/oil heat exchanger In let water filter accuracy:≤0.45μm Oil-return filter accuracy:20 μm Working temp:0-60°c Outlet:UNF 3/8" Cooling in/out-let:NPT1" Max orifice size:0.33mm | Configuration: -the configurations single pole two-way plunger type intensifier - The intensifier assembly is imported the USA(Hypertherm/Accustream) - USA pipeline - Single-row type water filtering system (5Micron, 1micron, 0.45micronparallel) - Manual pressure regulation function - Extra pressure auto stop and protection - Three-ply safeguards |

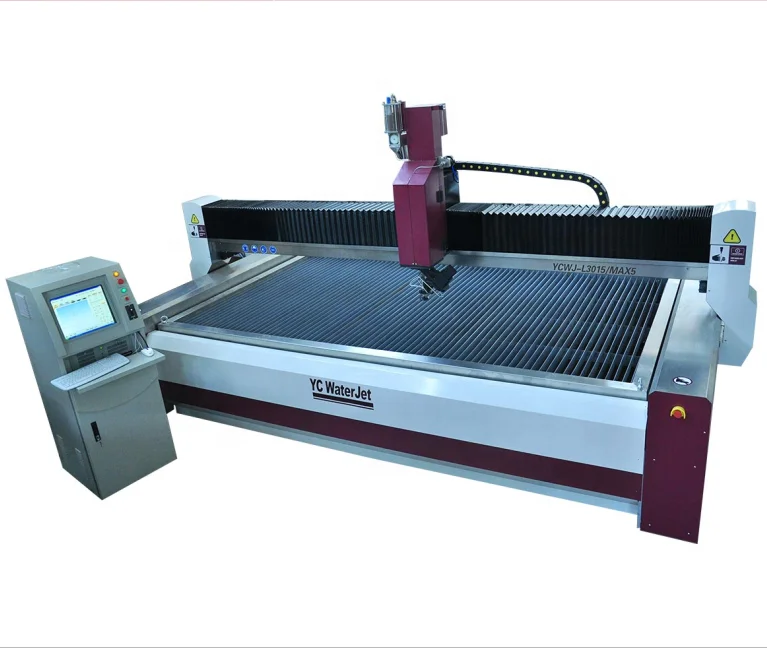

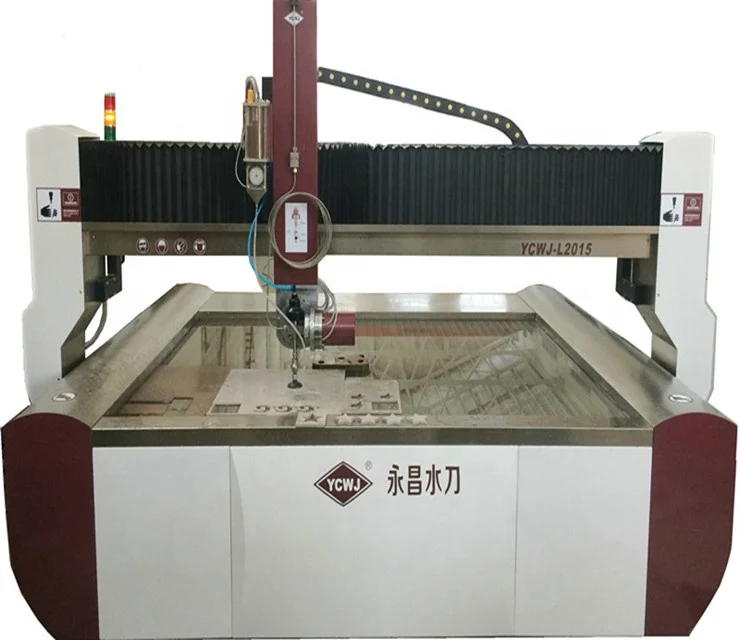

WATERJET CUTTING TABLE
Model(can be customed) | YCWJ-L2015 | YCWJ-L3020 | YCWJ-L4030 | YCWJ-X1520 | YCWJ-X1830 | |
Machine type (L:Gantry,X:Cantilever) | Gantry | Gantry | Gantry | Cantilever | Cantilever | |
Efficient cutting area(mm) | 2000*1500 | 3000*2000 | 4000*3000 | 1500*2000 | 1800*3000 | |
Axis travel(mm) | X axis | 2000 | 3000 | 4000 | 1500 | 1800 |
Y axis | 1500 | 2000 | 3000 | 2000 | 3000 | |
Z axis | 150 | 150 | 150 | 150 | 150 | |
CNC control system | Ac Servo motor | |||||
Accuracy | Cutting accuracy | +/- 0.1mm | ||||
Repeat accurary | +/- 0.05mm | |||||
Processing speed | 0-15m/min | |||||
Power supply | 240V/380V/415VAC,3ph,50Hz/60Hz(can be customed) | |||||

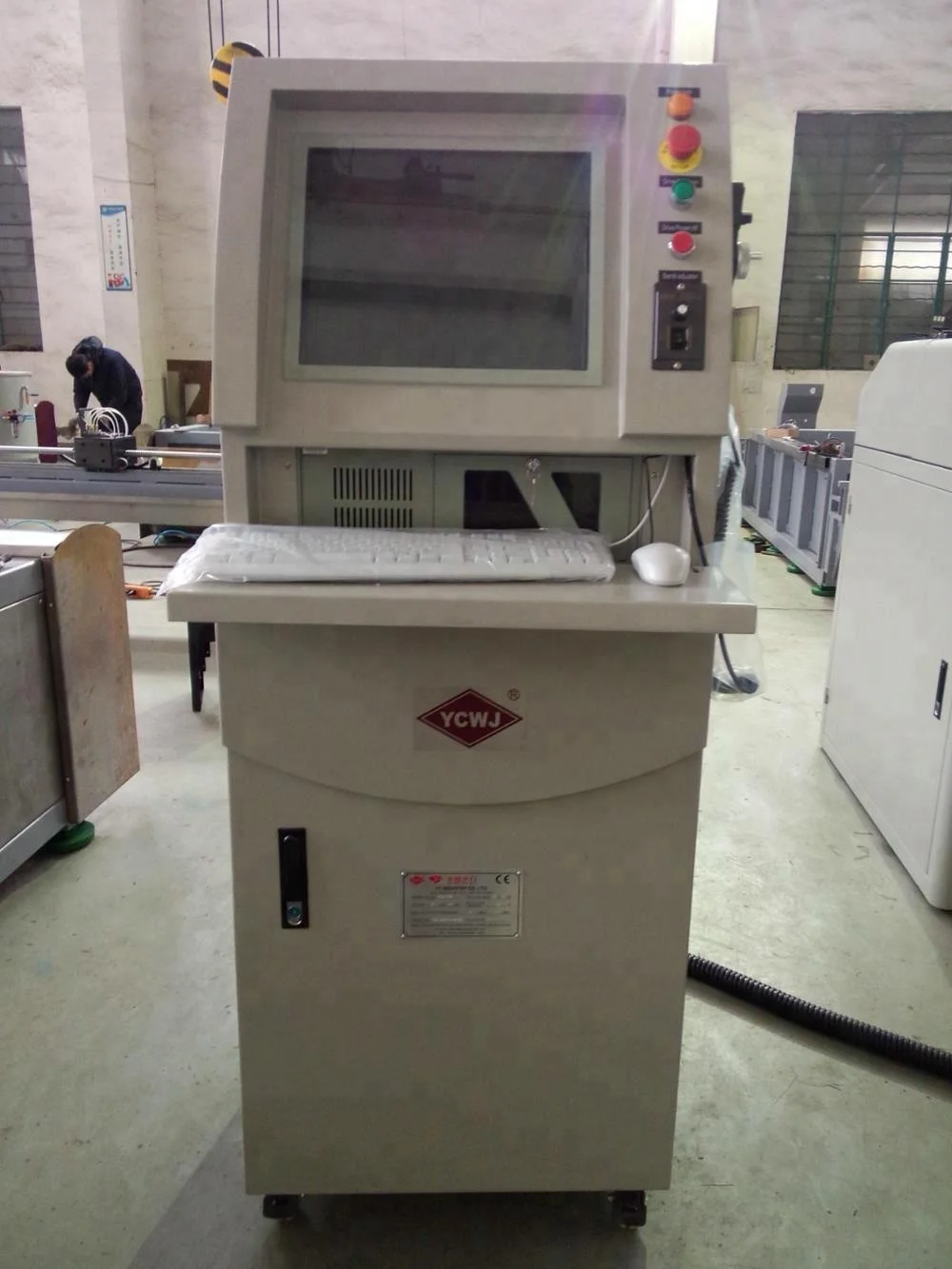

WATERJET CONTROLLER
click the picture for more information |
- 17”LCD liquid crystal display
- DNC on-line working function
- Functions of returning arbitrary point, bending,
and circular arc working auto deceleration.
- Function of cutting figure imitation display.
- 80GB memory hard disk
- MITSUBISHI AC servo driver and motor.
-1GB memory card
- Multilingual function(Chinese English ,etc.,)
- Drive-by-wire and hand-hold controller, - NAIKY PCIMC-6A special software is special for YC.
|
ECS control system is an option |
WATERJET AUTO ABRASIVE FEEDER AND AIR COOLING SYSTEM:
For more information and company news please refer to our official website:www.ycwaterjet.com
Related Products
 |  |  |
| water jet cutting machine(3 axis) | Dynamic 5 axis waterjet machine (marble granite tile design) | MAX series 5 axis waterjet cutting machine (bevel cutting 0-±45°) |
For more product information and company events please refer to our official website: www.ycwaterjet.com
Our Services
1. Pre-sale service |
1.1 YC owns a 10 years team focusing on Waterjet,we promise providing first-time service.
1.2 Any question will be replied within 12 hours ,we promise providing a reasonable and detailed quotaiton.
1.3 welcome Sending material to us, and we will cut into sample as requirement.
2. After-sale service |
2.1: In the guarantee period, if there is an accident, we will response within 12 hours after receiving the news. We will direct the operating staff in the ways of telephoto fax and email. If you still don’t know how to repair, we will send a maintenance staff to the spot within 48 hours after receiving news.
2.2: if need purchase wearing parts , we will response within 12 hours and provide technical assistance after receiving the news.
Company Information
YC WATERJET is located in Wuxi City with convenient transportation, about 150km away from Shanghai city and 180km away from Nanjing city, it only takes 5 minutes to the slip-road . We have been researching and developing UHP water jet cutting equipment since 2005. This equipment is currently the only new cold cutting technology in the world which has been applied to many industries. Low noise and no pollution , it can cut almost all kinds of materials with its unique advantage in the cutting field. We always keeps learning the latest technology in the world’s cutting field, we has absorbed the technology of USA Flow, Hypertherm(Accustream) and Germany KMT, achieved the perfect optimization and sold to more than 40 countries in the world. We also have agents in UK, Hungary, South Africa, Iran and Cameroon.
Customer cases:
For more information and company news please refer to our official website:www.ycwaterjet.com
Certifications
Contact us
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your processing material, length? Width and cutting thickness?
Name:Sherry Min
Email:sherry at ycwaterjet.com
Tel:86-0510-83953519-8005
Fax:86-0510-83953128
Phone:86-13921189961
web:www.ycwaterjet.com
www.ycwaterjetvideo.com
Skype:linbopiaoxue
