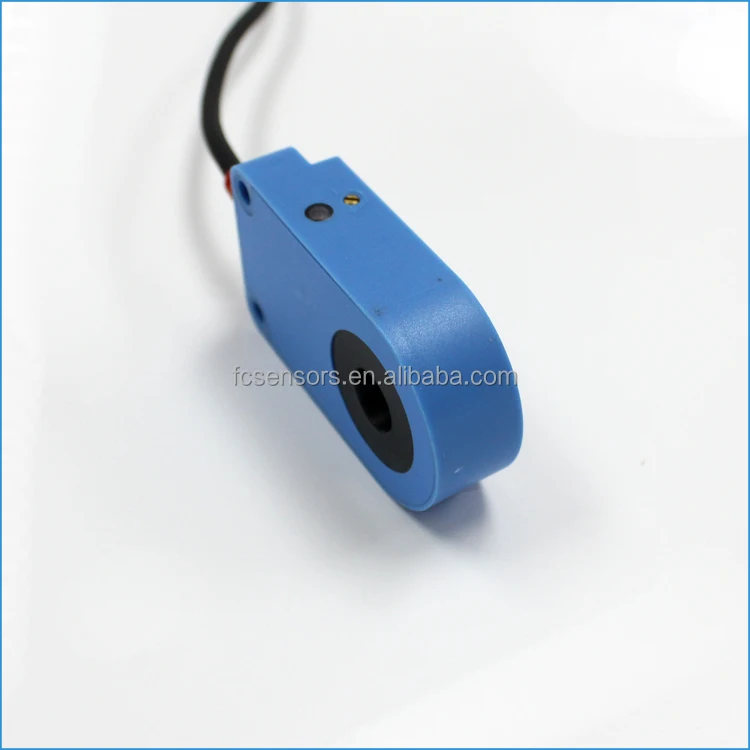

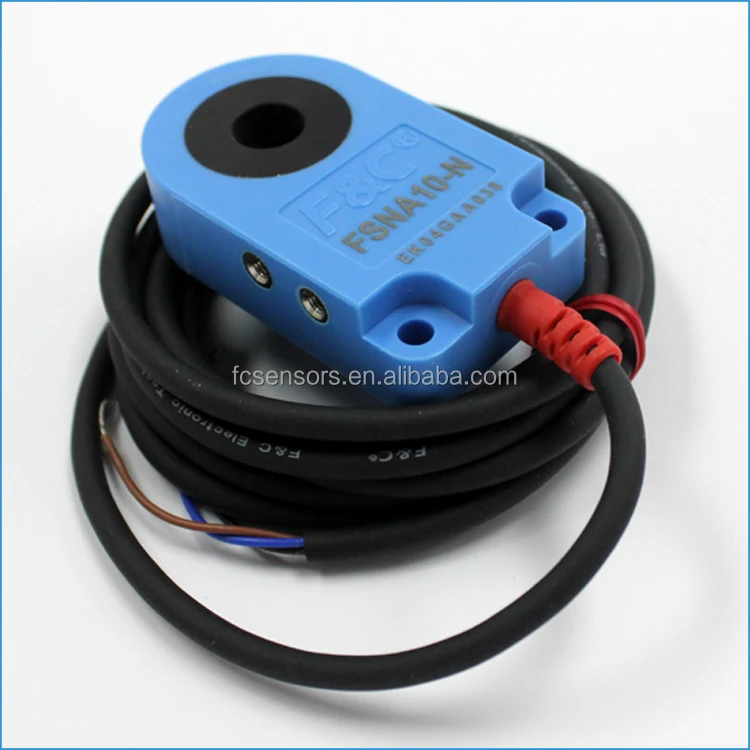

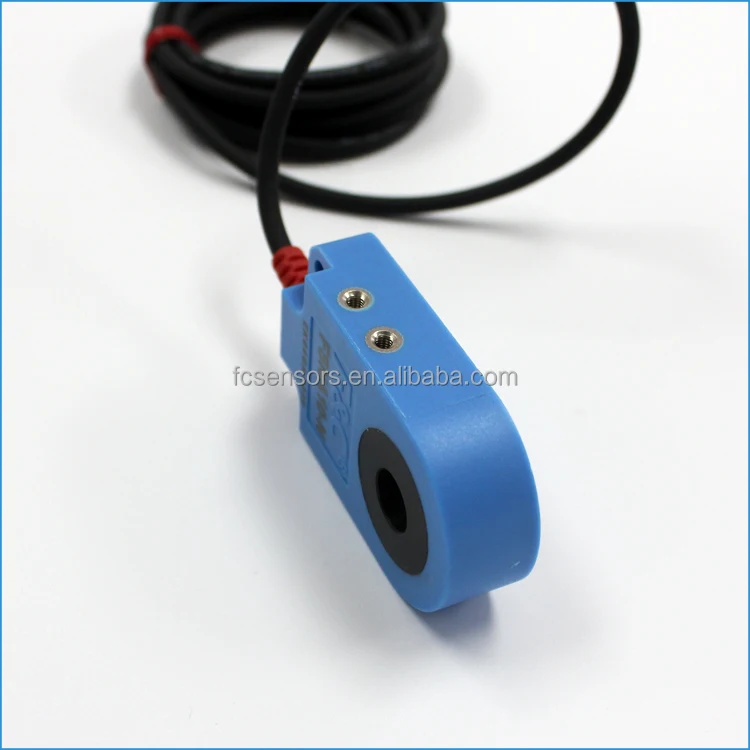

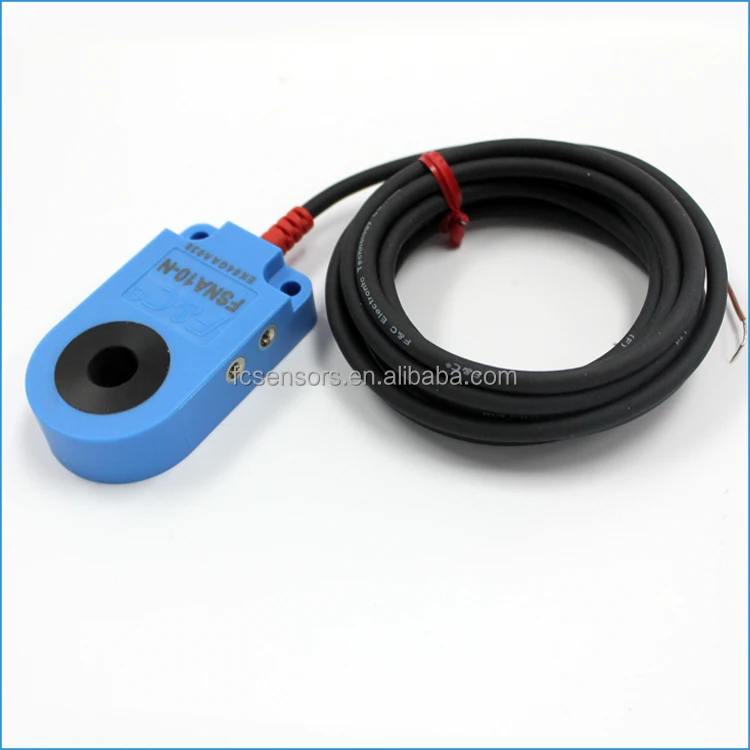

dia 10mm 24V small metal detector iron detector free fall count sensor

Product Overview

Description

dia 10mm 24V small metal detector iron detector free fall count sensor

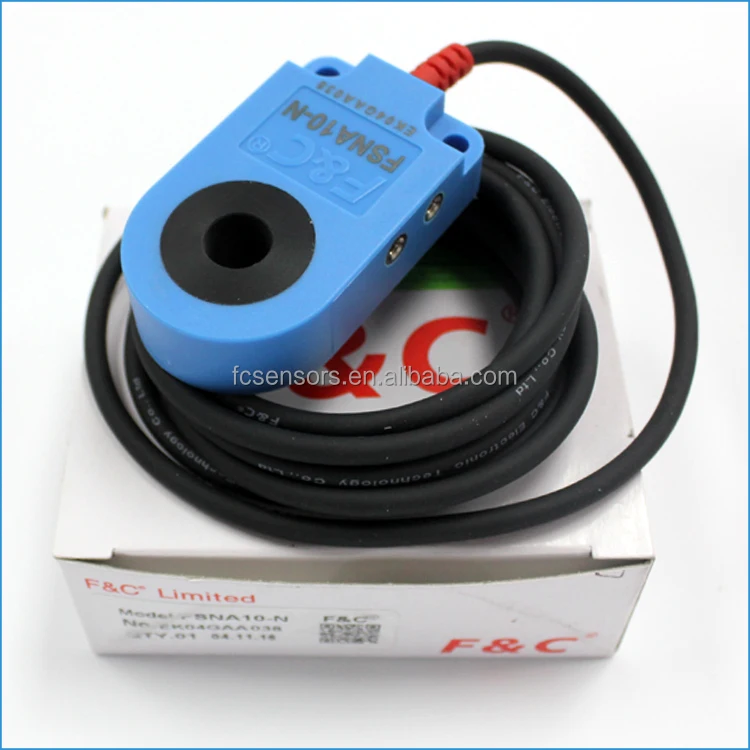

Product display









Specification



Model	FANA03 series	FSNA06 series	FSNA10 series	FSNA15-N series	FSNA21 series
Detection& distance	3mm	6mm	10mm	15mm	21mm
Response frequency	1KHz
Detectable object material	iron,steel
Hysteresis	2%
Operating& voltage	12-24VDC 10%
Current consumption	<10mA
Load current	<100mA
Leakage current	≤0.01mA
Protection circuit	Power anti-received protection and shortcircuit protection
Residual voltage	<1.0V at ;100mA
Operating&Temperature	-25°C-+70°C
Waterproof degree	IP67
Material	PBT
Wiring method	φ4.0×2M/3-wires



Dimension Drawing



Certifications



More product

Our services





1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.

Enterprise profile

F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
