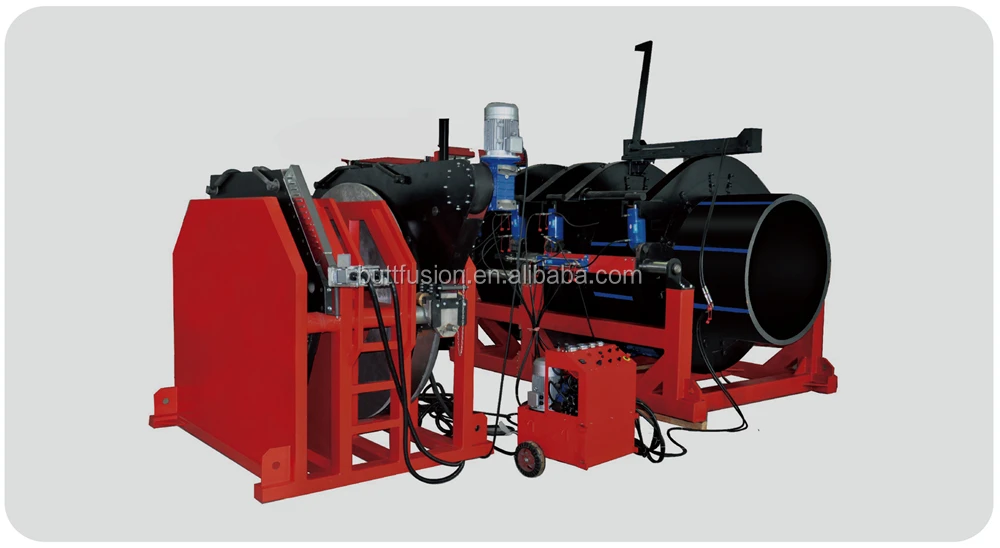

rothenberger brand large pe pipe 2000mm Hydraulic Butt Welding Machine
- Category: Plastic Welders >>>
- Supplier: Rothenberger (Wuxi) Pipe Technologies Co. Ltd.
Share on (60469064208):
Product Overview
Description
bada brand large pe pipe 2000mm Hydraulic Butt Welding Machine
Product Description
USES and features:
* Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
* Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.
* Removable PTFE coated heating plate with high accurate temperature control system.
* Electrical planing tool.
* Robust structure design, suitable for multi-jobsites.
* Changeable welding position enables to weld various fittings more easily.
* High accurate and shockproof pressure meter.
* Separate two-channel timer records time in soaking and cooling phases.
* PLC control is an option.
| SHD2000 | ||
|---|---|---|
| Pipe Size(mm) | 1200.1400.1600.1800.2000 | |
| Heating Plate Max.Temp | 270 | |
Temp.Deviation in Surface (170~250℃) | ≤±10 | |
| Pressure Adjustable Ranges | 0 - 16Mpa | |
| Working Voltage | 380VAC,3P+N+PE,50Hz | |
| Heating Plate Power | 80kw | |
| Planing Tool Power | 7.5kw | |
| Hydraulic Unit Power | 7.5kw | |
| Total power | 95KW, 20570KG | |
