Product Description

APPLICATIONS

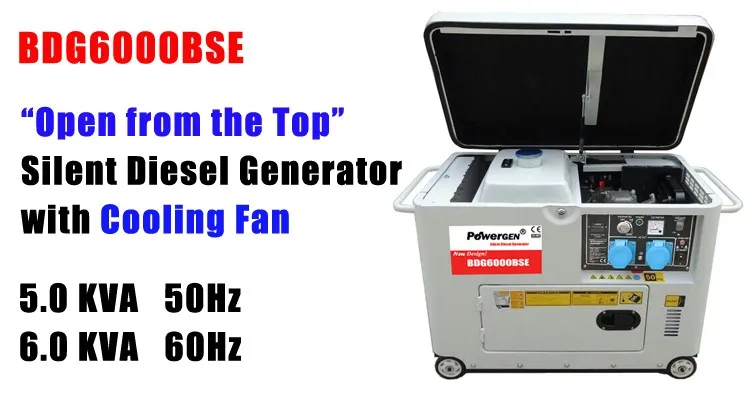

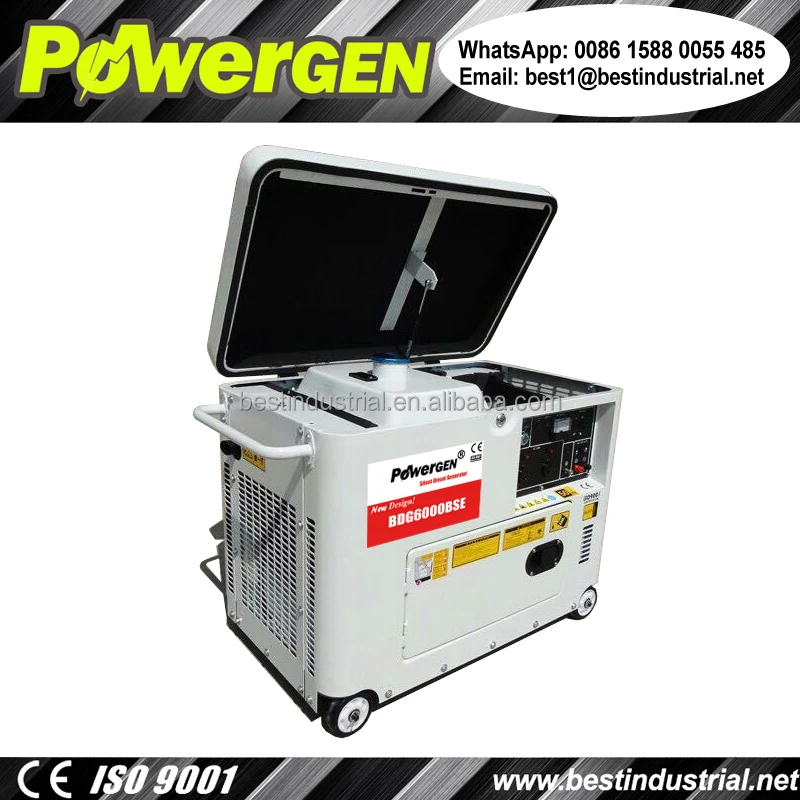

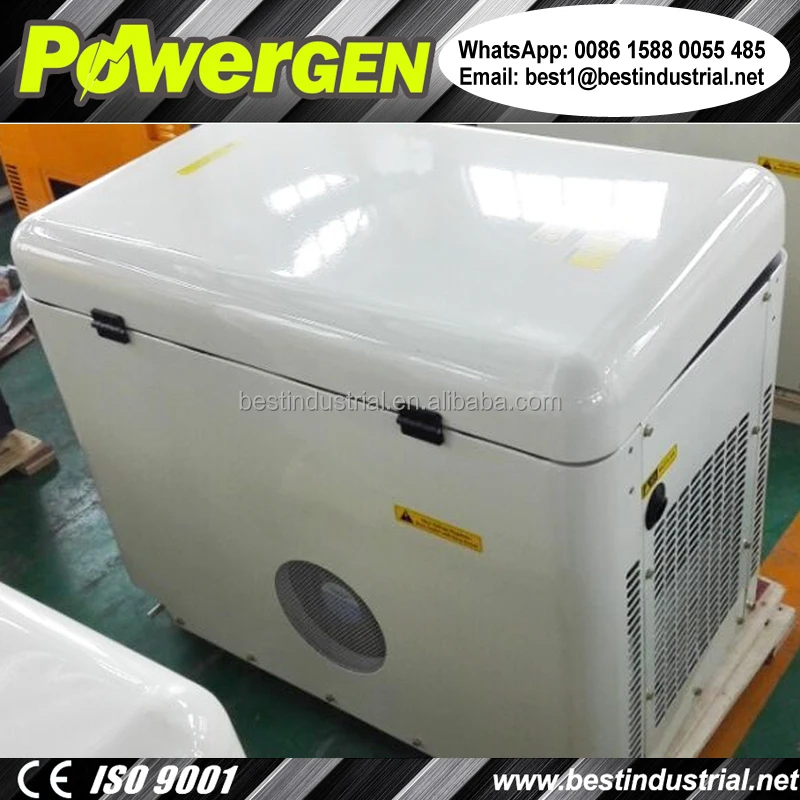

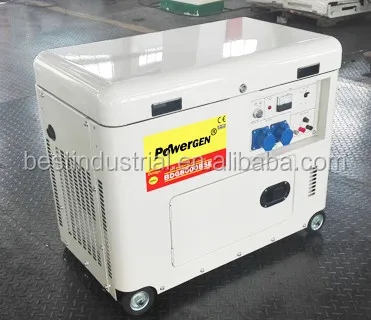

The silent diesel generator model BDG6000BSE 5KW 50Hz or 5.5KW 60Hz  is usually used in places such as houses, shops without connection to a power grid, or as emergency power-supply if the grid fails.

The model BDG6000BSE is featured for Easier Refueling, Easier Maintenance due to the Open from the top design and low working temperature thanks to the cooling fan.

MAIN PERFORMANCE INFO

1) Rated power: 5KW @50HZ / 6KW @60HZ

2) Powerful Diesel engine 186FAE 10HP

3) Electric/key started(default), or remote started(optional)

4) 15-Liter day tank for 8hrs @ full load

5) Outlets and plugs customized available

6) DC 12V 8.3Amp charging facility

7) AVR delivers non-fluctuating power

8) Low oil pressure auto shut down system

Specifications
\t
SPECIFICATIONS OF SILENT DIESEL GENERATOR SET
\t
MODEL NO.:
\t
BDG6000BSE
\t
Frequency
\t
Hz
\t
50
\t
60
\t
Voltage
\t
V
\t
220-240
\t
110-240
\t
Alternator type
\t
\t
Single phase, 2-pole, Self-excited, Brushless with AVR,  Insulation class F
\t
Rated Output
\t
KW
\t
5.0
\t
5.5
\t
Max. Output
\t
KW
\t
5.5
\t
6.0
\t
DC Output
\t
V/Amp
\t
12/8.3
\t
Control Panel
\t
\t
Key starter, Volt meter, Current meter, Hour meter, Circuit breaker, Outlets
\t
Engine Type
\t
\t
Diesel, Air-cooled, Single cylinder, 4-stroke, 418cc
\t
Engine Model
\t
\t
BD186FAE
\t
Engine Power
\t
HP
\t
10
\t
Bore x Stroke
\t
mm
\t
86 x 72
\t
Engine Speed
\t
RPM
\t
3000
\t
3600
\t
Fuel Tank Capacity
\t
L
\t
15
\t
Fuel Consumption
\t
L/Hr.
\t
1.65 @ full load
\t
1.82 @ full load
\t
Cranking Battery
\t
\t
Sealed Maintenance-free Lead acid Battery 12V 30AH
\t
Noise Level @7M
\t
dBA
\t
65
\t
Packing Dimensions
\t
LxWxH
\t
940 x 550 x 750
\t
N.W./ G.W
\t
Kgs
\t
165/168
Features

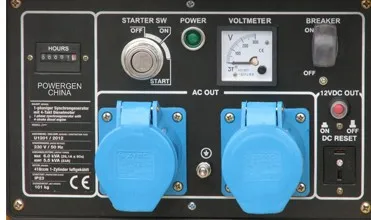

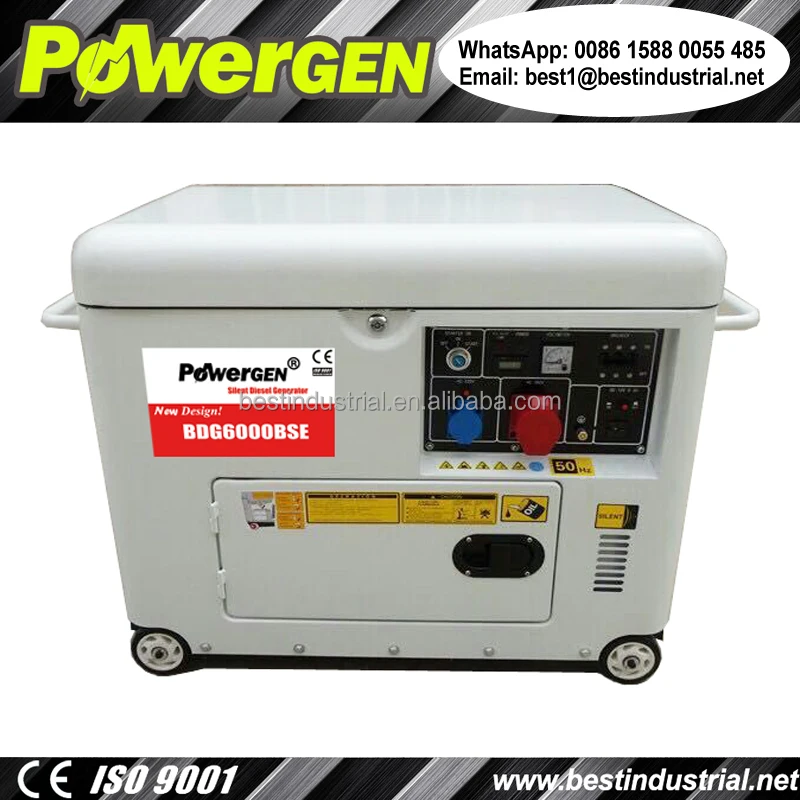

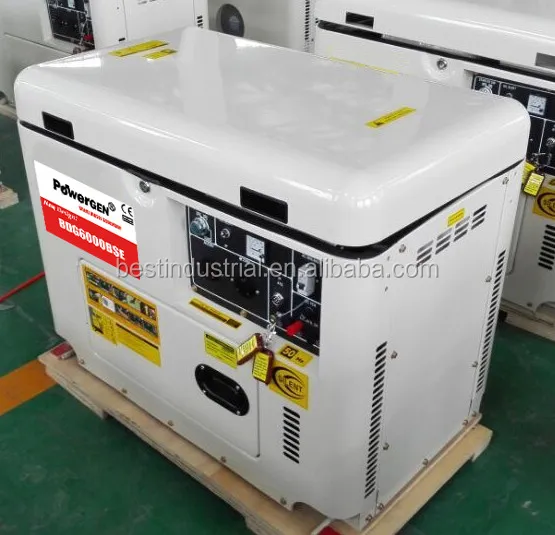

Control Panel (with Electric Starter)

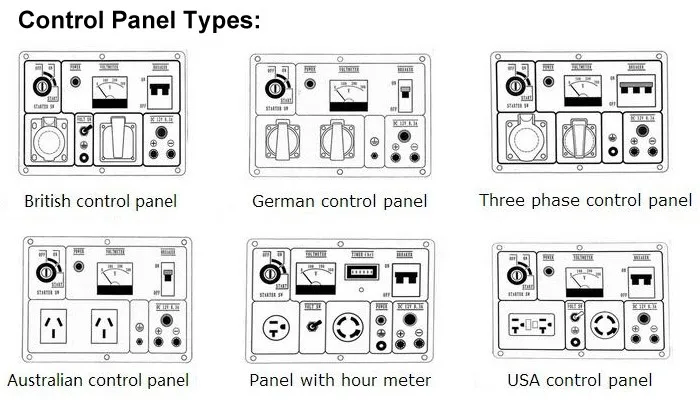

(Socket type can be made as per requirements)

- Electric/Key Starter
- Voltage Meter, Working hours meter
- Circuit Breaker
- Low oil pressure alarm
- Socket:  2x220V etc. (customized available)
- DC output: DC12V 8.3A

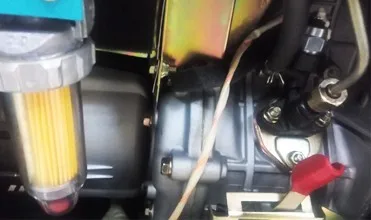

Diesel Engine

- Engine Model: BD186FAE
- Brand: POWERGEN
- Power: 10HP
- Type: Air-cooled, Single Cylinder, 4-stroke, 418cc
- Start method: Electric start, Remote Start (Optional)

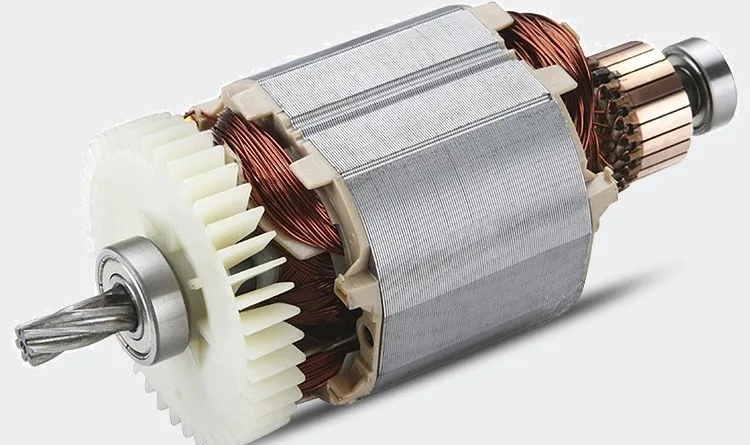

Full Copper Durable Alternator

Model: PG-6
Brand: POWERGEN
Power: 6KW

Type: Brush, with AVR, Self-excited

Full 100% copper coil, robust alternator can withstand a long time of coninuous working.

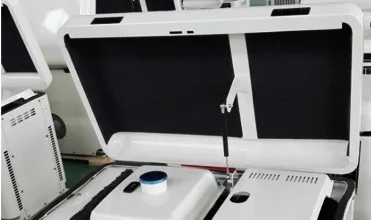

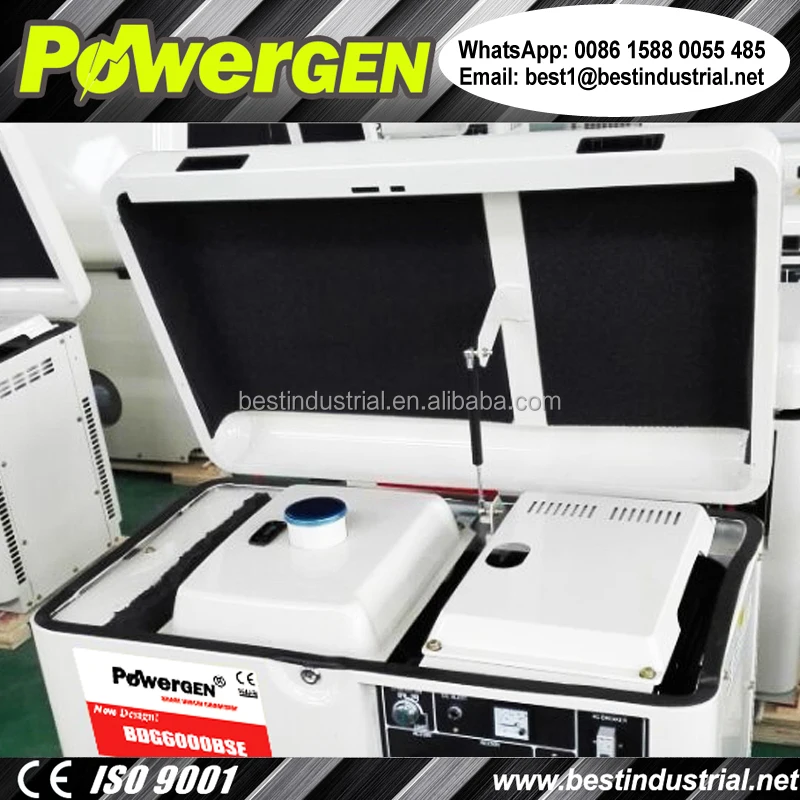

Open From the Top

- The design of "open from the top" ensures easier refueling and maintenance.

- The hydraulic type supporting rod make it fast open and slow close of the cover to ensure user safety

- Special treated rubber is adhering to the edge of the cover to ensure safety and low noise

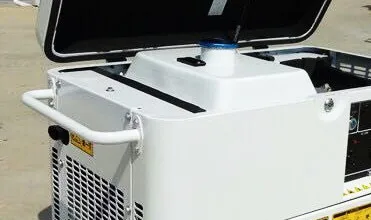

Lifting Handles

- Durable Framework withstand the various kind of bumping working conditions.

- 2 lifting handles for easier caring and lifting

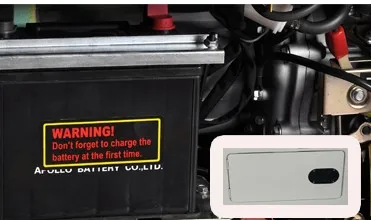

Sealable Door

-  One sealable door for easy maintenance access to the engine and battery.

- Starting Battery: 12V30AH
- Battery charger: equipped inside the generator

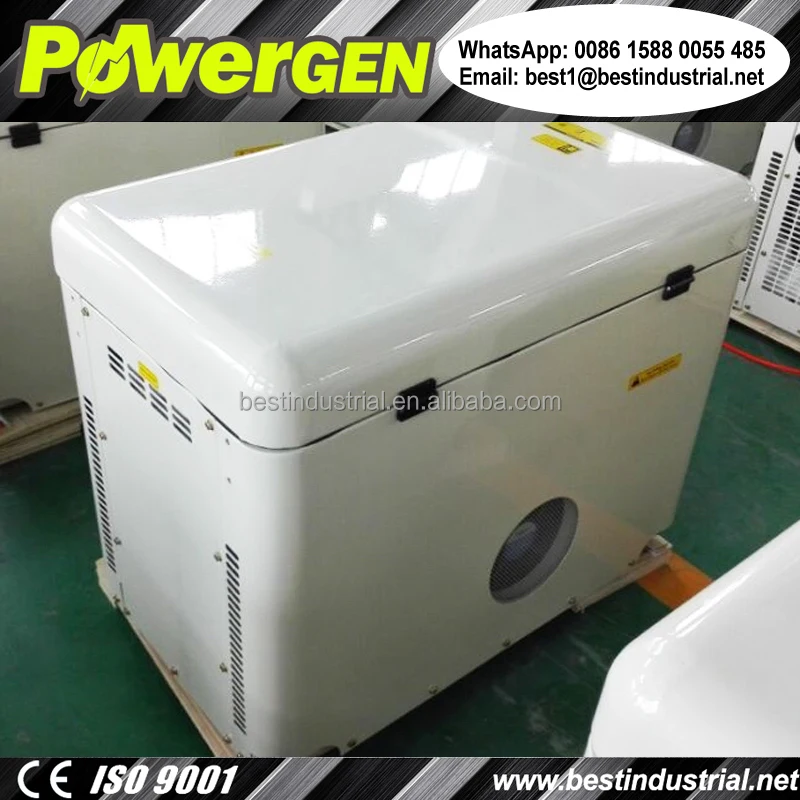

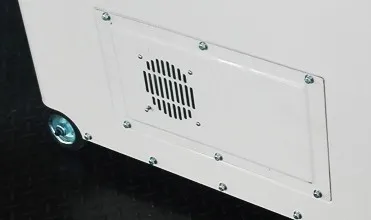

Cooling Fan

- An extra cooling fan is installed to keep the working temperature at a certain low level.

- The engine and generator life span is extended thanks to the extra cooling fan

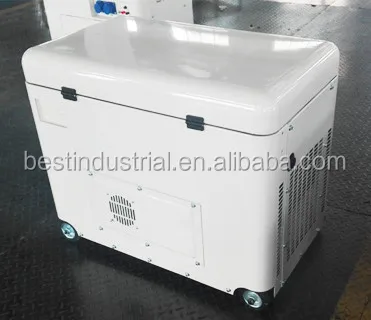

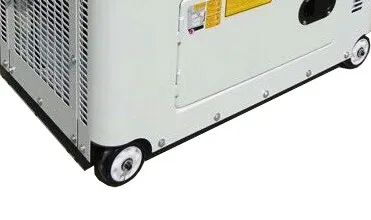

Wheels/Casters

Size: 4 inches
Numbers: 4 x Fixed Casters
The casters are durable and made to withstand a variety of conditions that generators endure, such as bumping road etc.

Optional

ATS (Auto Transfer Switch)

With an ATS, the generator will be auto started or auto shut down while the city power is cut or recovered.

Digital LCD Panel

All the parameters of the generator such as Volt., KW and Hz will be shown on the LCD.

Remote Start/Off Controller

With a remote controller, you can start or turn off the generator within a distance of 100meters.

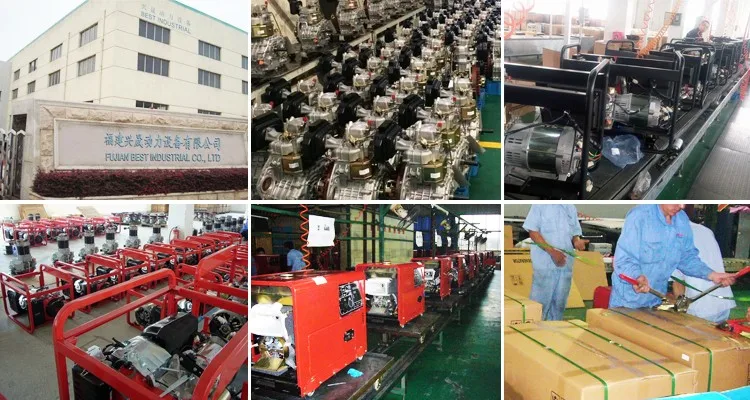

Assembly Line

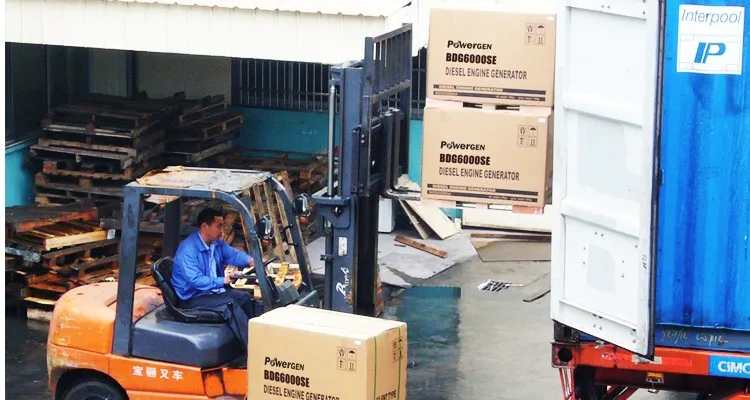

Packaging
\t
Packaging
\t
Size (mm)
\t
950 (L) * 560 (W) * 760 (H)
\t
Gross Weight (Kgs)
\t
168
\t



Packaging Details
\t

1) Inner Packaging: Polybag

2) Outer Packaging: Thick Carton with
small wooden pallet at the bottom.

3) Wrapping tape
