Electro Magnetic Powder Brake/Clutch

Product Overview

Description

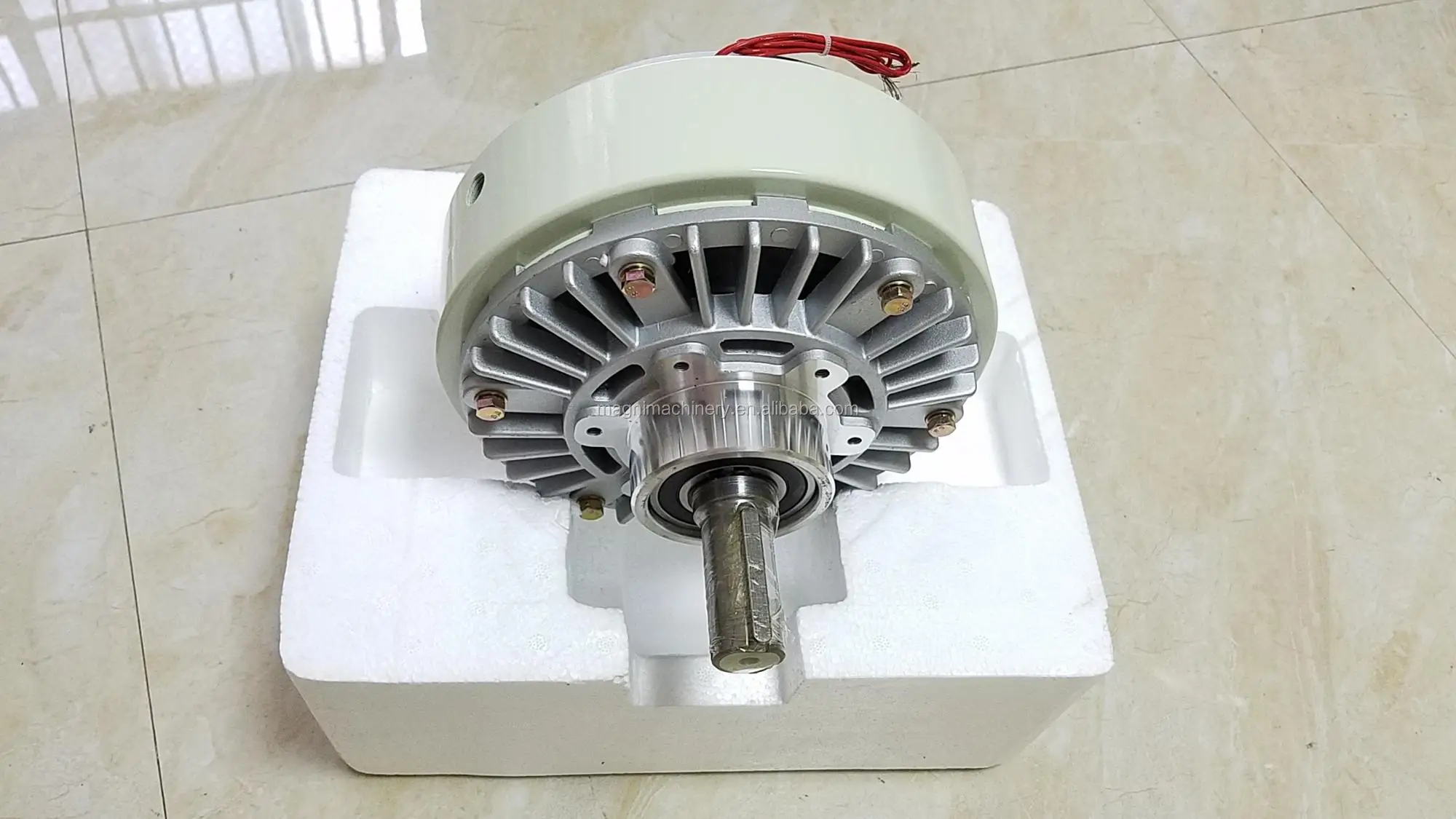

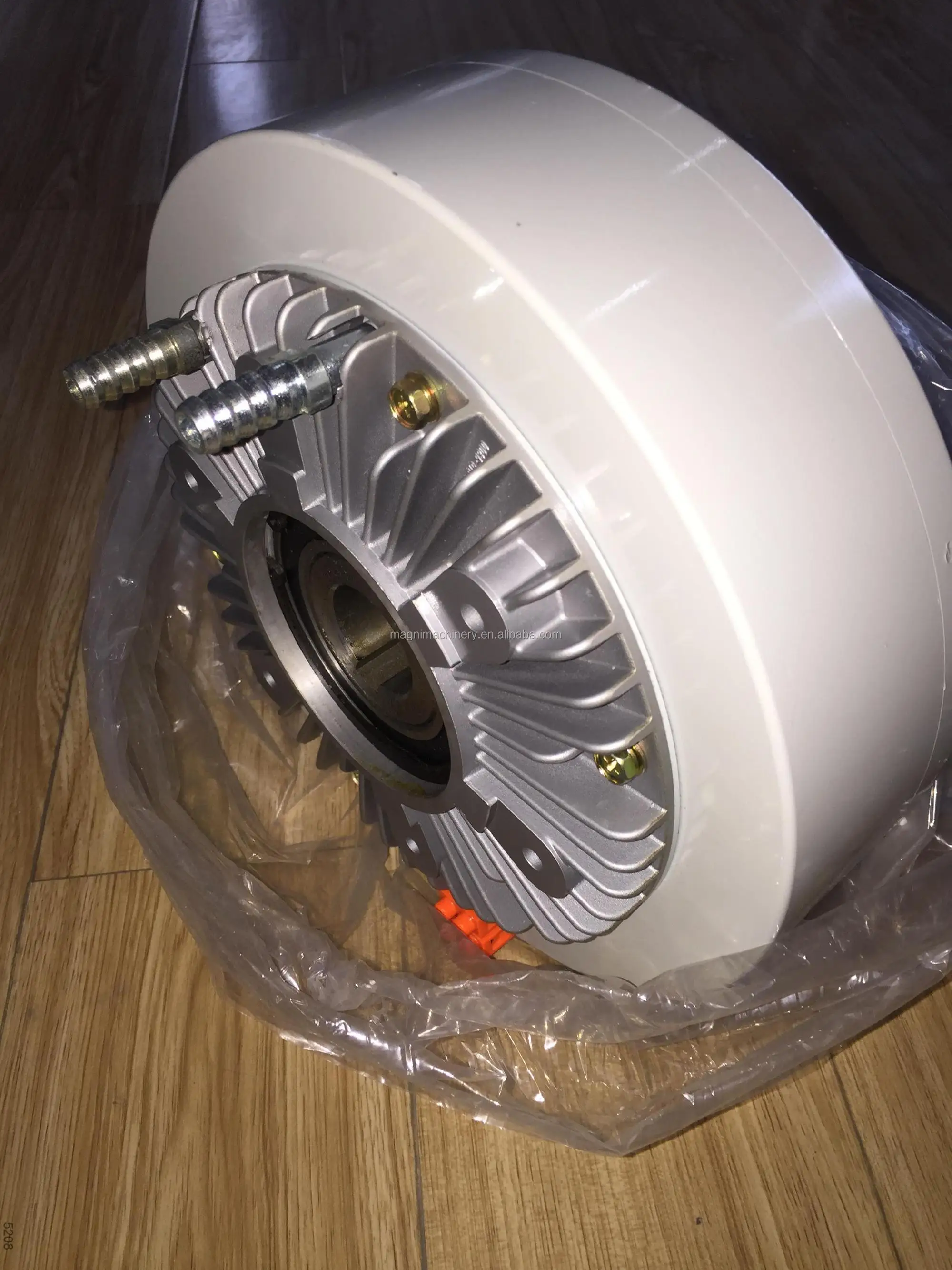

Electro-Magnetic Powder Brake/Clutch

Introduction of magnetic powder brake

The electro-magnetic powder brake/clutch is composed of active rotor(input shaft), driven rotor(output shaft) and Yoke with excitation coil. The three parts are assembled relative concentric and form a system which can rotate relatively. The annular gap between active rotor and driven rotor is full of alloy powder which has high magnetic conductivity.



Features of magnetic powder brake

• The transmission torque of magnetic powder brake has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.
• The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.



Application of magnetic powder brake

Due to the features of the electro-magnetic powder clutch and brake, they have been widely used in paper making, printing, plastic items, rubber industry, textile industry, printing and dyeing,wire and cable, metallurgy industry and tension control of winding and winding in roll material processing industry.



About life of magnetic powder brake
The use of magnetic powder clutch/brake life lies in the life of the magnetic powder.In general, magnetic powder in the condition of not overloaded, its service life is 4500~7500 hours;But in some condition it can prolong service life many times, such as: reduce the electro magnetic powder clutch/brake torque, relative sliding speed and slip power to the rating of 50% 70%.That is to say, when the design, allowance enlarge some as much as possible.



About the torque of magnetic powder brake
Electro-Magnetic powder clutch/brake factory after use, the magnetic powder in the early stages of using break-in happens, torque will be slightly down, can be adjusted by electric current to compensate.



Technical Parameter of magnetic powder brake



Model	Rated torque(N.m)	Current(A)75℃	Allowable rotational speed(r/min)	Flywheel moment  J(kg cm2)	Slip power  (W)		Air quantity(m3/min)	Weight (Kg)
					Self cooling	Air cooling
MKB-0.06YN	0.6	0.46	1800	6.10×10-5	20	38	0.1	1.7
MKB-0.3YN	3	0.53	1800	3.00×10-4	50	80	0.1	3.1
MKB-0.6YN	6	0.81	1800	6.00×10-4	70	130	0.1	3.8
MKB-1.2XN	12	0.94	1800	1.34×10-3	150	250	0.2	5.2
MKB-2.5XN	25	1.24	1800	3.80×10-3	230	380	0.4	9
MKB-5XN	50	2.15	1800	9.50×10-3	360	700	0.6	14.5
MKB-10XN	100	2.40	1800	3.50×10-3	600	1100	1.1	34
MKB-20XN	200	2.70	1800	9.15×10-2	860	1900	1.6	53
MKB-40XN	400	3.50	1800	2.40×10-1	1300	2800	2.0	100



Application of magnetic powder brake

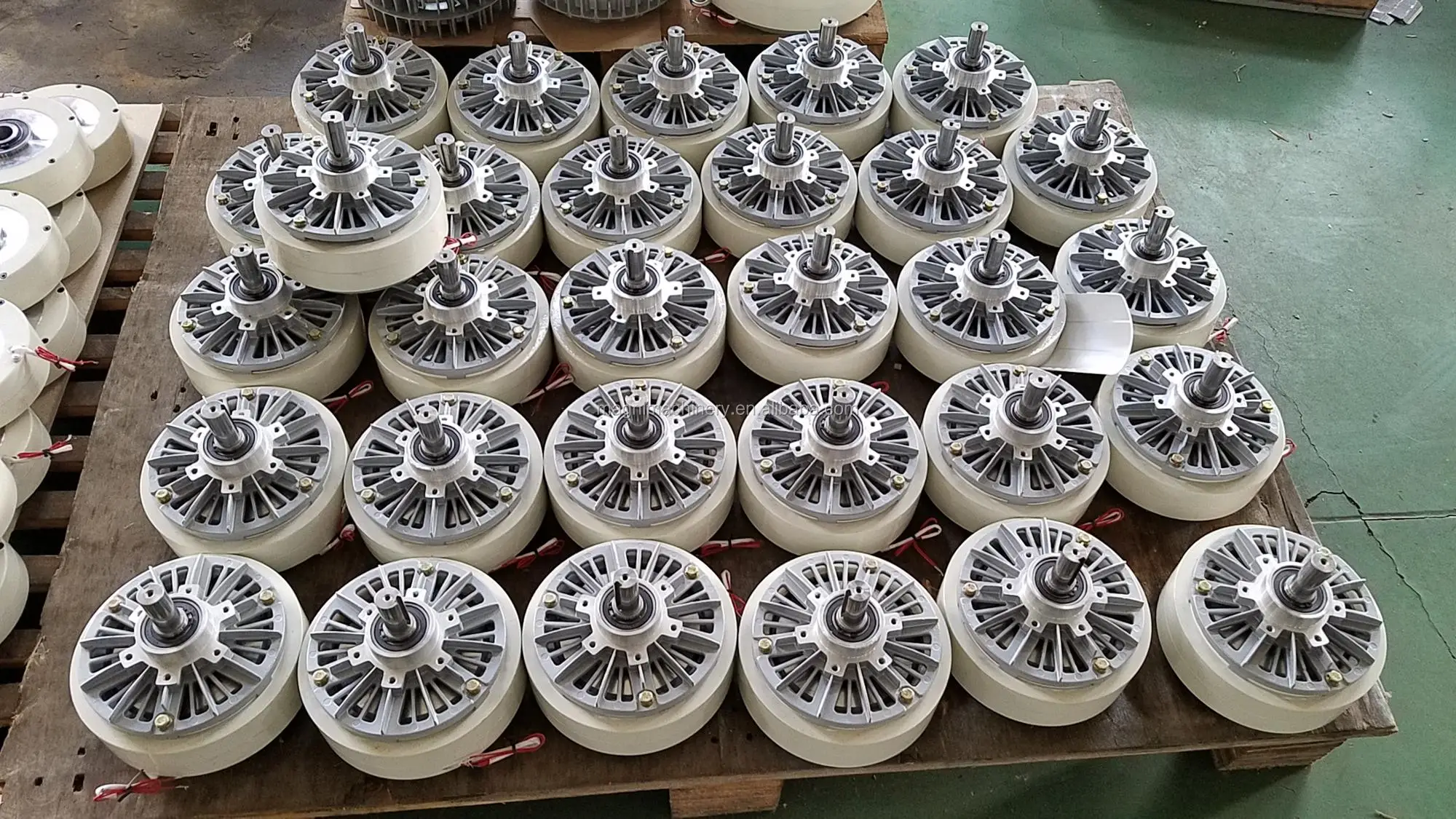

Workshop

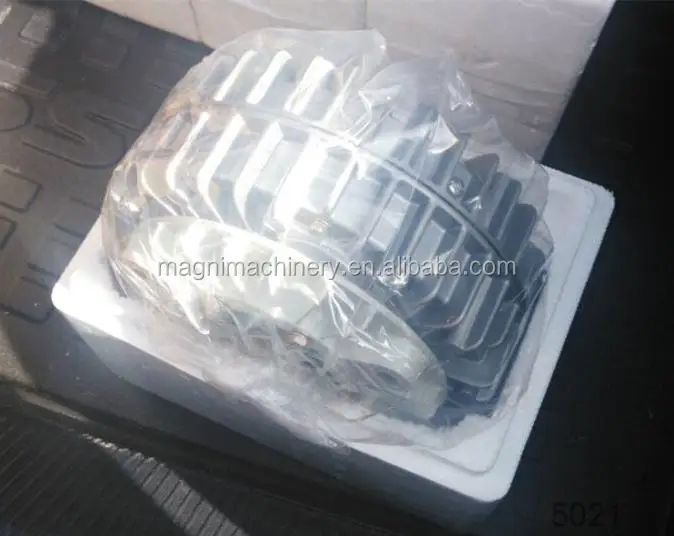

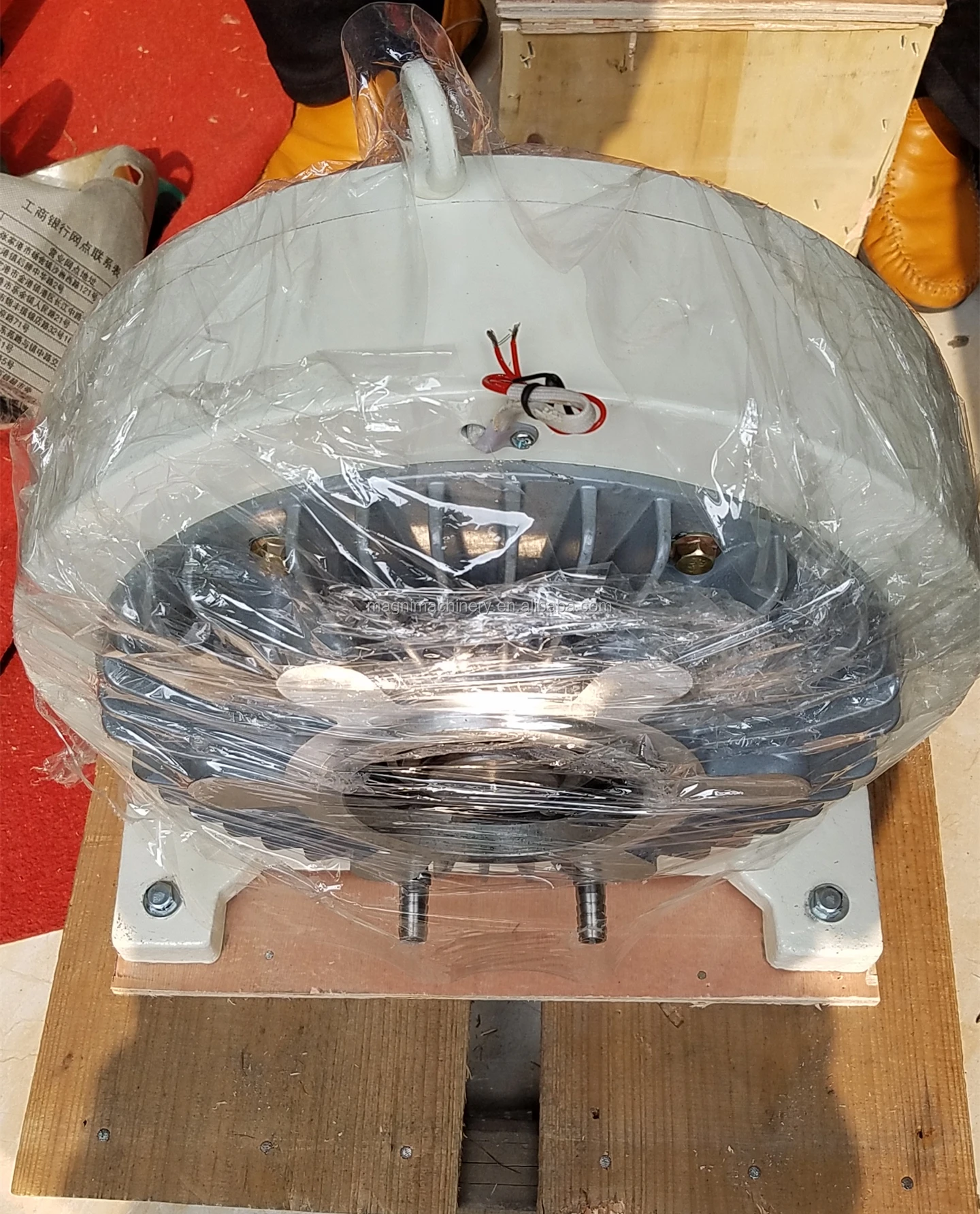

Shipping and packaging





FAQ

1.      How can you contact us?

Pls contact us by email,Skype,Whatsapp.



2.      How can you place the order from us?

You can let us know your detail request,we can design the best solution for you;and if you have your detail engineer drawing,pls don’t hesitate to send us.



3.      What is the MOQ in our company?

As for most of products,we don’t have MOQ.



4.      What is your delivery time of the products?

For air shaft and other customized products need time to manufacture,the delivery time is about 7~15days;For Magnetic powder brake/clutch,Air disc brake/clutch,tension control system…etc,we have stock in factory,the delivery time is 3~5days.



5.      What is your trade term?

Usually we accept trade by EXW,FOB,CIF…etc,you can choose the best way you would like.
